TV Logic LVM-071W Manuale utente
Multi
Multi-Format LCD Monitors
LVM Series
User’s Manual
LVM-071W
Contents
LVM-071W
Warnings ........................................................................................... 2
Features ............................................................................................ 3
Name & Function of Each Part ......................................................... 5
Menu Contents ................................................................................. 9
Other Functions .............................................................................. 15
DVI Digital/Analog Input Signal Format .......................................... 19
Product Specification ..................................................................... 21
2
Warning
· Always use set voltage.
- DC 12V
· If liquid is spilled on or impacts this product, please disconnect
the product immediately and seek professional help before continued use.
· Keep unit disconnected during extended periods of disuse.
·
·
Keep unit in a well-ventilated place to prevent overheating.
·
·
Do not install the product near any heat-generating equipment.
Also, keep the product out of direct sunlight or dusty areas.
·
·
Only clean the product with a noncommercial, mild and neutral detergent.
·
·
When transporting the product, make use of its original packaging for safer carriage.
FCC (Federal Communications Commission)
This equipment has been tested and found to comply with the limits for class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interface when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential to correct the interference at
his own expense
Warning!! : Change or modifications not expressly approved by the manufacturer
responsible for compliance void the user’s authority to operate the equipment.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packing indicates that this product shall not be treated
as household waste. Instead it shall be handed over to the applicable collection point for
the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequence for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources.
!
3
Features
Multi-Format LVM-071W Series unit has the following features:
Compatible with varied SDI signals
The product is compatible with varied SDI Signals
- 480i,576i,720p,1035i,1080i,1080p,1080psf
Compatible with varied analog signals
The product is compatible with varied analog signals
- Composite, S-Video, Component, RGB
Compatible with varied DVI Digital/Analog Signals
DVI input is standard equipment
Compatible with VGA Signals using DVI-I connection
Waveform/Vector Scope/Audio Level Meter
Waveform & Vector Scope available for SDI Signals
Embedded Audio Level Meter
Audio in & out
Built in Audio Disembedder and Internal Speakers
Stereo Audio out using phone jack
External Audio in for Mono Speaker out
Knob Control
Easy to adjust user configuration using the control knobs.
BLUE ONLY/MONO
H/V delay
LVM-071W
4
LVM-071W
Wide Variety of Markers & Safety Areas
Center Marker, Safety Area Marker, Aspect Marker, Display Size(Scan)
Pixel To Pixel
Provides both full screen and unscaled native image.
Wide Screen/LED Backlight
24Bit RGB Interface Panel
DC Compatible
The product is powered by normal 12V source.
Remote control function
Simple remote controllability with single cable connection, no additional
modules required
Additional Features
Active Loop Through/SDI, VESA Mounting Standard, 300:1 contrast ratio, 350 cd/m2
brightness, OSD user interface, Rack Mountable
5
LVM-071W

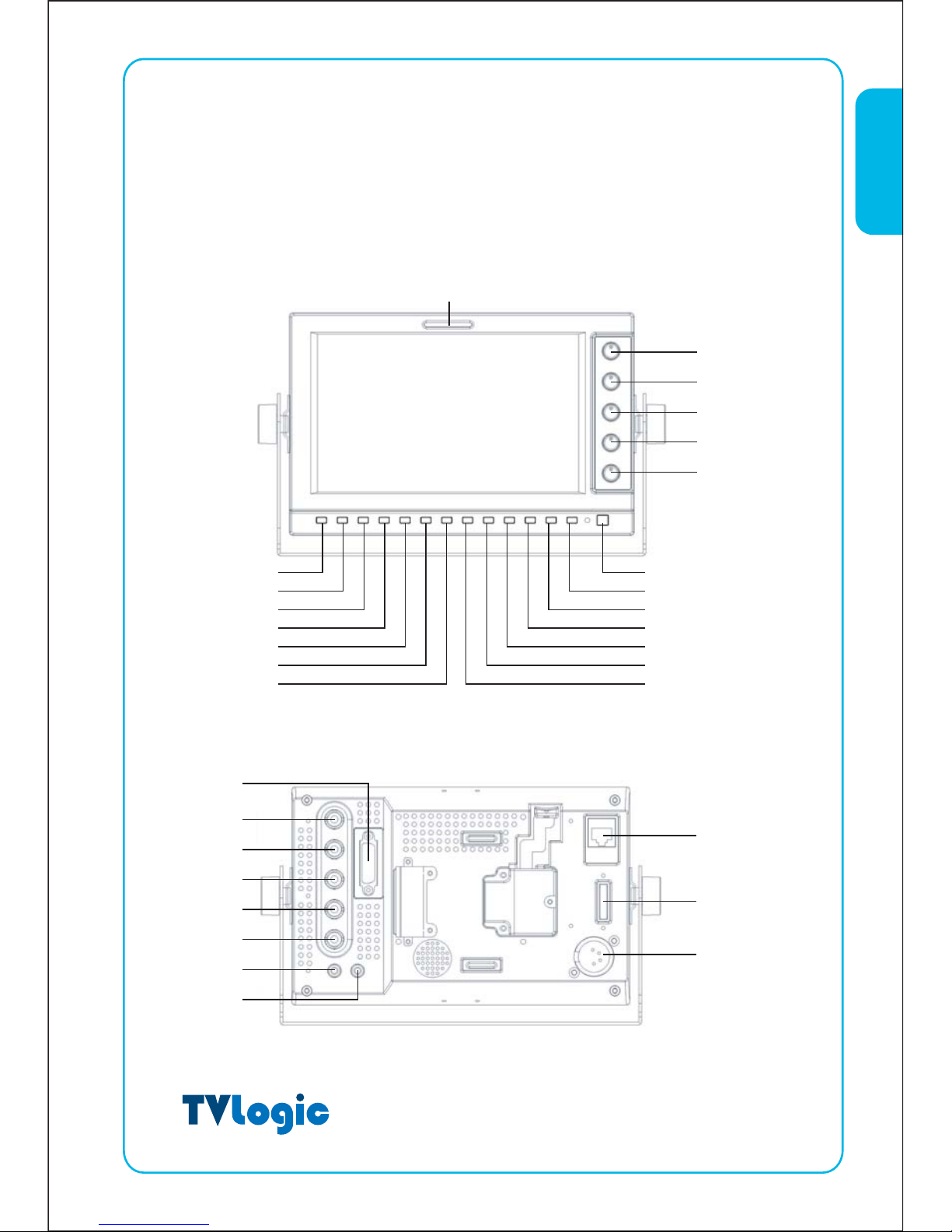

Name & Function of Each Part
ANALOG
DVI
SDI
UNDERSCAN
ASPECT
MARKER/HVDELAY
BLUE ONLY/ MONO
POWER
ENTER
UP
DOWN
MENU
WAVEFORM/VECTOR SCOPE
PHASE
APERTURE
BRIGHT
CHROMA
CONTRAST
VOLUME
<FRONT>
DVI DIGITAL/
DVI ANALOG
SDI-IN
SDI-OUT
CVBS1/B/Pb
CVBS2/G/Y/S-Y
CVBS3/R/Pr/S-C
AUDIO IN
AUDIO OUT
TALLY
<REAR>
REMOTE
FACTORY PGM
DC IN
6
LVM-071W
<FRONT>
· [ANALOG] button/lamp
Used to select desired Analog Input. (CVB1/2/3, S-Video, Component, RGB)
· [DVI] button/lamp
Used to select desired DVI Input. (DVI DIGITAL, DVI ANALOG)
· [SDI] button/lamp
Used to select SDI Input.
· [UNDERSCAN] button/lamp
Used to transfer from OVER SCAN mode to UNDER SCAN mode.
Mode changes in the order of UNDERSCAN -> OVERSCAN -> PIXEL TO PIXEL ->
UNDERSCAN.
#PIXEL TO PIXEL mode is not available in Graphic mode.
· [ASPECT] button/lamp
Used to toggle aspect ratio in SD from standard to anamorphic.
· [MARKER]/[HVDELAY] button/lamp
Used to show MARKER on the screen. The type of marker at work may be selected on
the main menu. Press and Hold the button to activate the HV Delay mode.
· [BLUE ONLY]/[MONO] button/lamp
You may remove R(red) and G(green) from the input signal and play the screen only
with B(blue) signal. Button may be pressed twice to change the screen to MONO
mode. (This mode uses only Luminance value.)
· [PHASE] button/lamp
Used to change the Phase values.
#Phase is not available in DVI Analog and PAL mode.
· [WAVEFORM]/[VECTOR SCOPE] button/lamp
Used to activate the Waveform or Vector Scope. Pressing the button once will activate
the Waveform, pressing the button twice activates the Vector Scope.
7
· [MENU] button
Used to activate the OSD menu.
· [UP] button
Used to navigate menu during OSD menu activation. It may also be used to toggle
clockwise through 1:1 quadrants in native scan mode.
· [DOWN] button
Used to navigate menu during OSD menu activation. It may also be used to toggle
counterclockwise through 1:1 quadrants in native scan mode.
· [ENTER] button
Used to confirm a chosen value (or mode) within the OSD menu.
· [POWER] switch
Power On/Off button. If the signal is normal, LED lights in Green. If the signal is unsup-
ported or disconnected, LED flashes in Yellow.
· TALLY
LED indicating monitor’s current status using optional Remote/RS-485.
· [APERTURE] knob
Used to adjust the picture sharpness between MAX(12) and MIN(-12).
#Aperture is not available in DVI Analog mode.
· [BRIGHT] knob
Used to adjust the degree of brightness between MAX(25) and MIN(-25).
· [CHROMA] knob
Used to adjust the saturation between MAX(25) and MIN(-25).
#Chroma is not available in DVI Analog mode.
· [CONTRAST] knob
Used to adjust the contrast ration between MAX(25) and MIN(-25).
· [VOLUME] knob
Used to adjust the volume between MAX(20) and MIN(0).
LVM-071W
8
LVM-071W
<REAR>
· REMOTE (RJ-45)
Connection for remote control of monitor.
· DVI DIGITAL/DVI ANALOG (DVI-I)
Input connection for DVI-I.
· SDI-IN (BNC)
SDI signal input terminal.
· SDI-OUT (BNC)
SDI signal output terminal.
· CVBS1/B/Pb (BNC)
Signal input terminal used for COMPOSITE1, RGB B, COMPONENT Pb signals.
· CVBS2/G/Y/S-Y (BNC)
Signal input terminal used for COMPOSITE2, RGB G, COMPONENT Y, SVIDEO signals.
· CVBS3/R/Pr/S-C (BNC)
Signal input terminal used for COMPOSITE3, RGB R, COMPONENT Pr, SVIDEO C signals.
· AUDIO IN (Phone jack)
Used to External audio input jack.
· AUDIO OUT (phone jack)
Used to audio output jack.
· FACTORY PGM (40 pins)
Input connector for FACTORY PGM
allowing for firmware updates.
· DC IN (XLR, 4 pins)
Used to supply DC power; 12V.

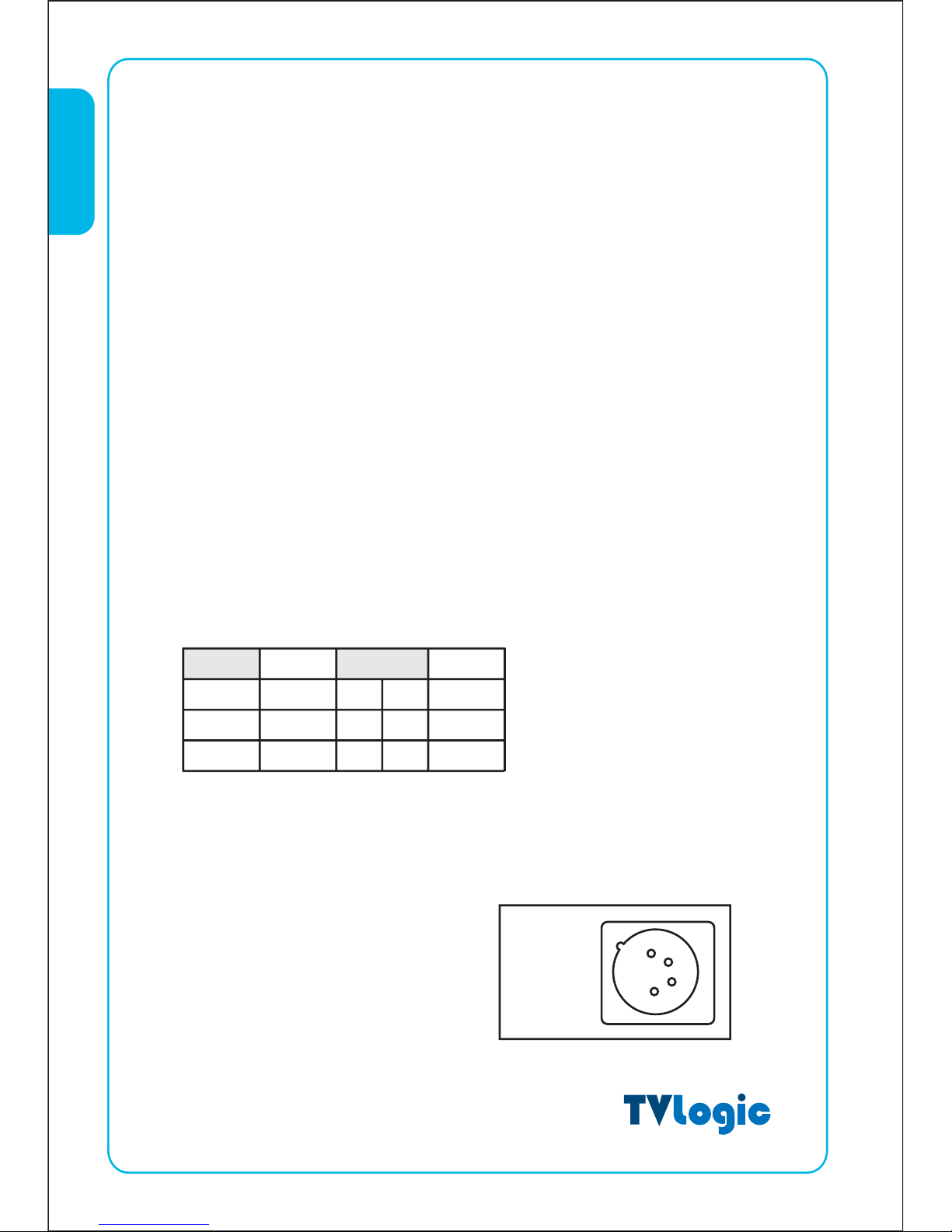

Connector Composite Component S-Video
1CVBS1PbBNoCon.
2
CVBS2 Y G
Y
3CVBS3PrRC
12
3
4
DC IN soket
1: GND
4: +12V
9
Menu Contents
Below is the description of each function of the menu.

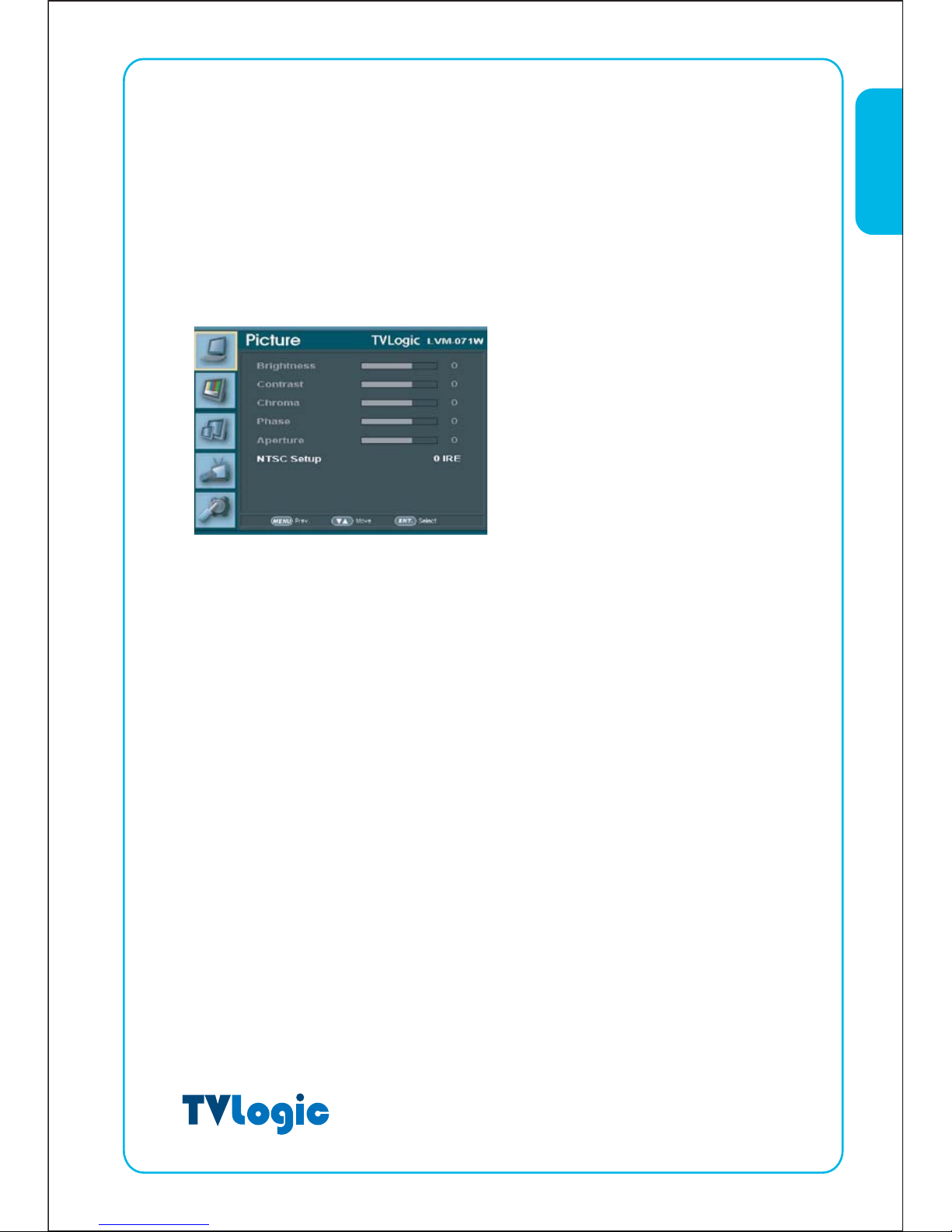

[1] PICTURE
· Brightness
This Item controls the degree of brightness.
#Brightness can be adjusted by using the [BRIGHT] control knob on the front of the
monitor.
· Contrast
This item controls the contrast ratio.
#Contrast can be adjusted by using the [CONTRAST] control knob on the front of the
monitor.
· Chroma
This item controls saturation.
#Saturation can be adjusted by using the [CHROMA] control knob on the front of the
monitor.
· Phase
This item controls Phase value (Hue).
#Phase value can be adjusted by press the [PHASE] button on the front of the
monitor.
LVM-071W
