HD-One DX/DX500
HDMI Extender
User Guide V2.10
tvONE 1
Welcome
Thanks for buying this Magenta HD-One DX or DX500. The Magenta HD-
One DX/DX500 series of video extenders extends HDMI or DVI signals
over category 5e/6/6a/6e/7 cable.
The Magenta HD-One DX/DX500 does not support distribution through
an Ethernet network. Do not connect your unit to any sort of
networking or telecommunications equipment.
For best results
▪Use one continuous F/UTP cable with as few breaks as possible, for
example, patch bays, wall plates, or floor boxes.
▪Use F/UTP CAT6 or better cable with solid 24 AWG copper wire.
▪Mount and connect all cables to the HD-One DX/ DX500 series
components before applying power.
▪Make sure that the category cable you intend to use has been tested
to comply with the T568B wiring specification. For more information,
see Cabling pinouts on page 6.
Getting started
Equipment
▪HDMI cables
▪HDMI to DVI adapter cables
▪Category 5e/6/6a/6e/7 cable
2 CSG-DX-500-V2.10

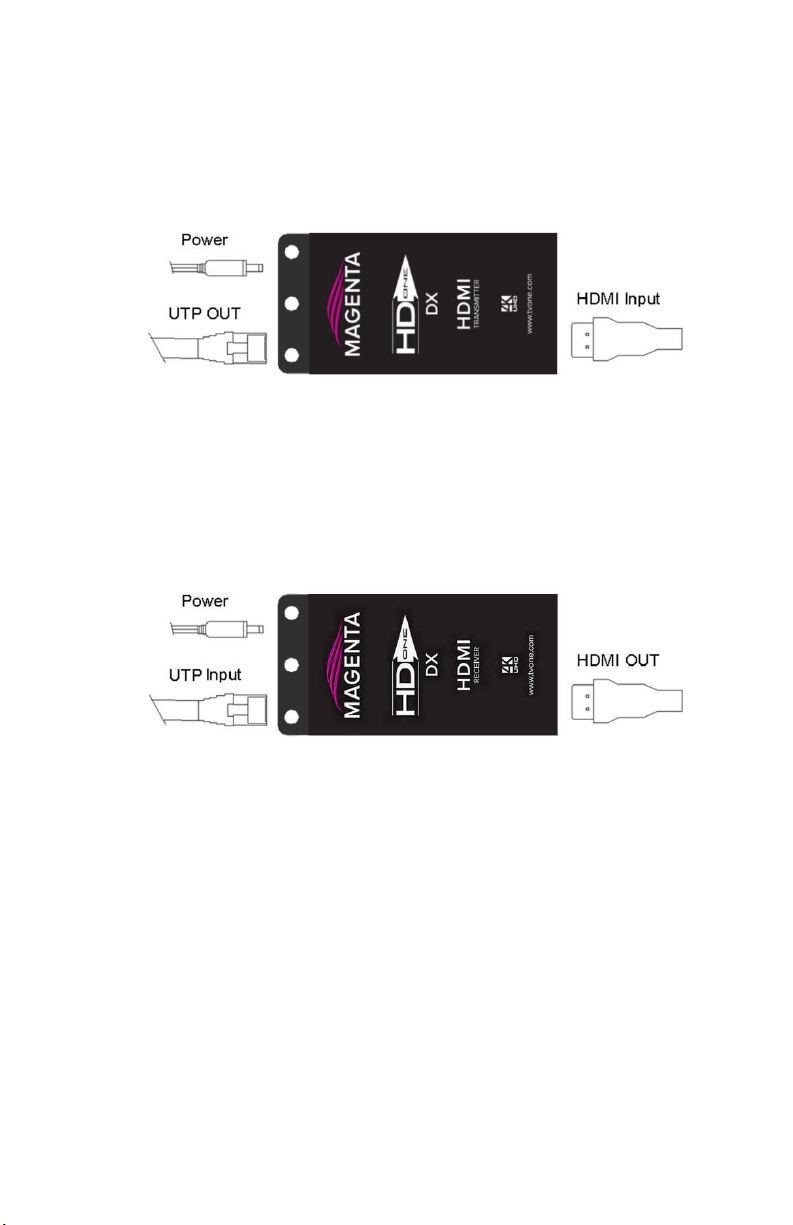

Quick start
1. Connect and then your DX or DX 500 units.
At the transmitter end:
a. Connect the video source to the HDMI INPUT port on
the HD-One DX/DX500 transmitter.
Use an HDMI type A cable. If you have a DVI source use,
an HDMI to DVI adapter.
b. Connect the category cable to the HDBASET OUTPUT
port on the transmitter.
c. Apply power to the transmitter.
At the receiver end:
a. Connect the display to the HDMI OUTPUT port on the
HD-One DX/DX500 receiver.
Use an HDMI type A cable. If you have a DVI source use,
an HDMI to DVI adapter.
b. Connect the Category cable to the HDBASET INPUT port
on the receiver.
c. Apply power to the receiver.
2. Connect and then power on your display.
3. Connect and then power on your video source.
tvONE 3

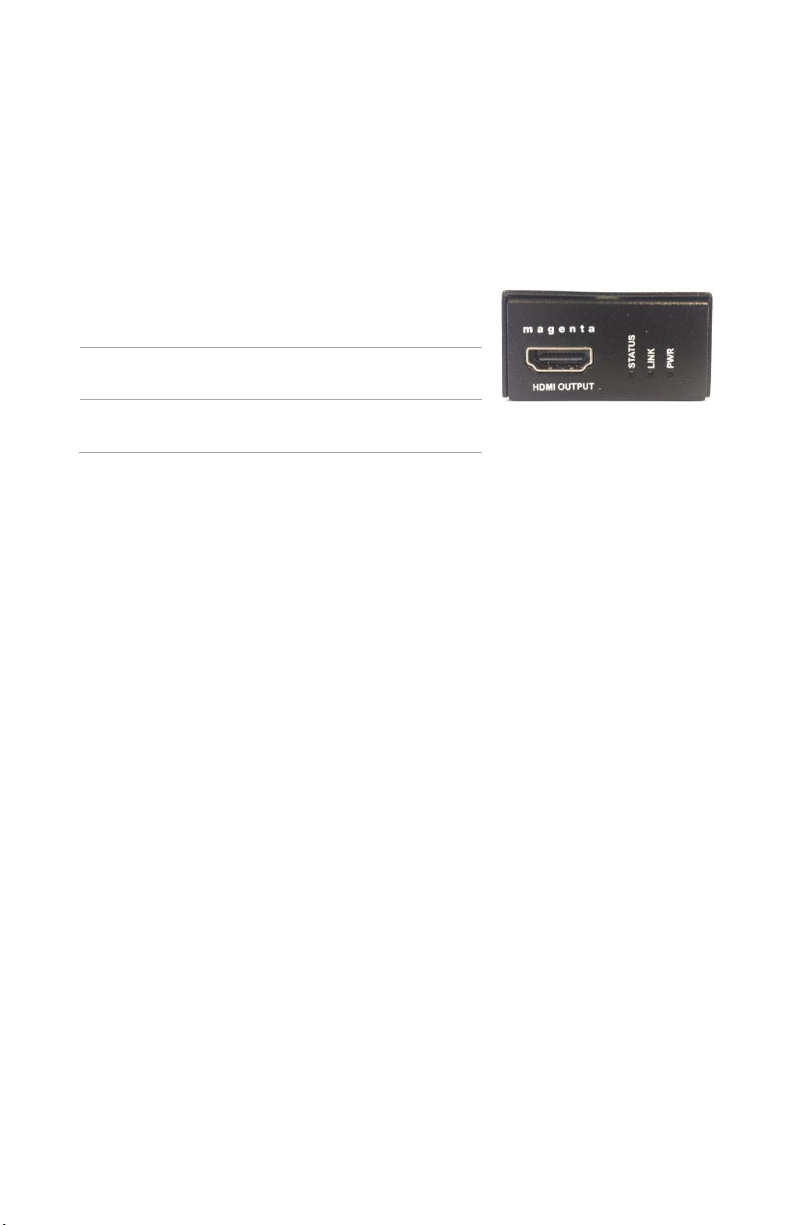

LED status indicators
STATUS
Video Status Indicator
ON = HDMI content w/HDCP
present
BLINKING = HDMI content w/o
HDCP
LINK
Data Link Indicator
ON = HDBASET link
PWR
Power Indicator
ON = Power
Troubleshooting
Most issues with the HD-One DX/DX500 Series are caused by problems
with Ethernet cable terminations. Make sure they are pinned to the
T568B wiring specification.
I can’t see any video
▪Check that both units are powered.
▪Power units on in the sequence given in this guide.
▪Check that the Ethernet cable is terminated to the T568B wiring
standard.
▪Some HDMI sources can take up to 5 minutes to initialize and will not
output video signals during this time.
▪Cell phones may cause interference at close range and cause the
video to be interrupted or lost.
▪Try powering off and on again.
▪If you use protected content, check all your connected devices are
HDCP compliant.
▪Check that you haven’t exceeded the maximum distance.
▪Use a higher quality cable.
▪Disable deep color on your video source.
▪Reduce the resolution of your source.
4 CSG-DX-500-V2.10
My video is poor quality
▪Check that the Ethernet cable is terminated to the T568B wiring
standard.
▪Check for faulty or poor-quality HDMI cables.
▪Ensure the display is compatible with the source.
▪Try an alternative source.
▪Reduce the resolution of your source.
Specifications
Cable
Required:
CAT5e, CAT6, CAT6a, CAT6e,
CAT7 (CAT6 or better is
recommended).
Bandwidth:
3.4 Gbps
Video
Support:
HDMI/DVI Video modes
HDMI 1.4, HDCP Compliant
including standard formats;
Connectors:
Tx: (1) HDMI
type A, (1)
RJ45, (1) DC
power
Rx: (1) HDMI
type A, (1)
RJ45, (1) DC
power
60Hz
640x480, 800x600,
1024x768, 1152x864,
1280x768,
1280x960,1280x1024,
1360x760, 1366x768,
1600x1200,1680x1050,
1920x1080 &
1920x1200
Temperature
Tolerance:
Operating:
32 to 131°F
(0 to 55°C);
Storage: -4
to +185°F (-
20 to 85°C)
HDTV
4K
480p,720p, 1080i &
1080p
3840x2160p30 &
4096x2160p24 (DX
only)
Humidity
Tolerance:
Up to 95%
non-
condensing
Maximum
Resolution
and
Distance:
WUXGA (1920x1200) @ 60 Hz
100 meters (328 feet) for DX
152 meters (500 feet) for DX500
4k: 3840x2160p30 &
4096x2160p24
60 meters (196 feet) DX only
Enclosure:
Metal
tvONE 5
Size:
3.2" x 1.9" x 1.0" (82 mm x 48.6
mm x 24.8 mm)
Power:
+5 VDC @
1.2A max
each unit
Weight:
0.30 lb. (0.14 kg) - each unit
Compliance:
RoHS, CE,
FCC Class A,
UL
FCC Statement
Class B Device: This equipment has been tested and found to comply
with the limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide a reasonable protection
against harmful interference when the equipment is operated in all
environments. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
Instruction Manual, may cause harmful interference to radio
communications.
This Class B Digital Apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet Appareil Numerique de la Classe B respecte toutes les exigencies
du Reglemente Sur Le Material Brouilleur Canada.
WARNING: An AC adapter with a ferrite core must be used for RF
interference suppression.
To assure continued FCC Class B emission limit compliance, the user
must only use shielded video cables with two ferrite cores to avoid
potential harmful interference when connecting to external units and
F/UTP‡type Category cable must be used.
This equipment has more than one interface connector, do not leave
cables connected to unused interfaces.
Any unauthorized changes or modifications to this equipment could
void the user’s authority to operate it.
6 CSG-DX-500-V2.10

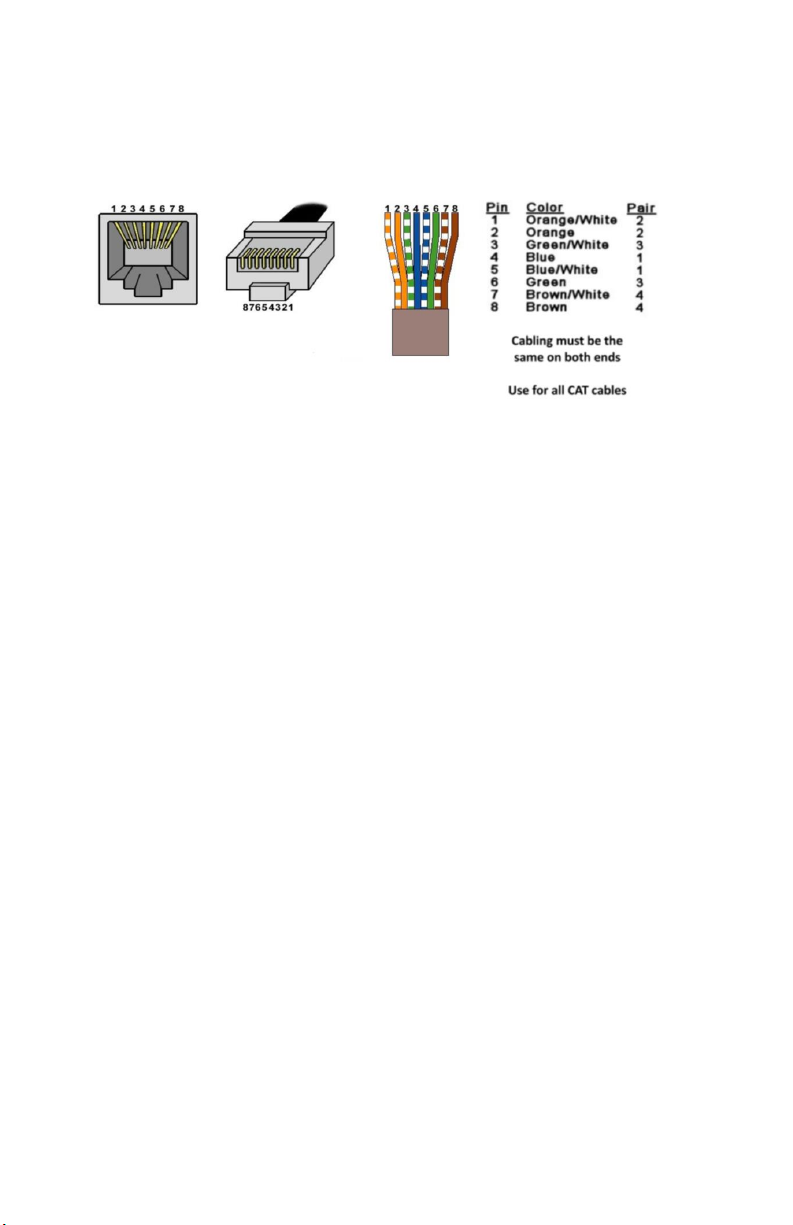

Cabling pinouts
Contact us
tvone.com
Information in this document is subject to change without notice. No part of this publication
may be reproduced, stored in a retrieval system, or transmitted in any form or any means
electronic or mechanical, including photocopying and recording for any purpose other than
the purchaser's personal use without the written permission of tvONE.
Copyright © 2019 tvONE™. All rights reserved. Registered in the U.S. Patent and Trademark
Office.
