TVS ZT125 Manuale utente
Owners Manual ZT 000001
© PT TVS Motor Company Indonesia
KATA PENGANTAR
Dear TVS ZT 125 Owner,
Congratulations!
Welcome to the family of satisfied TVS Customers across the world by choosing TVS ZT 125.
This manual explains about the features and benefits of your motor sport. Please thoroughly
familiarise this manual before you start.
Maintenance is extremely important to let your ZT 125 deliver the maximum performance to
you. Please get you ZT 125 maintained from any TVS Authorized Dealer / PGM / Service
Outlets.
We are delightful to welcome you into our ever expanding happy family.
Thank you for choosing TVS ZT 125.
Happy riding,
PT. TVS Motor Company Indonesia
PREFACE
SPECIFICATION
1
ENGINE
Type 4 Stroke
Bore 57 mm
Stroke 48.8 mm
Piston displacement 124.53 cc
Compression ratio 9.4 (3)
Carburettor UCAL BS-26
Air Filter Paper filter
Oil Filter Wire filter
Lubrication system Oil throchoid pump
Maximum power 8.10 (0.4) KW@8000 Rpm
Maximum torque 10.8 (0.4) Nm
Engine idling 1400 ± 100 rpm
Starting systen Electrik start & kick start
TRANSMISSION
Clutch Wet type plate, manually operated
SPECIFICATION
1
Gear shift lever 4 to the Top
Primary gears Helical gears
secondary gears Chain sprocket
GEAR RATIO
1st gear 3.273
2nd gear 1.750
3rd gear 1.238
4th gear 0.958
Primary reduction 65/20 (3.25)
Secondary reduction 45/14 (3.214)
CHASSIS
TIRE
Front
Rear
TIRE PRESSURE
Front alone 1.75 kg/cm² (29 PSI)
Rear olone 2.00 kg/cm² (30 PSI)
Front tandem 1.75 kg/cm² (29 PSI)
Rear tandem 2.25 kg/cm² (33 PSI)
SPECIFICATION
Overall length
Overall width
Overall height
Seat height
Distance to the ground
Axle wick
Semi Trail
740 mm
1265 mm
2025 mm
1075 mm
802 mm
185 mm
Vehicle weight
Load
Maximum payload
Steering angle
Caster angle
Frame
Front Suspension
Rear Suspension
Trail
Turning Radius
26.6°
88,4
Semi Trail
Telescopic
Ganda, Hidrolis
2185
105.3 kg
130 kg
236.3 kg
Left 44°, Right 44°
Diamond tube
SW CW
70 / 100 x 19 2.75 x 17
90 / 100 x 16 3.00 x 17
Semi Trail
2
SPESIFIKASI
BREAK
Front Disk, 240 mm
Rear Drum 130 mm dia.
ELECTRICAL
Type Generator AC
Ignition system IDI - DC
Sparkplug BOSCH UR4KC
Battery type Lead Acid Battery 5Ah
Generator Fly Wheel magneto,
12V, 100W
Head lamp Halogen HS 12V,
35/35W x 1
Dusk lamp 12V, 3W
Tail/brake lamp 12V, 4W
Turn signal lamp 12V, 10W
Plate number lamp 12V, 4W
Instrumen lamp 12V, 3.4W
Horn 12V DC x 1 buah
Fuse 12V, 10A x 1 buah
CAPACITIES
Fuel tank capacity 15.0 liters
Reserve 2.5 liters
Engine oil TVS TRU4 oil
Oil grade SAE20W40
Oil capacity 1000 ml (Periodik)
Oil capacity 1100 ml (Overhaul)
Front fork oil DOT 3 / DOT 4
SPECIFICATION
3
KNOW
ABOUT
YOUR ZT 125
2
Frame Number
Frame serial number is located on the left side of the steering pipe.
Engine Number
Engine number is engraved on the center side crankcase of engine as
shown in fig.
VEHICLE IDENTIFICATION NUMBER (VIN)
KNOW ABOUT YOUR ZT 125
4

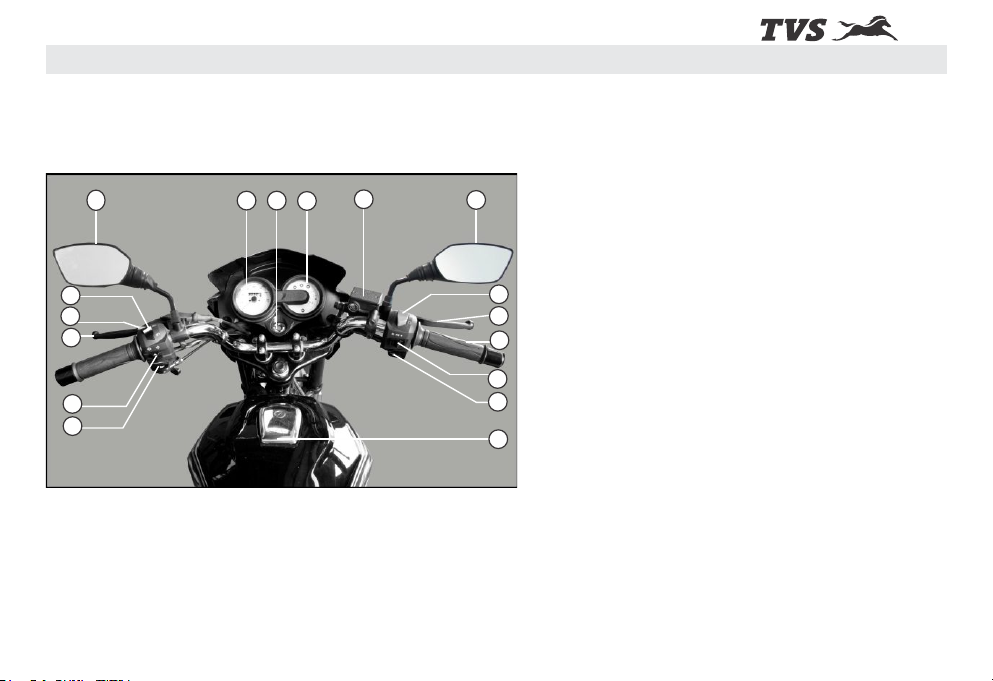

INSTRUMEN PANEL - HANDLE BAR Description :
1. Horn switch
2. Turn signal lamp switch
3. Clutch lever
4. Pass by switch (dimmer)
5. High / low beam switch
6. Rear view mirror L
7. Speedometer
8. Ignition lock
9. Instrument cluster
10. Brake master
11. Rear view mirror R
12. Engine stop
13. Front brake lever
14. Grip
15. Head lamp ON / OFF switch
16. Electric starter switch
17. Fuel tank cap
PANEL INSTRUMEN - SETANG
MENGENAL MAX 125 ANDA
16
13
1
2
3
17
15
14
11
6
7 8 910
4
512
KNOW ABOUT YOUR ZT 125
5
LOCATION OF PARTS - SIDE VIEW L
Description:
1. Axle front
2. Fuel cock
3. Choke lever
4. Gear shift lever
5. Center stand
6. Side stand
7. Rider footrest L
8. Pillion footrest L
9. Shock absorber L
10. Axle rear
KNOW ABOUT YOUR ZT 125
12
3
4
5678910
6
LOCATION OF PARTS - SIDE VIEW R Keterangan:
1. Disk brake
2. Axle front
3. Caliper brake
4. Spark plug
5. Gauge oil level
6. Kick starter lever
7. Rear brake pedal
8. Rider footrest RH
9. Rider footrest RH rear
10.Shock absorber R
11.Muffler
KNOW ABOUT YOUR ZT 125
1
2
3
1
2
3
44
77
55
66
88
99
10
1111
7

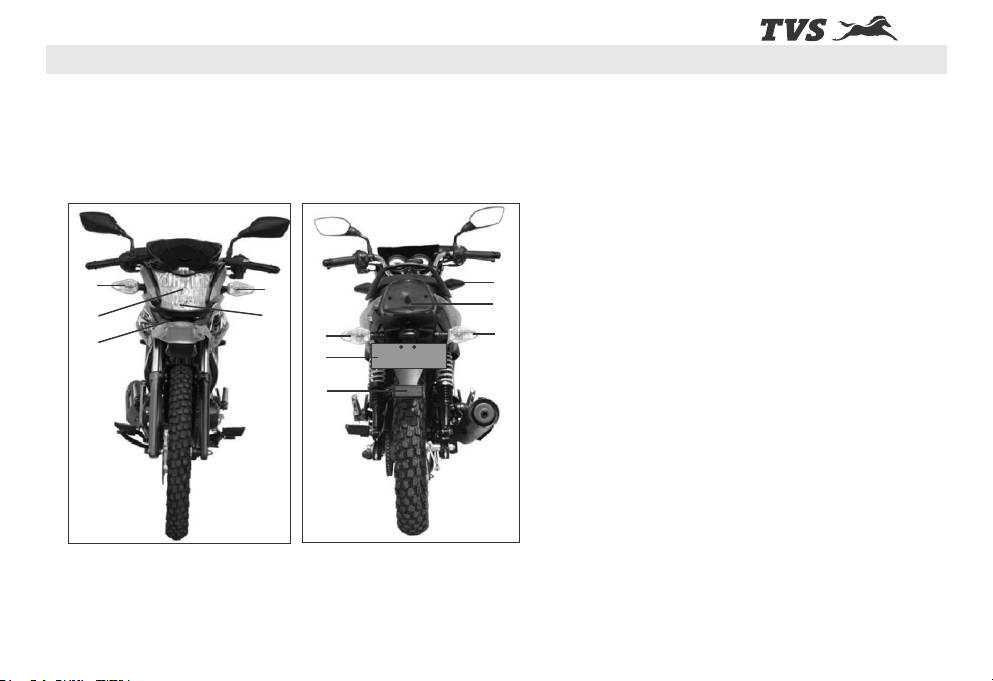

LOCATION OF PARTS - FRONT AND REAR VIEW Front View
1. Turn signal lamp front L
2. City lamp
3. Number plate front
4. Position lamps
5. Turn signal lamp front R
Rear view
1. Pillion handle
2. Tail lamp
3. Turn signal lamp rear R
4. Reflektor
5. Number plate rear
6. Turn signal lamp rear L
Front View Rear View
KNOW ABOUT YOUR ZT 125
1
2
3
4
5
3
1
2
4
5
6
8
