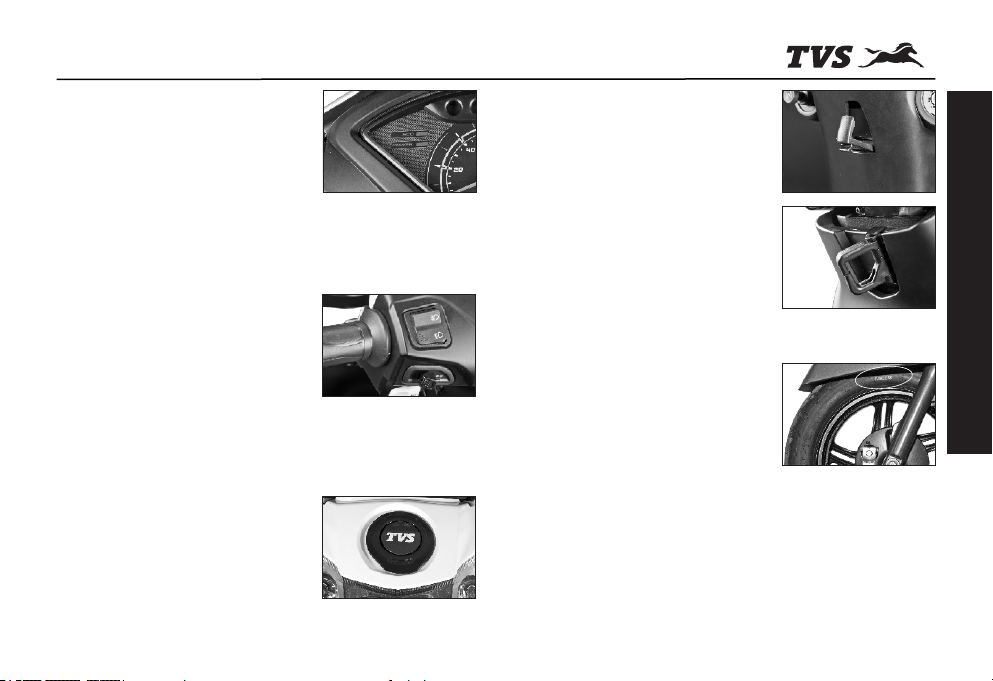

UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
-I-
®
ECONOMETER
Y o u r s p e e d o m e t e r h a s
®
ECONOMETER which indicates
whether you are riding in Economy
Mode or Power mode. This is unique
feature of your scooter which guides
you to ride your scooter fuel
efficiently. Refer page no. 12 for
details.
UNIQUE PASS-BY SWITCH (First
Time in Scooters)
Pass-by Switch is a feature first time
introduced in scooters ever. It allows
you to easily switch between high &
low beam of the headlamp with easy
press and auto release. It is helpful
especially while overtaking. Refer
page no. 15 for details.
EXTERNAL FUEL FILL
No other Scooter offers you this
unique facility. You can get petrol
filled without even getting out of
your seat.
RETRACTABLE BAG HOOKS
Your scooter has two retractable
Bag Hooks to carry light luggage like
carry bags weighing upto 3 kg.
One hook is located below the
handle bar on the rear panel and the
other one is located on the cover
front below the front end of seat.
TUBELESS TYRES
Another important unique feature in
your scooter is “Tubeless Tyres”.
Tubeless tyres reduce the chances
of getting punctured. Even if there is
a puncture, sudden leakage of air is
avoided, thereby provide better
safety and convenience. It is also
very easy to repair the punctured
tyres.
UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
TEL ESC OPIC F RON T & GAS
F I L L E D R E A R S H O C K
ABSORBERS
Your Scooter has Motorcycle-like
Telescopic Front Suspensions for
extreme comfort and Gas Filled
Shock Absorber in the rear for
excellent riding comfort even on bad
roads.
MFR HEADLAMP
Your scooter has a “Multi Focal
Reflector” brightest headlamp with
'Halogen bulb' for better visibility in
dark. It also has stylish twin pilot
lamps on either side of the headlamp
for city riding.
LOW FUEL INDICATOR
Low Fuel Indicator- is yet another
unique feature of your scooter which
indicates you to refill the fuel, when
the fuel in the tank goes below
minimum safe level. Refer page 13
for details.
PATENTED E-Z CENTRE STAND
E-Z Centre Stand of your scooter
reduces the effort required to place
the scooter on stand. Refer page no.
18 for operating procedure.
ALL B LAC K LA RGE R AL LOY
WHEELS
All Black Larger Black Alloy Wheels
with high mechanical advantage
gives progressive braking of your
scooter, results in best-in-class
‘shortest distance’ braking. It also
provide superior comfort in bad road
conditions.
LED TAIL LAMP-CUM-BRAKE
LAMP
Your scooter has a LED Tail Lamp-
cum-Brake Lamp for better visibility
and stylish looks.
-II-
UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
PARKING BRAKE (REAR BRAKE
LOCK)
Parking Brake is another unique
safety feature which protects your
scooter from falling due to wheel
rotation when it is parked with the
side stand on a slope. Refer page no.
14 for details.
S Y N C H R O N I S E D B R A K E
SYSTEM (SBS)
S y n c h r o n i s e d Br a k e S y s t e m
reduces the stopping distance, while
keeping the stability intact.
IGNITION LOCK WITH SECURITY
SHUTTER
Security Shutter on the ignition lock
is a unique feature for an additional
safety of your scooter.
Security shutter protects the use of
key other than the original supplied
along with your vehicle. Refer page
no. 11 for operating procedure.
UNDER-SEAT STORAGE (UTILITY
BOX)
Your scooter has a 17 litre under-
seat storage space to carry your
luggage belongings, full face helmet
etc., refer page no. 20 for details.
HELMET HOOKS
Your scooter has two helmet hooks
under the seat assembly at the front
end of utility box to secure your
helmet. Refer page no. 21 for details.
ECU
Your scooter's fuel efficient engine
uses “Electronic control unit”
engine built with fuel injector, makes
sure that you get the best from your
engine.
THROTTLE BODY ASSY
The throttle body consists of
sensors to identify the throttle
position and based on this , the fuel
injection is done.
-III-
UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
-IV-
SEAT -CUM- FUEL TANK CA P
LOCK
Your scooter has a Dual lock for
opening the seat assembly and fuel
tank cap. You can open the fuel tank
cap without even getting down from
the scooter, refer page no. 16 & 19
for operating procedure.
SMART PHONE CHARGER
Smart phone charger is supplied as
an optional accessory for your
scooter. Location for fixing the
socket is provided inside the utility
box.
INDICATOR BUZZER
Your scooter has an electronic
buzzer which alerts you that the turn
signal indicators are ‘ON’.
Dear Jupiter Fi Owner,
Thank you for choosing TVS Jupiter Fi, a stylish scooter with all new CVT-I Engine with Fuel Injection & many class-
leading features. As a proud owner of TVS Jupiter Fi, you are now part of a family of millions of satisfied TVS customers.
With TVS Jupiter Fi, riding comfort enters a new dimension. This innovative mobility embodies a combination of class-
leading features and style unprecedented in the two-wheeler segment. Its unique vehicle design and superior
ergonomics makes it a scooter which gives you more in every aspect.
This manual explains the features and operations of your TVS Jupiter Fi. Kindly read it carefully and follow the
instructions to enjoy years of safe riding. To ensure reliable performance, we urge you to get your TVS Jupiter Fi
serviced only at TVS Motor Company Authorised at specified regular Distributor or Dealer / Authorised Service Centers
periodic intervals.
We welcome you once more to a world of comfortable and easy riding!
TVS MOTOR COMPANY LIMITED
FOREWORD
FOREWORD
-V-
NOTICE
NOTICE
Always keep your Owner‘s Manual in the scooter and give it to the new owner if you ever sell your TVS Jupiter Fi.
Take time to familiarize yourself with your TVS Jupiter Fi and its performance characteristics.
This Owner‘s Manual contains a host of useful information. Please take the time to read this manual before you ride your
new TVS Jupiter Fi. Get familiarised with the operation of your scooter for maximum safety and pleasure. The better you
know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else riding your
TVS Jupiter Fi does the same.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the
latest product information available at the time of this publication. TVS Motor Company Limited may, however,
incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such
events it is possible that the relevant part of the owner‘s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this owner’s
manual.
Part Number :- Revision 1, November 2017
-VI-
Accessories shown in the picture may not be part of the standard equipment.
Note
SAFETY INFORMATION
SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety, we have
provided operating procedure and other information in this manual. This information alerts you on potential hazards that
could hurt you or others. Since it is not possible to warn you about all hazards associated with operating or maintaining
the vehicle, you must use your own judgement.
You will find important safety information in following form in this manual. These words carry the following
connotations:
Disregarding this message might result in injury to the rider.
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
This message provides further clarification for clearer understanding of any particular information.
-VII-
Caution
Warning
Note
CONTENTS
CONTENTS
-VIII-
Running-in information 01
Safe riding tips 02
Know your TVS Jupiter Fi 06
Riding your TVS Jupiter Fi 23
Maintenance 27
Service record sheet 45
Technical specifications 47
Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS
TRU4 PREMIUM oil (SAE10W30 API-SL, JASO MA2) for better performance and life.
RUNNING-IN INFORMATION
RUNNING-IN INFORMATION
The first 1000 km is a crucial part for the life of your scooter. Proper running-in operation during this period helps in
ensuring a maximum life and smooth performance of your scooter.
The reliability and performance of your scooter depends on the special care and restraint exercised during the running-in
period. It is especially important that you avoid operating the engine in high speed (RPM), which could expose the engine
parts to excessive stress. Maximum recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first service at 500 ~ 750 km is most important. During running-in period all the engine components and other parts
will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and transmission oil to be replaced.
Timely performance of the first service will ensure optimum service life and performance from the engine.
-1-
Caution
