TW Audio SBM12 Manuale utente

Assembly

Instructions

SBM12

Assembly Instructions SBM12

Introduction

The swivel bracket SBM12 is an accessory for the M12 loudspeaker.

It is characterized by a subtle look, a remarkable size to weight ratio and ease of use.

Instructions in this user manual

NOTE

TIP

CAUTION

WARNING

Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand

TW AUDiO.

If you lend your product to another party, inform that party of the safety-related operating pro-

cedures and hand over this assembly guide. If you require additional copies of this manual,

you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de

Strictly adhere to the instructions contained in this operating manual that are marked as

follows:

This symbol in combination with the signal word “Warning” identiﬁes a potentially hazardous

situation. Failure to comply with this safety instruction can lead to serious injury or even death.

This symbol in combination with the signal word “Caution” identiﬁes a potentially hazardous

situation. Failure to comply with this safety instruction can lead to light or moderate injury.

This symbol in combination with the signal word “Note” identiﬁes a potentially hazardous

situation. Failure to comply with this safety instruction can lead to product damage.

This symbol in combination with the signal word “Tip” identiﬁes additional information or

notes that will simplify working with TWAUDiO products on the basis of practical experience.

Assembly Instructions SBM12

Notes on the products

Read manual

before use!

Before using the device, carefully read the assembly instructions and keep it with the

SBM12 swivel bracket.

General information

Assembly instructions: OM-SBM12

Version 2.0 en, 05/2022

All information contained in this operating manual was correct to the best of our knowledge

at the time of printing.

Quality warranties or assurance of suitability for a certain type of use based on the technical

speciﬁcations, dimensions and weights are not granted by TWAMBO.

TWAMBO also shall not assume liability for any secondary damage (property damage and/or

personal injury) nor for the failure to comply with this operating manual!

TWAMBO reserves the right to update this document based on recent developments.

TWAMBO GmbH

Karl-Hofer-Str. 42

14163 Berlin

Germany

Phone : + 49 (0) 71 41-48 89 89 0

Fax: + 49 (0) 71 41-48 89 89 99

E-Mail: [email protected]

WWW: www.twaudio.de

Assembly Instructions SBM12

Content

1. Safety | Intended use...................................................................................................... 5

2. Overview ........................................................................................................................ 7

2.1 Components ........................................................................................................... 7

3. Technical data ................................................................................................................ 8

3.1 Data sheet............................................................................................................... 8

4. Commissioning............................................................................................................... 9

4.1 Setup ...................................................................................................................... 9

4.2 Wind load ................................................................................................................ 9

4.3 Assembly SBM12 to loudspeaker............................................................................ 9

4.4 Assembly SBM12 swivel bracket to trusses or ceiling............................................ 10

4.5 Assembly SBM12 swivel bracket on tripod ............................................................ 11

5. Transport and storage .................................................................................................. 12

6. CE Conformity Declaration............................................................................................ 13

7. Disposal ....................................................................................................................... 13

Assembly Instructions SBM12

1. Safety | Intended use

The SBM12 swivel bracket was developed for use in professional sound systems. The swivel

bracket may only be used by trained and qualiﬁed personnel.

The SBM12 swivel bracket may only used with the M12 loudspeaker.

This rigging manual describes how to use the SBM12 swivel bracket correctly. Any other use

shall be deemed improper and may result in damage or even injury.

Modiﬁcations or alterations to individual parts of the SBM12 swivel bracket are not permitted!

Danger to life!

WARNING

Before every operation, check the scope of delivery of the SBM12 swivel bracket for its com-

pleteness and ensure that all parts are in perfect condition.

WARNING

The SBM12 swivel bracket is designed both for indoor and outdoor use.

CAUTION

The SBM12 swivel bracket may only be used by trained and qualiﬁed personnel. Personnel

must check the SBM12 swivel bracket for suitability before each use.

WARNING

The SBM12 swivel bracket must be taken out of operation immediately as soon as visible

damage to the parts can be seen.

WARNING

Please keep all elements of the SBM12 swivel bracket away from children! The small parts can

easily be swallowed and lead to suffocation!

WARNING

Please adhere to the following safety instructions to avoid risks when using accessories.

Note the operating modes described in this assembly instructions. Other uses are not per-

missible.

Damage caused by improper use is not covered by TWAMBO.

Assembly Instructions SBM12

The payload of the SBM12 swivel bracket is designed of one M12 loudspeaker. Do not

exceed this payload.

WARNING

When moving (assembling, dismantling, maintaining) the SBM12 swivel bracket with

M12 loudspeaker, ensure sufﬁcient space to prevent collisions with other objects.

WARNING

Do not squeeze or twist the electrical cables of the M12 loudspeaker during the installation of

the SBM12 swivel bracket! The respective national electrotechnical rules and regulations are

applicable.

CAUTION

All screw connections should be checked each time the SBM12 swivel bracket are installed.

Tighten all loose screws. If this is no longer possible, the screws must be replaced.

WARNING

Before mounting the SBM12 swivel bracket check that e.g. ceilings, trussus and tripods are

capable to carrying the payload of the components.

WARNING

Make sure that no water pipes, electrical lines or any other lines are behind the intended place

of mounting.

Only use wall plugs and screws which are suitable for the intended mounting and structural

fabric. All screws must be set and tightened properly. Ensure that the ﬁxing holes have the

correct depth and diameter. Always use all ﬁxing holes.

Assembly Instructions SBM12

2. Overview

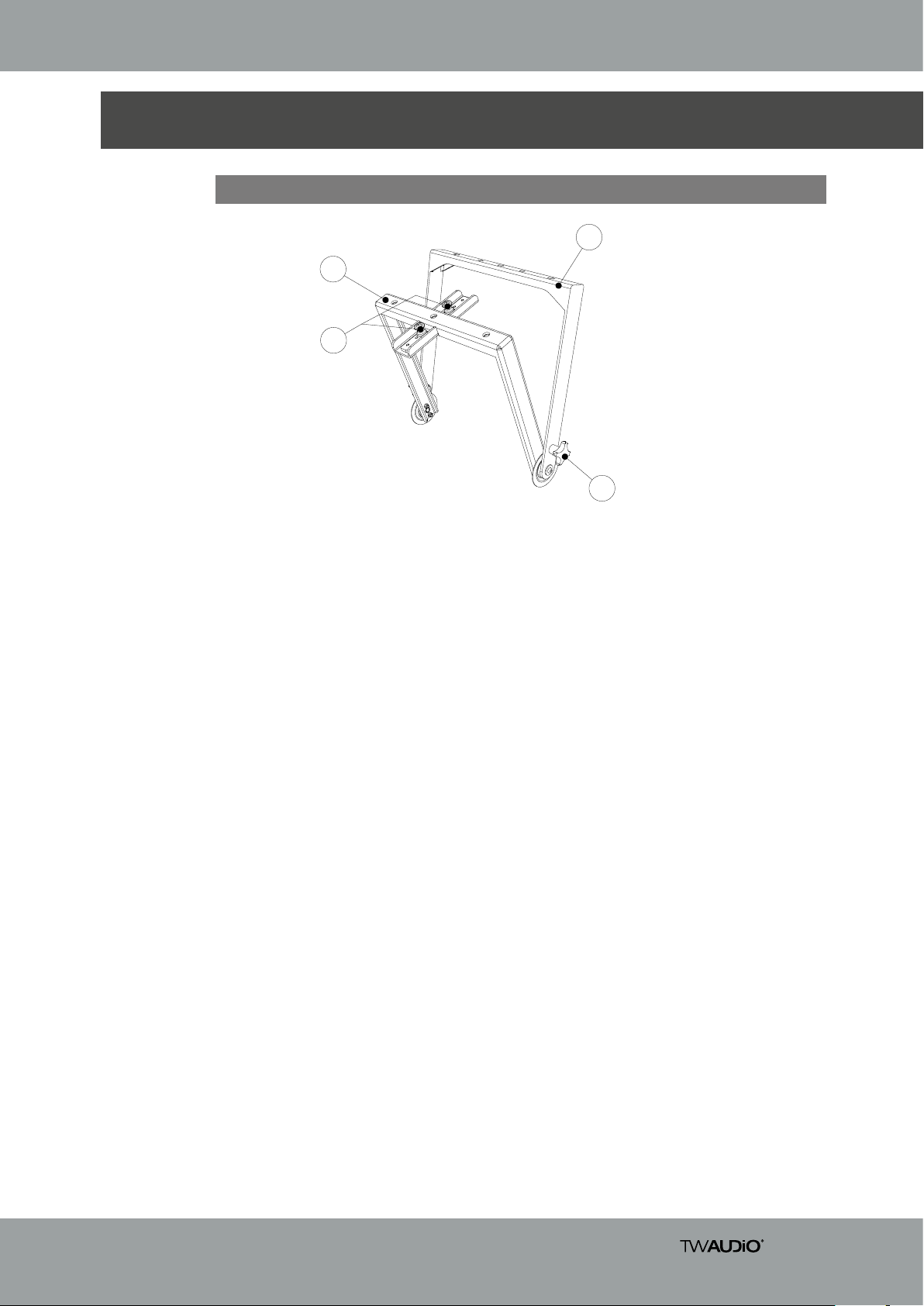

2.1 Components

1. Inner bracket

2. Outer bracket

3. Retainer

4. Cross handle

Figure 2.1 - Overview

Assembly Instructions SBM12

3. Technical data

Maximum load capacity 1x M12

Dimensions (h x w x d) 414 x 449 x 190mm [16.3 x 17.68 x 7,48 in]

Weight 5,4 kg [11.9 lbs]

Surface Powder-coated

3.1 Data sheet

Assembly Instructions SBM12

4.1 Setup

The SBM12 swivel bracket is designed for the hanging and stacking operation. TWAUDiO

provides a wide range of accessories to securely attach the swivel bracket.

NOTE

4. Commissioning

4.2 Wind load

WARNING

TW AUDiO recommends using only the accessories speciﬁed by TWAUDiO for securing and

mounting loudspeakers.

Before setting up the system outdoors, consider unexpected wind conditions at the opera-

tion site!

Disassemble your system immediately when wind speeds exceed 8 bft (34 to 40 kn / 62 to

74 kph / 38.5 to 46 mph) and secure the system components!

Make sure that there are no persons in the immediate vicinity of the system structure!

Make sure that the system structures are not operated over the audience at wind speeds in

excess of 6 bft (22 to 27kn / 39 to 49kph / 24.2 to 30.45mph) and that there are no persons

in the immediate vicinity of the system structure!

WARNING

Make sure that all system structures are located on a ﬁrm, level surface and that the surface

can bear the total weight!

4.3 Assembly SBM12 to loudspeaker

Depending on the application, the SBM12 swivel bracket is mounted on the bottom or top of

the M12 loudspeaker. The procedure during assembly is the same.

1. Place the M12 loudspeaker on the ﬂoor with the bottom or top, depending on the appli-

cation. Make sure to place the speaker on a clean, non-slippery surface.

2. Place the SBM12 swivel bracket with its lengthwise strut of the inner bracket on the rig-

ging track of the M12 loudspeaker.

Please note that setting up the system structures always requires two persons!

WARNING

Assembly Instructions SBM12

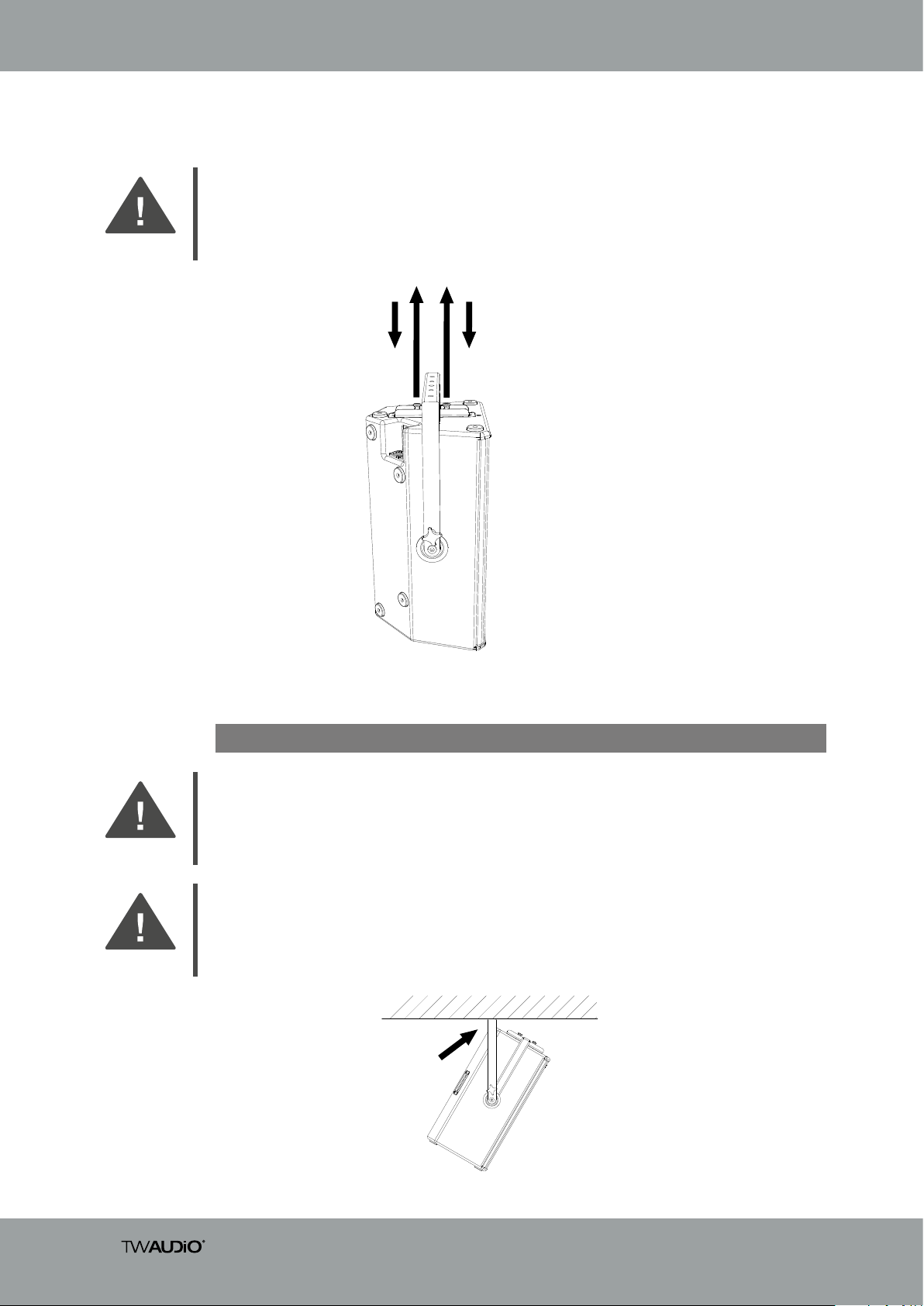

4.4 Assembly SBM12 swivel bracket to trusses or ceiling

For installation purposes, attach the SBM12 swivel bracket to the ceiling by using all three

ø13mm holes located on the crossbar. Make sure that you use suitable fastening material and

that the connections are set ﬁrmly and correctly!

WARNING

Figure 4.4 - Assembly SBM12 with M12 to ceiling

Figure 4.3 - Assembly SBM12 to M12 loudspeaker

WARNING

Attach two DHST Doughty Halfcoupler Slimline to the outer ø13mm holes located on the

crossbar of the SBM12 swivel bracket when using the SBM12 swivel bracket on trusses.

Make sure that the connections are set ﬁrmly and correctly!

3. Then pull the two retainer (see ﬁgure 2.1 - pos.3) up.

4. Then snap the SBM12 swivel bracket into the rigging track of the M12 loudspeaker by

releasing the two retainer again.

WARNING

5. Make sure that all retainers are always completely inserted!

3.3.

4.4.
