Tyco TF-3 Manuale utente
Page 1 of 4 AUGUST 2022 TFP741
Worldwide
Contacts
www.tyco-fire.com
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycore/tfp741
Model TF-3 and TF-4 Rapid Install Sprinkler Adapter
1 Inch Male Tapered to
Female RIS Threaded Fitting
General
Description
The TYCO Model TF-3 and TF-4 Rapid
Install Sprinkler (RIS) Adapter 1 Inch
Male Tapered to Female RIS Threaded
Fitting, herein called the RIS adapter,
is a conversion tting between con-
ventional NPT/ISO threads and TYCO
Rapid Install connection technology.
A typical application is to use the RIS
adapter for a retrot conversion from
a conventional pipe tting to an ESFR
RIS sprinkler.
Two models of the RIS Adapter 1 Inch
Male Tapered to Female RIS Threaded
Fitting are available:
• Model TF-3
1 in. Male NPT to Female RIS
• Model TF-4
1 in. Male ISO to Female RIS
NOTICE
The TYCO Model TF-3 and TF-4 Rapid
Install Sprinkler Adapter 1 Inch Male
Tapered to Female RIS Threaded
Fitting described herein must be
installed and maintained in compliance
with this document, as well as with the
applicable standards of the NATIONAL
FIRE PROTECTION ASSOCIATION
(NFPA), in addition to the standards
of any authorities having jurisdiction,
such as FM Global. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA or
FM Global installation standard, or
other applicable standard, must be
referenced to ensure applicability and
to obtain complete installation guide-
lines. The general guidelines in this
data sheet are not intended to provide
complete installation criteria.
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Finish
Gloss Black Coated Steel
Material
Carbon Steel
Physical Characteristics
Threaded Outlet ................. Steel with
Zinc Chromate Coating
Design
Criteria
In accordance with the requirements of
NFPA, the RIS adapter must be agency
approved and listed.
TFP741
Page 2 of 4
Installation
The TYCO RIS adapter must be
installed in accordance with this
section. Read the General Instructions
section before preceding to the rele-
vant installation instructions.
Sample RIS adapter installations are
shown in Figures 3 and 4.
General Instructions
Observe the following guidelines while
installing the tting:
•
The TYCO Model TF-3 and TF-4
Rapid Install Sprinkler (RIS) Adapter
1 Inch Male Tapered to Female RIS
Threaded Fitting is compatible with
only two sprinkler models, TYCO
Models ESFR-22 and ESFR-25
RISs.
•
For information about installing
the TYCO Models ESFR-22 and
ESFR-25 RISs, refer to technical
data sheets TFP327 and TFP328
respectively.
Installing the RIS Adapter
Step 1. Thread the RIS adapter onto
the ESFR RIS sprinkler as shown in
Figure 2 until the ange is fully seated.
Step 2. Apply pipe thread sealant to
the RIS Adapter pipe threads, and hand
tighten the sprinkler/adapter assembly
into the pipe tting.
Step 3. Tighten the assembly into the
tting using only the W-Type 1 sprinkler
wrench as shown in Figure 2.
Note: Optional: Use 1 in. pipe and fit-
tings for sprinkler location adjustment
- for example, an armover or a sprinkler
drop as shown in Figures 3 and 4.
NOTICE
Ensure the sprinkler threads are clean
and do not apply sealant such as tape
or paste. Threads with debris or sealant
could cause damage or impairment.
NOTICE
A leak-tight 1 in. NPT joint should be
obtained by applying a minimum to
maximum torque of 20 to 30 lb-ft (26,8
to 40,2 N·m). Higher levels of torque
can distort the sprinkler inlet with con-
sequent leakage or impairment of the
sprinkler.
NOTICE
Use the NPT threads only to align
the frame arms with the branch line if
desired. The RIS flange and adapter
must remain fully seated as shown in
Figure2.
SURFACE
SPRINKLER
FLANGE MATING
(48,1 mm)
1.895" DIA.
SURFACE
GASKET
SEALING RECESS
GASKET
THREADS
1" MALE
TAPERED PIPE
(40,4 mm)
1.59"
THREADS
RIS
FEMALE
MODEL TF-3 OR TF-4
RIS ADAPTER
FITTING
WITH LINK PROTECTOR
ESFR RIS SPRINKLER
WRENCH
W-TYPE 1
WRENCH
RECESS
FULLY SEAT SPRINKLER INTO
ADAPTER BEFORE INSTALLING
INTO BRANCHLINE FITTING
ESFR
ASSEMBLED
SPRINKLER
INTO ADAPTER
"FITTING SIDE"
SPRINKLER
TOWARDS
ADAPTER
PIPE FITTING
STANDARD BRANCHLINE
FIGURE 2
MODEL TF-3 OR TF-4
MALE TAPERED TO
FEMALE RIS THREADED FITTING
RIS ADAPTER
ESFR RIS SPRINKLER
INSTALLATION
FIGURE 1
MODEL TF-3 AND TF-4
1 INCH MALE TAPERED TO FEMALE RIS THREADED FITTING
RAPID INSTALL SPRINKLER ADAPTER
FEATURES AND DIMENSIONS
TFP741
Page 3 of 4
Care and
Maintenance
The following inspection procedure
must be performed as indicated, in
addition to any specic requirements
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA). Any impair-
ments must be immediately corrected.
The TYCO RIS adapter does not
require any regularly scheduled main-
tenance; however, proper installation
of the RIS adapter should be veried
during the annual visual inspection of
the connection.
The owner is responsible for the
inspection, testing, and maintenance of
their re protection system and devices
in compliance with this document, as
well as with the applicable standards of
the NFPA such as NFPA 25, in addition
to the standards of any authority having
jurisdiction. The installing contractor or
product manufacturer should be con-
tacted relative to any questions.
It is recommended that automatic sprin-
kler systems be inspected, tested,
and
maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
After placing a fire protection system
in service, notify the proper authori-
ties and advise those responsible for
monitoring proprietary and/or central
station alarms.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-re.com.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
RIS Adapter
Specify: Model (specify), Rapid Install
Sprinkler Adapter 1 inch Male Tapered
to Female RIS Threaded Fitting, NPT or
ISO (specify), P/N (specify):
NPT
Model TF-3
1 in. Male NPT to Female RIS . . . .56-888-0-103
ISO
Model TF-4
1 in. Male ISO to Female RIS. . . . .56-888-0-106
Sprinkler Wrench
Specify: W-Type 1 Sprinkler Wrench,
P/N 56 -872-1-025
FITTINGS
TYPICAL
ARMOVER
WITH RIS
SYSTEM
BRANCHLINE
WELDED FITTING
SPRINKLER
RIS THREAD
ESFR
(REF. TFP742)
MODEL TF-5 OR TF-6
RIS ADAPTER
FITTING
MODEL TF-3 OR TF-4
RIS ADAPTER
FITTING
OBSTRUCTION
WITH STANDARD
SYSTEM
BRANCHLINE
FITTING
OBSTRUCTION
FITTINGS
TYPICAL
ARMOVER
SPRINKLER
RIS THREAD
ESFR
MODEL TF-3 OR TF-4
RIS ADAPTER
FITTING

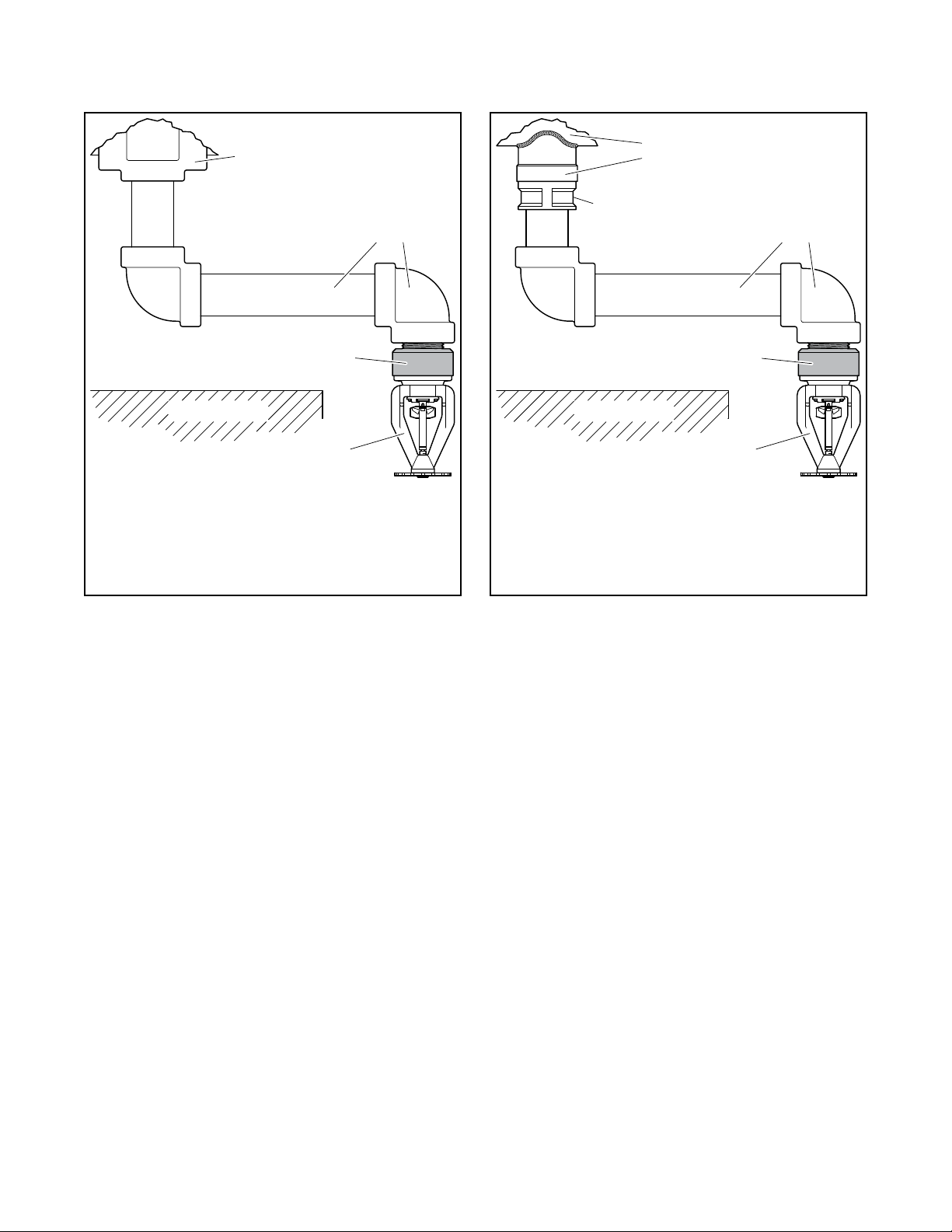

FIGURE 3
MODEL TF-3 OR TF-4
RAPID INSTALL SPRINKLER ADAPTER
TYPICAL ARRANGEMENT
FOR AVOIDING OBSTRUCTION
STANDARD FITTING
BRANCHLINE CONNECTION
FIGURE 4
MODEL TF-3 OR TF-4
RAPID INSTALL SPRINKLER ADAPTER
TYPICAL ARRANGEMENT
FOR AVOIDING OBSTRUCTION
RIS WELDED FITTING
BRANCHLINE CONNECTION
TFP741
Page 4 of 4
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association
1467 Elmwood Avenue, Cranston, RI 02910 | Telephone +1-401-781-8220
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
