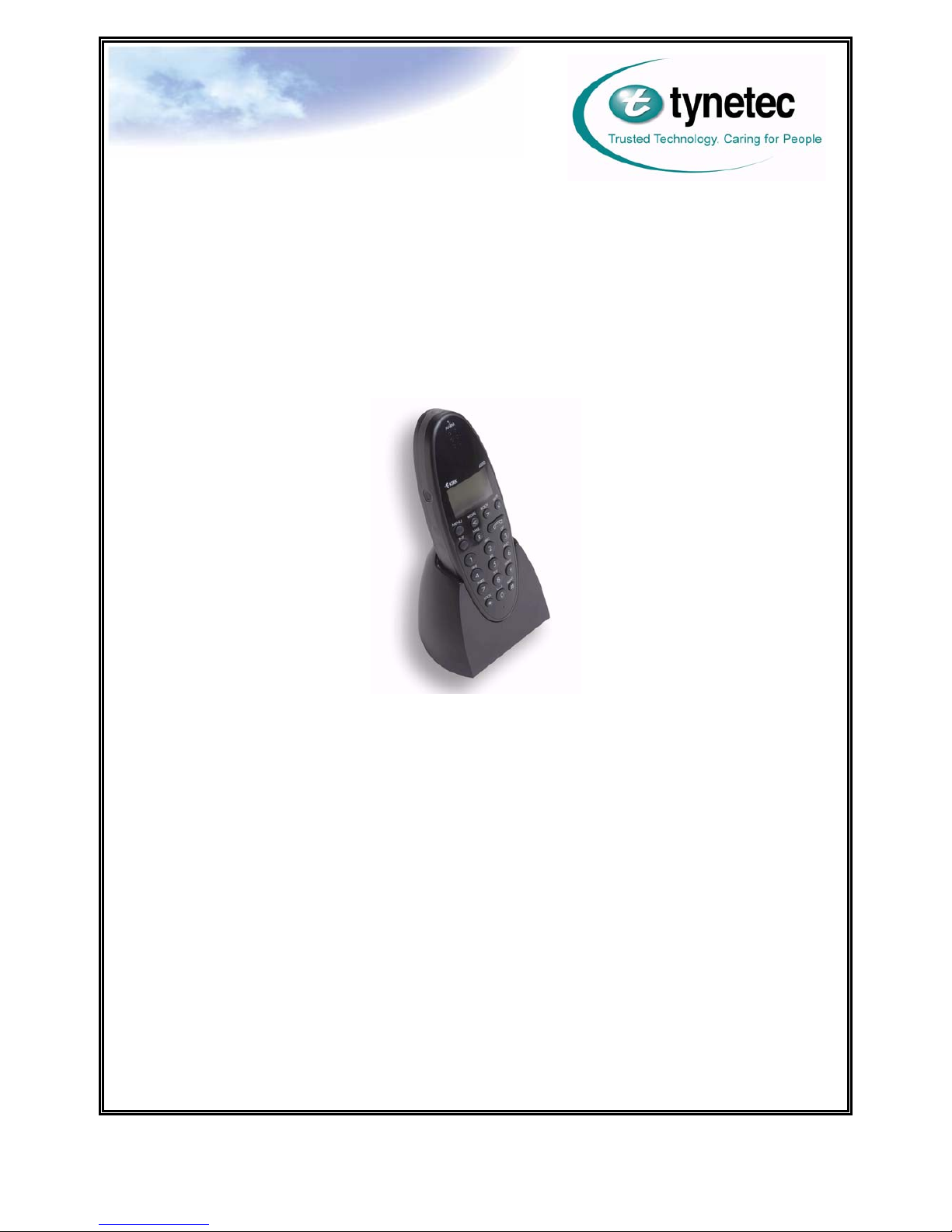

Tynetec Advent xt Manuale utente



18October2011 FM0421issueGPage1

Adventxt

WARDENCALLSYSTEM

V2.03CUSERGUIDE

KIRK4020/4040DECTTELEPHONES

WITHTALKSWITCH

Tynetecoperateapolicyofcontinualproductimprovement.Ifanyvariation

tothedetailscontainedinthisguidearesuspectedpleasecontact

Tynetec'sCustomerSupportDepartmenton01670352371

www.tynetec.co.uk

1.BASICOPERATION

1.1ANSWERINGACALL

WhenanalarmcallisdetectedallDECTtelephonesconnectedtotheAdventxtsystemwillring.Toanswerthealarmcall;presstheLinekeyontheDECT

telephoneandlistentothealarmmessage.Whenthealarmmessageisclearlyunderstoodpressthekey,thealarmmessagewillstop,youcannowspeakto

theresident.Speechdirectionisautomaticallychangedwhenyouspeak.Tocancelthecallpressthe#keyfollowedbytheLinekeytocleartheconnection.

1.2CALLINGARESIDENT

Tomakeacalltoaresident;presstheLinekey,enter81andlistenforthe“Ready”prompt.Entertheflatnumberoftheresidentandpressthekey,aspeech

linkwillopen.Ifyouwishtoalerttheresidentyoucanpressthe0keytosoundthecalltoneagain.Thespeechdirectionisautomaticallychangedwhenyou

speak.Tocancelthecallpressthe#keyfollowedbytheLinekeytocleartheconnection.

1.3SEQUENTIALDAILYCALLS



TheAdventxtsystemhasanindexfunctiontosimplifydailysequentialcalls.Callthefirstresidentinthenormalway,whenfinishedpress the6key,thesystem

willannouncethenextresident,eitherpressthekeytospeakorpressthe6keyagaintomovetothenextresident.Toendsequentialcallspressthe#key

followedbytheLinekeytocleartheconnection.

1.4CALLWAITING

Ifanewalarmcallisdetectedduringthecourseofansweringanalarmcallormakingaroutinecalla“CallWaiting”BEEPwillbeheardintheearpiece.To

terminatethecurrentcallandanswerthenewcallpressthe#key.Amessagewillidentifythecallwaitingwhichcanthenbeansweredbypressingthekeyin

thenormalway.

1.5ALLCALLSPEECH(PA)MODE

TheAdventxtsystemmaybefittedwithaPublicAddress(PA)facilitytomakegeneralannouncementstoallresidents.ToactivatePAmode;presstheLinekey,

enter81andlistenforthe“Ready”prompt.Enter1000,thePAmodeisactivatedandyoucanmakeanannouncementtoALLresidents.Attheendofyour

announcementpressthe#keyfollowedLinekeytocleartheconnection.



1.6FIREALARMTONE

TheAdventxtsystemmaybefittedwithafiretonefacilitytoenhancetheperformanceoftheFireAlarmsystem.Thefiretonewillusuallyactivateautomatically

whenafireisdetectedbythemainbuildingfirealarmsystem,itcanhoweverbeactivatedmanually.Toactivatethefiretone;presstheLinekey,enter81and

listenforthe“Ready”prompt.Enter1003andthefiretonewillsoundinallintercoms.Tostopthefiretonepressthe#keyfollowedbytheLinekeytoclear

theconnection.

1.7CHANGINGTHEOPERATINGMODE

TheAdventxtsystemcanreportalarmcallstoanOnsiteManager,aLocalOffsiteManageroraRemoteControlCentre.Thewayinwhichthesystemoperates

canbesetusingtheDECTtelephone.Tocheckthecurrentoperatingmode;presstheLinekey,enter81andlistenforthe“Ready”prompt.Enter1004andthe

currentmodewillbeannounced,presstheLinekeytocleartheconnection.Toselectanewoperatingmode;presstheLinekey,enter81andlistenforthe

“Ready”prompt,enteracodefromthelistbelow:

1005forOnsiteMode 1006forLocalOffsiteMode 1007forRemoteOffsiteMode

Amessagewillannouncethenewoperatingmode,presstheLinekeytocleartheconnection.

2.ADVANCEDFEATURES

2.1PARKINGANALARMCALL

Itmaybenecessaryto“Park”analarmcallifafaultkeepsreoccurring.Toparkacallfirstansweritinthenormalwaythenpressthe5key.PresstheLinekeyto

cleartheconnection.

2.2CHECKINGTHEFAULTMEMORY



Whencallshavebeenparkedasin2.1above,theyareplacedintheFaultMemory.TochecktheFaultMemory;presstheLinekey,enter81andlistenforthe

“Ready”prompt.Enter1008andtheidentityofanyalarmswhichhavebeenparkedwillbereported.PresstheLinekeytocleartheconnection.Toreseta

parkedcallsimplycalltheintercomandclearthecallinthenormalway.

2.3CHECKINGTHECALLMEMORY

TheAdventxtsystemstoresthelast8alarmmessagesintheCallMemory.TochecktheCallMemory;presstheLinekey,enter81andlistenforthe“Ready”

prompt.Enter1009andthelast8alarmmessageswillbeannounced.PresstheLinekeytocleartheconnection.

2.4SETTINGTHETIME&DATE

Tocheckthesystemtime;presstheLinekey,enter81andlistenforthe“Ready”prompt.Enter2000andthecurrenttimewillbeannounced.Ifthetimeis

correctpresstheLinekeytoaccept,orenteranewtime(24hourformat)followedbythekey.PresstheLinekeytocleartheconnection.Followthesame

procedureusingthecode2001forthedate/monthandcode2009fortheday/year.

2.5SETTINGTHEDAILYALARMTIME

TheAdventxtsystemcangenerateanautomatictestcallatthesametimeeveryday.PresstheLinekey;enter81andlistenforthe“Ready”prompt.Enter

4006andthecurrentdailyalarmtimewillbeannounced.PresstheLinekeytoaccept,orenteranewtimefollowedbythekey,orpressthe#keyfollowed

bythekeytodisable.PresstheLinekeytocleartheconnection.

2.6CHECKINGINTERCOMPRIVACY



Ifaresidenthasprivacymodeselectedontheirintercomyouwillnotbeabletohearthemspeak.PresstheLinekey,enter81andlistenforthe“Ready”prompt.

Enter5003andtheflatnumberswithintercomsinprivacymodewillbelisted.PresstheLinekeytocleartheconnection.Note;privacymodeisautomatically

overriddenfor15minutesiftheresidentinitiatesanalarmcall.

18October2011 FM0421issueGPage2

3.LOCALOFFSITE MODE/OFFSITE DIALSEQUENCE

3.1USINGTHELOCALOFFSITEMODE



Liftthereceiveronanystandardtelephone(musthaveDTMFdial)orpresstheLinekeyonamobiletelephone.Dialthetelephonenumberforthesite,whenthe

Adventxtsystemanswerstwotoneswillbeheard,afterthesecondtonepressthe#keyonce.Waitforthe“Ready”prompt,youmaynowusethesystemasyou

wouldinonsitemode.Whencalliscompletepressthe#keyonce.Afterthe“Ready”promptpressthe#keyagain,twotoneswillbeheardandphonelinewillbe

dropped.LocalOffsitemodecanbeenabled/disabledusingcode5007andusingthe#keytotogglebetweenenabled/disabled.

3.2SETTINGTHEOFFSITEDIALSEQUENCE

TheAdventxtsystemcanstoreupto6LocalOffsiteand3RemoteOffsitetelephonenumbersandtheorderinwhichtheyaredialledcanbechanged.Pressthe

Linekey,enter81andlistenforthe“Ready”prompt.Enter4007andthecurrentdialsequencewillbeannounced;presstheLinekeytoaccept,orenteranew

sequencefollowedbythekey,orpressthe#keytodisable/re‐enablethesequence.PresstheLinekeytocleartheconnection.

4.ACTIVITYMONITORING/INTRUDERMODE

4.1SETTINGACTIVITYMONITORINGPERIODS

Upto3activitymonitoringperiodscanbesetperday‐flatswithnoactivitywillbereportedattheendofeachperiod.PresstheLinekey,enter81andlistenfor

the“Ready”prompt.Enter2002andthecurrentperiod1starttimewillbeannounced.PresstheLinekeytoaccept,orenteranewtime(24hr)followedbythe

key,orpressthe#keyfollowedbythekeytodisable.PresstheLinekeytocleartheconnection.Repeatfortheperiod1stoptimeusingthecode2003.

Usecodes2004/2006forperiod2/3starttimesandcodes2005/2007forperiods2/3stoptimes.Notestart/stoptimesmustbewithinthesameday.

4.2ENABLE/DISABLEACTIVITYMONITORING



Unoccupiedflatscanhaveactivitymonitoringdisabledtopreventinactivitycallsbeingreportedattheendofeachperiodeachday.PresstheLinekey,enter81

andlistenforthe“Ready”prompt.Enter3000thenentertheflatnumbertobedisabledfollowedbythekey,presstheLinekeytocleartheconnection.To

re‐enableactivitymonitoringenter3001thenentertheflatnumbertobeenabledfollowedbythekey.PresstheLinekeytocleartheconnection.All

disabledflatscanbelistedusingthecode3002,alldisabledflatscanbere‐enabledusingthecode3003.

4.3ENABLE/DISABLEINTRUDERMODE



Individualflatscanhavetheactivitymonitoringmodetemporarilychangedtoanintruderalarmmodewhentheflatisvacantortheresidentisaway.Pressthe

Linekey,enter81andlistenforthe“Ready”prompt.Enter3007thenentertheflatnumbertohaveintrudermodeenabledfollowedbythekey,pressthe

Linekeytocleartheconnection.Toresetintrudermodebacktoactivitymonitoringenter3008thenentertheflatnumbertoberesetfollowedbythekey.

PresstheLinekeytocleartheconnection.Allflatswithintrudermodeenabledcanbelistedusingcode3009.

5.RADIODEVICES/MESSAGESERVICE/I’MOKFUNCTION

5.1ADDING/DELETINGRADIODEVICES



PersonalpendantsoranyotherradiotriggerdevicesfromtheAltecrangecanbeallocatedtoanyflat.ToaddanewdevicepresstheLinekey,enter81andwait

forthe“Ready”prompt.Enter5000thenentertheflatnumberthedeviceisbeingallocatedtofollowedbythekey.Activatetheradiodeviceandwaitfor

the“EnterLocationCode”prompt,entera2digitLocationCode=followedbythekey.Waitforthe“PendantEnabled‐EnterFlat”prompt,enterthenextflat

numbertohaveadeviceaddedorpressthe#keyfollowedbytheLinekeytocleartheconnection.Toremoveasingleradiodevicefromaflatusethecode

5001,toremoveALLdevicesfromaflatusethecode5002.=SeetheAdventxtOperatorsManual(DocNo.FM0420)foralistofLocationCodes.

5.2USINGTHEMESSAGESERVICE



TheAdventxthasthefacilitytoleavearecordedmessageforaresidentwhentheyreturntotheirflat.PresstheLinekey,enter81andlistenforthe“Ready”

prompt.Enter7000thenentertheflatnumbertoleaveamessageforfollowedbythekey,leaveamessageaftertheprompt(max10secs).Pressthe#key

followedLinekeytocleartheconnection.Thelightontheresidentsintercomwillflashblueandaseriesoftoneswillsoundevery60secondsuntilthemessageis

played.Tocheckwhichflatshaveunansweredmessagesusethecode7001.Todeleteamessageusethecode7002thenentertheflatnumberfollowedby

thekey,waitforthe“Ready”promptthenpresstheLinekeytocleartheconnection.Todeleteallunansweredmessagesusethecode7003.

5.3USINGTHE“I’MOK”FUNCTION

ReisdentscanletyouknowiftheyareOKeachmorningbypressingthe#buttonontheirintercomwhenthelightisflashinggreen.PresstheLinekey,enter81

andlistenforthe“Ready”prompt.Enter2010andtheI’mOKstarttimewillbeannounced.PresstheLinekeytoaccept,orenteranewtime(24hr)followedby

thekey,orpressthe#keyfollowedbythekeytodisable.PresstheLinekeytocleartheconnection.Setthestoptimeusingthecode2011.Usecode

2012toenablethefeatureinallflatsor2016forindividualflats.Usecode3010tolistandcalltheflatsthathavenotresponded“I’mOK”eachday.

6.DOORENTRYFEATURES

6.1SETTINGDOORENTRYCALLTRANSFERS



TheAdventxtsystemhasthefacilitytotransferdoorentrycallsifaresidentisaway.PresstheLinekey,enter81andlistenforthe“Ready”prompt.Enter

8000thenentertheflatnumbertobetransferredFROMfollowedbythekey,entertheflatnumberthecallsarebeingtransferredTOfollowedbythe

key.PresstheLinekeytocleartheconnection.Toreturntonormaloperationenter8001thenentertheflatnumbertoberesetfollowedbythekey.Press

theLinekeytocleartheconnection.Allflatswithcallstransferredcanbelistedusingthecode8002.Allcalltransferscanbeclearedusingthecode8003.

6.2ENABLE/DISABLE24HOURDOORENTRYCALLS



IftheAdventxtsystemhasdoorentrycallsdisabledduringtheevening/nightflatscanbere‐enabledifrequired.PresstheLinekey,enter81andlistenforthe

“Ready”prompt.Enter8004thenentertheflatnumbertohave24hourdoorentrycallsenabledfollowedbythekey.PresstheLinekeytoclearthe

connection.Todisable24hourdoorentrycallsenter8005thenentertheflatnumbertohave24hourcallsdisabledfollowedbythekey.PresstheLinekey

tocleartheconnection.Allflatswith24hourdoorentrycallsenabledcanbelistedusing8006.Allflatscanhave24hourcallsdisabledusing8007.

6.3CHECKINGDOORENTRYPRIVACY/FAULTS



Ifaresidenthasprivacymodeselectedontheirdoorentrytelephonetheywillnotreceiveanyvisitorscalls.PresstheLinekey,enter81andlistenforthe

“Ready”prompt.Enter8008andtheflatnumberswithdoorentrytelephonesinprivacymodewillbelisted.PresstheLinekeytocleartheconnection.Any

flatswithdoorentrytelephonefaultscanbelistedusingthecode8009.AnyfaultsshouldbereportedtoyourServiceEngineer.

18October2011 FM0421issueGPage3

7.MAKINGEXTERNALTELEPHONECALLS

Tomakeanexternaltelephonecall;presstheLinekey,enter82andlistenforthedialtone,dialtherequiredtelephonenumber.

8.SYSTEMSWITHEXTRACARE INTERCOMS

Whenacallismadefromanextracareintercomitisreportedandansweredinthenormalwaybutitcannotbepermanentlycleareduntiltheflathasbeen

visitedandtheintercomcancelledlocally.Ifnormalcancellationisattemptedthecallwillsimplyre‐reportafterapresetdelay(typically5minutes).

Thelightwillflashredonanextracareintercomawaitingcancellation.

Passthemagneticresetfobdowntherighthandsideoftheintercomtobecancelled.

Theintercomwillemitseveralshortbeepsandthelightwillgooutwhenthecalliscancelled.

9.DATABACK‐UP/RESTOREFUNCTION

AllsystemconfigurationandRadioDevicedataisautomaticallystoredonaremoveableMemoryCard.Intheeventofcompletesystemfailure,thiscardcanbe

usedtotransferthedatatoanewsystemthusensuringtheminimumofdowntimeandnore‐programming.DataBack‐upscanalsobeperformedmanually.

ManualDataBackup:presstheLinekey,enter81andlistenforthe“Ready”prompt.Enter8010andsystemdatawillbecopiedtotheMemoryCard,enter

8020tocopyRadioDevicedatatothecardand8030tocopyZonedRSSIdatatothecard.

DataRestore:ifthecontrollerisreplacedtheoriginalMemoryCardcanbeusedtorestorealldata.PresstheLinekey,enter81andlistenforthe“Ready”

prompt.Enter9010anddatawillbetransferredtothenewsystemfromtheMemoryCard.Repeatusing9020and9030totransferRadioDeviceand

ZonedRSSIdata.

10.SUMMARYOFKEYCOMMANDS

ClearSystemwithoutDroppingtheLine#84

ConfirmEntry



7ReleaseDoorLockorKeysafe3

Re‐sendCallTone0IndextoNextResident6ResidentsIntercomVolumeDown2

9ParkaCall(afteraccepting)5ResidentsIntercomVolumeUp1

FunctionKeyFunctionKeyFunctionKey

11.SUMMARYOFACTIONCODES

WeekendActivityEnable/Disable9009

ListFlatswithLocalUnitActivityEnabled9008

LocalUnitInactivityReport9007

LocalUnitActivitySettingsReport9006

LocalUnitActivityStopTime39005

LocalUnitActivityStartTime39004

LocalUnitActivityStopTime29003WeekendI’mOKEnable/Disable2019

LocalUnitActivityStartTime29002LocalOffsite ModeEnable/Disable5007ListFlatswithI’mOKEnabled2018

LocalUnitActivityStopTime19001ListFlatswithIntercomsinPrivacy5003DisableI’mOKIndividualFlats2017

LocalUnitActivityStartTime19000RemoveAllRadioTriggers5002EnableI’mOKIndividualFlats2016

ListFlatswithTelephoneFaults8009RemoveRadioTrigger5001DisableI’mOKAudibleAlertAllFlats2015

ListFlatswithTelephonesinPrivacy8008AddRadioTrigger5000EnableI’mOKAudibleAlertAllFlats2014

ClearAll24HourDoorEntryCalls8007ListControllerFirmwareVersions4009DisableI’mOKAllFlats2013

ListFlatswith24HourDoorEntryCalls8006ClearOffsite DialSequence4008EnableI’mOKAllFlats2012

Disable24HourDoorEntryCalls8005SetOffsite DialSequence4007SetI’mOKStopTime2011

Enable24HourDoorEntryCalls8004SetDailyAlarmTime4006SetI’mOKStartTime2010

ClearAllDoorEntryCallTransfers8003Unpark AllDoorPanels4005SetDayNo.&Year(DDYY)2009

ListFlatswithDoorEntryCallTransfers8002Unpark AllModeSelectionUnits4004ListFlatswithNoActivity2008

DisableDoorEntryCallTransfers8001UnparkAllPBXInterfaceUnits4003SetActivityStopTime32007

EnableDoorEntryCallTransfers8000Unpark AllNetworkReceivers4002SetActivityStartTime32006

RadioRSSIPrint‐outEnable/Disable7004SpeechMessagePlayback4001SetActivityStopTime22005

DeleteAllMessages7003SystemReset4000SetActivityStartTime22004

DeleteMessage7002ListFlatsthathaven’trespondedI’mOK3011SetActivityStopTime12003

ListUnansweredMessages7001CallFlatsthathaven’trespondedI’mOK3010SetActivityStartTime12002

LeaveMessage7000ListFlatswithIntruderModeEnabled3009SetDate(DDMM)2001

ClearAllCallsRedirect6008ResetaFlatfromIntruderMode3008SetTime(HHMM)2000

ListFlatswithDoorPendantEnabled6007SetaFlattoIntruderMode3007AlarmMemoryEnquire1009

DisableDoorPendant6006ListCurrentActivityTimeSettings3006FaultMemoryEnquire1008

EnableDoorPendant6005RevertToTimedActivityMonitoring3005SelectRemoteOffsiteMode1007

ListFlatswithRedirectedCalls6004SetNon‐TimedActivityMonitoring3004SelectLocalOffsiteMode1006

SetCallsRedirect6003EnableAllActivityMonitoredFlats3003SelectOnsiteMode1005

ListFlatswithClientWanderingEnabled6002ListFlatswithActivityMon Disabled3002OperatingModeEnquire1004

SetClientWanderingStopTime6001EnableActivityMonitoring3001SelectFireAlarmToneMode1003

SetClientWanderingStartTime6000DisableActivityMonitoring3000SelectAllCallPASpeechMode1000

FunctionCodeFunctionCodeFunctionCode

FormoredetailedinformationseethefullAdventxtOperatorsManual(TynetecDocNo.FM0420)

18October2011 FM0421issueGPage4

Altri manuali per Advent xt

Questo manuale è adatto per i seguenti modelli

Altri manuali Tynetec Sistema telefonico

Tynetec

Tynetec Advent xt Manuale utente

Manuali Sistema telefonico popolari di altre marche

Teleco

Teleco Perfect Voice Tis 16 Manuale utente

AT&T

AT&T Network Adapter 25 Manuale utente

AVE

AVE AF902R-CE Manuale utente

Ericsson

Ericsson DCT1800-S Manuale utente

NEC

NEC Electra Elite 192 Manuale utente

Alcatel

Alcatel EASY REFLEXES 4200 Manuale utente

Panasonic

Panasonic KX-TDA50 Manuale utente

Bticino

Bticino PABX 28D Manuale utente

NEC

NEC SL 2100 Manuale utente

Sonifex

Sonifex Phone In 6 Manuale di istruzioni

TransTel Communications

TransTel Communications TD-824i Istruzioni per il montaggio

Nortel

Nortel BCM50 Manuale del prodotto

Panasonic

Panasonic KX-TS25B Manuale utente

ASCOM

ASCOM TD 92375GB Manuale del proprietario

Karel

Karel MS26S Scheda informativa del prodotto

EnGenius

EnGenius DuraFon PRO Manuale utente

Teledat

Teledat X130 DSL Manuale utente

SpectraLink

SpectraLink MOG400 Manuale utente
