TYPHOON LaunchPad Interface Manuale utente
LaunchPad Interface User Guide
T-UG019 (v1.0) July 17, 2018
Abstract
This document provides information about interface board that allows user to connect Texas
Instruments LaunchPad board to Typhoon HIL emulator.
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 1
Table of Contents
1Overview .............................................................................................................2
2Features ..............................................................................................................2
3Detailed description ..............................................................................................3
3.1 Analog signal connector ..................................................................................4
3.2 Digital signal connector...................................................................................5
3.3 LaunchPad headers ........................................................................................6
3.4 Power supply.................................................................................................7
4Product Images ....................................................................................................8
5Revision history....................................................................................................9
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 2
1Overview
LaunchPad Interface is the way to go for those who want to accelerate the development of
Power Electronics applications for Texas Instrument family of DSPs.
Typhoon HIL emulates power stage of a PE device that includes power converters, electrical
machinery, filters, electrical grid, PV cells, passive elements, etc. with 1μs overall time
resolution.
In this way users can develop and immediately test their control applications without
worrying about safety measures required in the power laboratory environment.
2Features
Headers for TI LaunchPad board
All HIL and LaunchPad signals available through measurement terminals
5V and 3.3V power supply jumpers (HIL or LaunchPad) with LED indication
16 HIL Digital Inputs (including DSP’s PWM signals)
16 HIL Digital Outputs (level shifted to 3.3V)
16 HIL Analog Outputs (clamped to 3.3V)
4 HIL Analog Inputs
Dimensions: 263 mm (10.3 inch) by 153 mm (6 inch)
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 4
3.1 Analog signal connector
This is a 96 pin DIN 41612/IEC receptacle connector that is directly pluggable into analog
connector of the Typhoon HIL emulators, followed by three rows of measurement terminals.
Table 1 shows how 20 analog signals (16 analog outputs and 4 analog inputs) from Typhoon
HIL emulator are connected to LaunchPad headers (LAUNCHXL-F28379D analog stage).
HIL Analog Outputs have a series 120Ω RZ1-RZ16 resistors that, together with protection
diodes (U2-U5), form a 0-3.3V referenced clamping circuit thus protecting the DSP ADC
stage from signal overvoltage and undervoltage.
Table 1: Analog signals routing
Typhoon HIL
Analog Stage
DSP
Analog Stage
AO1
ADCIN-14
AO2
ADCIN-C3
AO3
ADCIN-B3
AO4
ADCIN-A3
AO5
ADCIN-C2
AO6
ADCIN-B2
AO7
ADCIN-A2
AO8/AI1*
ADCIN-A0/DAC-A
AO9
ADCIN–15
AO10
ADCIN-C5
AO11
ADCIN–B5
AO12
ADCIN–A5
AO13
ADCIN–C4
AO14
ADCIN–B4
AO15
ADCIN–A4
AO16/AI2*
ADCIN–A1/DAC-B
AI3
PWM-DAC1
AI4
PWM-DAC2
AI5
PWM-DAC3
AI6
PWM-DAC4
* Depending on the position of RDACA or RDACB jumper resistors, HIL AO or HIL AI is
connected to the DSP analog pin. Defaults are HIL AO connected to DSP ADC. RDACA and
RDACB default positions are shown in Figure 3.2.
Figure 3.2 - RDACA and RDACB default (HIL AO to DSP ADC) position
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 5
3.2 Digital signal connector
This is a 96 pin DIN 41612/IEC receptacle connector that is directly pluggable into digital
connector of the Typhoon HIL emulators, followed by three rows of measurement terminals.
Table 2 shows how 32 digital signals (16 outputs and 16 inputs) from Typhoon HIL emulator
are routed to the LaunchPad headers (LAUNCHXL-F28379D digital stage).
16 HIL digital outputs are level shifted from HIL’s 5V to DSP’s 3.3V over U1,
SN74LVCH16T245 level shifter. Level shifter outputs can be enabled/disabled by resistor
jumpers ROE1 (lower 8 outputs) and ROE2 (upper 8 outputs). All outputs are enabled by
default as shown in Figure 3.3.
Table 2: Digital signals routing
Typhoon HIL
Digital Output
DSP
Digital Input
Typhoon HIL
Digital Input
DSP
Digital Output
DO1
GPIO-61
DI1
GPIO-00/PWM-1A
DO2
GPIO-123
DI2
GPIO-01/PWM-1B
DO3
GPIO-122
DI3
GPIO-02/PWM-2A
DO4
GPIO-58
DI4
GPIO-03/PWM-2B
DO5
GPIO-59
DI5
GPIO-04/PWM-3A
DO6
GPIO-124
DI6
GPIO-05/PWM-3B
DO7
GPIO-125
DI7
GPIO-24
DO8
GPIO-29
DI8
GPIO-16
DO9
GPIO-66
DI9
GPIO-06/PWM-4A
DO10
GPIO-131
DI10
GPIO-07/PWM-4B
DO11
GPIO-130
DI11
GPIO-08/PWM-5A
DO12
GPIO-63
DI12
GPIO-09/PWM-5B
DO13
GPIO-64
DI13
GPIO-10/PWM-6A
DO14
GPIO-26
DI14
GPIO-11/PWM-6B
DO15
GPIO-27
DI15
GPIO-14/PWM-8A
DO16
GPIO-25
DI16
GPIO-15/PWM-8B
Figure 3.3 - ROE1 and ROE2 default (enable) position
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 6
3.3 LaunchPad headers
LaunchPad headers are a set of four 2x10 pin headers for TI LaunchPad boards, followed by
a set of four 2x10 pin measurement terminals. Some of the TI LaunchPad boards from
C2000 and Hercules series supported by LaunchPad Interface are:
LAUNCHXL-F28027F
LAUNCHXL-F28069M
LAUNCHXL-F28379D
LAUNCHXL2-TMS57012
LAUNCHXL2-RM46
LaunchPad Interface board is primarily designed for LAUNCHXL-F28379D while other
LaunchPad boards are supported as well, but it is advised to check the pinout first because
not all pins are available on all boards or they have different capabilities. Texas Instruments
LAUNCHXL-F28379D is shown in Figure 3.4.

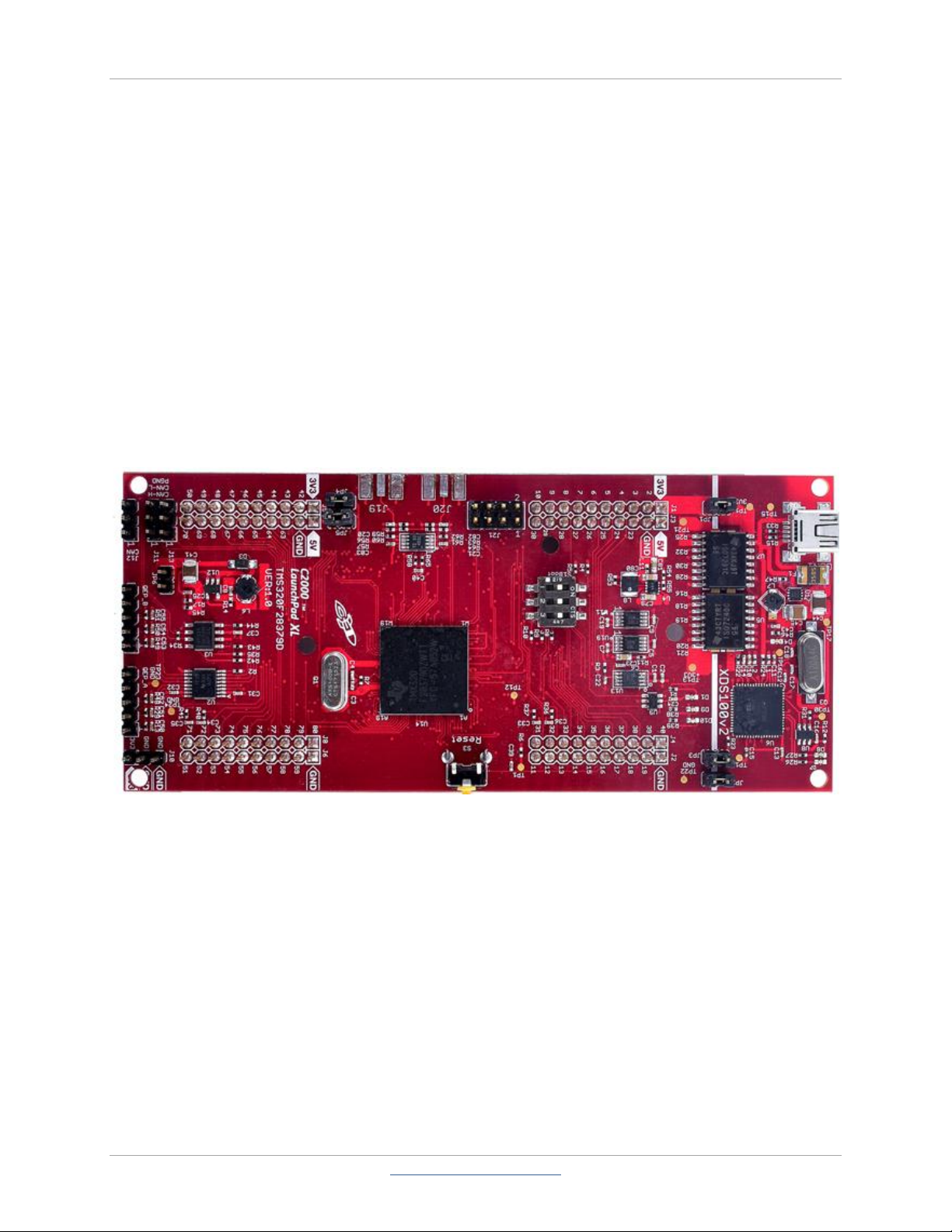

Figure 3.4 - TI LAUNCHXL-F28379D board
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 7
3.4 Power supply
LaunchPad boards are powered from USB by default. With the LaunchPad Interface they can
be powered from HIL instead.
Proceed with caution. Study the schematic of the used LaunchPad board carefully before
making any changes. Before powering from HIL, disconnect and/or disable all USB power
supplies present on the LaunchPad board itself, regardless of the USB cable connection.
HIL 5V and 3.3V can be supplied to LaunchPad board by populating JH5V and JH3V3
jumpers. By default these jumpers are not populated. Some LaunchPad boards might
require both 5V and 3.3V power supplies while others might require only one of these power
supplies. LaunchPad HIL power supply jumpers are shown in Figure 3.5.
Figure 3.5 –LaunchPad HIL power supply jumpers
Green LEDs marked LP 5V and LP 3V3 are indicating 5V and 3.3V power supply on the
LaunchPad board, sourced from USB or HIL.
HIL digital output level shifter U1 is powered from LaunchPad board 5V and 3.3V, not HIL
5V and 3.3V.
Typhoon HIL LaunchPad Interface User Guide
www.typhoon-hil.com 9
5Revision history
Date
Version
Revision
17-07-2018
1.0
Initial release.
Authorized Distributor :
Contact no.:91 9838071684, 91 9838071685
QUARBZ Info Systems, INDIA
