1. An EXCLUSIVE FEATURE of the Échelon™ Series

products is the optional full overlay door

capability (panel kit) using a 3/4 inch thick

panel

BENEFIT:

Provides a fully integrated appearance

with surrounding cabinets. Overlay panel is easily

attached to the door.

2. Self closing door hinges are engaged when

door is open approximately 8-10 inches

BENEFIT:

Ensures a positive door seal and

prevents door bounce back.

3. Standard, all doors (except stainless steel units)

come with a flush mounted door panel and will

accept a 1/4 inch thick panel

BENEFIT:

A standard feature to achieve a

custom, built-in look by matching surrounding

cabinets.

4. A slightly contoured, across the top handle

design for black and white units

BENEFIT:

The contoured shape maintains the

stylized shape of the Échelon™ series plus permits

full door field reversibility of the door for black and

white units.

5. “L” shaped door hinges

BENEFIT:

This hinge design provides greater

door support thereby permitting larger and heavier

door panels and full overlay doors to be utilized.

6. Flat, recessed, front grille

BENEFIT:

Greater toe kick space. Blends with

surrounding cabinets.

7. All stainless steel units have a seamless full

wrap stainless steel cabinet and door with

sculpted, contoured handle.

BENEFIT:

This seamless full wrap stainless steel

door with sculpted stainless handle distinguishes the

Échelon™ stainless steel units from other heavier

“commercial” looks. All stainless steel units have a

full stainless cabinet, stainless hinges, and black

grille. All stainless units must be ordered either right

or left hand hinged and are not field reversible.

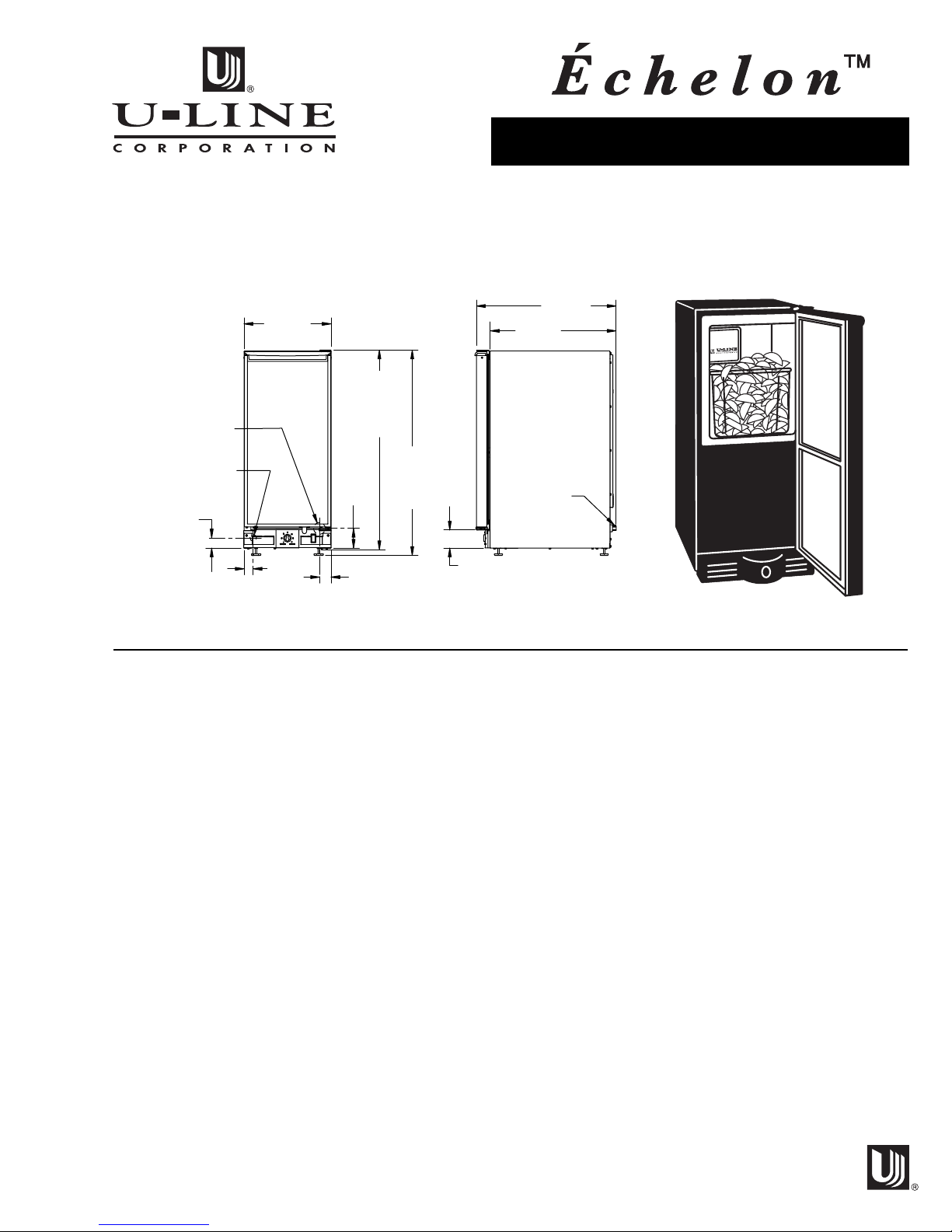

SUPERIOR FEATURES OF ÉCHELON™

Model BI-2015

Built-in under the counter ice maker that

produces up to twenty-five (25) pounds of

ice per day and stores up to twenty-five (25)

pounds.

ICEMAKER

14-15/16

(37.8)

INCHES (CENTIMETERS)

FULL

EXTEND

HEIGHT

35-1/8

(89.2)

21-7/16

(54.5)

23-11/16

(60.2)

(5)

3-3/8

(8.6)

1-3/4

(4.5)

(4.1)

FULL

RETRACT

HEIGHT

34-1/8

(86.7)

3-3/8

(8.6)

1-5/8

* WATER VALVE

LOCATION

* POWER CORD

*ON BACK OF UNIT

WATER

INLET

VALVE

Custom 1/4" Door Panel: 28-5/32" H x 14-1/32" W (71.5 cm x 35.6 cm)

3/4" Full Overlay Panel: 29-7/8" H x 14-3/4" W (75.9 cm x 37.5 cm)

See Overlay Door Panel Preparation Instructions

ADDITIONAL FEATURES

1. No drain required for water

2. Conserves on water

3. Built-in or freestanding

4. Vinyl clad steel cabinet (black/white)

5. Adjustable leveling legs

6. Available in black, white, stainless steel

BENEFITS

Easy and inexpensive to install. Only requires a 1/4

inch outside diameter water line.

Uses only 2-3/4 gallons of water to produce

approximately 22 lbs. of ice.

Provides custom look. No additional clearance

around sides, top, or rear for ventilation. Do not

obstruct front grille.

Rich, textured look, resistant to scratching, peeling,

flaking.

More precise under the counter fit, durable – factory

installed.

Blends with all cabinet colors.

BI-2015

SUPERIOR FEATURES OF ÉCHELON™

8. The BI-2015 stainless steel unit is deemed

suitable for outdoor use by UL.

BENEFIT:

For those outdoor applications that

require products that are deemed suitable for

outdoor use by UL, the BI-2015 stainless steel unit

meets these requirements.

9. Field reversible doors (except stainless steel).

BENEFIT:

Greater flexibility where the unit can

be installed and allows for side-by-side applications.
