USER GUIDE

SAFETY •INSTALLATION & INTEGRATION •OPERATING INSTRUCTIONS •MAINTENANCE •SERVICE

2000 Series •2224BEV •24" Beverage Center

RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

USER GUIDE

u-line.com

Contents

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Intro

Installation

Integrated Panel Dimensions

Integrated Grille / Plinth Dimensions

Integrated Panel Installation

Grille / Plinth Installation

USER GUIDE

Introduction 1

u-line.com

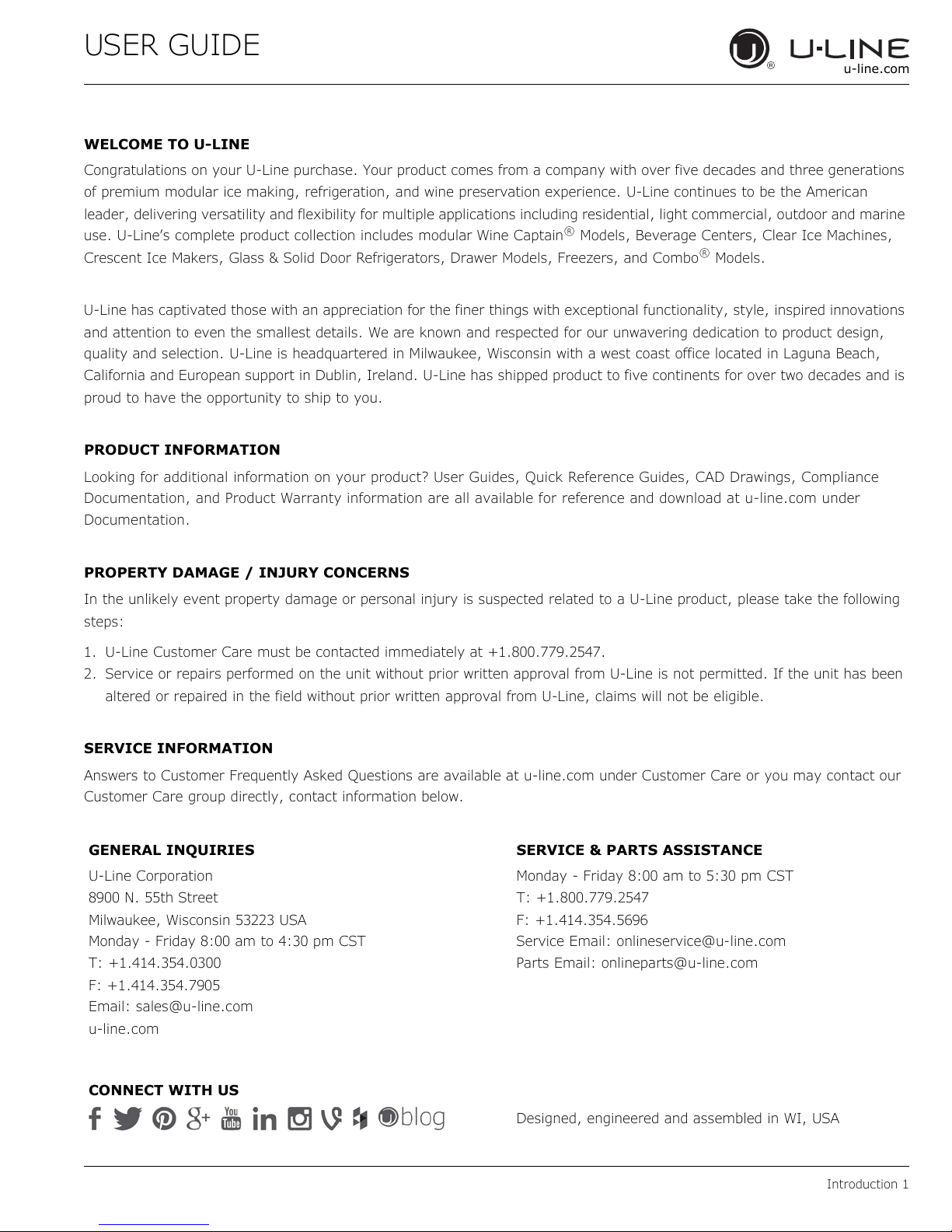

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations

of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American

leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete product collection includes modular Wine Captain®Models, Beverage Centers, Clear Ice Machines,

Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, and Combo®Models.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin with a west coast office located in Laguna Beach,

California and European support in Dublin, Ireland. U-Line has shipped product to five continents for over two decades and is

proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance

Documentation, and Product Warranty information are all available for reference and download at u-line.com under

Documentation.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

SERVICE INFORMATION

Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our

Customer Care group directly, contact information below.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 5:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

USER GUIDE

Integrated Panel Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

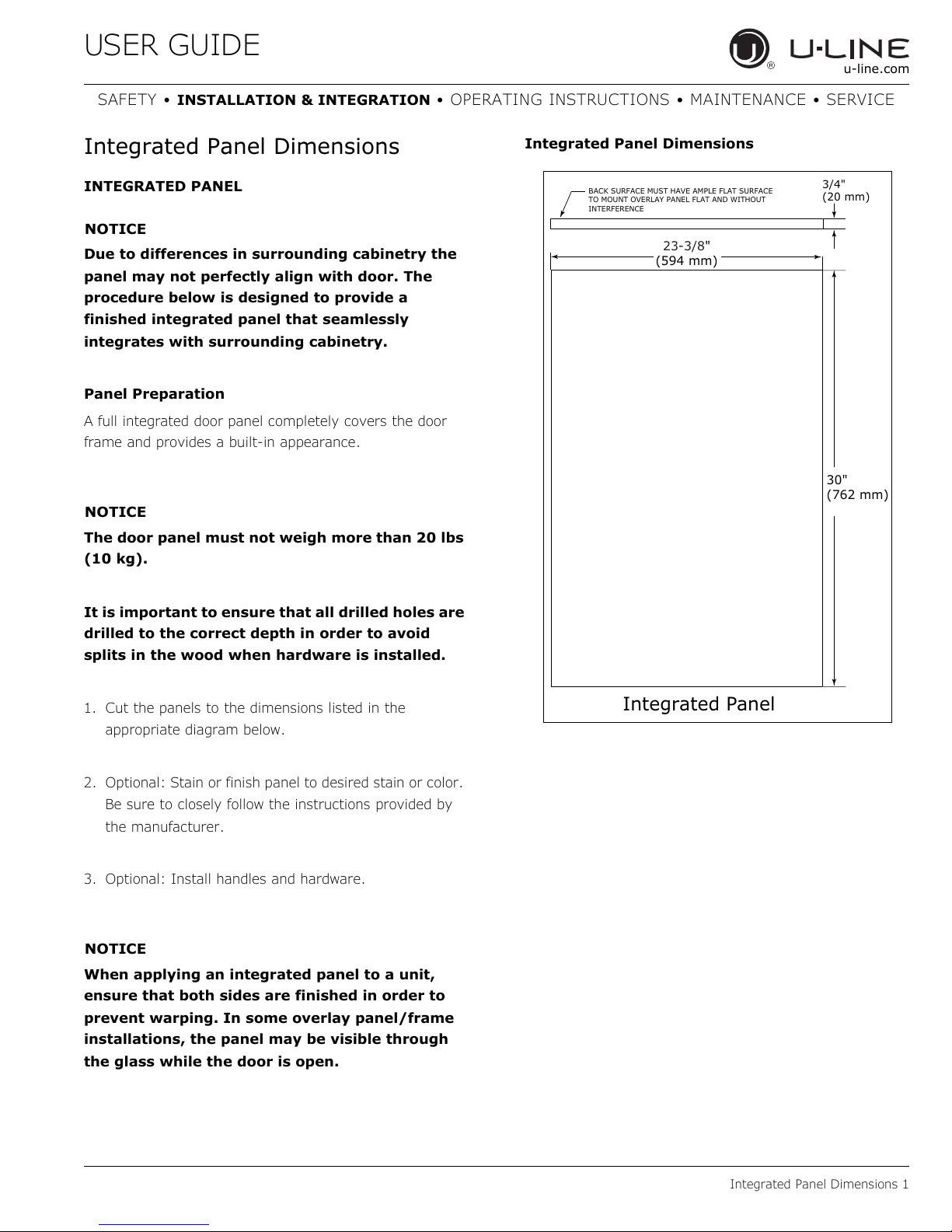

Integrated Panel Dimensions

INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished integrated panel that seamlessly

integrates with surrounding cabinetry.

Panel Preparation

A full integrated door panel completely covers the door

frame and provides a built-in appearance.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

1. Cut the panels to the dimensions listed in the

appropriate diagram below.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some overlay panel/frame

installations, the panel may be visible through

the glass while the door is open.

Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE

23-3/8"

(594 mm)

3/4"

(20 mm)

Integrated Panel

30"

(762 mm)

USER GUIDE

Integrated Panel Dimensions 2

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

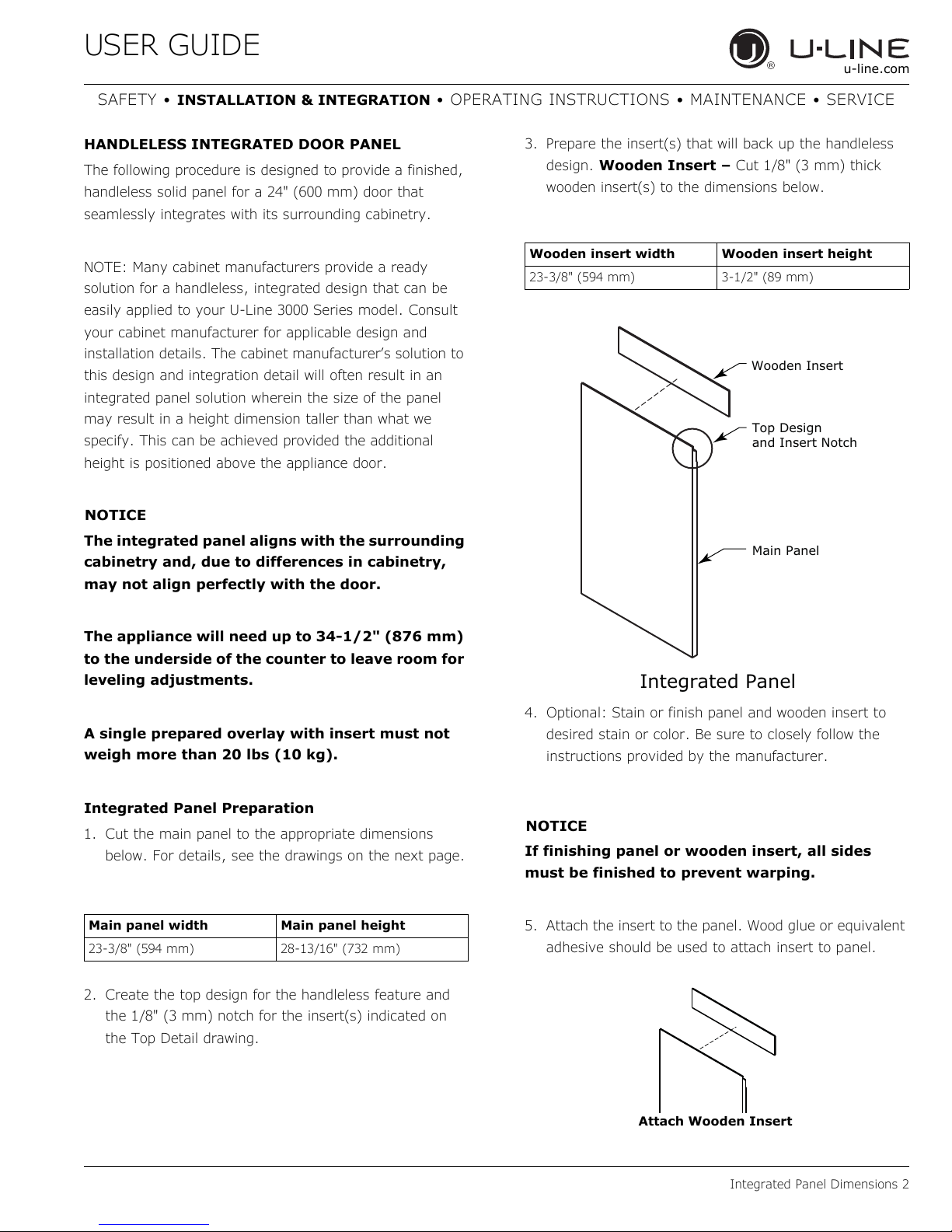

HANDLELESS INTEGRATED DOOR PANEL

The following procedure is designed to provide a finished,

handleless solid panel for a 24" (600 mm) door that

seamlessly integrates with its surrounding cabinetry.

NOTE: Many cabinet manufacturers provide a ready

solution for a handleless, integrated design that can be

easily applied to your U-Line 3000 Series model. Consult

your cabinet manufacturer for applicable design and

installation details. The cabinet manufacturer’s solution to

this design and integration detail will often result in an

integrated panel solution wherein the size of the panel

may result in a height dimension taller than what we

specify. This can be achieved provided the additional

height is positioned above the appliance door.

NOTICE

The integrated panel aligns with the surrounding

cabinetry and, due to differences in cabinetry,

may not align perfectly with the door.

The appliance will need up to 34-1/2" (876 mm)

to the underside of the counter to leave room for

leveling adjustments.

A single prepared overlay with insert must not

weigh more than 20 lbs (10 kg).

Integrated Panel Preparation

1. Cut the main panel to the appropriate dimensions

below. For details, see the drawings on the next page.

2. Create the top design for the handleless feature and

the 1/8" (3 mm) notch for the insert(s) indicated on

the Top Detail drawing.

3. Prepare the insert(s) that will back up the handleless

design. Wooden Insert – Cut 1/8" (3 mm) thick

wooden insert(s) to the dimensions below.

4. Optional: Stain or finish panel and wooden insert to

desired stain or color. Be sure to closely follow the

instructions provided by the manufacturer.

NOTICE

If finishing panel or wooden insert, all sides

must be finished to prevent warping.

5. Attach the insert to the panel. Wood glue or equivalent

adhesive should be used to attach insert to panel.

Main panel width Main panel height

23-3/8" (594 mm) 28-13/16" (732 mm)

Wooden insert width Wooden insert height

23-3/8" (594 mm) 3-1/2" (89 mm)

Top Design

and Insert Notch

Wooden Insert

Main Panel

Integrated Panel

Attach Wooden Insert

USER GUIDE

Integrated Panel Dimensions 3

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Handleless Integrated Panel Dimensions

3/4" (20 mm)

28-13/16"

(732 mm)

2-3/4"

(70 mm)

2-3/4"

(70 mm)

R 5/8"

(R16 mm)

1/8"

(3 mm)

1/4" (6 mm)

Wooden Insert

Notch Depth: 1/8" (3 mm)

2-3/8"

(60 mm)

7/8" (22 mm)

Ref.

Top Detail

Insert Notch

Top Design

1/8" (3 mm)

3-1/2" (89 mm)

23-3/8"

(594 mm)

Wooden Insert Dimensions

23-3/8"

(594 mm)

USER GUIDE

Integrated Panel Dimensions 4

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

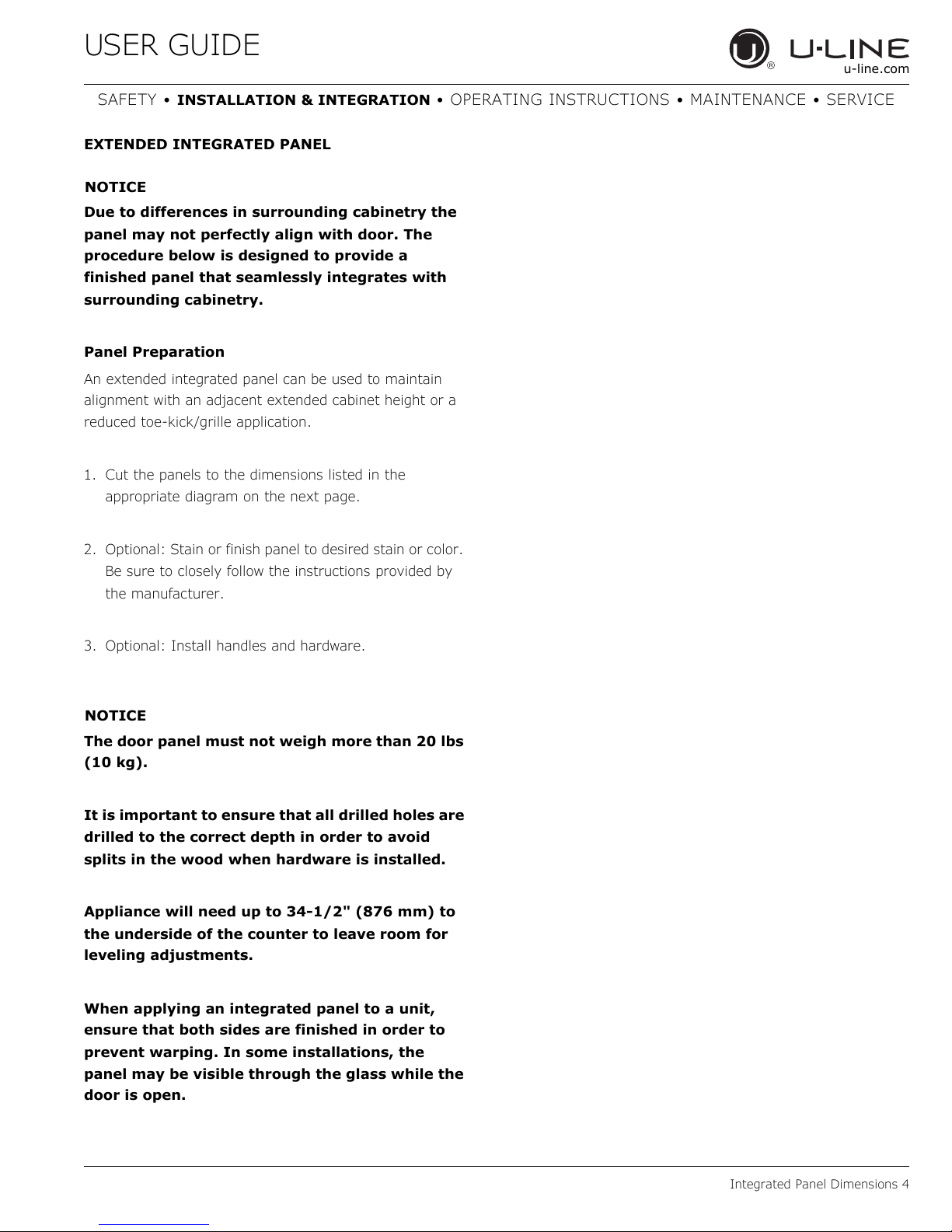

EXTENDED INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished panel that seamlessly integrates with

surrounding cabinetry.

Panel Preparation

An extended integrated panel can be used to maintain

alignment with an adjacent extended cabinet height or a

reduced toe-kick/grille application.

1. Cut the panels to the dimensions listed in the

appropriate diagram on the next page.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

Appliance will need up to 34-1/2" (876 mm) to

the underside of the counter to leave room for

leveling adjustments.

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some installations, the

panel may be visible through the glass while the

door is open.

USER GUIDE

Integrated Panel Dimensions 5

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

3-5/16" (89 mm)

4-5/16" (114 mm)

U-Line

Unit

U-Line

Unit

Integrated Panel

Integrated Panel/Integrated Frame

Front Side

3-5/16" (89 mm)

4-5/16" (114 mm)

Floor

Cabinet

> 3-5/16"

(> 89 mm)

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Extended Integrated Panel/Extended Integrated Frame

Floor

Cabinet

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Integrated Panel

* Panel can extend beyond the door

frame.

** A minimum of 1" (25 mm) from the

floor is required for proper

ventilation.

USER GUIDE

Integrated Panel Dimensions 6

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Extended Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE

23-3/8"

(594 mm)

3/4"

(20 mm)

Integrated Panel

32-7/8"

33-7/8"

(834 mm

860 mm)*

* A minimum of 1" (25 mm) is required from the

floor to the bottom of the extended integrated

panel/frame for proper ventilation.

USER GUIDE

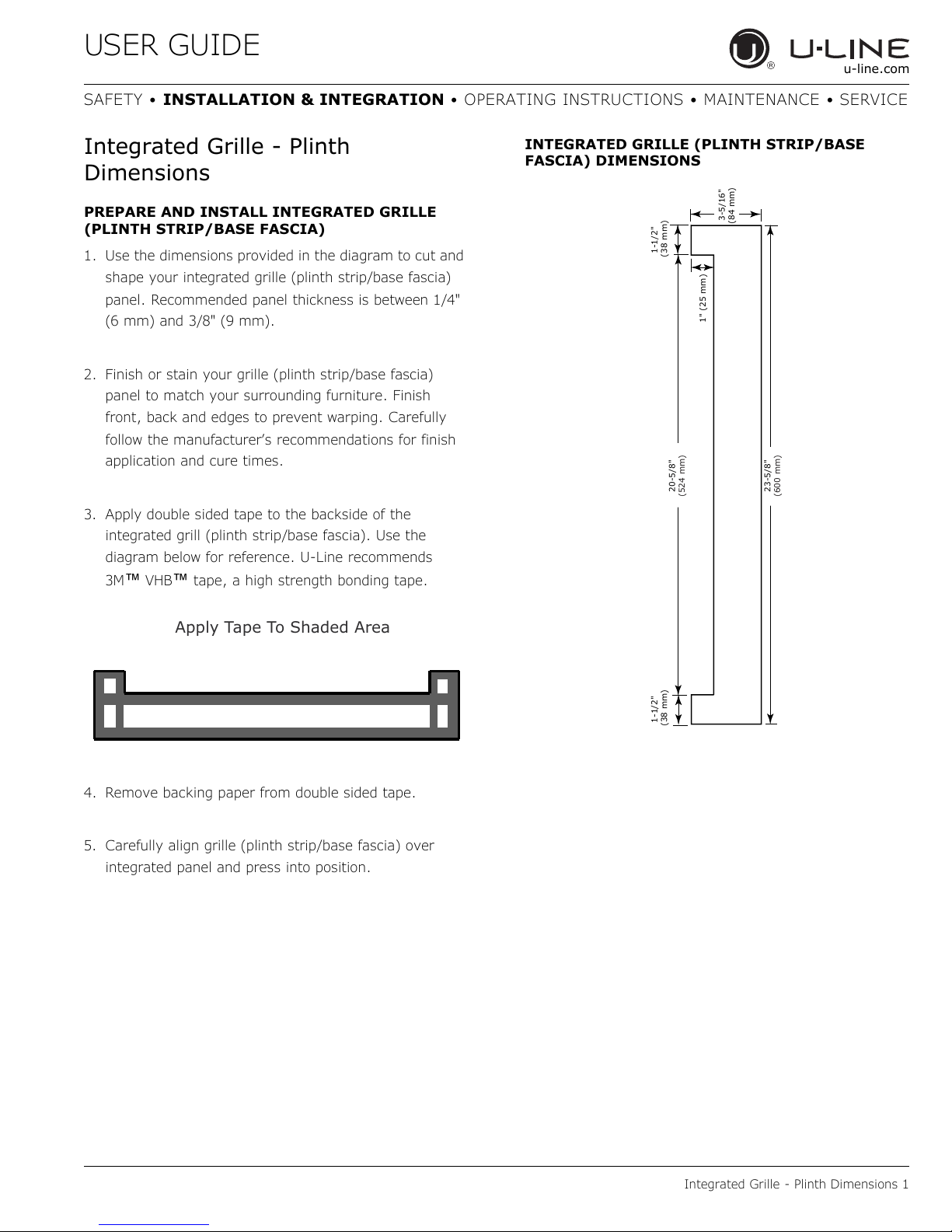

Integrated Grille - Plinth Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Grille - Plinth

Dimensions

PREPARE AND INSTALL INTEGRATED GRILLE

(PLINTH STRIP/BASE FASCIA)

1. Use the dimensions provided in the diagram to cut and

shape your integrated grille (plinth strip/base fascia)

panel. Recommended panel thickness is between 1/4"

(6 mm) and 3/8" (9 mm).

2. Finish or stain your grille (plinth strip/base fascia)

panel to match your surrounding furniture. Finish

front, back and edges to prevent warping. Carefully

follow the manufacturer’s recommendations for finish

application and cure times.

3. Apply double sided tape to the backside of the

integrated grill (plinth strip/base fascia). Use the

diagram below for reference. U-Line recommends

3M™VHB™tape, a high strength bonding tape.

4. Remove backing paper from double sided tape.

5. Carefully align grille (plinth strip/base fascia) over

integrated panel and press into position.

INTEGRATED GRILLE (PLINTH STRIP/BASE

FASCIA) DIMENSIONS

Apply Tape To Shaded Area

23-5/8"

(600 mm)

20-5/8"

(524 mm)

1-1/2"

(38 mm)

1-1/2"

(38 mm)

1" (25 mm)

3-5/16"

(84 mm)

Altri manuali per 2224BEV

Indice

Altri manuali U-Line Refrigeratore per vino

U-Line

U-Line 2075DWRWC Wine Captain Manuale utente

U-Line

U-Line Echelon Wine Captain 2175WCOL Manuale utente

U-Line

U-Line 3024ZWC Wine Captain Manuale utente

U-Line

U-Line U-3045RDCINT-00B Manuale di installazione

U-Line

U-Line U-2224ZWCS-00A Manuale di installazione

U-Line

U-Line 2075DWRWC Wine Captain Manuale utente

U-Line

U-Line Echelon 2015WC Wine Captain Manuale utente

U-Line

U-Line 2218WC 18 inch Wine Captain Manuale utente

U-Line

U-Line 2015WCOL Wine Captain Manuale del proprietario

U-Line

U-Line 1000 SERIES Manuale di installazione

U-Line

U-Line Echelon Wine Captain 2275ZWC Guida alla configurazione

U-Line

U-Line 2175DWRWC Manuale utente

U-Line

U-Line 2115WCOL Manuale utente

U-Line

U-Line Wine Captain 2275ZWCSSL Manuale utente

U-Line

U-Line Modular 3000 Series Manuale di installazione

U-Line

U-Line 3024ZWC Wine Captain Manuale utente

U-Line

U-Line WINE CAPTAIN 2175WCC Guida alla configurazione

U-Line

U-Line Wine Captain 2260ZVVC Manuale di installazione

U-Line

U-Line Wine Captain 2000 Series Manuale di installazione

U-Line

U-Line 2260ZWC Manuale utente

U-Line

U-Line 2260WC Manuale di installazione

U-Line

U-Line U-1215WCINT-60A Manuale di installazione

U-Line

U-Line Wine Captain 1075WC Manuale utente

U-Line

U-Line U-1215WCINT-60A Manuale di installazione

Manuali Refrigeratore per vino popolari di altre marche

Haier

Haier WS50GA Manuale utente

Cavist

Cavist 62 Manuale utente

Kenmore

Kenmore 461.99130 Manuale utente

Miele

Miele KWT 6422 iG Manuale utente

Danby

Danby DWC113BLSDB Manuale utente

Caple

Caple Wi6128 Manuale utente

Avanti

Avanti WC1001 Manuale utente

Frigidaire

Frigidaire FFWC38F6LS Manuale utente

Titan

Titan TT-W2454SZ Manuale di installazione

Klarstein

Klarstein Botella 166 Uno Manuale utente

Costway

Costway FP10130WL Manuale utente

Lemair

Lemair LWC59 Manuale utente

Haier

Haier JC-125GEA Manuale utente

Caple

Caple WCi46B Manuale utente

Climadiff

Climadiff CLI24 Guida rapida

Viking

Viking VCWB301LSS Manuale utente

Caple

Caple WC6511 Manuale utente

Vinvautz

Vinvautz VZ08BHK Manuale utente
