Content Index

9-8. Format HDD 24

9-9. Load & Copy 24

Chapter 3. Specification

Chapter 4. Appendix

Lightscribe Operation 26

Error Message 30

Chapter 1. Basic Introduction

1. Features 3

2. System Overview 4

2-1. Package Content 4

2-2. Other components necessary for

assembling the Duplicator 4

2-3. SATA controller hardware Installation

guide 5

Chapter 2. Function Operation

Function Table-CD/DVD/BD Duplicator

1. Copy 9

2. Test 10

3. Compare 10

4. Copy + Compare 11

5. Set Burn Speed 12

6. Select Source 12

7. Utility 13

7-1. Information 13

7-2. Erase Disc 14

7-3. PreScan Source 15

7-4. Track Edit 16

7-5. Eject All Disc 16

7-6. Copy Counter 16

7-7. Update BIOS 17

7-8. PRINT LS Label 17

8. Setup 18

8-1. Auto Start Time 18

8-2. Display Mode 18

8-3. Button Beep 19

8-4. Eject On Start 19

8-5. Reader Speed 19

8-6. Compare Speed 19

8-7. Language 19

8-8. Clear Setup 19

8-9. Advanced Setup 19

9. HDD Manager (For HDD-installed duplicator) 21

9-1. Select Image 21

9-2. Disc to Image 21

9-3. Set Reader Speed 22

9-4. Show Image Info. 22

9-5. Rename Image 22

9-6. Delete Image 23

9-7. Show HDD Info. 23

Chapter 1. Basic Introduction

1. Features

●No PC needed. Independent SATA to SATA DVD / Blu-ray Disc Duplication.

●Sepcial Ssynchronous Load and Copy technology. When the system was installed

with HDD, the system will load master source disc to HDD while copying disc to

disc. In 2nd run copy, the system will automatically copy from HDD instead of from

the source reader.

●Support high speed 20×DVD, 52×CD, 8×Blu-ray burning.

●High compatibility with variety brands of burner.

●Easy assembly SATA port arrangement

●Support Lightscribe printing

Chapter 1. Basic Introduction

2. System Overview

2-1. Package Content

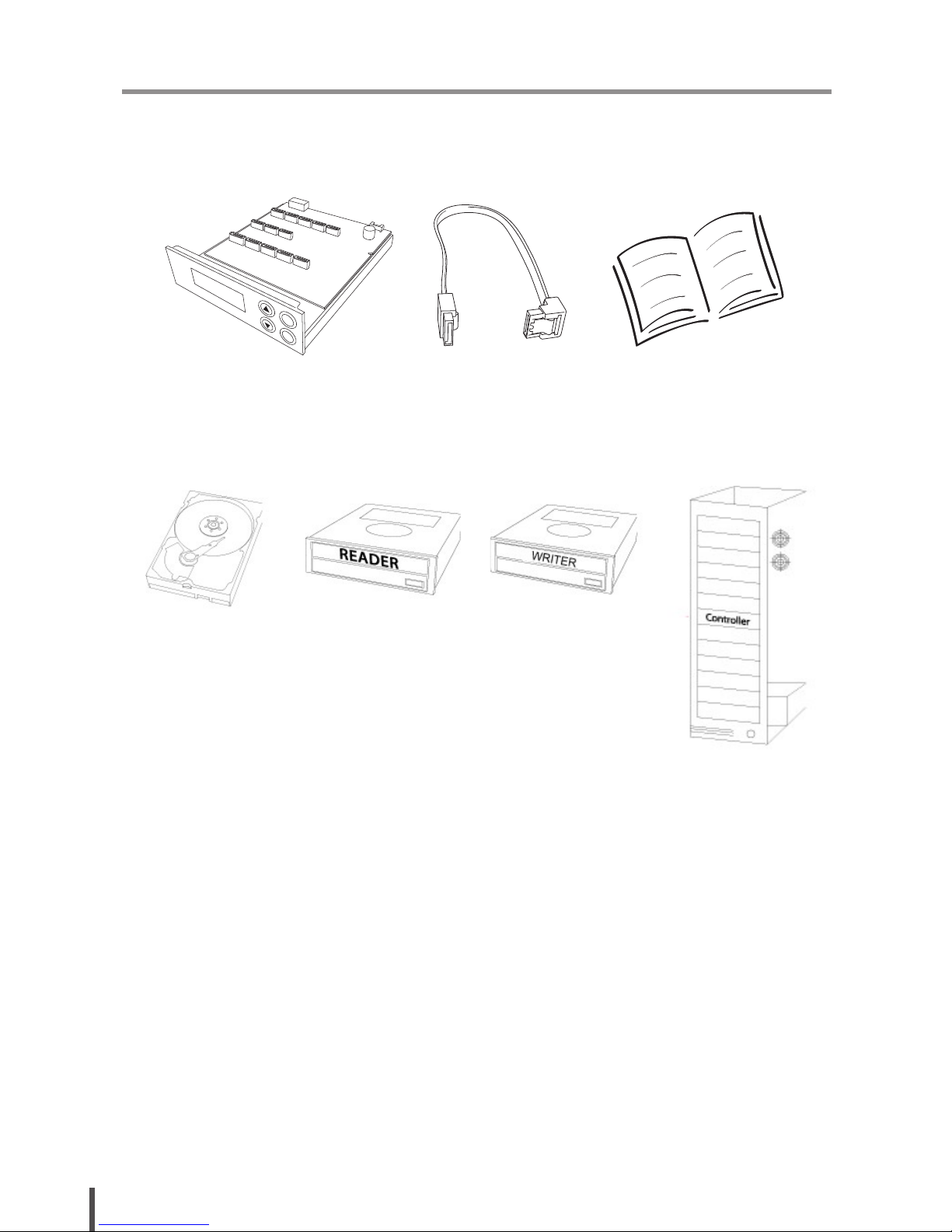

2-2. Other components necessary for assembling the Duplicators

HDD CD/DVD-ROM CD/DVD-RW

Writer

User Manual

SATA Cables(180˚)Controller

ESC

User Manual

Chapter 1. Basic Introduction

2-3. SATA Controller Hardware Installation Cuide

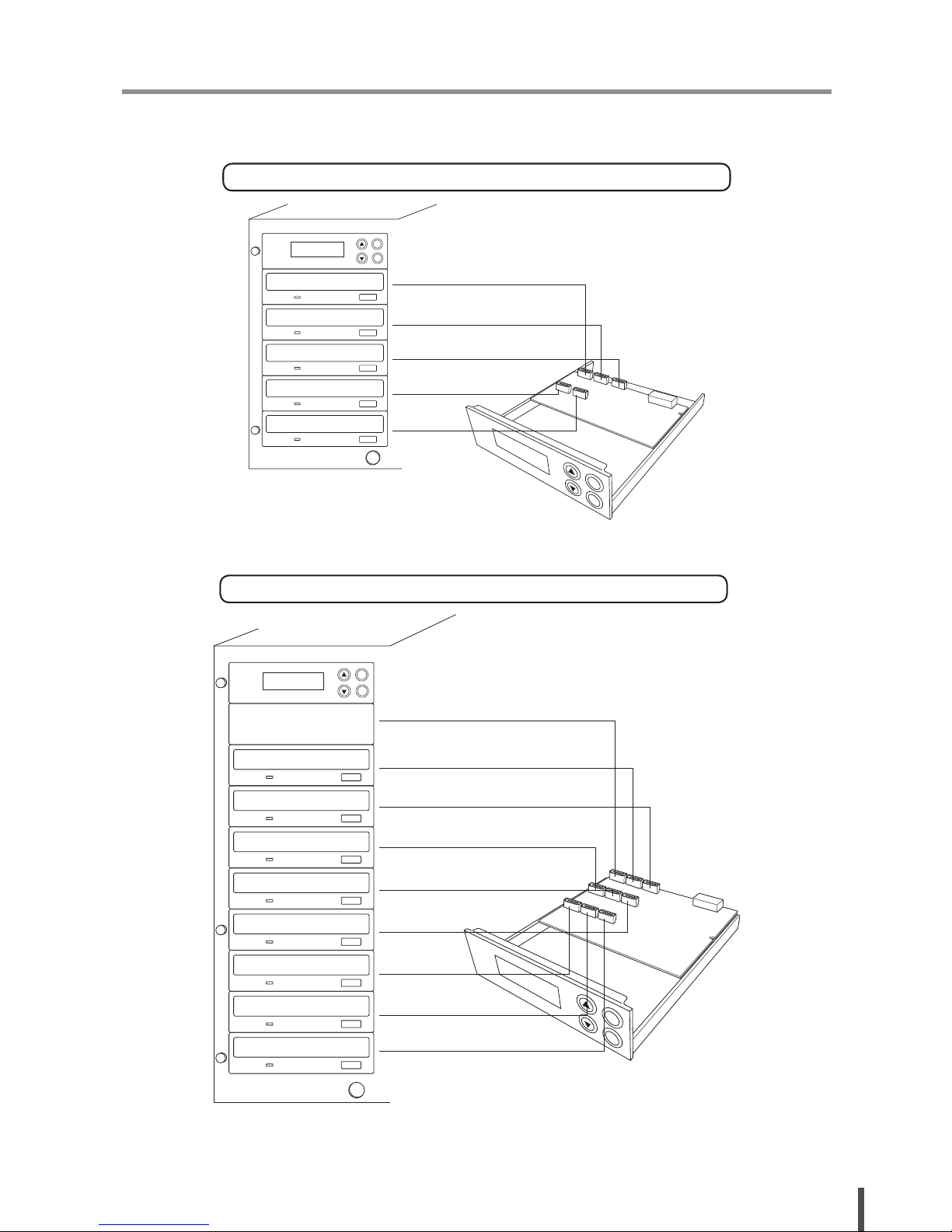

Example: 1-7 installed

ESC

HDD

ESC

Write 1

Write 2

Write 3

Write 4

Write 5

Write 6

Write 7

Write 8

1.HDD (Master)

ROM (Slave)

1.Master

345

678

Slave

Example: 1-4 installed

ESC

Write 1

Write 2

Write 3

Write 4

Write 5

1.(ROM)

Chapter 1. Basic Introduction

ESC

HDD

ESC

Write 1

Write 2

Write 3

Write 4

Write 5

Write 6

Write 7

Write 8

Write 9

Write 10

Write 11

Write 12

1.HDD (Master)

ROM (Slave)

1.Master

234

8910 11 12

Slave

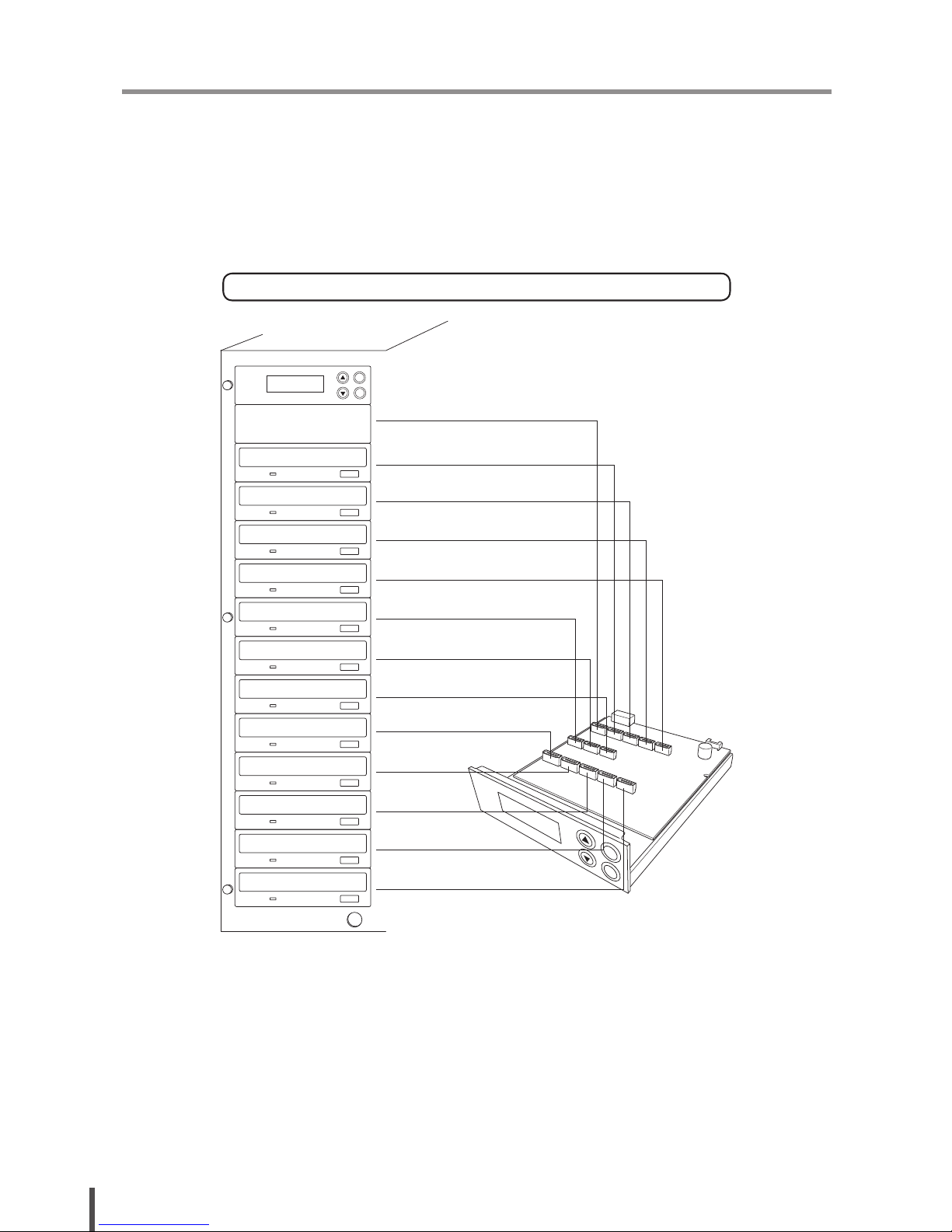

Example: 1-11 installed

Chapter 2. Function Operation

Function Sub-function Description

1. Copy To copy disc to disc or copy disc from HDD.

2. Test To simulate copy process

3. Compare To bit by bit compare between source disc and copied discs

4. Copy & Compare To copy first and compare the copied discs later. To ensure data

correctness.

5. Set Burn Speed To set burning speed for duplication.

6. Select Source To select source from any optical drive or hard disk drive.

7. Utility

1. Information

1. Disc Info. To check the format of disc, burning speed supported and total capacity

or data size.

2. Drive Info. To check the version, model No. and brand name

3. System Info. To check the model No. and firmware version

2. Erase Disc

1. Quick Erase To quick erase data from rewritable disc.

2. Full Erase To full erase data from rewritable disc.

3. PreScan Source To check source disc’s readability.

4. Track Edit

1. Copy Track To select and combine audio tracks from various CDs into a single

customized audio CD.

2. Close Disc To close the disc after track copying to make the CD playable on CD

player.

3. Disc Info. To check the audio CD’s status of usage.

5. Eject All Disc To eject all trays.

6. Copy Counter

1. Show Count To check how many discs copy successfully and failed.

2. Enable Counter To enable or disable counter setting.

3. Clear Counter To delete the record.

7. Update BIOS To update the system’s firmware.

8. PRINT LS Label To print Lightscribe image.

Function Table-CD/DVD/BD Duplication

Chapter 2. Function Operation

8. Setup

1. Auto Start Time Allow the system to do the Copy, Test, Compare and Copy + Compare

functions automatically

2. Display Mode

1. Basic

2. Show Timer

3. Show Speed

3. Button Beep

4. Eject On Start

1. Eject All Discs To eject all trays with disc inside once the system is booted up.

2. Do Not Eject No eject any tray or disc once the system is booted up.

3. Eject Target Only Only eject target trays with disc inside once the system is booted up.

4. Eject Source Only Only eject source disc once the system is booted up.

5. Eject All Trays To eject all trays once the system is booted up.

5. Reader Speed To adjust the reading speed of source drive.

6. Compare Speed To adjust the speed of drives while comparing.

7. Language

8. Clear Setup To reset all the function back to manufacturer’s default setting.

9. Advanced Setup

1. Power On Time To set a warm-up time from 5 seconds to 99 seconds

2. Startup Menu To select which function you would like to show up in the beginning

3. Skip Reader Error To set skip the read error and keep copying.

4. Change Bad

Master

To make the system eject source disc and ask for another one while

the source disc is unreadable for system.

5. CD Overburn Set to copy overburn CD.

6. Show HDD

Image Name

To show HDD image name or capacity on Copy, Test, Copy + Compare

and Compare function

7. Keep Buffer To set enable or disable load source to the buffer.

8. Boot Password To enable or disable the user administrative password.

9. Setup Password To set up the login password

10. Count Password To set up counter login password.

9. HDD Manager

1. Select Image To select image file from HDD as your source for copy.

2. Disc=> Image To load your source disc to the built-in HDD.

3. Set Reader Speed To adjust the speed of source reader while you load image file from the

reader to HDD.

4. Show Image Info. To check the disc format and data size of image file

5. Rename Image To change the name of image file

6. Delete Image To delete image file in the built-in HDD

7. Show HDD Info. To check the information of the built-in HDD includes how many discs

are stored and the free space is available

8. Format HDD To format the built-in HDD

9. Load & Copy

1. Load First To load the source to HDD and make copy at the same time.

2. Synchronous To load source to HDD first and copy from HDD to disc.

3. OFF To disable Load & Copy function.

Chapter 2. Function Operation

1. Copy

It is important to make sure that your source disc is placed in the right drive. You can check or

select your source reader by 6.Select Source. (plase refer to 6.Select Source, page 11)

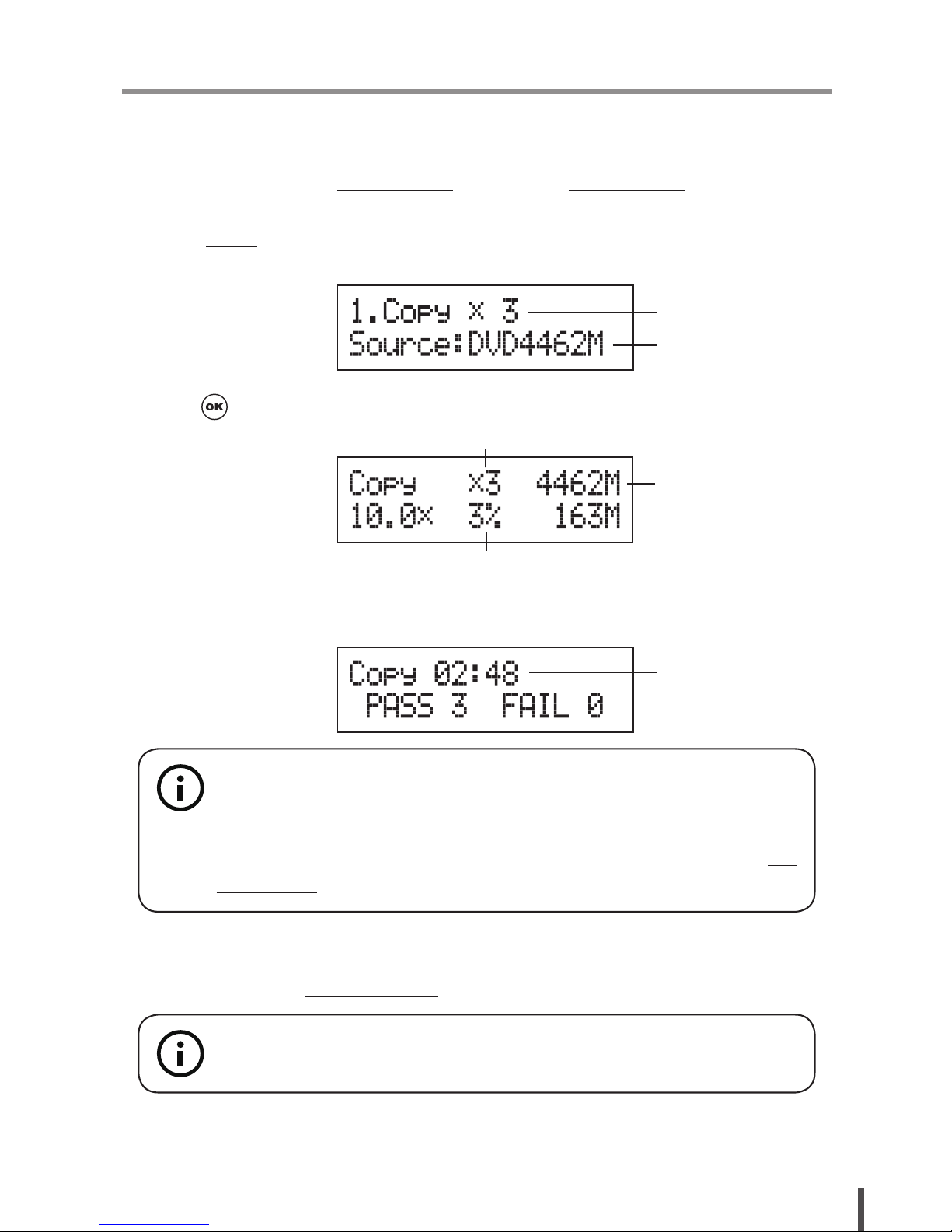

1. Select 1.Copy and place source disc and blank discs into the proper trays. Then the system

will detect the source disc and show the information.

2. Press to start copy

3. Once the copy task is finished, the copied discs will be ejected and the result of copy task

will show on the LCD:

If HDD is selected to be the source reader, you have to upload the source to the built-in

HDD and then follow copy process to do your copy task. How to upload data from disc to

HDD please refer to 9-2.Disc to Image, page 21.

Data size

Copied data size

Speed of burning

Copy process %

Q'ty of target

**Note:

Due to default setting of auto start time, the duplicator will start to copy automatically

within a few seconds. You can set “OFF” to close the auto start function or set a longer

waiting time. The default setting is 5 seconds. (About this setting please refer to 8-1.

Auto Start Time, page 17 )

Elapsed time

Data size

Q'ty of target disc

**Note:

The default setting of source reader is the first drive.

Chapter 2. Function Operation

2. Test

This function will simulate the copy process to ensure error free duplication. During the

simulation, it will be nothing left in the recordable discs.

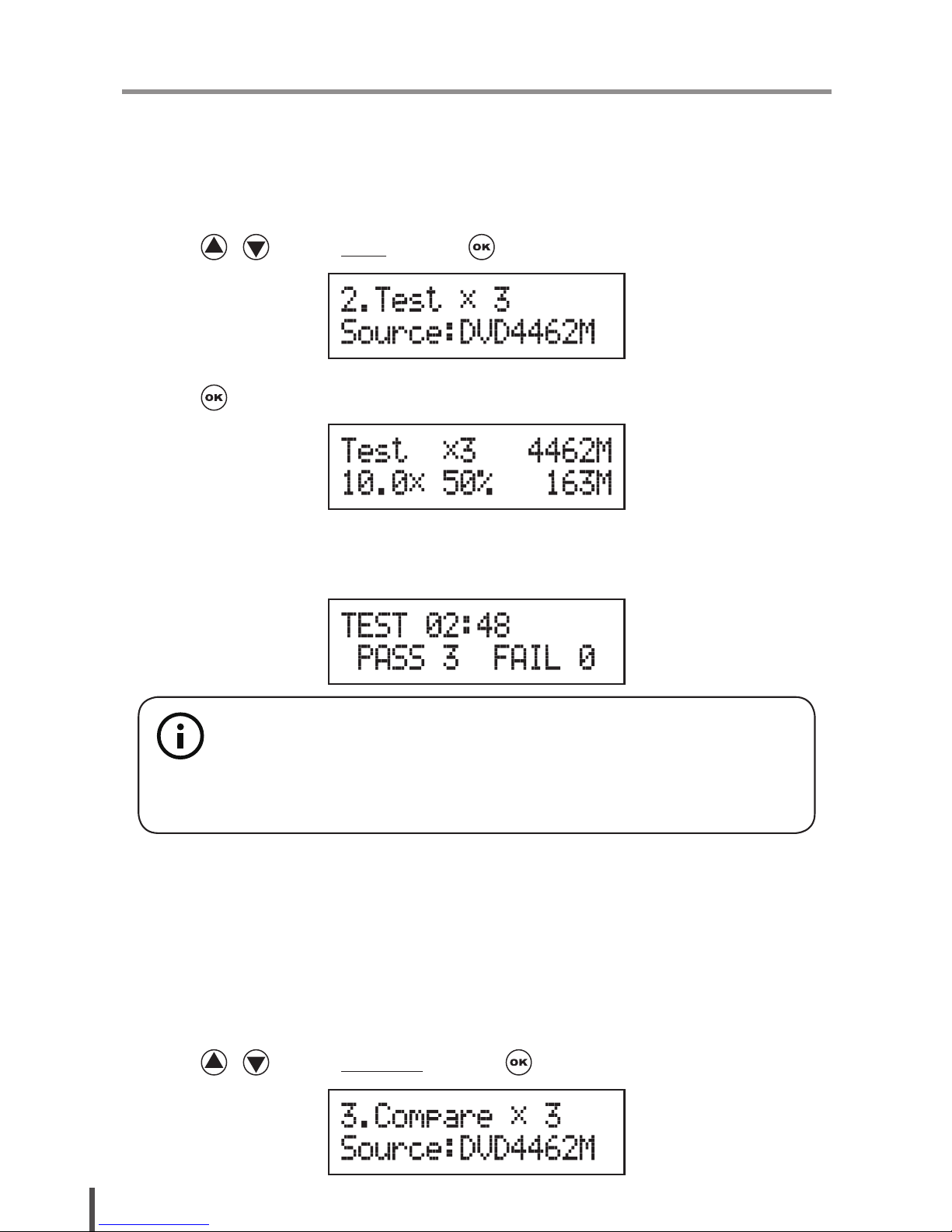

1. Using / to select 2.Test and press .

2. Press to start test

3. Once the test task is finished, the discs will be ejected and the result of the pass and fail

discs for the test task will show on the LCD:

3. Compare

This function will do bit-by-bit comparison between source disc and copied discs to ensure the

copied discs are identical to source disc.

1. Place source disc and blank discs into Reader and Writer separately.

2. Using / to select 3.Compare and press to start compare.

**Note:

1This function is unable to support DVD+R blank disc.

2 If you use CD/DVD rewritable discs as your blank media in the simulation, all the

content inside the discs will be erased permanently during test simulation.
