18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 1/23

Dish Main Arm Stabilizer Arms (Qty. 2)

Mounting Bracket Screw U-Clamp

Flat Washers (Qty. 2) Lock Washers (Qty. 2) Flange Nuts (Qty. 2)

Gigabit PoE (24V, 0.5A) with

Mounting Bracket Power Cord

Package Contents

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 2/23

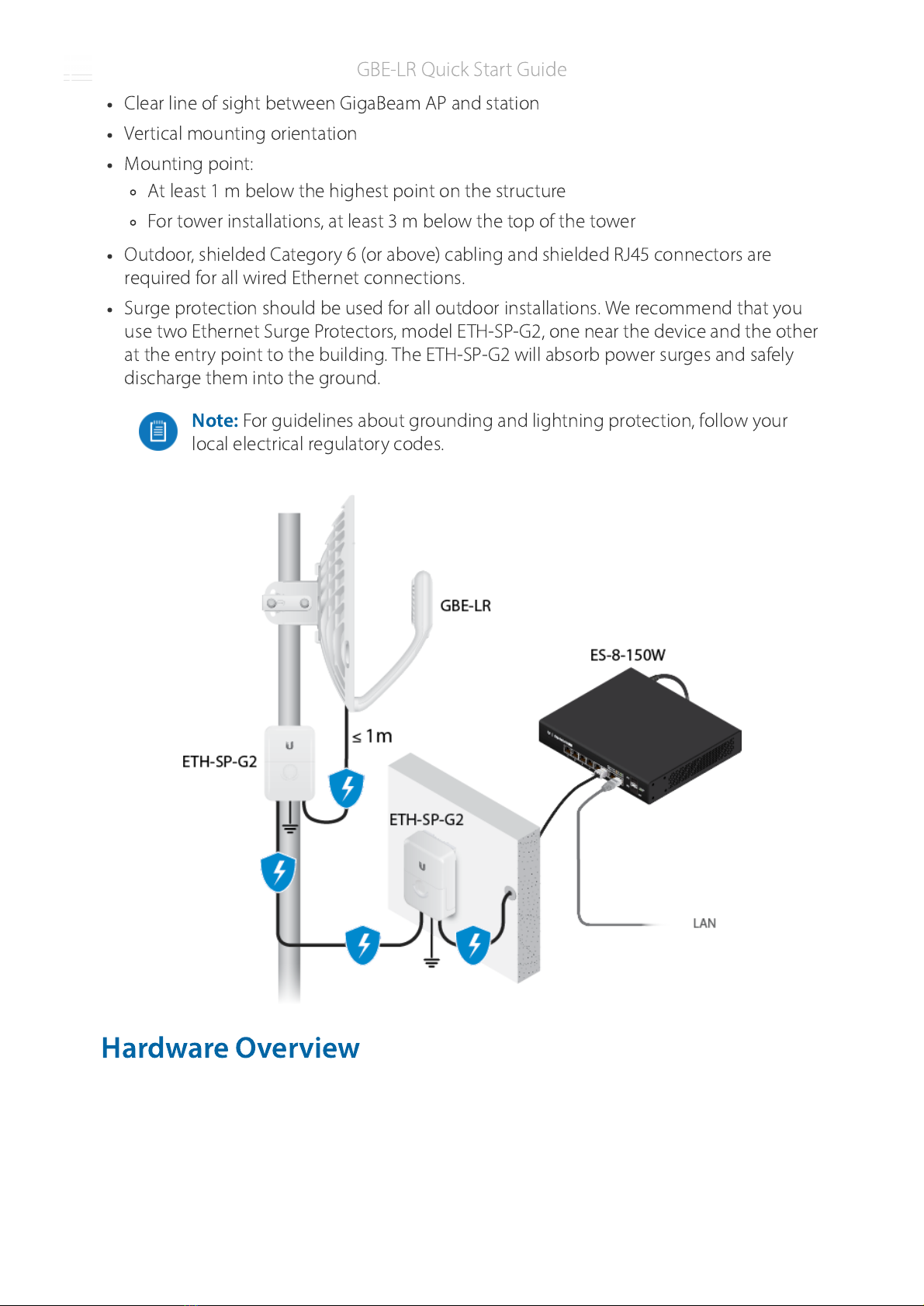

Installation Requirements

Clear line of sight between GigaBeam AP and station

Vertical mounting orientation

Mounting point:

At least 1 m below the highest point on the structure

For tower installations, at least 3 m below the top of the tower

Outdoor, shielded Category 6 (or above) cabling and shielded RJ45 connectors are

required for all wired Ethernet connections.

Surge protection should be used for all outdoor installations. We recommend that you

use two Ethernet Surge Protectors, model ETH-SP-G2, one near the device and the other

at the entry point to the building. The ETH-SP-G2 will absorb power surges and safely

discharge them into the ground.

Note:

For guidelines about grounding and lightning protection, follow your

local electrical regulatory codes.

Hardware Overview

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 3/23

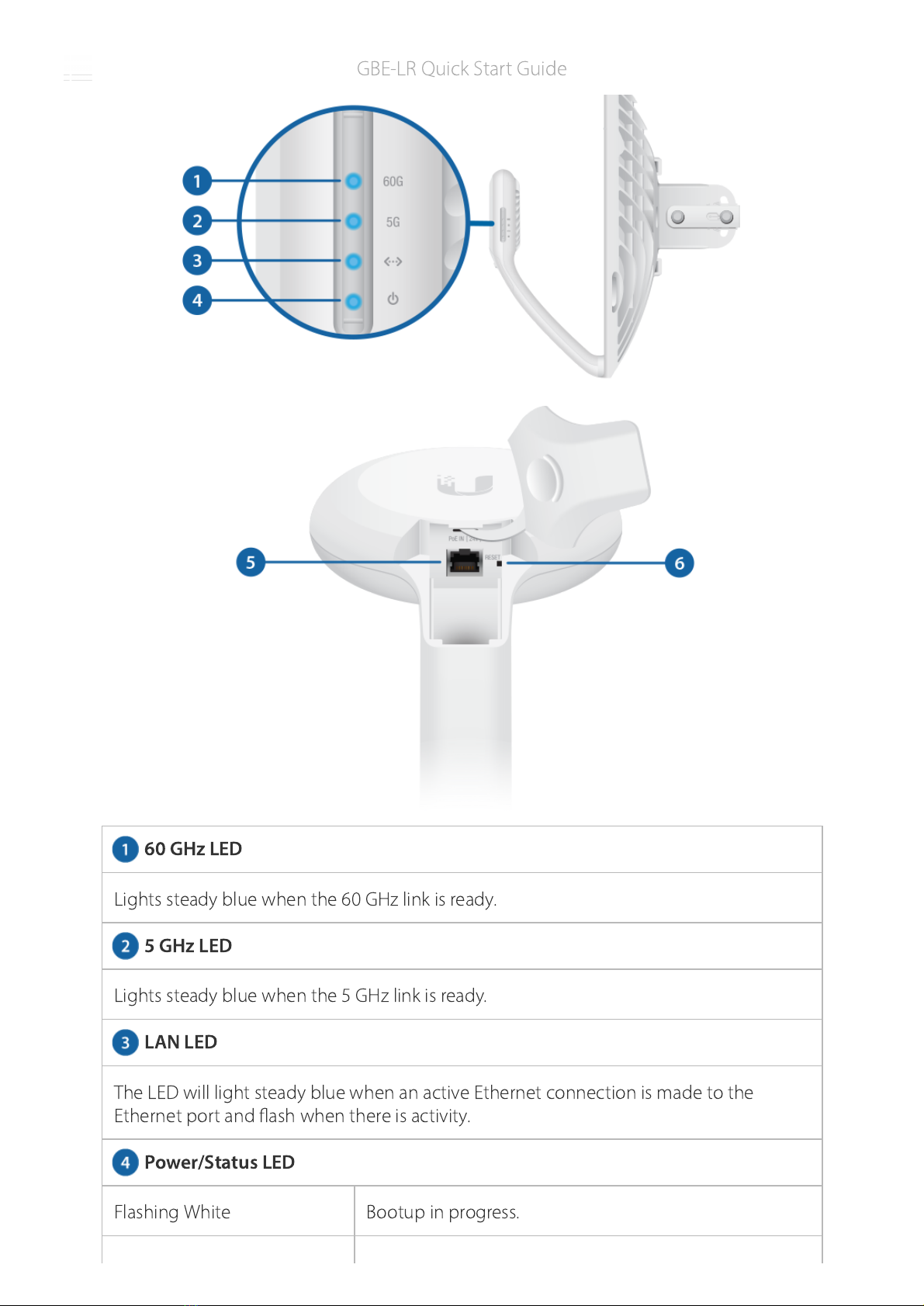

60 GHz LED

5 GHz LED

LAN LED

Power/Status LED

Lights steady blue when the 60 GHz link is ready.

Lights steady blue when the 5 GHz link is ready.

The LED will light steady blue when an active Ethernet connection is made to the

Ethernet port and ash when there is activity.

Flashing White Bootup in progress.

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 4/23

PoE IN Port

Reset Button

White Ready for use, not connected to Ubiquiti® Network

Management System (UNMS™). See

“UNMS

Management”

Blue Ready for use, connected to UNMS.

Steady Blue with Occasional

Flashing Ready for use, unable to connect to UNMS, check

connection to UNMS server.

Quickly Flashing Blue Used to locate a device in UNMS.

Alternating

Blue/White Firmware upgrade in progress.

This Gigabit Ethernet port is used to connect the power and should be connected to

the LAN and DHCP server. Default IP address: 192.168.1.20.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is powered on. Alternatively, the device may be reset remotely via a

Reset button located on the bottom of the Gigabit PoE Adapter.

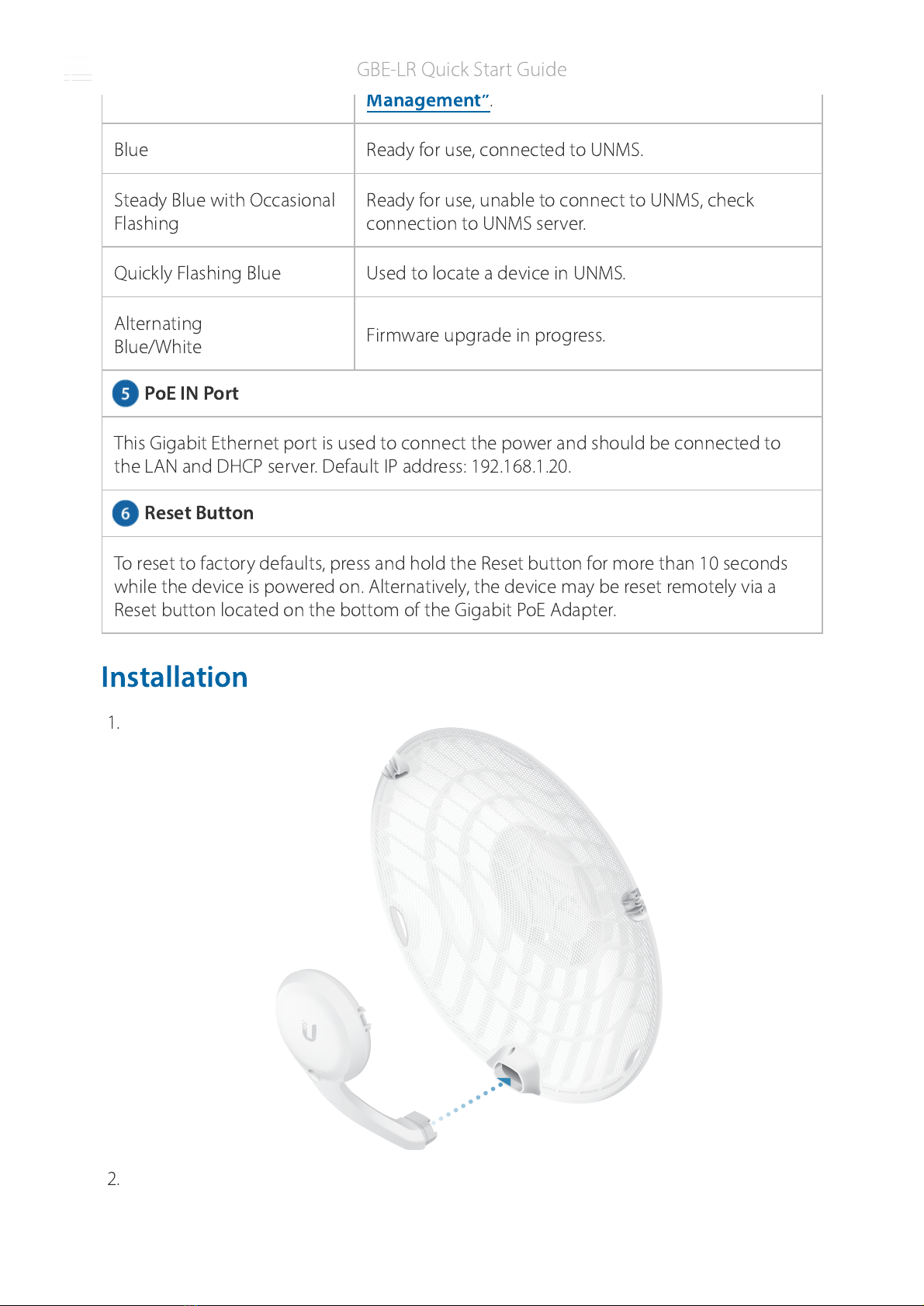

Installation

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 5/23



OPTIONAL

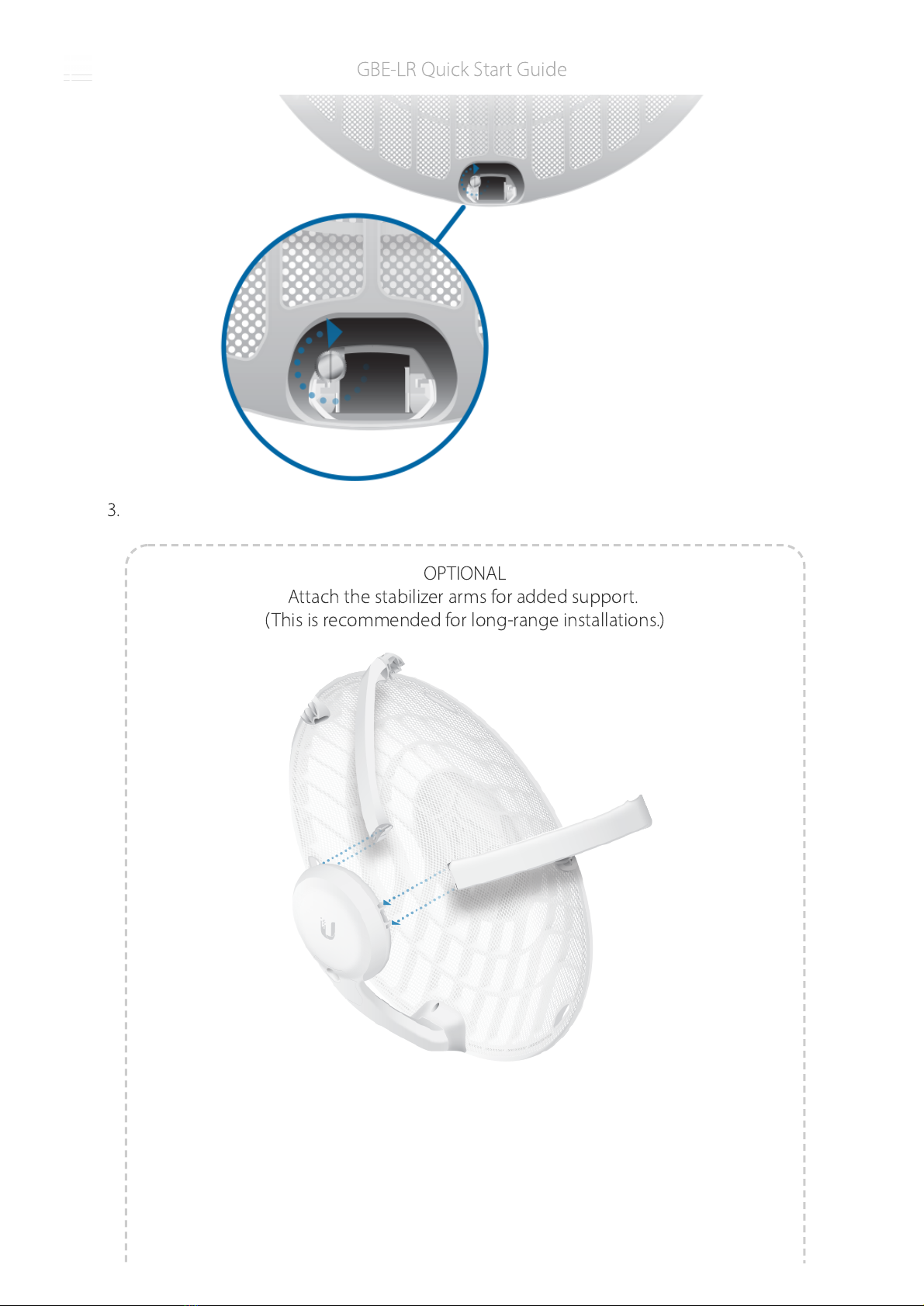

Attach the stabilizer arms for added support.

(This is recommended for long-range installations.)

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 6/23



Note:

The GBE-LR can mount on either side of the pole. This section shows the

GBE-LR mounted on the left; the procedure for mounting on the right is similar.

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 7/23

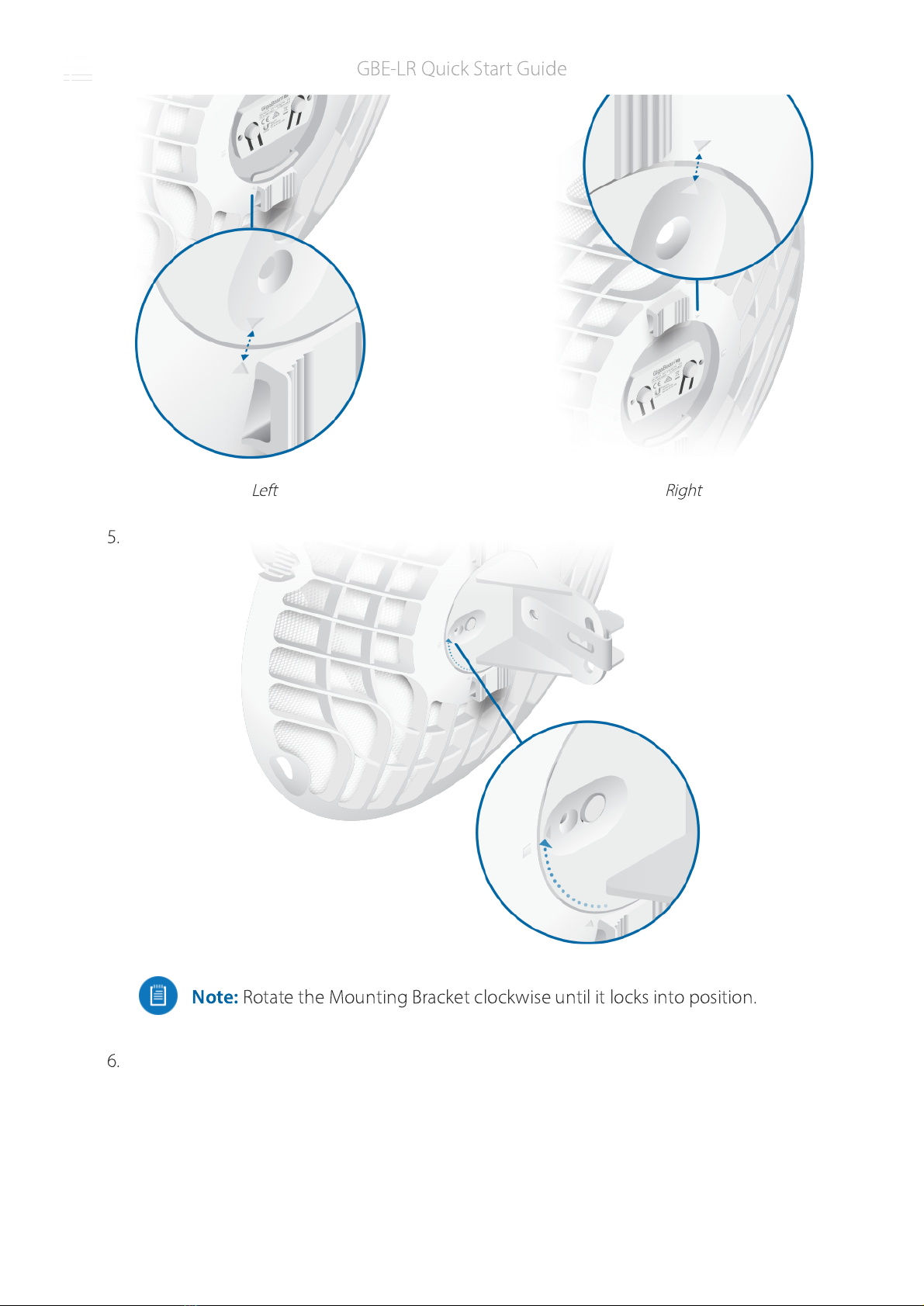

Left Right

Note:

Rotate the Mounting Bracket clockwise until it locks into position.

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 8/23

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 9/23

(Pole not shown)

10.

GBE-LR Quick Start Guide

18/09/2020 GBE-LR Quick Start Guide

https://dl.ui.com/qsg/GBE-LR/GBE-LR_EN.html 10/23

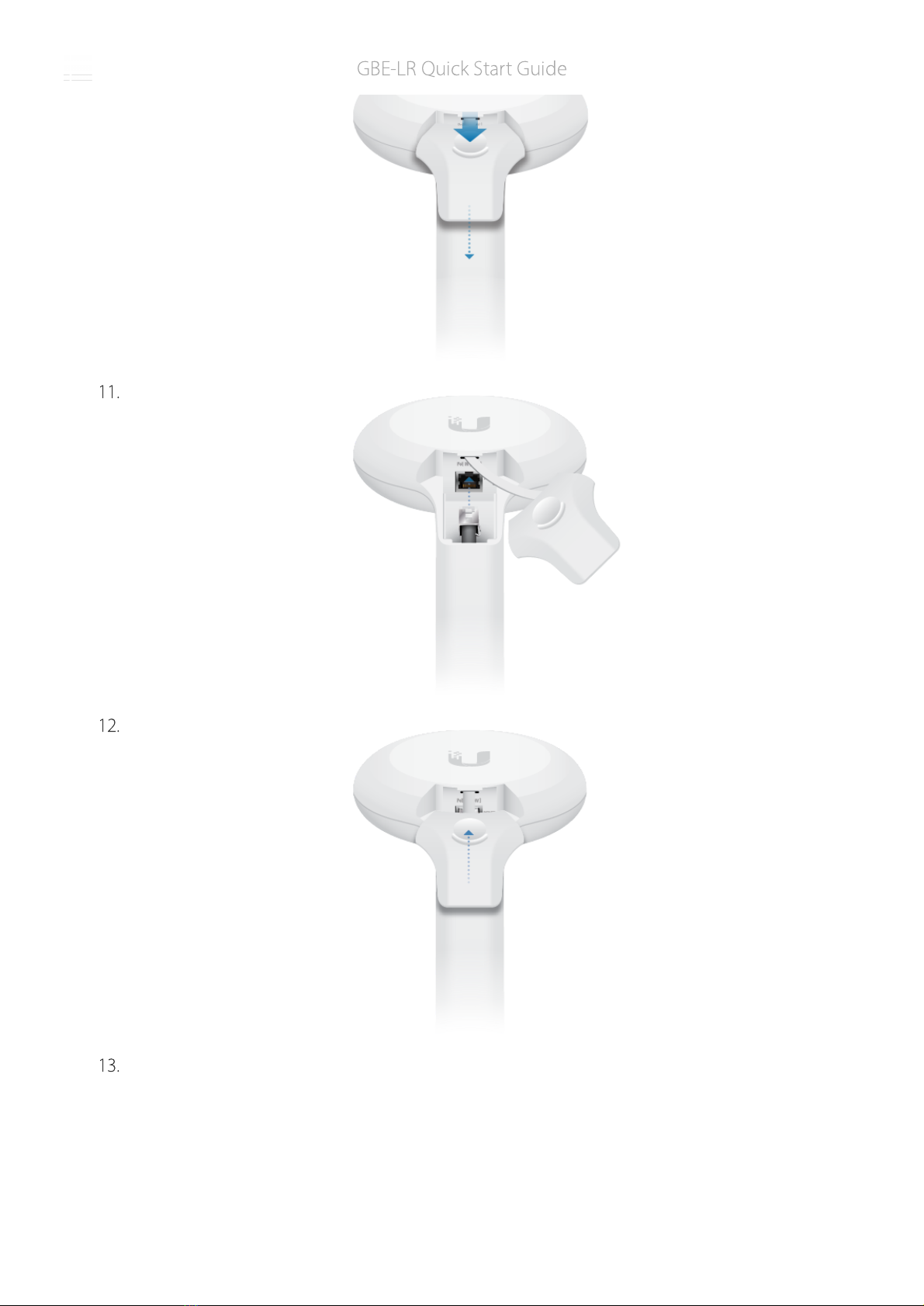

11.

12.

13.

GBE-LR Quick Start Guide
