Ubiquiti RocketDish RD-5G30 Manuale utente

Dish Reﬂector Antenna Feed Mount Bracket

Protective Shroud Pole Clamps (Qty. 2) Stabilizer Brackets (Qty. 2)

RF Cables (Qty. 2) Elevation Rod M10x150 Carriage Bolts (Qty.

4)

M10x100 Bolts (Qty. 2) M10x25 Carriage Bolts (Qty.

3)

M4 Screws (Qty. 4)

Package Contents

RD-5G30 Quick Start Guide

Installation Requirements

5 GHz Rocket® radio (sold separately)

Phillips #1 screwdriver

16 mm or 5/8" wrench

24 mm wrench

Shielded Category 5 (or above) cabling with drain wire should be used for all wired

Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded Ethernet

cable from Ubiquiti. For more details, visit ui.com/toughcable

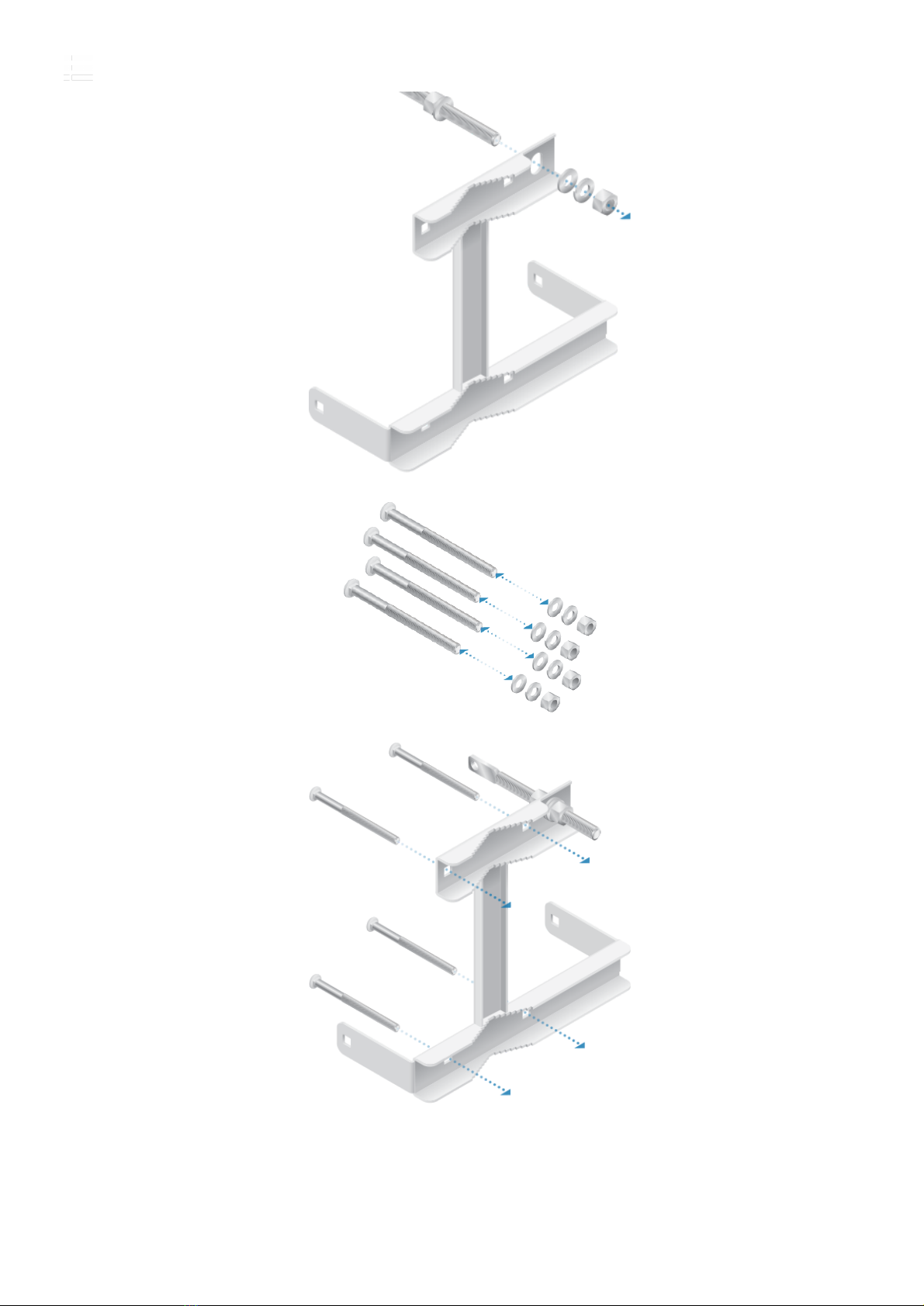

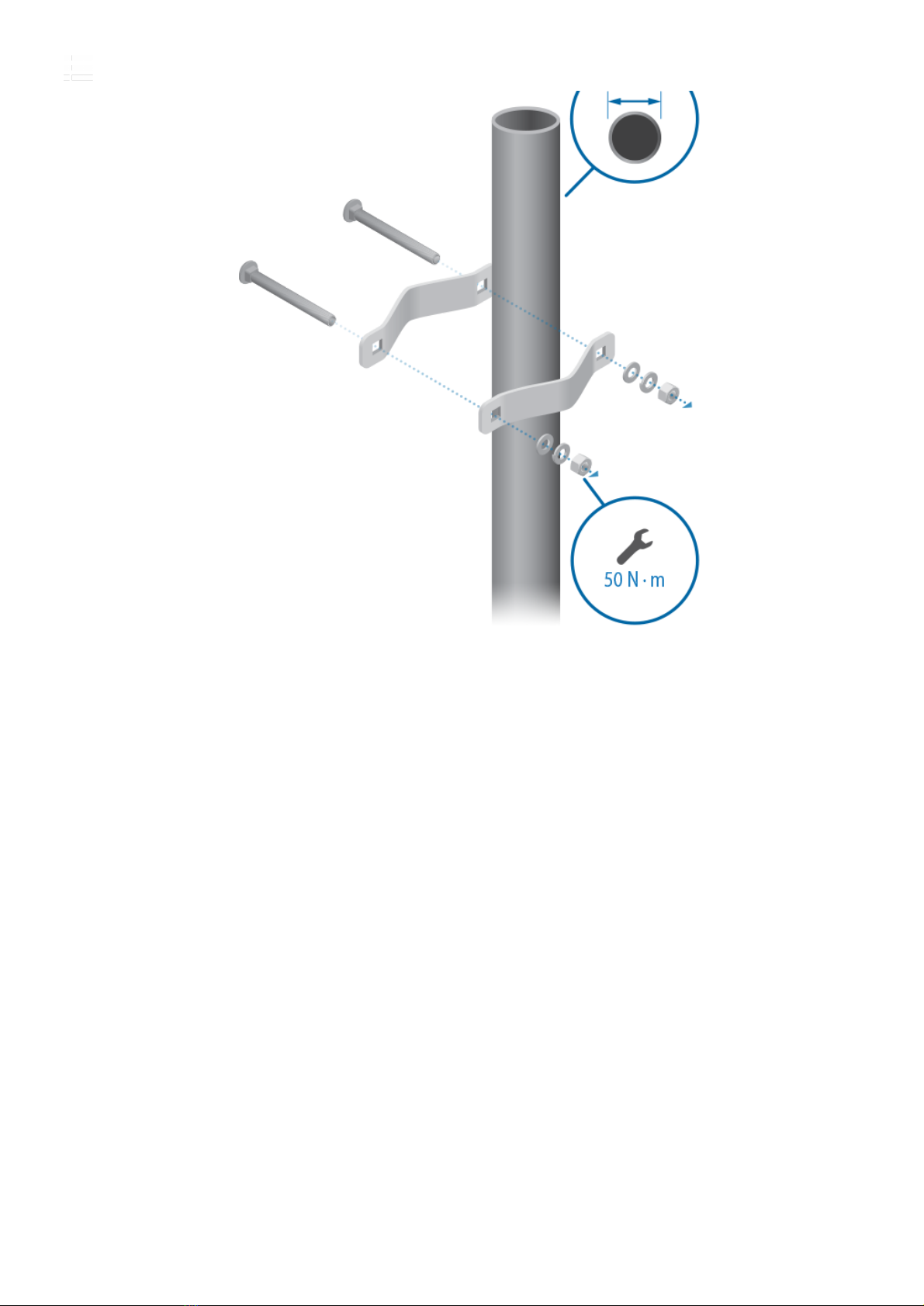

Hardware Installation

IMPORTANT: Handle the Dish Reﬂector with care. Deformations in its shape

may reduce the antenna’s effectiveness.

1.

IMPORTANT: The Dish Reﬂector and Antenna Feed are keyed so the

Antenna Feed can only be installed in a single orientation.

IMPORTANT: Do not handle the antenna by the Antenna Feed once the

feed is connected.

2.

RD-5G30 Quick Start Guide

3.

4.

RD-5G30 Quick Start Guide

5.

6.

7.

RD-5G30 Quick Start Guide

8.

9.

10.

RD-5G30 Quick Start Guide

11.

12.

13.

RD-5G30 Quick Start Guide

14.

RD-5G30 Quick Start Guide

15.

RD-5G30 Quick Start Guide

16.

17.

RD-5G30 Quick Start Guide

Speciﬁcations

RocketDish RD-5G30

Dimensions 650 x 650 x 304 mm

(25.59 x 25.59 x 11.97")

Weight 9.8 kg

(21.61 lb)

Frequency 5.1 - 5.9 GHz

Gain 30 dBi

HPOL Beamwidth 5° (3 dB)

VPOL Beamwidth 5° (3 dB)

Front-to-Back Ratio -34 dB

Max. VSWR 1.7:1

Wind Survivability 200 km/h

(125 mph)

Wind Loading 787 N @ 200 km/h

(177 lbf @ 125 mph)

Polarization Dual Linear

RD-5G30 Quick Start Guide
