Ubiquiti UniFi Access Control Reader Pro Manuale utente

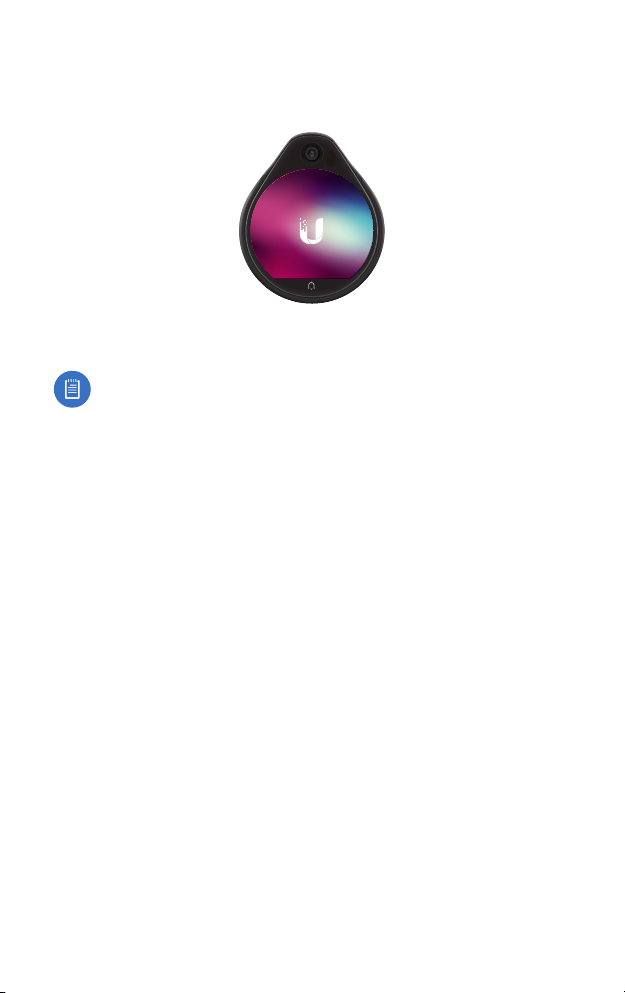

UniFi Access Control Reader Pro
Model:
UA-Pro
System Components
UA-Pro
Note: Each UniFi Access component and all third-party
accessories are sold separately.
Installation Requirements
• Phillips screwdriver
• Ethernet cable, CAT5e or better
Sample Wiring Topology
Motion
Sensor Push
Button
PoE IN
Siren
UA-Hub
Outside
UA-Pro
Door Position
Switch
External-Powered
Door Opener Magnetic Lock
UVC-G3-FLEX
UA-Lite
Push
Peripherals
To PoE BT
UVC-G3 FLEX
UA-Pro
UA-Lite
Sample UniFi Access Diagram
Access Reader
Run an Ethernet cable from the UA-Hub location to the install
location of the access reader. Depending on your system setup,
the access reader can be installed on either the inside or the
outside of the door.
UA-Pro
1. Separate the UA-Pro from its mount by removing the security
screw from underneath the device.
2. Place the mount against the wall and use it as a template to
mark the area where the UA-Pro will be installed.
3. Use the marked area as a guide to cut a hole in the wall for
the mount.
4. Pull the Ethernet cable from the wall and feed it through the
mount.
5. Insert the mount into the wall and use the bottom clip to
adjust the camera mount, left or right, until it is level.
6. Secure the mount to the wall using two screws and remove the
level template.
Specifications
UA-Pro
Dimensions 73.40 x 62.28 x 26.55 mm
(2.89 x 2.45 x 1.05")
Weight 85 g (2.99 oz)
Mounting Options Wall-mount or alloy clamp holder
Camera Viewing Angle 147.5º ± 3º
Max. Power Consumption 8.3W
Power Supply 802.3af PoE
LEDs Blue, White
Connectivity Ethernet, BLE 4.2
Operating Temperature -10 to 40º C (14 to 104º F)
Operating Humidity 20 to 95% Non-condensing
Certications CE, FCC, IC
NFC
Frequency 13.56 MHz
Read Range <30 mm
Standards ISO 14443A, 14443B, 15693
Technology NFC Tag 1, 2, 3, 4, 5,
MIFARE Classic,
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire EV1/EV2
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be submerged
by water.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a different
power source than those specified may result in improper operation, damage to
the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be
provided only by a qualified service technician.
Limited Warranty
www.ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an
individual basis, and, where applicable, specify arbitration instead of jury trials or class
actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This radio transmitter (FCC ID: SWX-UAPROE) has been approved by the FCC.
ISED Canada
CAN ICES-3(B)/NMB-3(B)
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that permitted for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
This radio transmitter (IC: 6465A-UAPROE) has been approved by Industry Canada.
CAN ICES-3(B)/NMB-3(B)
Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son
gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente
(PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence
norme(s). Son fonctionnement est soumis aux deux conditions suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement du dispositif.
Cet émetteur radio (IC: 6465A-UAPROE) a été approuvée par Industrie Canada.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be located or operating in
conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en considérant une
distance de séparation de toute personnes d'au moins 20 cm et ne doivent pas être
localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.
CE Marking
CE marking on this product represents the product is in compliance with all directives
that are applicable to it.
Note: This device meets Max. TX power limit per ETSI regulations.
