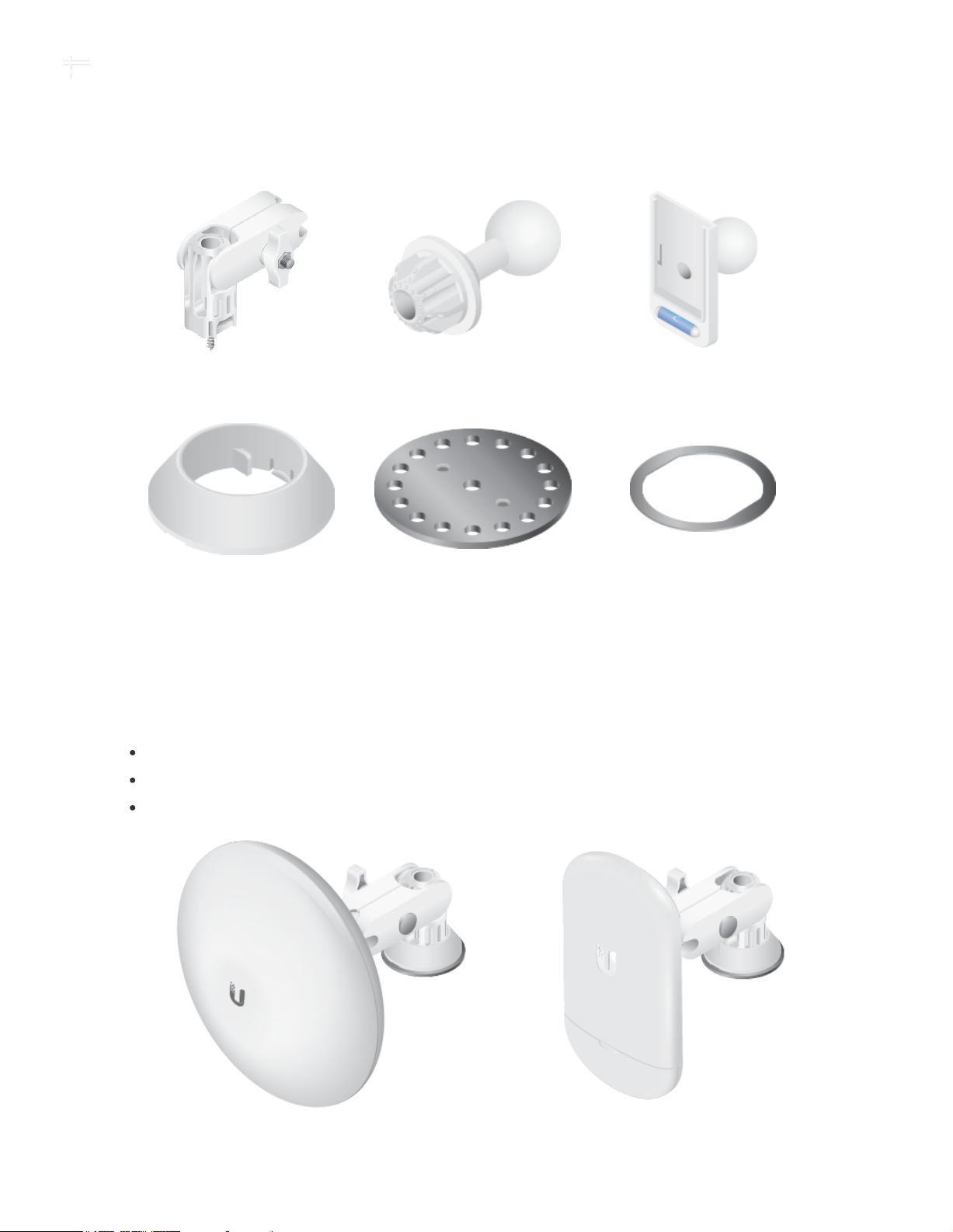

Mount Arm Universal Ball Mount Bracket Mount
Rotation Collar Stacking Washer Ball Mount Washer
Package Contents
Supported Products
The Quick Mount is compatible with the GigaBeam™, LTU™ Lite, NanoBeam®,
NanoStation®, NanoStationloco, and UniFi® Building-to-Building Bridge.
NBE-2AC-13, NBE-M5-16, UBB, or GBE using the Universal Ball Mount
NBE-5AC-Gen2 or NBE-M5-19 using the Universal Ball Mount and Metal Washer
loco5AC, NS-5AC, or LTU-Lite using the Ball Mount Assembly
Hardware Overview
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 2/14
Stacking Washer
Rotation Collar
Mount Arm
Ball Mount Washer
Universal Ball Mount
Bracket Mount
Part of the Quick-Mount assembly that locks the Rotation Collar into place.
Part of the Quick-Mount assembly that stabilizes the base of the Mount Arm.
Adjustable mount compatible with a variety of Ubiquiti CPE devices.
Used in conjunction with the Universal Ball Mount when installing the
NBE‑5AC‑Gen2 or NBE-M5-19.
Used when installing the NBE-5AC-Gen2, NBE-2AC-13, NBE-M5-19, NBE-M5-16,
UBB, or GBE.
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 3/14
Used when installing the loco5AC, NS‑5AC, or LTU-Lite.
Models
NBE-2AC-13
NBE-M5-16
UBB
GBE
Components
Note: The device’s Lock Ring will also be used.
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 4/14
Models
NBE-5AC-Gen2
NBE-M5-19
Components
Note: The device’s Lock Ring will also be used.
Models
loco5AC
NS-5AC
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 5/14
LTU-Lite
Components
Installation
Before You Begin
Insert the Mount Arm into the Rotation Collar and press until it is locked in.
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 6/14
Note: The screw end should extend past the Rotation Collar for installation, as
shown below.
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 7/14
1.
Optional
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 8/14
2.
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 9/14
3.
4.
Quick-Mount Quick Start Guide
8/31/2020 Quick-Mount Quick Start Guide
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 10/14
5.
Note: Add the Ball Mount Washer when installing the NBE-5AC-Gen2 or
NBE-M5-19.
OR
Quick-Mount Quick Start Guide
