Pre-recorded message generator with time control
GD-1000
71
rev.1
EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM PUBLIC ADDRESS SYSTEMS
Tel.: +34 934 772 854 / +34 609 914 787 610.503A
Up to 1440 events per day.
Up to 32 date ranges throughout the year.
SD Card incorporated (up to 32 GB) through USB port.
LCD screen to visualice date, time and 4 pushbuttons
to set hour and configuration.
1W 2" monitoring speaker.
3 pushbuttons in front panel for priority messages.
Front USB port to load files (the PC is recongnized
as an external unit) and to load the annual program
with the MasterSwitch software.

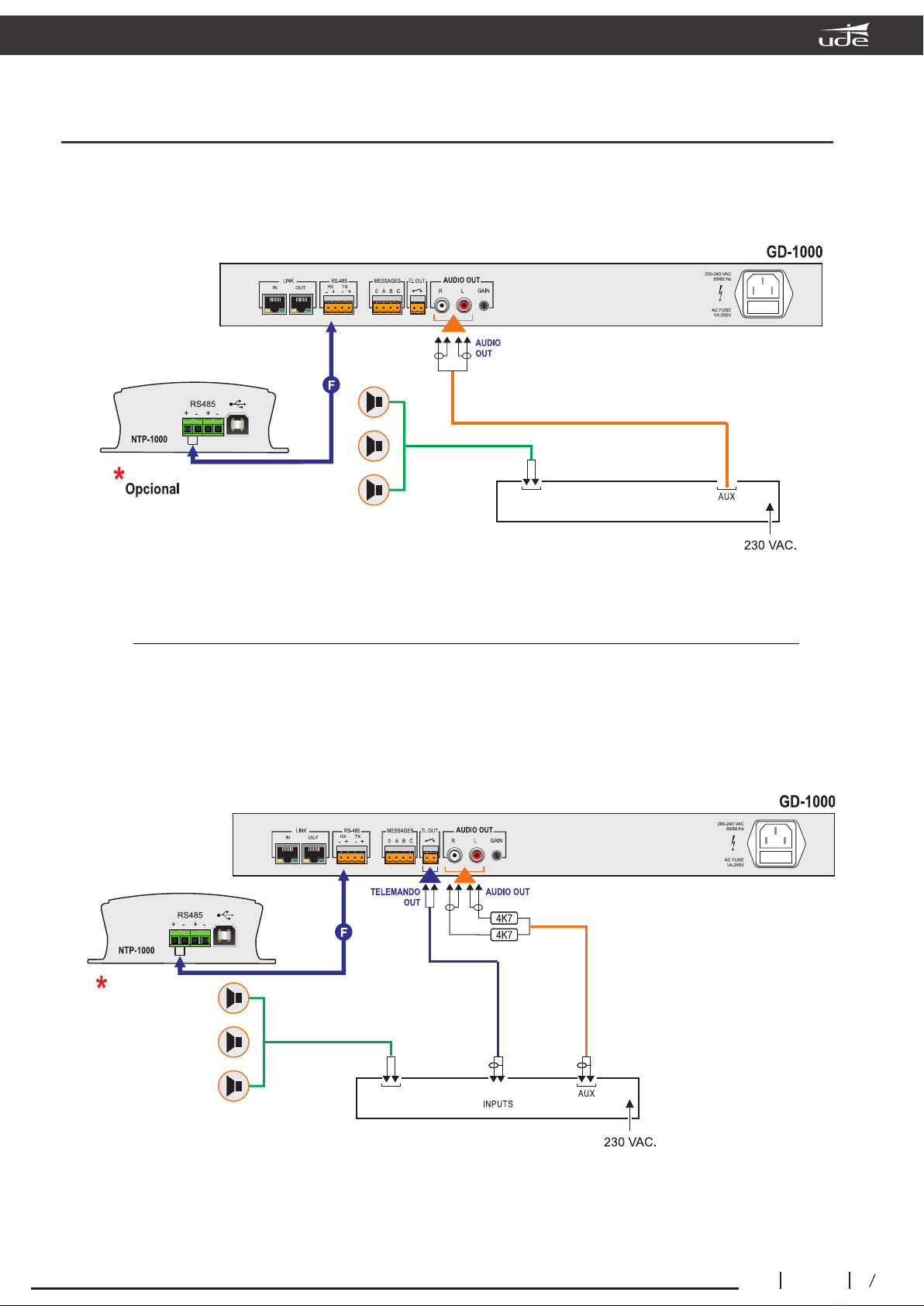

Stereo audio output with gain adjustment.

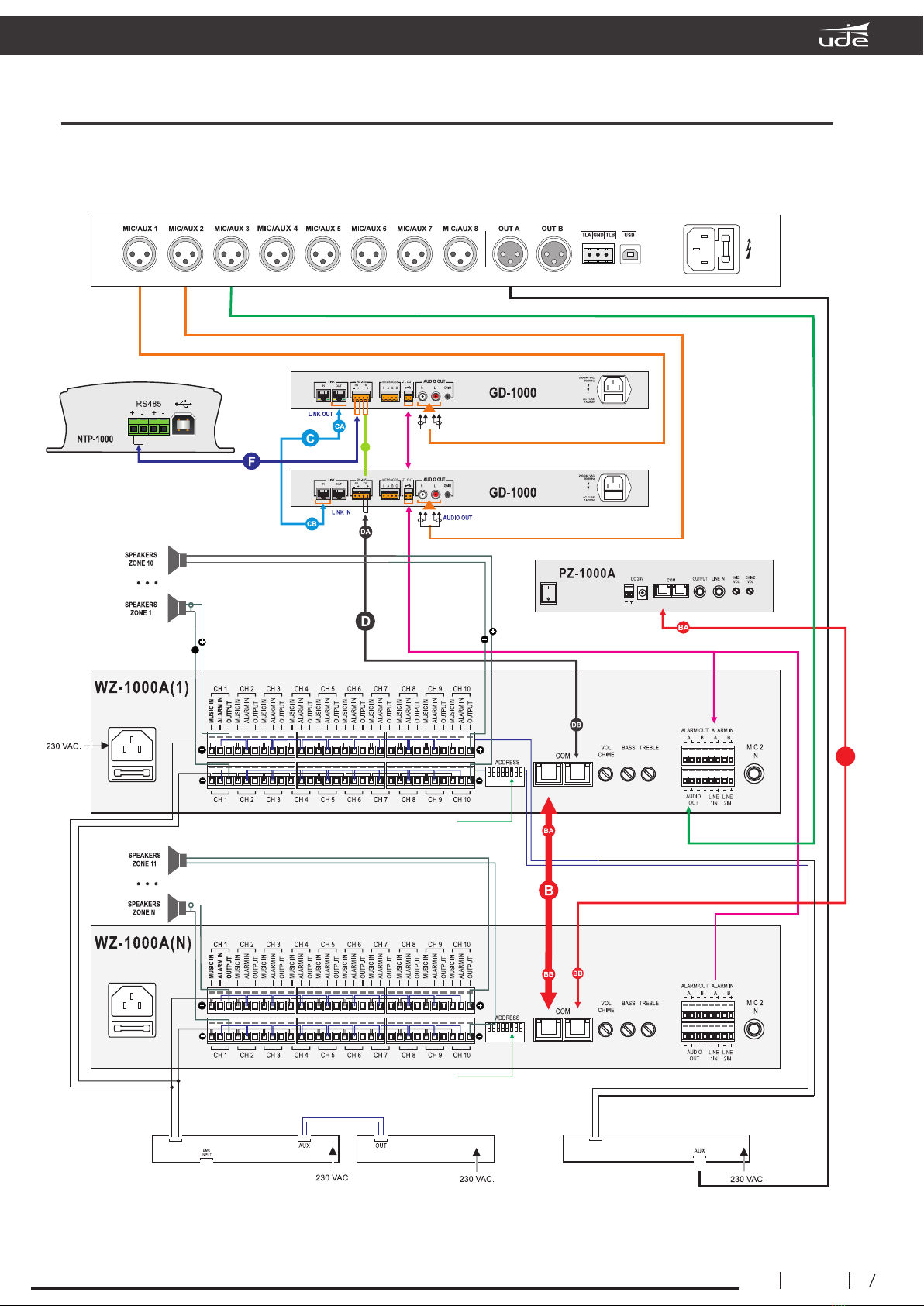

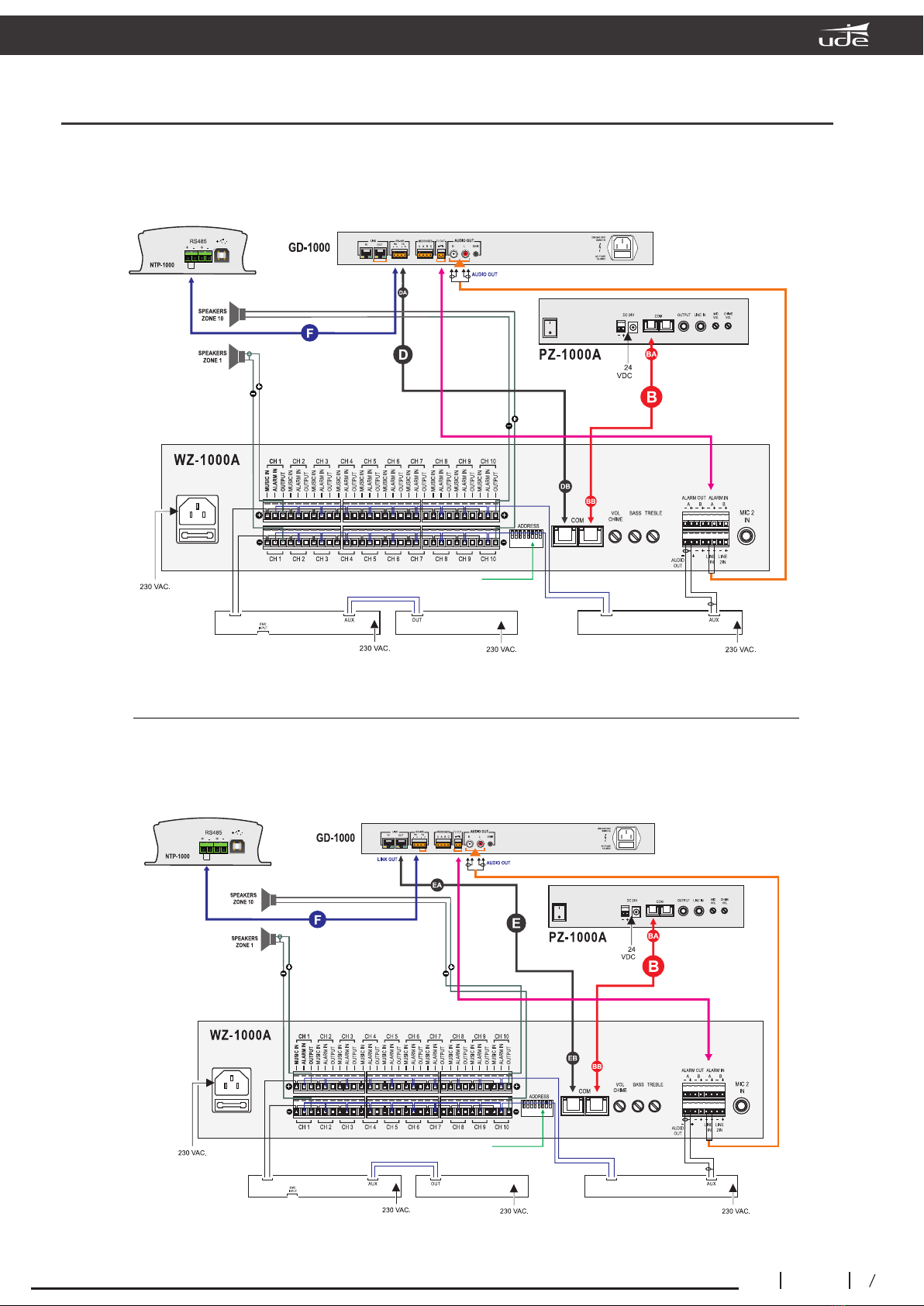

Connected to switch centrals WZ-1000A is able to
generate events for 50 zones (5 WZ-1000A)
In case of needing to control more zones the system
can be expanded adding more units of GD-1000
Main characteristics
Record, manage and reproduce messages in MP3 format.
You can decide hour, time and date to launch the messages.
Report about open and closing hours of your establishment.
Program your offers and promotions to reproduce them automatically.
Priority or evacuation messages.
.
Bell chimes for churches and Town Halls.
automatically
Activation of programmed messages acting to de
front panel pushbuttons A, B or C or through
clousured contact in the back panel.
Includes free license to manage the
data from PC via USB port.
MasterSwitch
Send specific messages to different zones or
groups.
Auxiliary remote control via terminals. Closed
contact when there is a message reproducing.
FRONT PANEL
SIDE PANEL
DIMENSIONS IN MILLIMETERS
