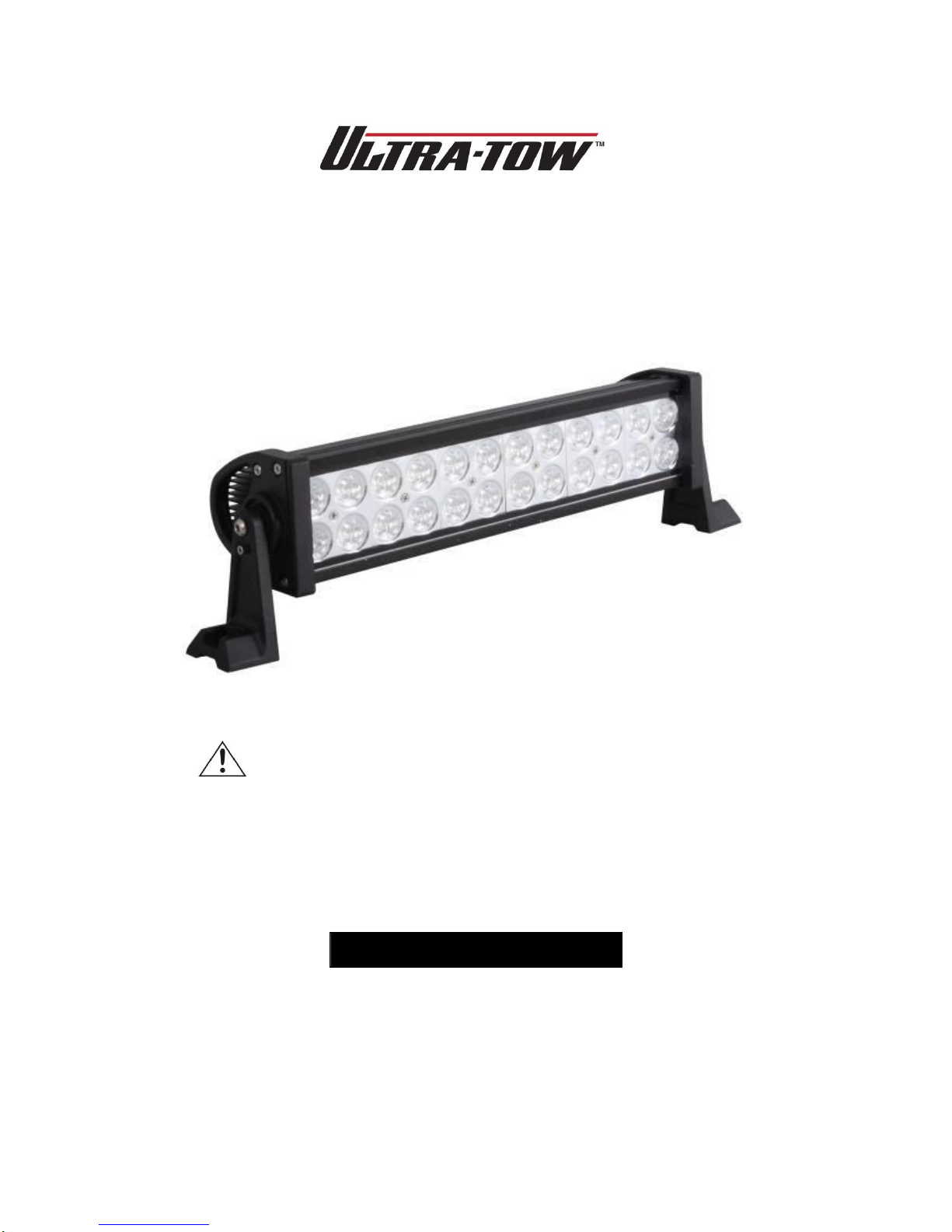

72 WATT LED WORKLIGHT
OWNER’S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and
other basic safety precautions may result in serious personal injury.
Item# 27883
Page 2 of 7
Thank you very much for choosing an Ultra-Tow product! For future reference, please
complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire
manual to become familiar with this product before you begin using it.
This worklight is designed for certain applications only. The distributor cannot be responsible
for issues arising from modification. We strongly recommend this machine not be modified
and/or used for any application other than that for which it was designed. If you have any
questions relative to a particular application, DO NOT use the worklight until you have first
contacted the distributor to determine if it can or should be performed on the product.
For technical questions please call 1-800-222-5381.
INTENDED USE
The 72 Watt LED worklight is designed to enhance the beam from your trucks, SUVs, ATVs,
farm equipment and heavy machinery and more, with very low amp draw. The rugged light
features a weatherproof design with bright white LED bulbs. It has a durable die-cast
aluminum housing and an adjustable mounting bracket.
TECHNICAL SPECIFICATIONS
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions
listed below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this light until they have read
this manual and have developed a thorough understanding of how the light works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
Item
Description
Bulb Type
LED
Volts
9-32
Beam Pattern
Flood
Product Size
26in.L x 3.5in.W x 4.5in.H
Watts
72 Watt
Page 3 of 7
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors that cannot be built
into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY CONSIDERATIONS
•If mounting this product requires drilling holes, the installer MUST be sure that no
vehicle components or other vital parts could be damaged by the drilling process.
Check both sides of the mounting surface before drilling begins. Also de-burr any
holes and remove any metal shards or remnants. Install grommets into all wire
passage holes.
•Do not use a pressure washer to clean this product.
WORKLIGHT USE AND CARE
•Do not modify the Worklight in any way. Unauthorized modification may impair the
function and/or safety and could affect the life of the product.
•Always check damaged or worn out parts before using the Worklight. Broken
parts will affect the Utility light operation. Replace or repair damaged or worn parts
immediately.
INSTALL THE WORKLIGHT
1. Attach the bracket（4）& O-ring (8) on the light（1）using M6 x 25 Hex socket cap screw
（2）. Do not overtighten the screws.(See Figure 1)
Figure1
Page 4 of 7

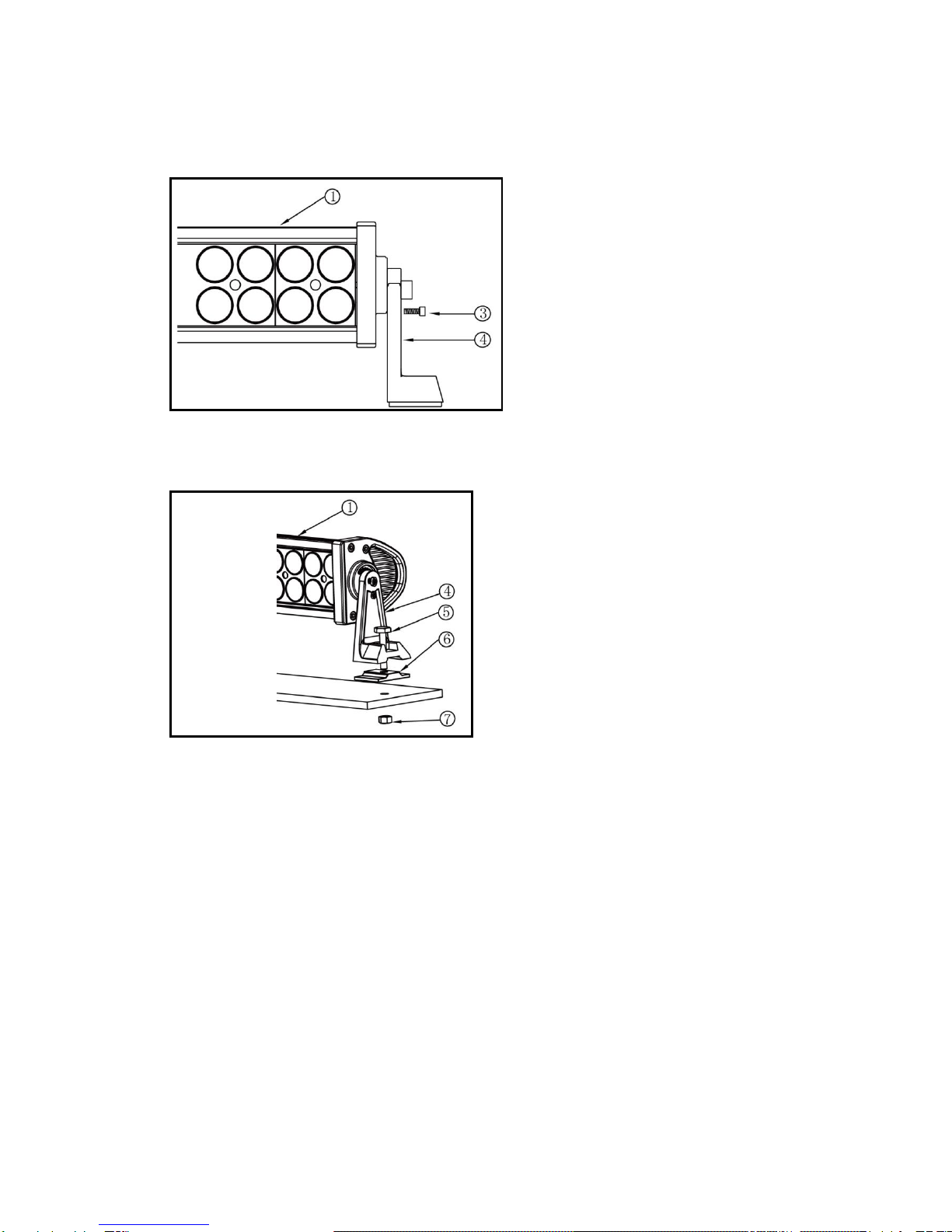

2. Adjust the light body (1) to a desired angle, then insert the M3 x 17 Hex socket cap screw
（3）to hole on the bracket(4) and tighten it. (See Figure 2)
3. Run the M6 x 35 Hex socket cap screw（5）from the bracket (4), Rubber mat（6）,
Mounting surface, then attach the M6 hex nut（7）. (See Figure 3)
Figure 2
Figure 3
Mounting Surface
Page 5 of 7

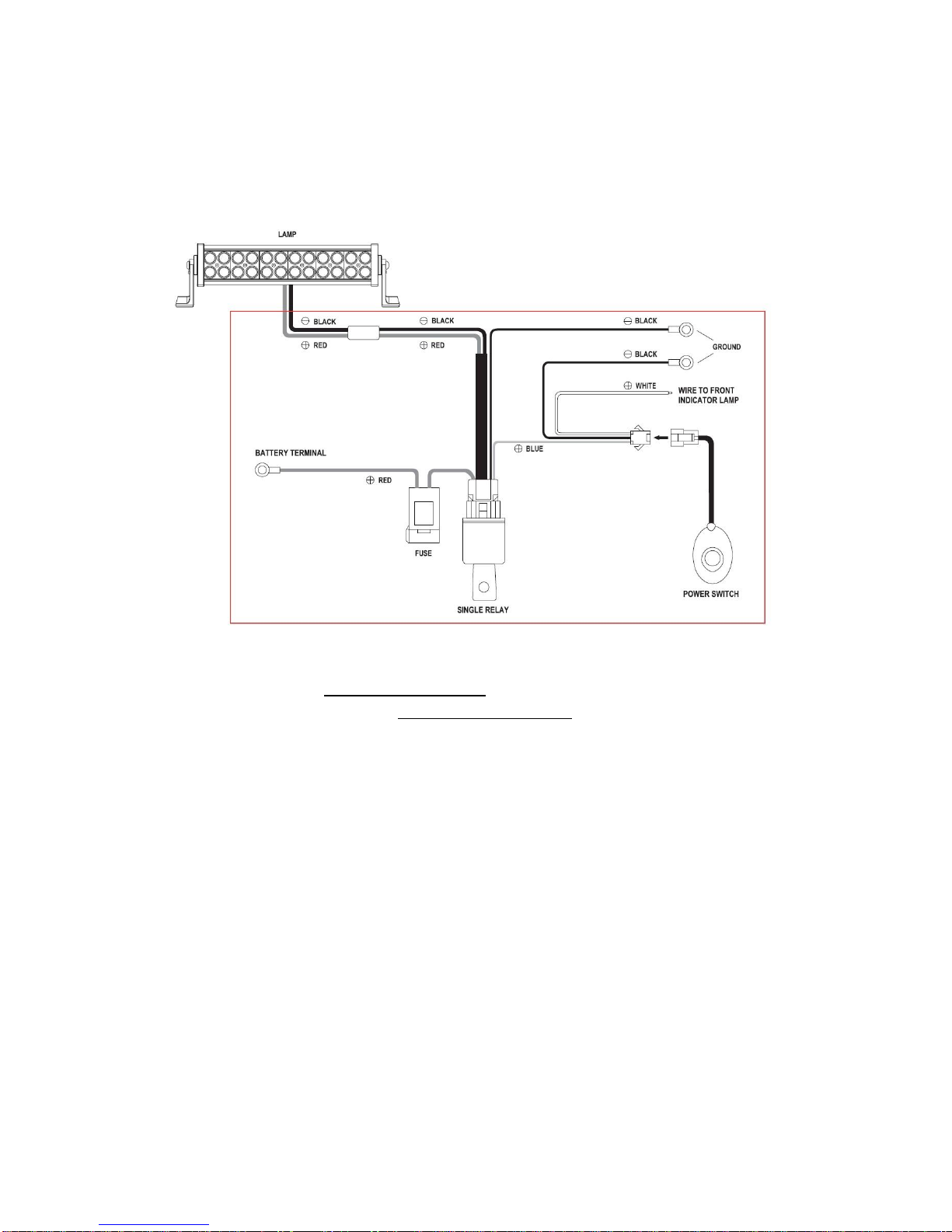

WIRING DIAGRAM
NOTE: DIAGRAM SHOWN WITH OPTIONAL WIRING KIT (ITEM# 31436,
SOLD SEPARATELY)
·Put the red wire of 72W LED Work Light to positive electrode ofWire Harness,
and put the black wire of 72W LED Work Light to negative pole of Wire
Harness. If you are not using the optional wiring kit, we recommend
using 18-ga. wire.
Page 6 of 7

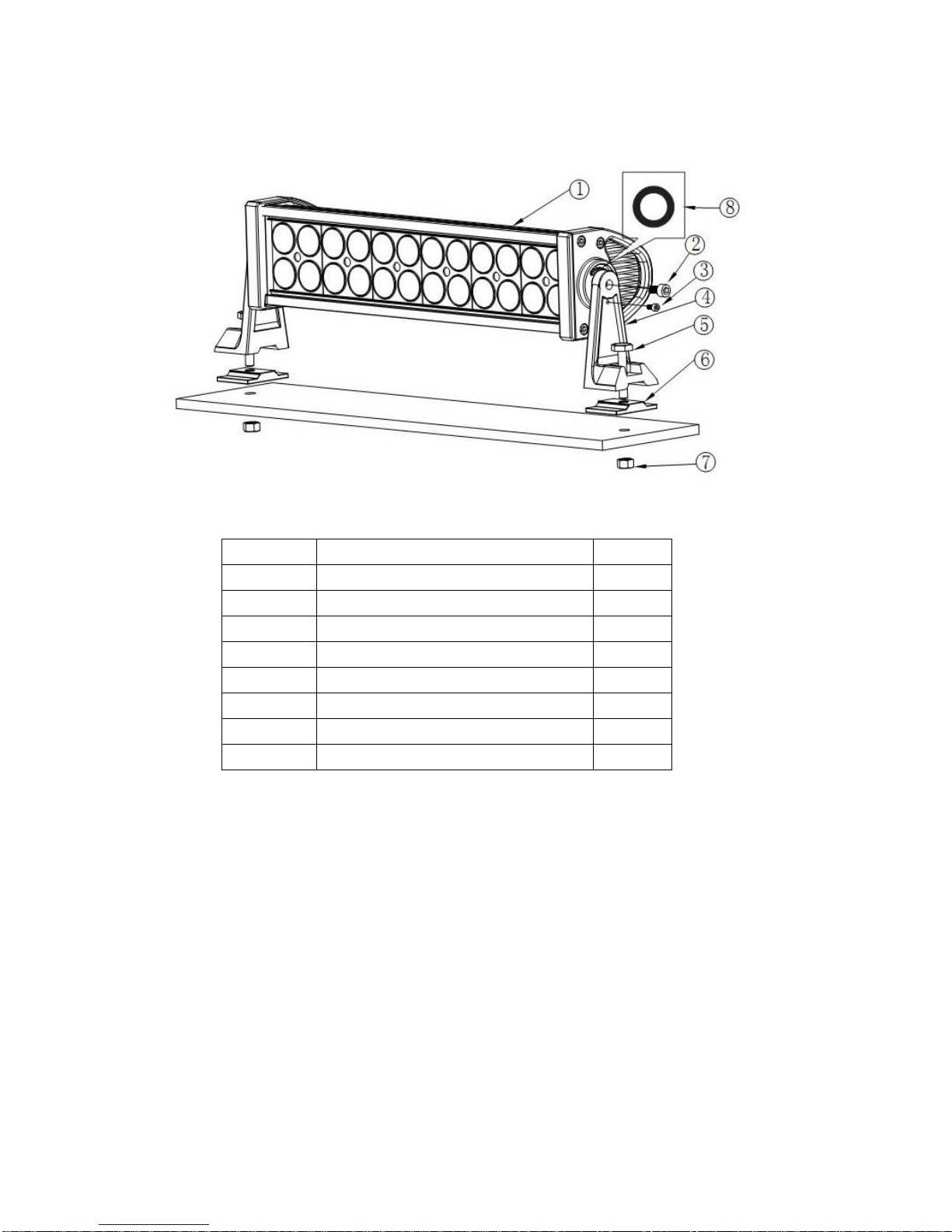

PARTS DIAGRAM & PARTS LIST
Part#
Description
Qty.
1
Lamp Body
1
2
M6 x 25 Hex socket cap screw
2
3
M3 x 17 Hex socket cap screw
2
4
Bracket
2
5
M6 x 35 Hex socket cap screw
2
6
Rubber mat
2
7
M6 Hex nut
2
8
O-ring
2
For replacement parts and technical questions please call 1-800-222-5381.
WARRANTY
One-year limited warranty
Mounting Surface
Page 7 of 7
Distributed by:
Northern Tool + Equipment Co., Inc.
Burnsville, Minnesota 55306
NorthernTool.com
Made in China
