Ultra Firefly Low Voltage Lighting System Manuale utente
A. Post Cap B. 9’ Quick Connect Cable C. Power Supply
(and accessories)

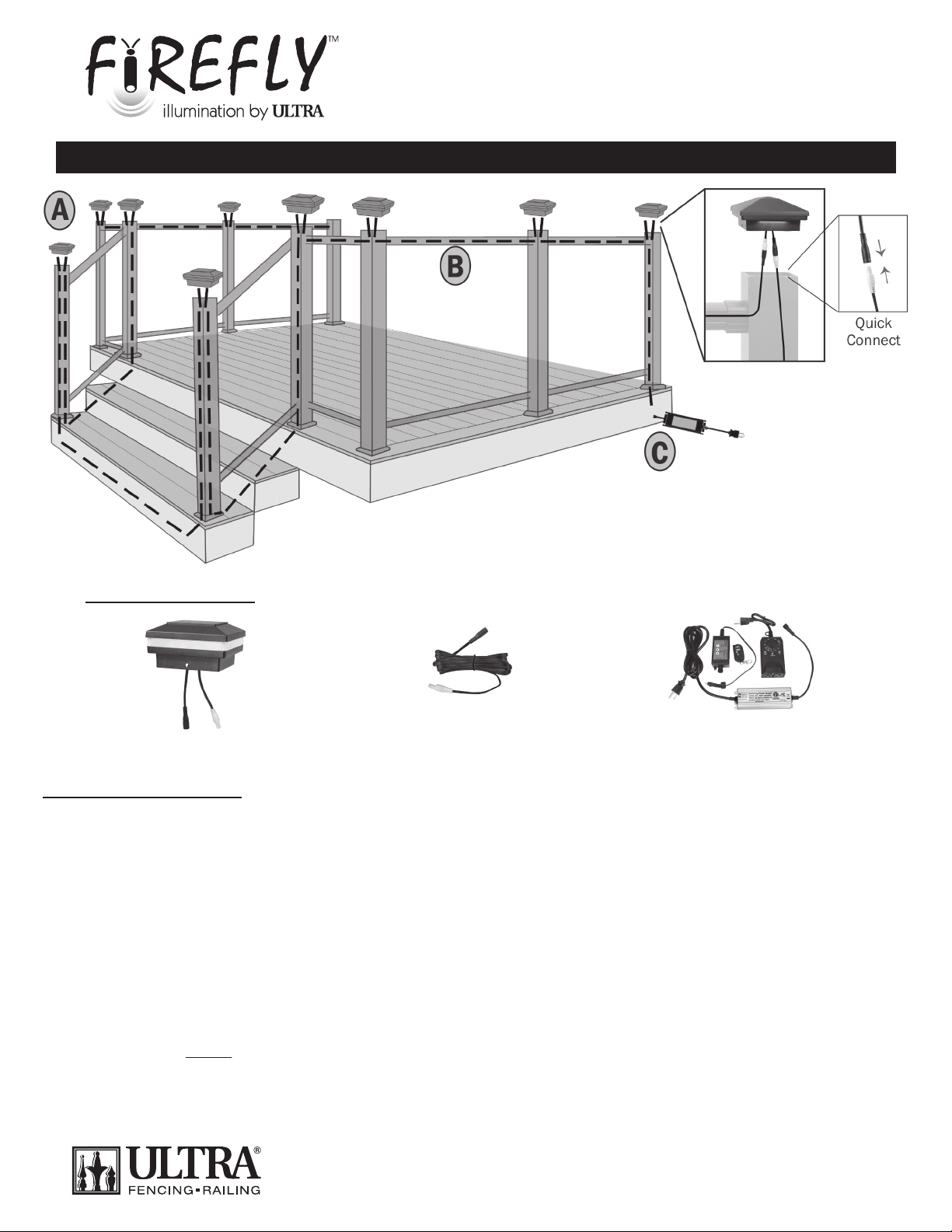

Deck Wiring Overview
Ultra Aluminum Manufacturing, Inc.
2124 Grand Commerce Drive • Howell, MI 48855 • 800-656-4420
Firefly™Low Voltage Lighting System
Installation Guide
**See illustration above as reference. Dashed lines are a representation of approximate wire locations, each installation will vary.**
• Run wire from your transformer to the location of your rst post.
Note: Do not plug in transformer until all wires are run.
• Wiring will go up the post to your rst lighting xture. Drill a minimum 1/2”hole through the deck board to allow
passage of the wiring through the board and into the post.
Tip: Laying post on its side prior to attaching to deck will allow for easier installation of wire. Use a sh tape or equivalent
to pull wire to the top of the post. Tape wire to the top of post.
• Once wire is installed into rst post, stand the post upright and secure into place. (Plumb as necessary)
• From the rst lighting xture, run a 9’Quick Connect Cable into the post and through the top rail to the next light.
Continue this method until all lights are connected. (Brackets and posts need to be drilled to run wire)
Note: Wiring cannot be run through the top rail of stairs. For stairs, wiring should be run up the posts.
• Once lights are all connected, plug transformer into GFI protected 115V outlet and check to ensure all lights are illuminated,
if any lights have not illuminated unplug transformer and check connections. Once all lights are working properly
securely attach caps to the post.
Lighting Overview
Components List:
Outdoor
GFI Outlet
Timer / Photocell
Transformer
Dimmer
Output Wire
Output Wire
If not using Dimmer
connect Output Wire
directly to Transformer
LED DIMMER
+
_
+
_
Mode
(Includes Remote)
9’ Lead Wire
Post Cap
(Lighitng Fixture)
Post Cap
(Lighitng Fixture)
9’ Lead Wire
Post Cap
(Lighitng Fixture)
Post Cap
(Lighitng Fixture)
Connect to next
light fixture
Connect to next
light fixture
For full warranty coverage details visit www.UltraRailing.com
Wiring Post Cap

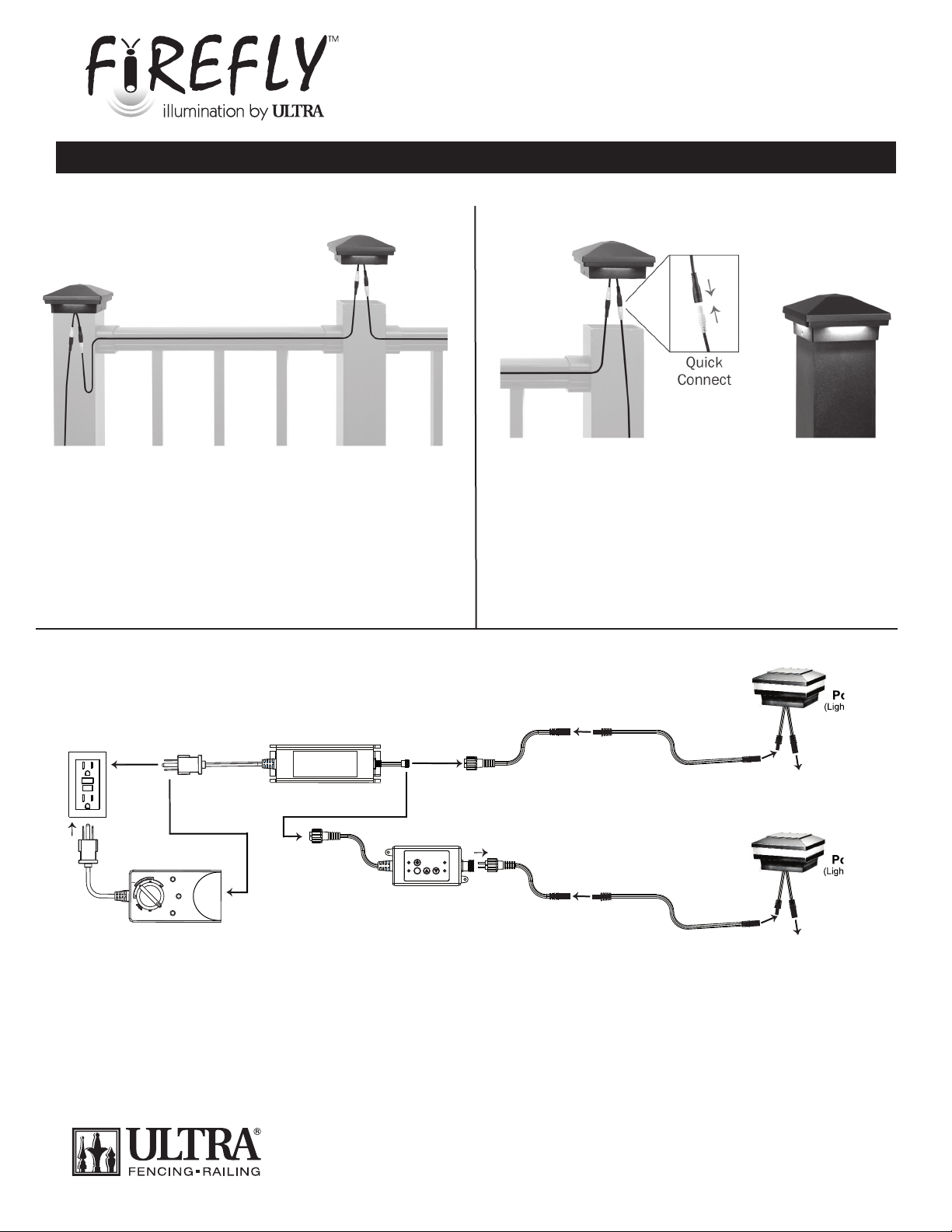

Power Supply Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . OR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*When using dimmer, ensure all components
are connected before powering transformer*
Step 1
Lighting Components
Firefly™Low Voltage Lighting System
Installation Guide
Ultra Aluminum Manufacturing, Inc.
2124 Grand Commerce Drive • Howell, MI 48855 • 800-656-4420
This guide represents the most common installation method for Firefly lighting. More information
can be found at our website www.UltraRailing.com in regards to alternative wiring methods.
Run cable from the transformer up the first post to
the post cap (left) and connect via Quick Connect
connections. From there, use a 9’ Quick Connect cable
to run through the top rail to the next post. Continue
this process until all post caps are connected. (Brack-
ets and posts will need to be drilled to accommodate
Ensure that all cable has
been properly installed
and test the lights before
mounting post cap to post.
Step 2
Fasten post cap to
the post using 2 each
screws included or use
silicone adhesive.
NOTE: 2.5” Cap Lighting Down Light Kit draws 3.8 watts per xture.
2.5” Cap Lighting Band Light Kit draws 1.8 watts per xture.
Total light wattage should not exceed 80% of transformer watts.
INS-FF-DECKWIRE 12/21
