Ultracker UN6504 Manuale utente

Version 1.0

INSIDE THE Instruction Manual

Product Overview

HDD Installation

Basic Operations

Main Menu

Network Access

WEB UI Operations

Mobile Connectivity

Specifications

Introduction:

This manual is for the users who attempt to use H.264 Network Video Recorder (NVR). It expresses installation guide,

connecting to peripherals, and GUI operations. Please familiarize yourself with the contents in this manual before using

the NVR. Make sure that you have referred to an expert when operating the outer case for repair or installing HDD. If

you have any inquiries or questions, please consult your local dealer.

Warning:

To prevent fire or electric shock, do not expose this product to rain or moisture. Do not open the cabinet. Refer servicing

to qualified personnel only.

RoHS

This directive restricts the use of six hazardous materials in the manufacture of various types of electronic

and electrical equipment.

USA (FCC)

This device has been tested and found to comply with the limits of Class. A computing device pursuant to

part 15 of the FCC rules.

Europe (CE)

By affixing the CE marking, the manufacturer assures that the item meets all the essential requirements of

all applicable EU directives

Japan (PSE)

The purpose of the Electrical Appliance and Material Safety Law is to prevent hazards and disturbances

resulting from electrical appliances

PRODUCT OVERVIEW ................................................................................................................................................................. 5

PACKAGE CONTENTS............................................................................................................................................................................. 5

FRONT PANEL ..................................................................................................................................................................................... 5

REAL PANEL ....................................................................................................................................................................................... 5

HDD INSTALLATION .................................................................................................................................................................... 6

HDD NEW INSTALLATION ...................................................................................................................................................................... 6

REPLACING THE HARD DRIVE ................................................................................................................................................................. 8

BASIC OPERATIONS................................................................................................................................................................... 10

DI SP L AY SCREEN ............................................................................................................................................................................... 10

DI SP L AY MODE................................................................................................................................................................................. 11

FLEXIBLE CAMERA ASSIGNMENT........................................................................................................................................................... 12

PLAYBACK ........................................................................................................................................................................................ 13

EVENT LIST ...................................................................................................................................................................................... 15

SCREENSHOT FUNCTION ..................................................................................................................................................................... 17

MAIN MENU............................................................................................................................................................................. 18

IP CAMERA SETUP............................................................................................................................................................................. 18

Camera .................................................................................................................................................................................... 20

Record ..................................................................................................................................................................................... 21

Alarm....................................................................................................................................................................................... 21

LAN.......................................................................................................................................................................................... 23

SETUP............................................................................................................................................................................................. 23

RECORD .......................................................................................................................................................................................... 25

ALARM ........................................................................................................................................................................................... 27

USB DEVICE .................................................................................................................................................................................... 27

LAN............................................................................................................................................................................................... 30

NETWORK ACCESS .................................................................................................................................................................... 31

SYSTEM REQUIREMENTS ..................................................................................................................................................................... 31

GETTING STARTED ............................................................................................................................................................................. 31

Find device IP address............................................................................................................................................................. 32

Discovering devices by search tool ......................................................................................................................................... 32

Discovering devices in Windows Network ............................................................................................................................. 33

ActiveX add-on installation .................................................................................................................................................... 34

WEB UI OPERATIONS ................................................................................................................................................................ 36

LIVE VIEWING................................................................................................................................................................................... 36

PLAYBACK ........................................................................................................................................................................................ 38

SETUP............................................................................................................................................................................................. 41

LOG ................................................................................................................................................................................................ 44

MOBILE CONNECTIVITY ............................................................................................................................................................ 45

MOBILE CONNECTIVITY ON IPHONE ...................................................................................................................................................... 45

MOBILE CONNECTIVITY ON ANDROID .................................................................................................................................................... 51

SPECIFICATIONS........................................................................................................................................................................ 57

Product Overview

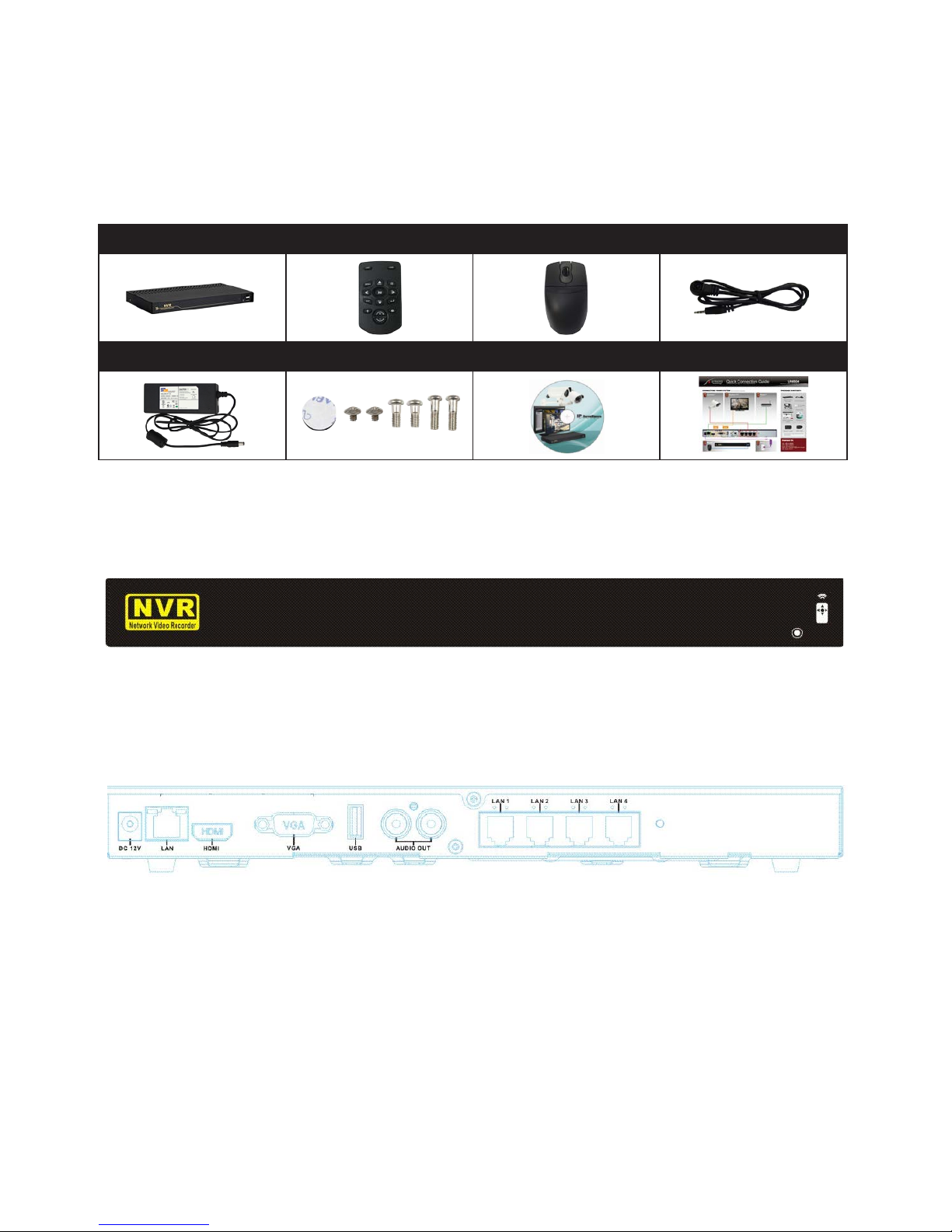

Package contents

NVR Remote control USB mouse Flex IR extender

Power adapter Screws pack Product CD Quick Connection Guide

*The actual items maybe different from the picture shown

Front Panel

Real Panel

1 2 3 4 5 6 7

1. Power: DC12V

2. LAN: RJ-45

3. HDMI: Video output

4. VGA: Video output

5. USB port: For USB mouse control/ USB backup/ Firmware update

6. Audio out : RCA x2

7. Video in : LAN RJ-45 x4 (4CH)

HDD Installation

HDD new installation

Step 1:

Remove the Screws from the real panel and side panel of the housing.

Step 2:

Gently slide the cover away from the rear panel and lift it.

Step 3:

Carefully place the HDD at the upper right side and slide it to plug into the connector properly.

HDD Connector

Step 4:

With your hand supporting the HDD and turn the unit upside down and secure the HDD from the bottom of case with 4

screws.

Step 5:

Screw the cover back, replacing the screws on the side panel(x4) and rear panel(x1).

NOTE:

1. The new HDD must be formatted in order to work properly in system. For the detail about the “Format HDD”,

please refer to 4.3.5.

2. The HDD will be started in 5~30 seconds after NVR is powered on. If the HDD is not detected, warning will be

shown for 3 seconds by a message “HDD is not installed!” with beep every 10 seconds. You can turn off the

buzzer or leave live mode to quiet it down.

3. There are three reasons which may cause the above warning message:

I. HDD is broken.

II. HDD is not installed or not installed properly.

III. The recording model is set as “single-way recording” and HDD is full.

4. If the HDD is not detected and not started within 30 seconds. It will be determined as a failed HDD.

Replacing the Hard drive

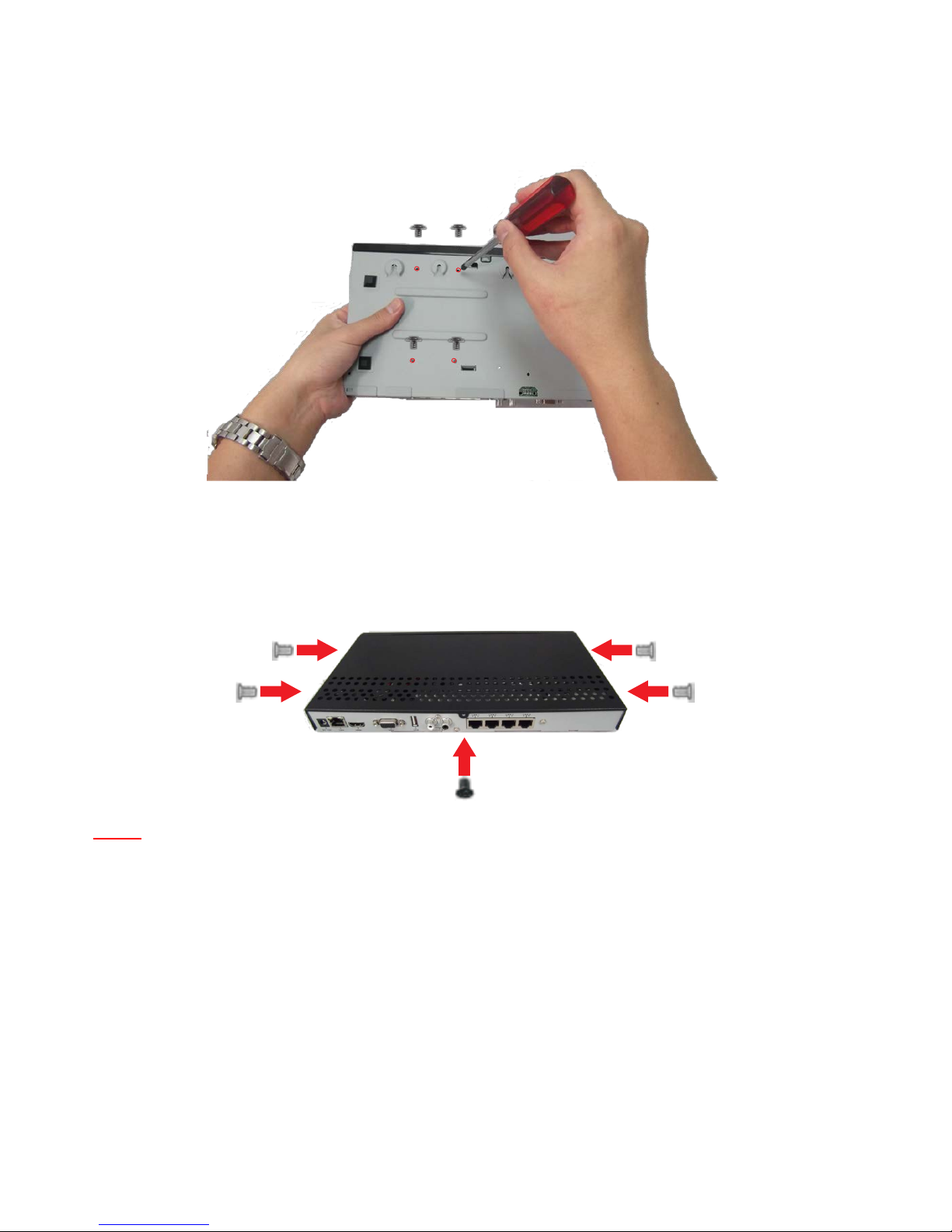

Make sure the NVR power is off and power cable has been disconnected before changing the hard drive.

Step 1:

Remove the screws from the rear panel and side panels of the housing.

Step 2:

Gently slide the cover away from the rear panel and lift off.

Step 3:

With your hand supporting the HDD when turn unit upside down, remove 4 screws from the bottom of case.

Step 4:

Gently slide the hard drive from the connector properly.

Step 5:

Install new HDD.

Step 6:

Screw the cover back on the side panel (x4) and rear panel (x1).

NOTE:

After replacing the HDD, the new HDD must be formatted in order to work properly in system.

HDD Connector

Basic Operations

Display Screen

4-Channel

8-Channel
