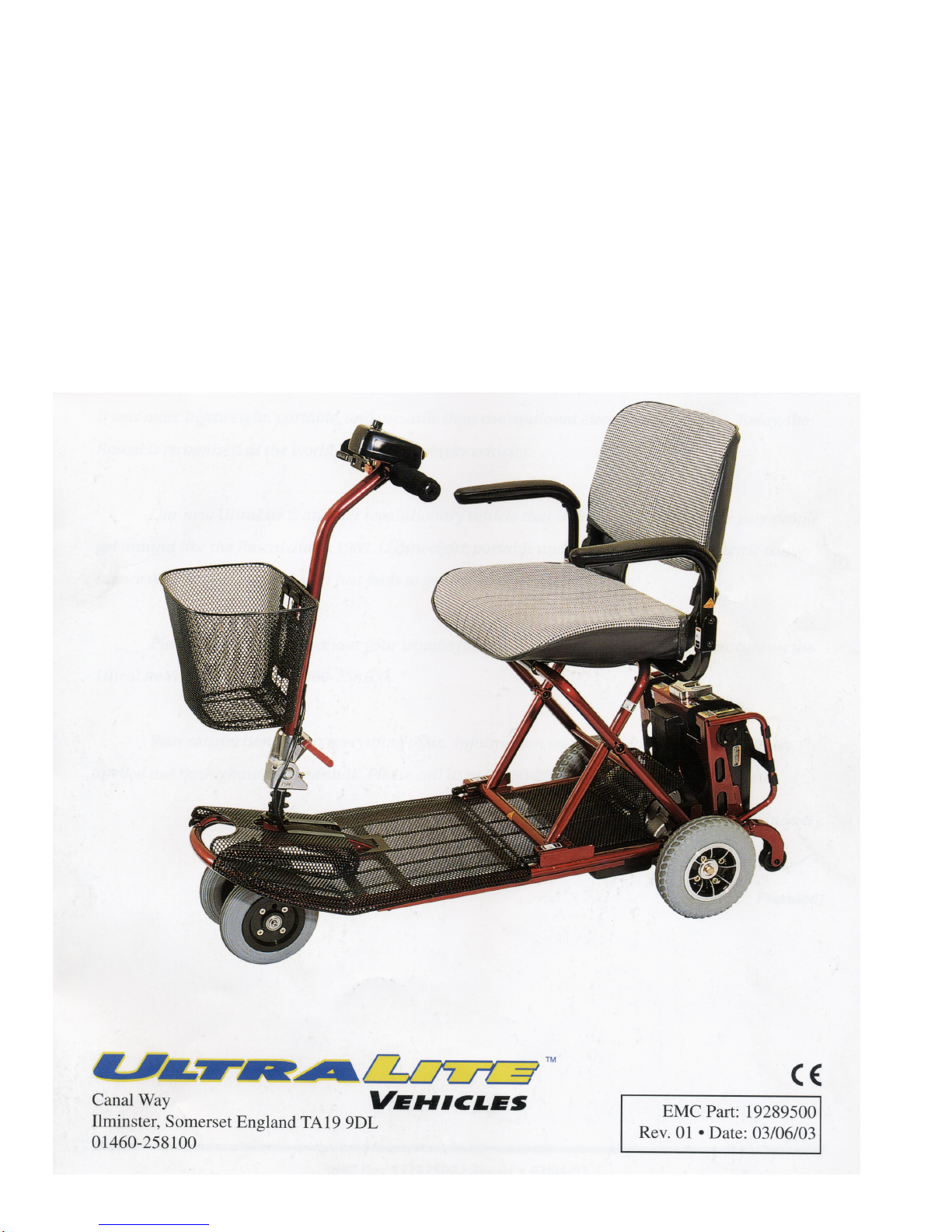

UltraLite 350 Manuale utente

Model 350/355

Owners Manual

www.discountscooters.co.uk

EMC Part: 19289500 •Rev. 01 •03/06/03

Thankyou for purchasing your UltraLite TM Vehicle. With proper care, your vehicle will give you loads of fun and

excitement. You will enjoy the freedom to go where you want, when you want, and to do what you want to do.

UltraLite Vehicles’ mission is to provide easy to use, convenient and portable mobility products to help you get more out

of your life.

UltraLite Vehicles is a new division of Electric Mobility Corporation (EMC). Twenty years ago, EMC introduced the

revolutionary Rascal Scooter which changed the mobility industry because it was more lightweight, portable, and

versatile than conventional electric wheelchairs. Today, the Rascal is recognized as the world leader in mobility vehicles.

Our new UltraLite is another revolutionary vehicle that is destined to change the way people get around like the Rascal

did in 1983. Lightweight, portable and powerful, this new electric convenience vehicle is so easy to use; it just folds to go

wherever you want it to go!

Please tell your friends about your wonderful new mobility vehicle. For free literature on the UltraLite Vehicle,just call

01460-258100.

Your satisfaction means everything to us. Information on our service and warranties are spelled out throughout this

manual. Please call us at 01460-258100 ifyou have any questions.

Sincerely, Michael Flowers

President

www.discountscooters.co.uk

EMC Part: 19289500 •Rev. 01 •03/06/03

Contents

Title Page

Getting To Know Your UltraLite Vehicle 1

Figure 1 —Model 350/355 UltraLite Vehicle 1

Model 355 Accessories 1

Operating Your UltraLite Vehicle 2

Adjusting Your Tiller 2

Figure 2 —Folded Position 2

Figure 3 —Upright Position 2

Figure 4 —Lever in Open Position 2

Figure 5 —Lever in Locked Position 2

Seat Arms Installation And Adjustment 3

Figure 6 —Adjustment Knob 3

Figure 7 —Arm Receiver 3

Figure 8 —Folding the Armrest 3

Figure 9 —Armrest Latch 3

Control Features 4

Figure 10 —Tiller Control Locations 4

Figure 11 —Battery Pack Control Locations 4

On-Off Switches 4

Battery Indicator Gauge 4

Speed Adjustment Dial 5

Finger Lever Control 5

Free-Wheel Lever 5

Figure 12 —Free Wheel Lever 5

Rolling Your Vehicle 6

Tyres And Wheels 6

Figurel3—AirFilledTyres 6

Figure 14 —Foam Filled Tyres 6

Installing Model 355 Accessories 7

Installing the Folding Basket 7

Installing Headlight and Taillight 7

Installing the Beverage “Caddy” Accessory 8

Seat Bag 8

Learning To Get Around 9

Getting On 9

Getting Off 9

Basic Driving 9

Control Through Doors 10

Control On Ramps 10

Control Over Grass, Gravel And Inclines 10

Parking In Public 11

Taking Your Vehicle Along 11

Folding your UltraLite Vehicle 11

Figure 15 —Unlock Seat Frame 11

Figure 16—Removing Seat 12

Figure 17—Folding Seat 12

Figure 18 —Folding Tiller 12

Figure 19—Rolling Folded Vehicle 12

Removing Battery Pack And Seat 13

Figure 20 —Unlatching Battery 13

Figure 21 —Releasing Battery 13

www.discountscooters.co.uk

EMC Part: 19289500 •Rev. 01 •03/06/03

Figure 22 —Removing Battery 13

Figure 23—Unlatching Seat 13

Figure 24 —Detached Seat 13

Transporting Your Vehicle 13

Figure 25—Boot Loading 14

Figure 26—Positioning in Boot 14

Figure 27—Seat Positioning in Boot 14

Removing And Reassembling Your Vehicle 14

Figure 28—Unloading from Boot 15

Storing Your Vehicle 15

Figure 29—Stored Upright 15

Batteries and Battery Charging 16

Battery Charger 16

Charging the Battery Pack 16

Charging Procedure 16

Figure 30—Charger Connection 16

A Guide to Making Your Battery Last 17

Care and Maintenance 18

Troubleshooting 20

Limited Warranty 21

Limitations And Exclusions 21

Specifications 21

Rules For Operating Your UltraLite Vehicle 22

UltraLiterM is a trademark UltraLite Vehicles, a division of Electric Mobilty Corp.

No liability is assumed with respect to the use of any information contained in this publication. While every precaution has been taken in the

preparation of this publication. Electric Mobilty Corp., assumes no responsibility for errors or omissions nor is any liability assumed for damages

resulting from the use of information contained in this publication. This publication, as well as operational details described herein, are subject to

change without notice.

www.discountscooters.co.uk

EMC Part: 19289500 •Rev. 01 •03/06/03

EMI WARNING

Electromagnetic Interference (EMI) From Radio Wave Sources

Powered motorized electric vehicles may be susceptible to electromagnetic interference (EMI), which is interfering

electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters,

two-way radio, and cellular phones. The interference (from radio wave sources) can cause the powered vehicle to release

its brakes, move by itself or move in unintended directions. It can permanently damage the powered vehicle control

system.

The source of radiated EMI can be broadly classified into three types.

Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting

unit. Examples include: citizens band (CB) radios, “walkie-talkie”, security, fire and police transceivers, cellular

telephones and other personal communication devices.

Note: Some cellular telephones and similar devices transmit signals while they are ON, even when not being used.

Medium-Range mobile transceivers, such as those used in police cars, fire trucks, ambulances and taxis. These

usually have the antenna mounted on the outside of the vehicle.

Long-Range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV

broadcast antenna towers) and amateur (HAM) radios.

Note: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players

and cassette players, and small appliances such as electric shavers and hair dryers, are not likely to cause problems to

your powered vehicle.

Powered Vehicle Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM

fields from hand-held radio sources (transceivers) are of special concern. It is possible to unintentionally bring high levels

of EM energy very close to the powered vehicle control system while using these devices. This can affect powered

vehicle movement and braking.

Therefore, the warnings listed below are recommended to prevent possible interference with the control system of the

powered vehicle.

WARNINGS

The following warnings listed below should reduce the chance of unintended brake release or powered vehicle

movement, which could result in serious injury.

•Do not operate hand-held transceivers (transmitters-receivers), such as citizen band (CB) radios, or turn ON

personal communication devices, such as cellular phones, while the powered vehicle is turned ON.

•Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them.

•If unintended movement or brake release occurs, turn the powered vehicle OFF as soon as it is safe.

•Be aware that adding accessories or components, or modifying the powered vehicle, may make it more

susceptible to EMI (NOTE: There is no easy way to evaluate the overall immunity of the powered vehicle).

Report all incidents of unintended movement or braking to UltraLite Vehicles, and note whether there are sources of EMI

nearby.

www.discountscooters.co.uk

EMC Part: 19289500 •Rev. 01 •03/06/03

DISCLAIMER

The UltraLite Vehicle is to be used for recreation and transportation. It is not intended to be used by individuals with

physical limitations that could prevent the user from operating the vehicle safely. UltraLite Vehicles disclaim all

responsibility for any personal injury or property damage which may occur as a result of improper or unsafe use of its

products. Mechanical or electrical defects will be dealt with on a contingency liability basis.

The following guidelines are intended to assist you in the safe operation of your UltraLite electric powered vehicle. If you

have any questions about the correct operation of your vehicle, please contact the Customer Service department of

UltraLite Vehicles at 01460-258100.

LIMITED WARRANTY TERMS

Please keep a note of your serial number and make sure to keep your proof of purchase. The serial number is located on

the front of the main frame battery pack holder, in the upper right corner.

For future reference, record your serial number here: _____________________________

Your UltraLite Vehicle is warranted for 12 months from the date of purchase against defects in manufacture or materials.

Parts replaced or repaired under the terms of this warranty will be covered for the balance of the warranty period.

This limited warranty applies only to parts supplied or approved by UltraLite Vehicles. This warranty is not transferable.

EXCLUSIONS: This warranty does not extend to consumable items which may need replacing due to normal wear and

tear (tires, upholstery, motor brushes, fuses, batteries, etc.) or damage to the product caused by misuse or accident for

which UltraLite Vehicles cannot be held responsible.

This warranty does not apply if your UltraLite Vehicle shows signs of excessive wear and abuse or has been modified.

Servicing of the speed controller or battery charger must only be carried out by your local authorized UltraLite Vehicles

Service Center. Any attempt to open or dismantle these items will void the warranty on that item.

Batteries: Batteries do not carry a limited warranty from the original manufacturer.

WARNING!

Do not attempt to open the battery vent plugs.

www.discountscooters.co.uk

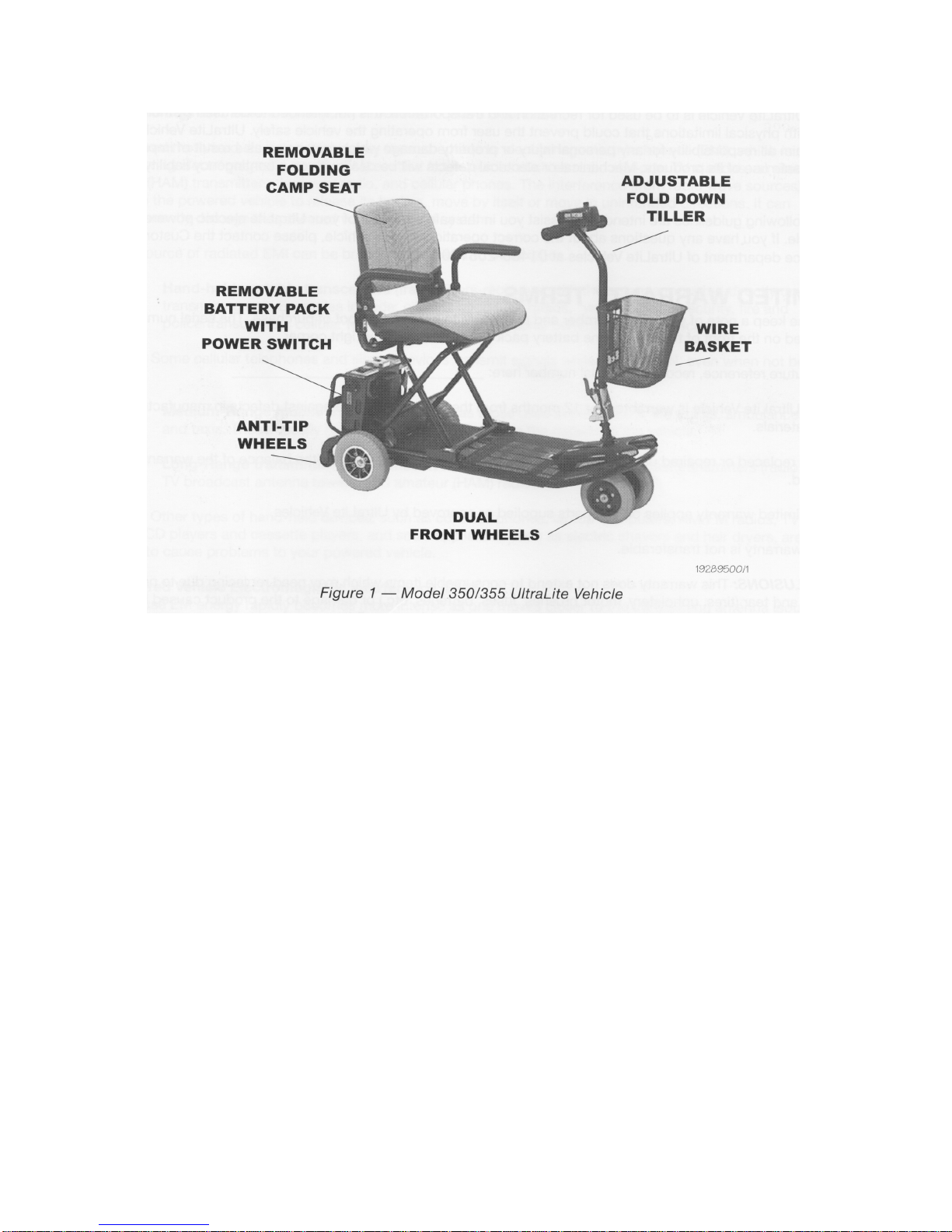

GETTING TO KNOW YOUR ULTRALITE VEHICLE

A full technical specification for this model can be found on page 21 of this manual.

A great deal of thought has gone into the design of your UltraLite Vehicle. Its 4-wheel design provides the stability of

much larger vehicles while true patent pending front dual wheels provide the maneuverability of a 3-wheel vehicle. In

addition, the vehicle incorporates a convenient removable folding camp seat with adjustable width, folding arm rests.

Model 355 Accessories

The Model 355 comes with the following additional accessories to complement your riding enjoyment:

•Adjustable Armrests

•Lifting Harness

•Folding Basket

•Head & Tail Lights

•Beverage “Caddy”

•Seat Bag

Please note these

accessories are not available

on UK models

www.discountscooters.co.uk

OPERATING YOUR ULTRALITE VEHICLE

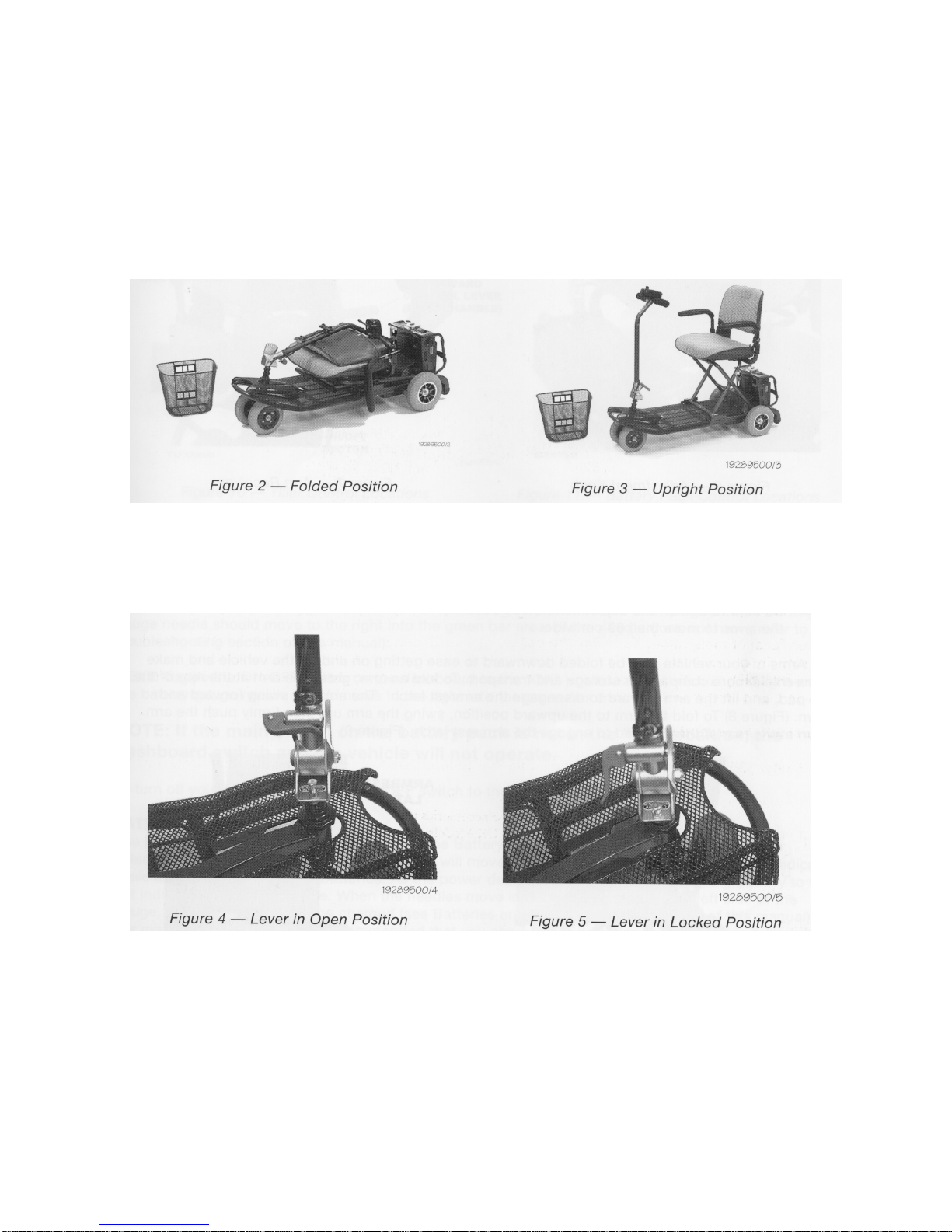

Adjusting Your Tiller

The tiller of your vehicle is uniquely designed to allow you to position it in a comfortable driving position. It can

be placed in its full upright position or folded down for transportation. Positioning the tiller is accomplished by

flipping the tiller lock lever located on the bottom of the T-bar.

Folded and upright positions are shown in Figures 2 and 3.

For rider comfort, the tiller easily locks in any of five positions using the tiller lock lever as shown in Figures 4

and 5.

WARNING!

Always make sure the tiller lock lever is in one of the locked positions and secure before driving your vehicle.

www.discountscooters.co.uk

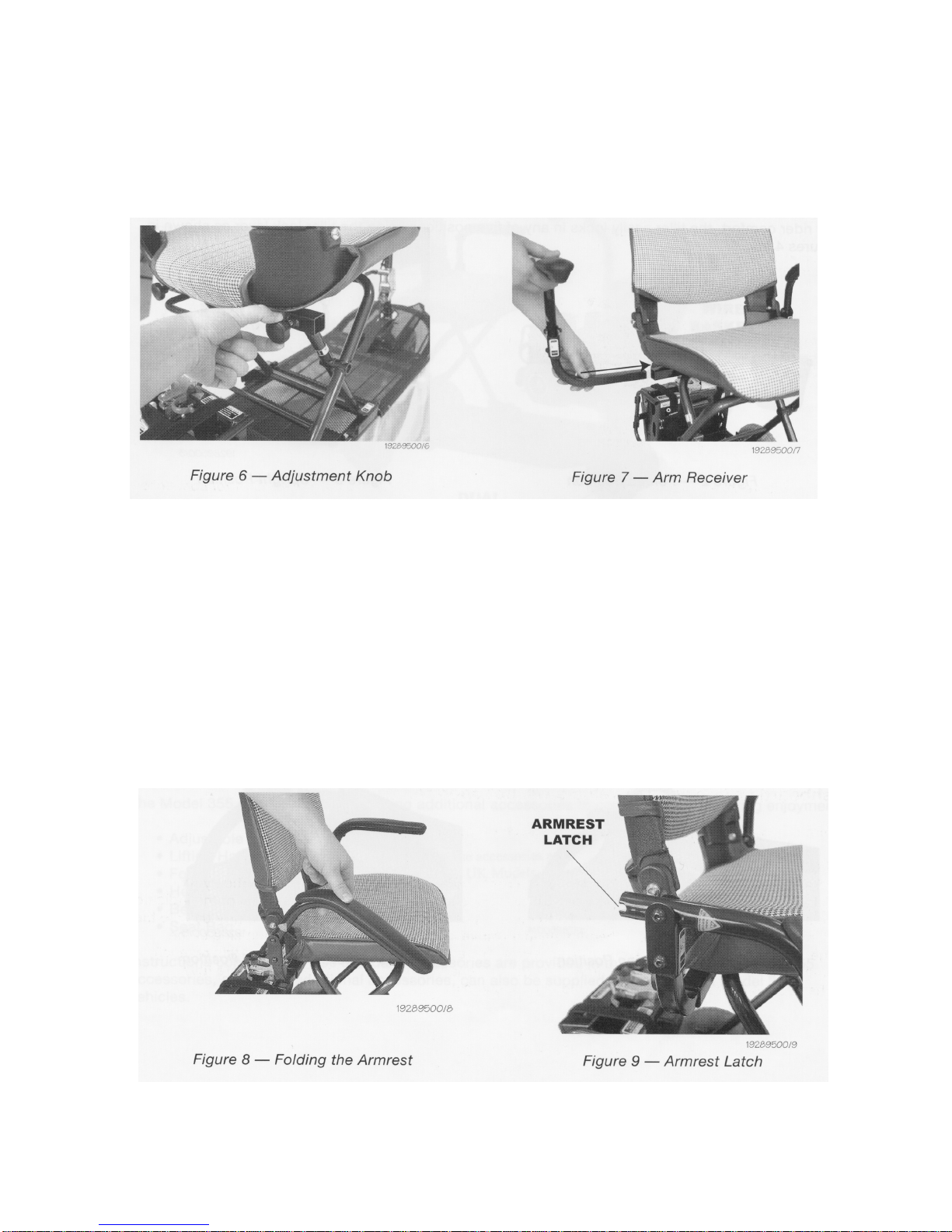

SEAT ARMS INSTALLATION AND ADJUSTMENT

Your UltraLite Vehicle may be equipped with Width Adjustable Folding Arms on the seat.

To install the arms:

1. Loosen the Adjustment Knobs on the Arm Receiver under the rear of the seat (Figure 6).

2. Slide the square end of the Arm into the Arm Receiver and position the Arm at the desired width (Figure 7).

3. Firmly tighten the Adjustment Knobs to secure the arms.

The arms may be readjusted at any time by loosening the knobs and sliding the arms inward or outward and

re-tightening the knobs

CAUTION!

Be sure to tighten the adjustment knobs securely. Always adjust the arms equally. Do not adjust the arms to

more than 69 cm wide.

The Arms of your vehicle may be folded downward to ease getting on and off the vehicle and make your

vehicle more compact for storage and transport. To fold an arm, grasp the arm at the rear of the arm pad, and

lift the arm upward to disengage the armrest latch. The arm will swing forward and down. (Figure 8) To fold

the arm to the upward position, swing the arm up, then firmly push the arm down at the rear of the arm pad to

engage the arm rest latch. (Figure 9)

www.discountscooters.co.uk

CAUTION!

Be sure the arm latches are engaged before putting any weight on the arms. Never use the arms of

the vehicle for transfers. The arms are designed for comfort and convenience only and will not

support your weight during transfers.

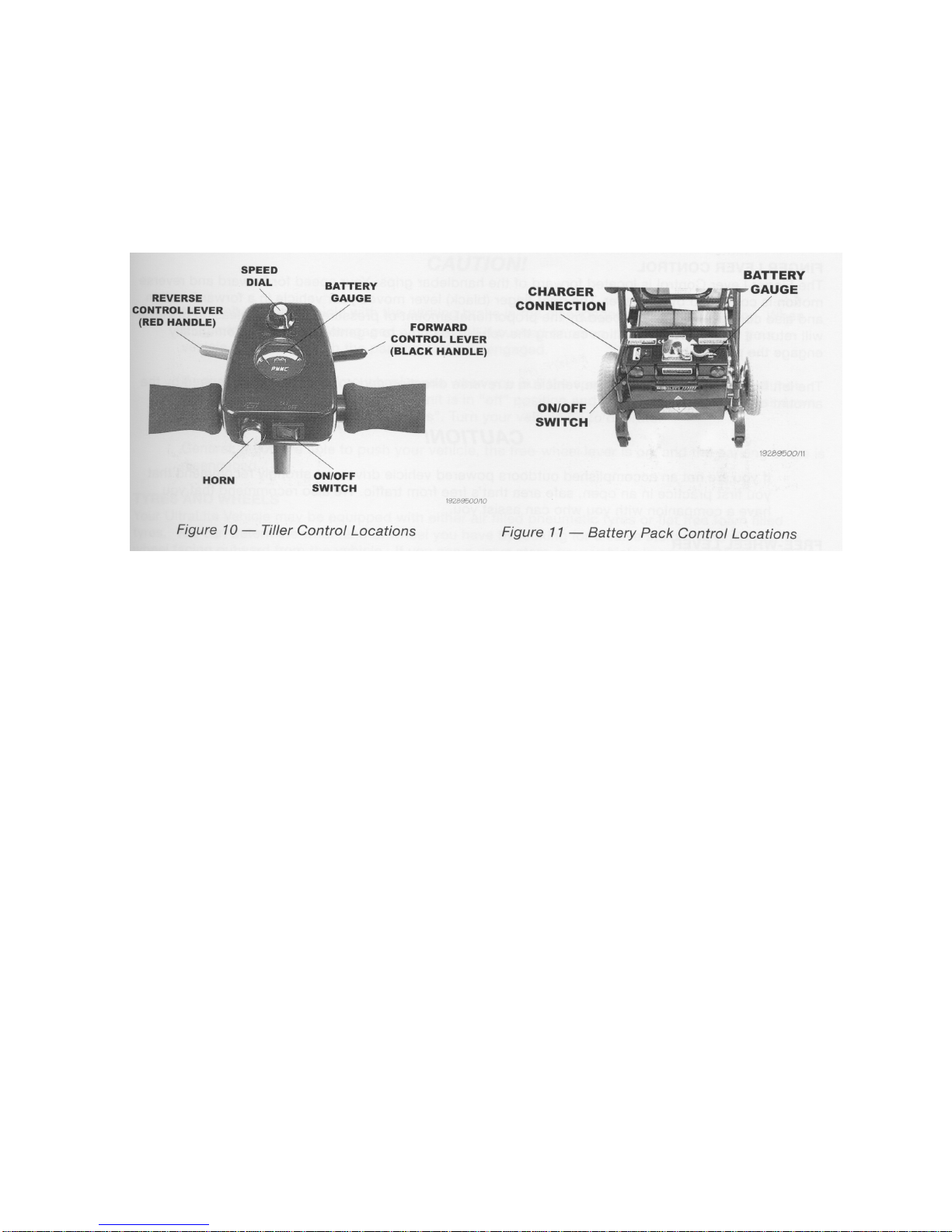

CONTROL FEATURES

Your controls are located on the handle bar dashboard. Control locations are shown in Figure 10.

ON-OFF SWITCHES

The ON-OFF Switches are in two locations. The main switch is located on the top of the battery pack at the

rear of the vehicle (Figure 11). The secondary switch is located facing the rider on the dashboard on the tiller.

To turn on your vehicle, toggle the main switch on the battery pack to the “ON” position. The battery gauge

needle should move to the right into the green bar area. (If the needle does not move refer to the

troubleshooting section of this manual).

NEXT: Toggle the ON-OFF switch on the dashboard to the “ON” position. The switch should light and the

battery gauge needle should move to the right into the green bar area.

NOTE: If the main switch on the battery pack is not in the “ON” position, the

dashboard switch and the vehicle will not operate.

To turn off your vehicle, toggle the ON/OFF switch to the “OFF” position.

BATTERY INDICATOR GAUGE

The Battery Indicator Gauges are located on the Battery Pack and on the dashboard. When your vehicle is

turned on, the needle on the gauges will move to the right over the green area of the indicator scale indicating

fully charged batteries. As the power decreases, the needles will move gradually to the left indicating power

discharge. When the needles move into the yellow area on the left side of the gauge, your batteries should be

charged (see Batteries and Battery Charging section of this manual). For maximum battery life, it is

recommended that you charge your batteries before they are fully discharged (as indicated by the red portion

of the gauge).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali UltraLite Scooter

UltraLite

UltraLite AutoGo 550 Manuale utente

Manuali Scooter popolari di altre marche

TEKTRO

TEKTRO CHEETAH Manuale utente

Douglas

Douglas Vespa Sprint Guida all'installazione

PLAYTIVE

PLAYTIVE AS-2448 Manuale utente

Ebinger

Ebinger DONKEY XL Manuale utente

Flyer

Flyer Mountain Guida utente

BackCountry eBikes

BackCountry eBikes Storm Manuale utente

equipmed

equipmed FreeRoam II Manuale utente

Yoto

Yoto Lion Manuale utente

WESTHILL BIKES

WESTHILL BIKES LINK Manuale utente

BAnff

BAnff eProdigy series Manuale utente

Winther

Winther 475 Manuale utente

Jetson

Jetson JBZL17 Manuale utente

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuale utente

Carrera

Carrera impel Manuale utente

Afikim

Afikim Superlight SL-3 Manuale utente

CareCo

CareCo ZOOM Manuale utente

Douglas

Douglas Vespa G.S. Manuale utente

Gazelle

Gazelle with BOSCH System Manuale utente
