UMAX Astra 600P

Scanner Operation Manual

This operation manual contains all the information you need to install your scanner. For

quick installation instructions, see the Quick Start Guide accompanying your scanner.

!Make Sure the power is OFF before installing.

• Read all of the instructions.

• Save these instructions for later use.

• Follow all warning and instructions marked on the product.

• When replacement parts are required, be sure that service technician has used replacement parts

specified by the manufacturer that have the same result in fire, electric shock, or other hazards.

• Do not use this product near water or in rainy/moist situation.

• Do not place on an unstable table to avoid the series of damage to the product.

• The product should be operated only from the type of power source indicated on the marketing

label.

• Do not attempt to service this yourself as opening or removing the enclosure may expose you to

dangerous voltage or other hazards.

• This unit has an autoranging input circuitry suitable for 120Vac and 240Vac.

• The sound pressure level at the operators position according to IEC 7041:1982 is equal or less

than 70dB(A)

Part No.: 830524-00

0597 uti cst

FCC Declaration of Conformity

Declares that the products:

Product Name: Color Scanner Model No.: Umax Astra 600P, H5E0

Accessories: Transparency Adapters Model No.: UTA-2A, H760

FCC Rules: Tested to comply with FCC Part 15, Class B Op. Environment: For home or office use

FCC Compliance Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1)

This device may not cause harmful interference, and (2) This device must accept any interference receiver,

including interference that may cause undesired operation.

Information to user:

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation, if this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

1. Reorient/Relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment to an outlet different from the one to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not expressly approved by the manufacturer responsible for compliance could

void the user’s authority to operate the equipment.

The party responsible for product compliance:

Corporate Name: UMAX Technologies, Inc.

Address: 10460 Brockwood Dr.; Dallas, TX 75238; U.S.A.

Telephone No.: 214-342-9799

Contents

Preparation for Installation …………………………………………………………… 4

Installation ……………………………………………………………………………… 8

Completing your first Scan …………………………………………………………... 10

Troubleshooting ………………………………………………………………………. 12

Maintenance …………………………………………………………………………... 13

Specifications ………………………………………………………………………….. 14

Glossary ……………………………………………………………………………….. 15

Trademarks

IBM PC/AT is a trademark of International Business machines Corporations. MS-Windows, Windows,

and MS-DOS are trademarks of Microsoft Corporation. Macintosh and MacSeries are trademarks of Apple

Computer, Inc. Photoshop is a trademark of Adobe Systems, Inc. Other names or trademarks appearing

herein are trademarks of their respective holders.

Preparation for Installation

Unpacking the scanner

Please remove all packing materials from the scanner. Check if any damage has occurred during shipment

while you are unpacking the scanner. If you notice any damage, notify your dealer at once. Remember to

save all shipping and packing materials if you want to transport the scanner in the future.

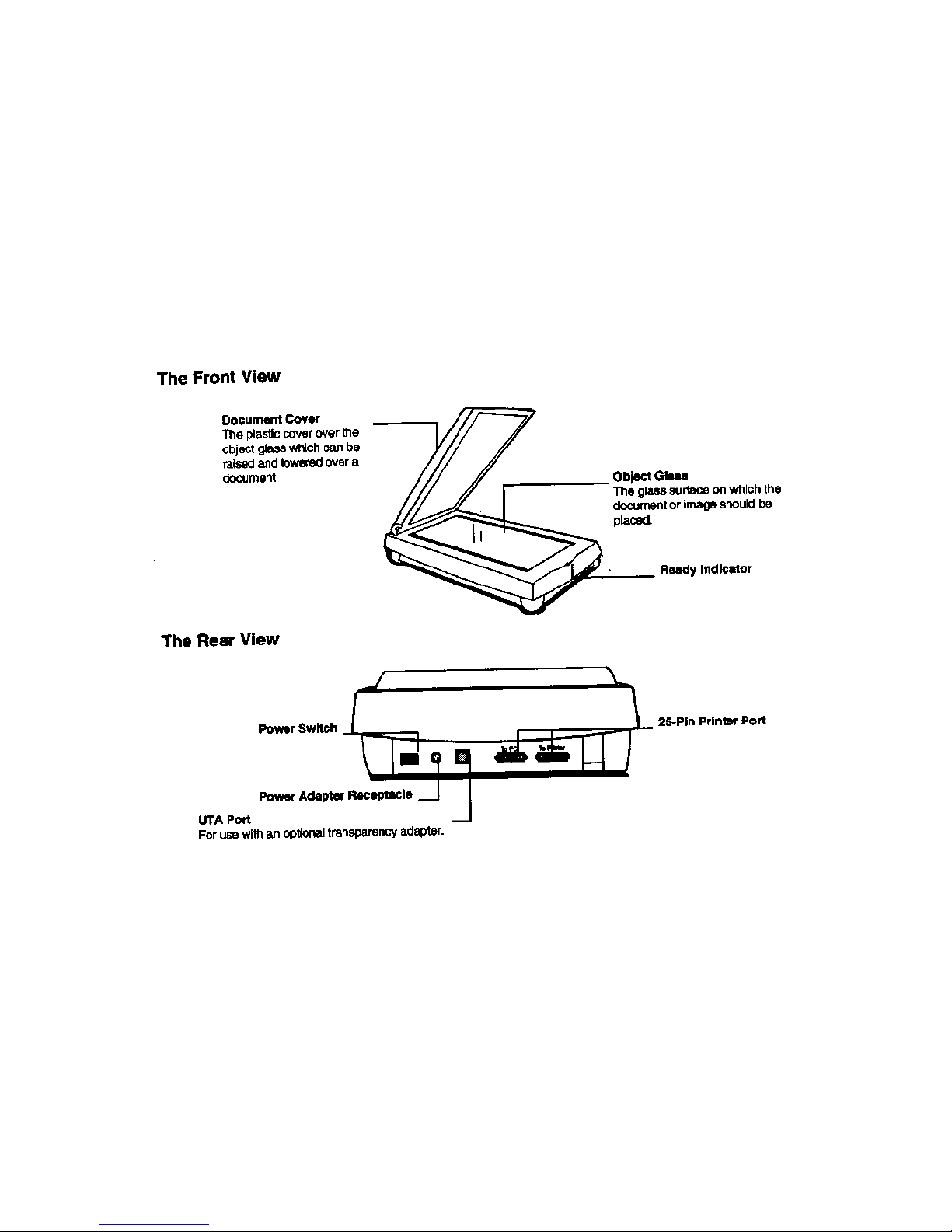

Please find the following items in your scanner box:

1. UMAX Color Scanner

2. UMAX Scanner CD

3. Parallel Interface Cable

4. Power Adapter

5. Manuals

Unlocking your Scanner

Before using your scanner ensure that the carriage lock is in the unlocked position. Likewise, turn the

restraint toward to the locked position, to avoid damaging the internal optics during transportation.

! Warning:

You must unlock your scanner before using it. Failure to do so can cause damage to your scanner. To

unlock your scanner, remove the document cover and push the restraint toward to the unlocked position.

! Warning:

You must lock your scanner before transporting it, failure to do so can cause extensive damage to your

scanner. Ensure that the scanner’s optical assembly is secure and the lamp is in the home position before

locking your scan.

Power on Your Scanner

Once the scanner has been unpacked and the optical assembly has been unlocked, the scanner is ready to

perform this test.

To power on the scanner, do the following:

1. Connect the power adapter to the scanner

2. Connect the power adapter to a wall outlet.

3. Turn on the scanner’s power switch.

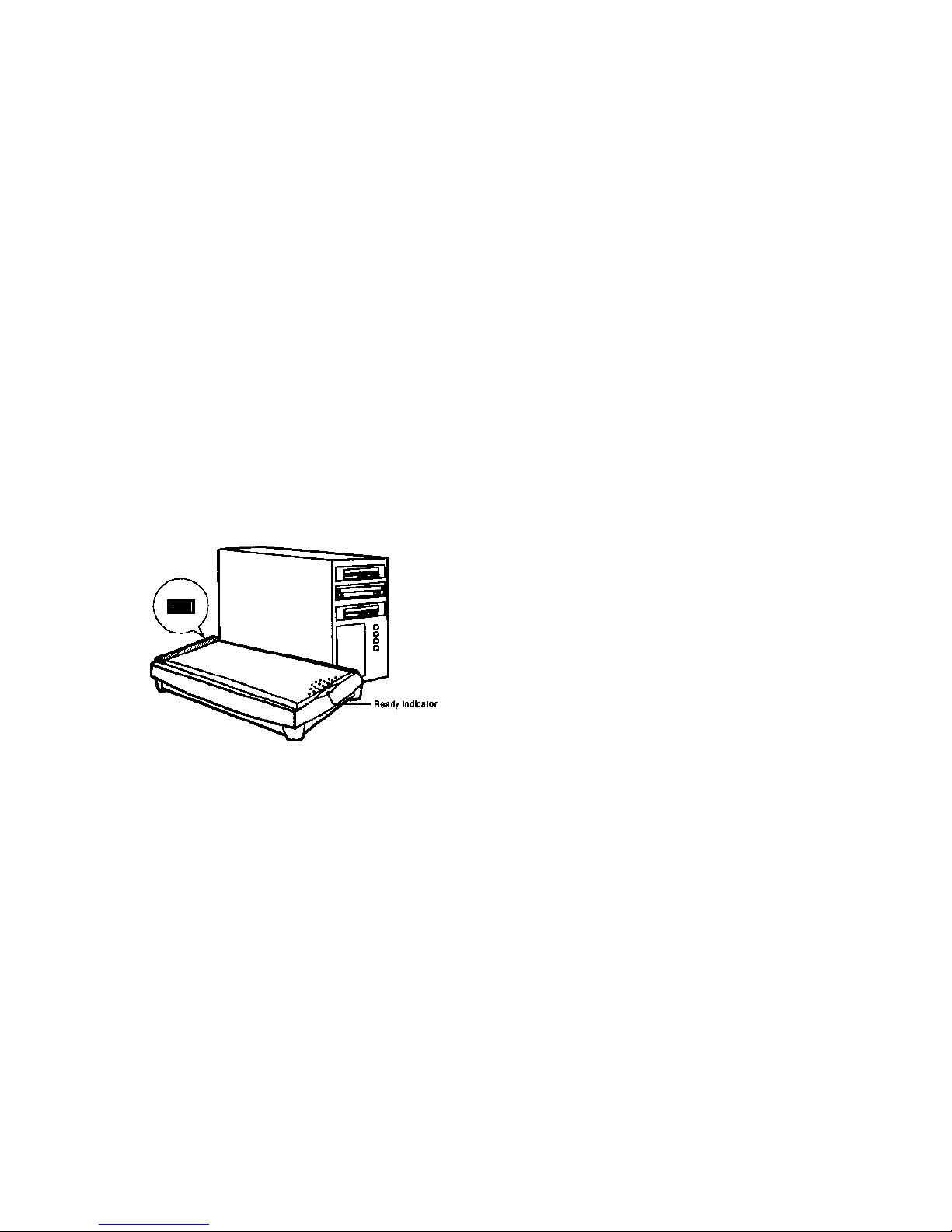

Wait for the Ready indicator to glow. When the Ready indicator has stopped blinking, the scanner

is ready for you to scan images.

4. Your hardware is installed. Once your software is installed, you can begin scanning.

Installation

Connecting the Scanner and Your PC

To connect the scanner and computer, do the following:

1. Turn off your computer and unplug the power cord.

2. Locate the scanner cable. Connect the 25-pin parallel interface cable to your PC’s printer port.

3. Attach the other end of the cable to the connector named “To PC” on your scanner.

Note: If you want to connect a printer, please connect it to the connector named “To Printer” on

your scanner.

Note: Check if your computer supports EPP for Parallel Port Mode. If it does, we suggest that

you reconfigure your PC BIOS by setting the EPP mode for Parallel Port Mode. This

will make your Astra 600P run even more smoothly. Please refer to your computer’s

manual for further information about configuring the settings.

Installing the Scanner Drivers

Install the image editing software included with your scanner. (Refer to the instructions included with the

software). To install the scanner drivers, do the following:

For Windows 3.1 and Windows NT 3.5x Users:

1. Insert the UMAX Scanner CD into your CD-ROM drive.

2. Run Windows.

3. Choose the File-Run command of the Windows Program Manager.

4. In the Command Line of the Run dialog box, type D:\SETUP (where D indicates the CD-ROM

drive). If your CD-ROM is on another drive, please enter the appropriate drive preceding the

[\SETUP] command. For example, type F:\SETUP if you are using CD-ROM drive F.

5. Click OK. The UMAX Scanner Setup dialog box appears.

6. Follow the on-screen instructions to complete the installation.

For Windows 95 and Windows NT 4.x Users

1. Insert the UMAX Scanner CD into your CD-ROM drive.

2. Click on the Start button on the taskbar and select the Run command.

3. In the Command Line of the Run dialog box, type D:\SETUP (where D indicates the CD-ROM

drive). If your CD-ROM is on another drive, please enter the appropriate drive preceding the

[:\SETUP] command. For example, type F:\SETUP if you are using CD-ROM drive F.

4. Click OK. The VistaScan Setup dialog box appears.

5. Follow the on-screen instructions to complete the installation.

Completing your First Scan

A. Original Image Placement

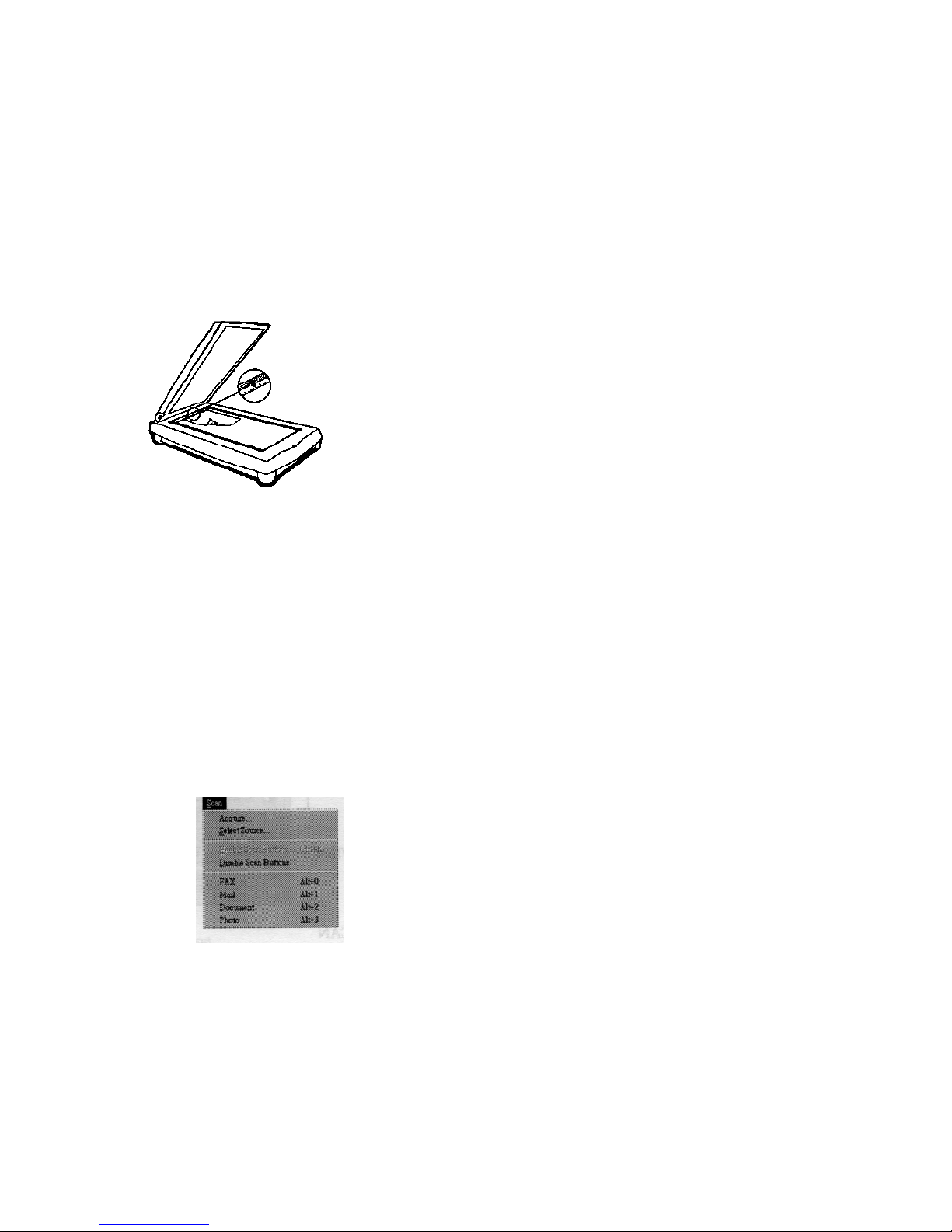

1. Raise the scanner’s document cover.

2. Place the photograph or document face down on the scanner. Center the document along the

center mark.

3. Lower the document cover

B. Start your First Scan

1. From Windows, launch the scanning software (e.g. Presto! PageManager).

2. Pull down the Scan menu.

3. Choose “Select Source”.

4. Select “VistaScan” (VistaScan 32 for Win95) as the TWAIN source. (You only need to do this

once).

5. Pull down the “Scan” menu again.

6. Select “Acquire” to activate the scanning dialog box. This will bring you to VistaScan (Shown in

“C”).
