UNAGI One Voyager Manuale utente
Instruction Manual &
Quick Start Guide
Important : Please download the Unagi
Mobile Application to activate and congure
your scooter. Scan the QR code below with
your mobile phone to continue.
Table of Contents
1. Product & Parts..................................................................................................
2. Assembly Guide................................................................................................
3. Folding & Unfolding........................................................................................
4. Charging..............................................................................................................
5. Handlebar & Button Guide............................................................................
6. Dashboard...........................................................................................................
7. Riding Guide.......................................................................................................
8. Warnings............................................................................................................
9. Vehicle Maintenance......................................................................................
10. Specications.................................................................................................
Important: Read instructions carefully and keep for future reference. Only use vehicle in accordance with
local regulations. Only for use by persons over 14 years of age. Protective helmet recommended for use.
Maximum user weight: 100kg. Maximum continuous rated power: 500 watts. Consistent with rear panel.
03
04
05
06
07
08
09
09
13
14
01
1. Product & Parts
02
Light
Dashboard
Power
Silicone Pad
Fender & Mechanical Brake
Motor
Brake light
Throttle
Driving mode
Horn
Brake
Stem
Hinge
Fender
Fork
Motor / Wheel
Deck
Kickstand
Charging port
Charger
Screws
Screw Driver

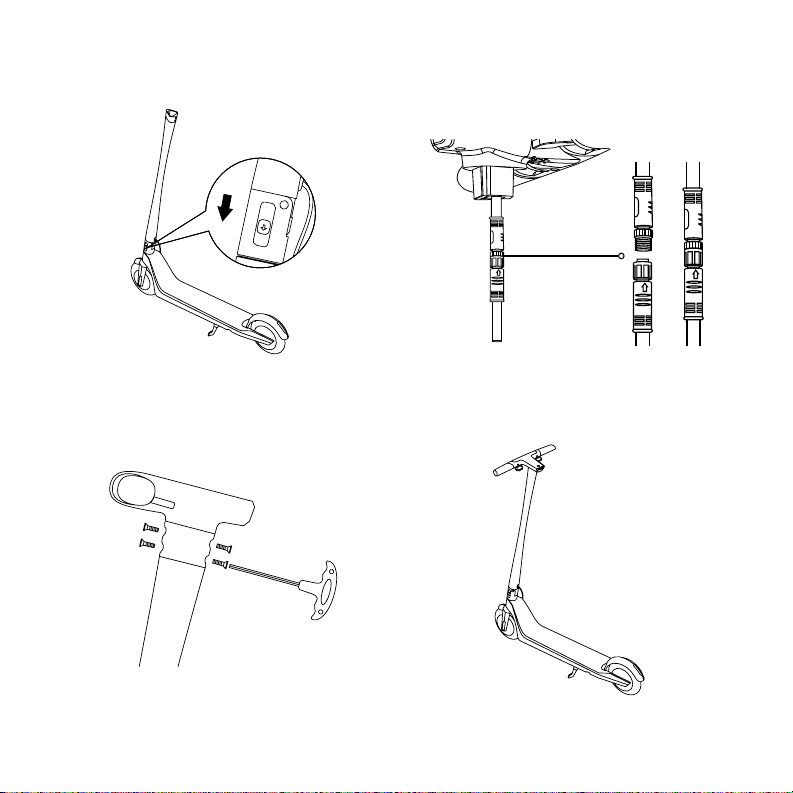

2. Assembly Guide
3. Use screwdriver to install handlebar screws. 4. Turn power on.
2. Connect handlebar and tube cable.1. Press the hinge button down and fold the stem up.
03
1. Press hinge button down. 2. Fold handlebar up.
1.
2.
1. 2.
3.
1. Important: Push tube forward slightly.
2. Press hinge button down. 3. Fold handlebar down.
Important!!!

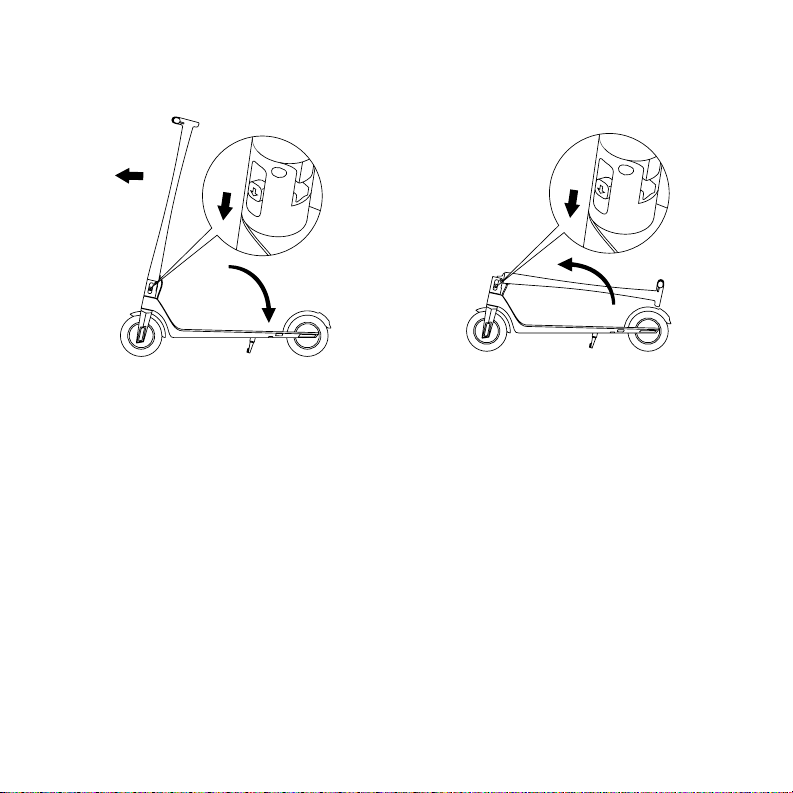

3. Folding & Unfolding
04
Unagi Models: Riding Modes may vary based on regional regulations. P, 1, 2, 3. Pedestrian Mode (P) not
available in all regions and all models.

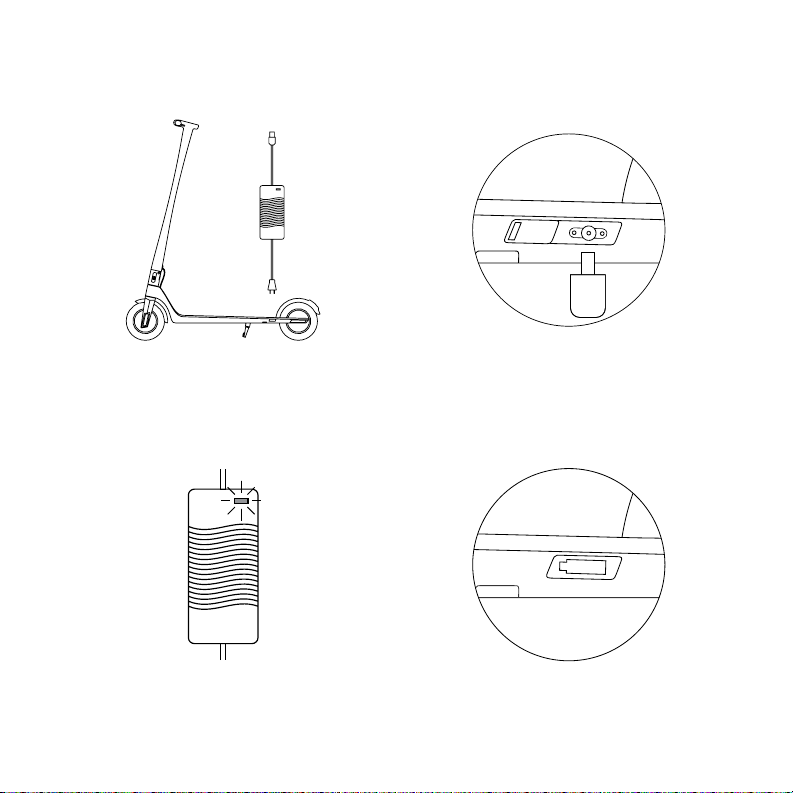

4. Charging
1. Plug in the charger. 2. Open deck cover plug in.
4. After charging, close deck cover.
Scooter will not power on if charger is connected.
3. Green light indicates full charge.
05
DC 42V
Horn
5. Handlebar & Button Guide
A Power (On/Off): Press and hold for 3 seconds. Motor
will automatically turn off after 3 minutes if not in use.
B Light (On/Off): Click to activate or deactivate the light.
C Press 2 times to alternate between single/dual motor mode.
The dual motor icon will be displayed on screen when activated.
Odometer Mode: Press the Horn button and the Riding mode
button for 2 seconds simultaneously to switch
between miles and kilometers.
Click to switch between trip mileage
and total milage
Double click to change mode
Press and hold to activate the horn
Release to turn off the horn
Brake
Power
A / B / C
Throttle
Riding Mode
06
6. Dashboard
07
Beginner (Eco-mode)
Riding Experience: soft and smooth
Maximum Speed: 9.3mph
Intermediate (Standard mode)
Riding Experience: balanced
Maximum Speed: 12.4mph
Pedestrian Mode
Riding Experience: Sidewalk
and pedestrian area operation.
Maximum Speed: 3.7mph - Optional
Advanced Mode (Sport Mode)
Riding Experience: a lot of power
Maximum Speed: 15.5mph
Light On/Off
Speed
Signle/Dual Motor Mode
Bluetooth Active
Scooter Locked
Connect to Unagi App
Maintenance Required
Distance Traveled
Battery Power
Pedestrian Mode

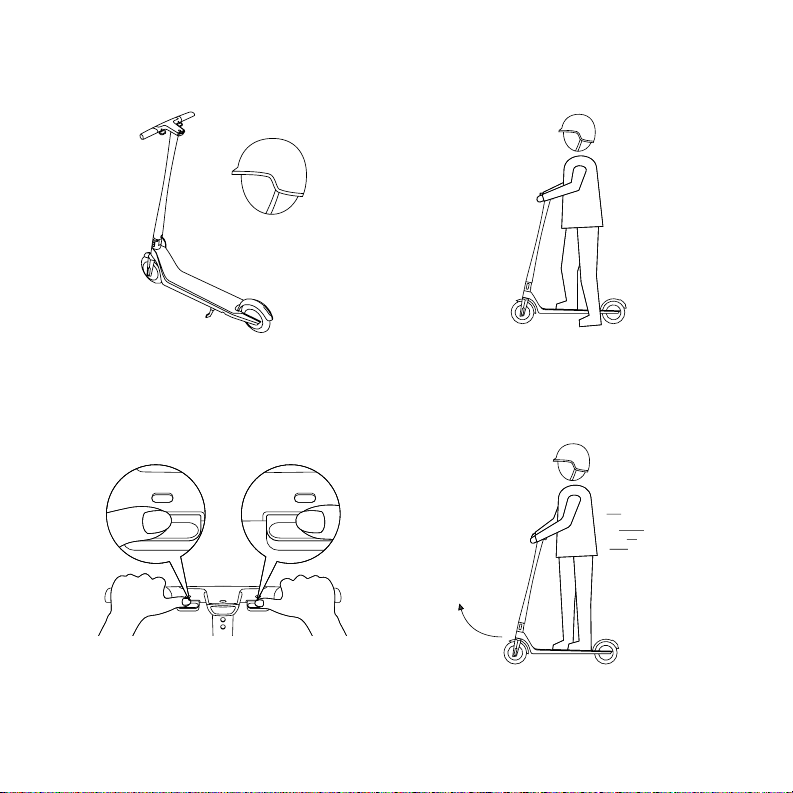

7. Riding Guide
1. Please wear a helmet when riding. Check the dash-
board after turning it on. Make sure you are using the
beginner mode when you rst start to ride.
3. Put both feet on the deck after the scooter starts mov-
ing, and push gas gently. Brake when needed.
2. Start your ride on a at surface, put one leg
on the deck the other one on the ground.
Kick the ground to start.
4. Slow down when turning, turn you body and
handlebar slightly to the same direction you are turning
the scooter.
08
