Uniden GNS 8400 Manuale utente
WARNINGS
WARNINGS & NOTIFICATIONS
When used correctly, the GNS8400 enhances your
driving experience. The voice and map information
in the GNS8400 cannot be guaranteed accurate as
road layout may change. Always follow the posted
road signs and traffic laws.
Do not mount the GNS8400 in a position which may
obstruct the driver's view or prevent the safe
operation of the vehicle.
Do not mount the GNS8400 in a position within an
air bag field of deployment.
GPS signal reception can be affected by the location of
satellites, tall buildings, tunnels, bridges, etc. If the
GNS8400 is not receiving a signal, you will need to
change your location until a signal is received.
The US Government reserves the right to make
changes to the Global Positioning System in
accordance with the Department of Defence civil GPS
user policy and the Federal Radio navigation plan.
These changes along with poor satellite geometry
could cause inaccurate readings.
The Global Positioning System is operated and
maintained by the US Government. The US
Government is completely responsible for the
accuracy of the Global Positioning System.
i
13
2
Quick Start
Guide
BOX CONTENTS
Please contact your place of purchase if any of the
following items are missing.
Main Unit
This Owners Manual
Start
Here
1
ii
QUICKSTART GUIDE
Stylus-Pen
Carrying Case SD Memory Card
(Australian model: 512MB)
(NZ model: 128MB)
Box Contents
Suction-Cup Mount
SD Card Reader External GPS Antenna
Optional Accessories
AC Power Adaptor
Software CD +12V to +24V Cigarette
Lighter Power Cord
INSTALLATION
Please consider the following when choosing a mount
location:
!Choose a location where the fixed antenna,
when extended horizontally will have a clear
view of the sky.
!Do not mount within any Airbag deployment
areas.
!Do not mount where the driver's view will be
obstructed or where safe operation of the vehicle
may be obstructed.
Ensure the mount location;
!Allows room to raise the GPS antenna
horizontally.
!Allows for the GNS8400 to be slotted in and out
of the mount stand.
!Allows for the tilt angle to avoid reflected
sunlight.
QUICKSTART GUIDE
2
iiii
Connect Power
1. Insert DC plug of Cigarette Lighter Lead into the DC Power
socket of your GNS8400 and connect the other end to the +12V -
24V cigarette lighter socket.
QUICKSTART GUIDE
MOUNTING
3
iv
Glass Mount Bracket
1. Make sure the glass area you wish to attach the Glass Mount Bracket to is
clean.
2. Double check that the final location does not impede the safe operation
of the vehicle.
3. Hold the Glass Mount Bracket up to the intended position and bend
the bracket arm if needed. With the release lever loose firmly press
the suction cup against the windscreen, push the release lever to secure
suction. (fig 1).
Fig 2: Secure unit to bracket
Fig 1: Line up glass mount to
windscreen
Attach main unit
Secure unit to bracket. (fig 2).
1. Flip up the antenna located at the rear of the main unit.
2. Sit the main unit on the two locating pegs at the bottom of the
mounting bracket.
3. Squeeze together the two grey release buttons on the mounting
bracket and rock the main unit back onto the bracket.
4. Release the two grey buttons and check the unit is secure.
Secure
Press
Secure
Release
buttons
Locating Pegs
Antenna
Ensure the cord does not interfere with safe
vehicle operation
POWER ON SCREEN
Turn the ignition on and GNS8400 will power on.
The GNS8400 is On when the buttons left and right of the screen are lit
with a blue LED backlight.
Press the POWER button at the left side of the GNS8530 momentarily to
turn power On or Off.
The screen may be turned on or off by pressing .

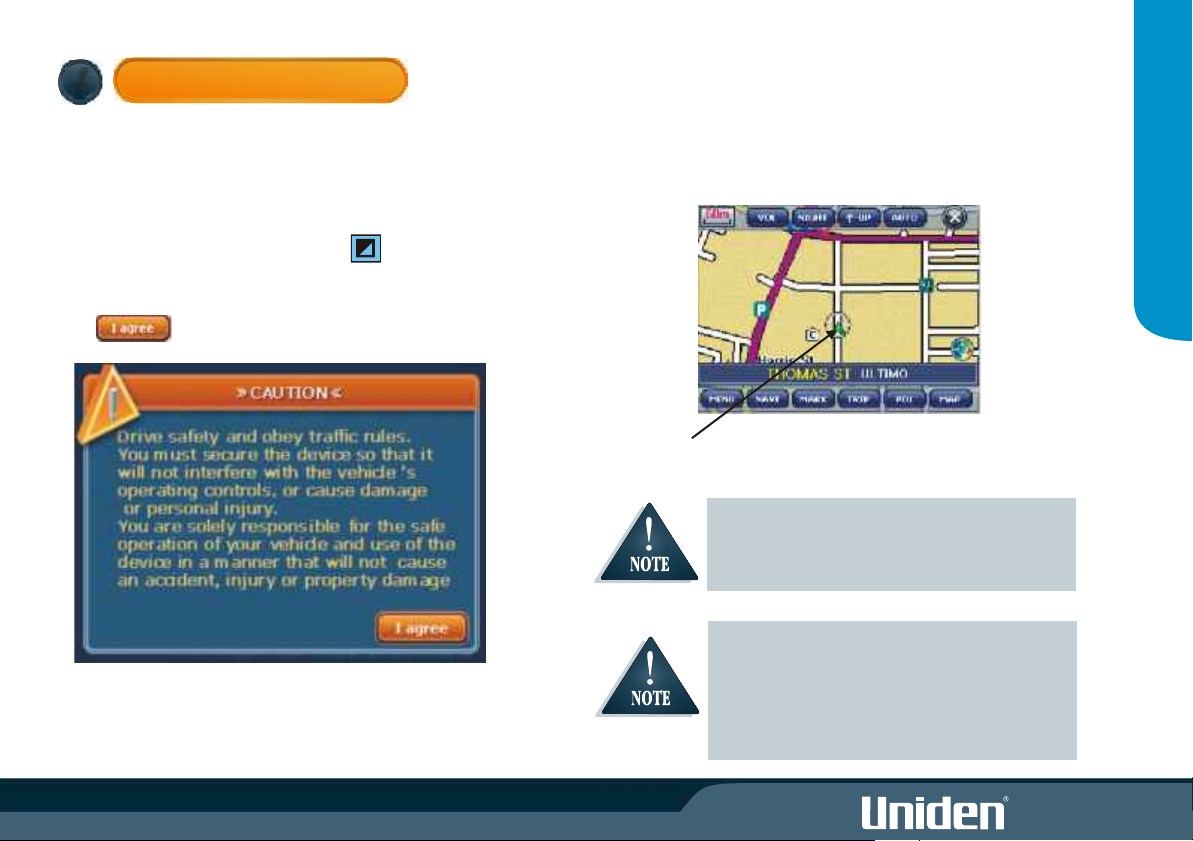

The CAUTION NOTICE will appear on the display.
Please read this message carefully.
Touch to proceed.
The GNS8400 will then display the Map Screen.
'Searching for Satellites' will appear on the display.
Once the satellites have been found the map screen will show your
position.
Your position will be indicated by the pointer in the centre of the
displayed map.
If the unit continues to indicate searching for satellite
beyond 15 minutes try holding the GNS8400 outside
of the vehicle. If satellite data is then retrieved and
'Searching for Satellites' disappears then the vehicle
windscreen may have a tint which interferes with the
GPS signal.
For the initial power up it may take up to 15 minutes
to secure satellite information. When satellite data
has been retrieved 'Searching for Satellites ' will
disappear.
vii
QUICKSTART GUIDE
4
CONTENTS
CONTENTS
Car Navigation
!Navigate to pre-programmed State/City locations
!Navigate to street address
!Navigate to over 500,000 pre-installed points of interest (POI)
!Mark often used destinations as My POI
!Dynamic voice and visual guidance: Constant route verification and
re-calculation with turn by turn instructions
!Road Map
!TMC (Traffic Messaging Channel) Ready*
*The TMC feature is provided by a third party. A subscription is required
to use this feature. There is usually a fee for this service.
!Receive audio and visual warnings when you approach:
!Fixed Speed camera
!Red Light camera
!Black spots
!Moving speed alerts
Other Great Features
!4 inch High Definition Non reflective LCD Screen
!Touchscreen
!Intuitive technology
!Built in GPS antenna
!400MHz processor SIRF III GPS
Updateable Software** for;
!Operation
!Map data
!Safety Warning data
** For software updates please visit www.uniden.com.au (Australian
model) or www.uniden.co.nz (New Zealand model).
Speed and Safety Warning System
FEATURES
11
Contents..................................................................................................................1
Features...................................................................................................................1
Controls & Views.......................................................................................................2
Using the Touchscreen.............................................................................................3
Care & Maintenance.................................................................................................3
Operation Flow Chart...............................................................................................4
Main Menu Modes....................................................................................................5
Safety Warning System..............................................................................................5
Toolbar.....................................................................................................................6
Scale Bar: Zoom In/Out...............................................................................6
Volume.......................................................................................................6
Day/Night....................................................................................................6
Map Mode...................................................................................................7
Turn Guide Mode........................................................................................7
Navigation................................................................................................................8
Navigate to Address......................................................................................8
Navigate to an Intersection..........................................................................9
Navigate to a POI........................................................................................10
Navigate to a Recent Route or Reverse Route..............................................11
Navigate by Map.........................................................................................11
Mark Location........................................................................................................12
Mark Current Position.........................................................................12
Mark from Map Search..............................................................................12
Mark My POI.............................................................................................13
Trip Computer........................................................................................................14
Menu.....................................................................................................................15
Route Settings...........................................................................................16
MY POI Editor............................................................................................17
Safety Warnings.........................................................................................18
Map Settings..............................................................................................19
Information........................................................................................19
Simulations..............................................................................................20
Main Menu............................................................................................................24
Playing Music Files....................................................................................25
Playing Movie Files....................................................................................26
Viewing Pictures........................................................................................27
Calculator.................................................................................................28
World Clock...............................................................................................29
Settings.....................................................................................................29
Built-In Battery Specification....................................................................31
Troubleshooting.....................................................................................................35
Warranty................................................................................................................36
GPS Status..............................................................................................................21
Turn Guide Descriptions........................................................................................22
Map Screen Icons...................................................................................................23
Game........................................................................................................28
Software Updates...................................................................................................32
Points Of Interest Table...........................................................................................34
CONTROLS & VIEWS
FRONT
BACK
1 Main Menu Button
2 Screen On/Off Button
3&4 Map Zoom In/Out
5 Stereo Speaker
6 Mount Holder Bracket
7 GPS Antenna
8 Secure Digital Card Slot
9 Audio-Out Jack
10 GPS Antenna
11 Power On/Off Button
12 Volume Control
13 Power-Supply Jack
14 Stylus Pen
2
5
OPERATION
6
7
14
LEFT SIDE RIGHT SIDE
10
8
1
2
3
4
12
13
9
11
POW RE
USING THE TOUCHSCREEN
The GNS8400 is designed to respond to touchscreen input. Momentarily
touch the screen with the tip of your finger when making a selection (fig 3).
Avoid applying excessive pressure to the screen or holding a finger for more
than a moment (fig 4).
You may also use the stylus pen which is located at the bottom right side of
the unit to touch the screen (fig 5).
CARE & MAINTENANCE
Please take the following steps to ensure your GNS8400 is looked after.
!Always transport and store the GNS8400 using the carry case.
!Keep the GNS8400 free from dust by regularly cleaning the screen
with an LCD cleaner.
!Do not leave unattended in direct
sunlight for extended periods.
!Avoid any moisture contact.
Take measures to reduce the risk of theft by covering the unit or remove
the unit from your dash when not in use.
Touchscreen activation is prevented while driving with
Safe Mode ON. See Safety Warnings on page 18 for Safe
Mode setting.
Fig 3 Fig 4
3
OPERATION
Do not use sharp objects which may scratch or damage
the screen.
Fig 5
