Welcome/Features/Terminology 2

Controls & Functions 5

Setting up your Broadband Phone 7

Before You Start! 8

Expanding Your Phone 14

Ten Handset Expandability 14

Registering Expansion Handsets 14

Installing the Beltclip 16

Headset Installation 16

Display and Icons 17

Soft Key Function 18

In standby mode 18

In talk mode 18

Accessing the menus 19

Entering letters and special characters 19

Main Menu Options 21

Default Settings 22

Global Setup 23

Handset and Base Setup Menu Options 24

Using Your Phone 32

Calling with Packet8 service 32

Making and Receiving Calls 32

Switching to the Handset Speakerphone 33

Call Waiting 33

Placing a Call on Hold 34

Redialing a Call 35

Adjusting the Earpiece and Speaker Volume 36

Muting the Ringer 36

Mute Microphone 37

Find Handset 37

Traveling Out of Range 38

Privacy Mode 38

Holding a Conference Call 39

Using the Intercom 39

Transferring a Call 41

Using One Touch Voice Mail Access 43

Resetting the New Message LED 43

Using the Phonebook and Speed Dial 44

Entering New Phonebook Entries and Speed Dial Numbers 44

Chain Dialing 45

Viewing the Phonebook 46

Making Calls Using the Phonebook 47

Speed Dialing 47

Editing or Erasing a Phonebook Entry 48

Copying Phonebook Entries 49

Caller ID and CIDCW (Caller ID on Call Waiting) 50

Viewing the Caller ID List 51

Deleting a Caller ID Record 52

Deleting All Caller ID names/numbers 53

Calling a party from the Caller ID list 53

Storing Caller ID records in the Phonebook 54

Special Features 55

Using the DirectLInk Two-Way Radio Feature 55

Using the Room/Baby Monitor 57

Troubleshooting 58

Getting Help 58

Understanding the LED Indicators 58

Resetting the UIP165P 60

Logging into the UIP165P's Configuration Utility 61

Common Issues 62

Note on Power Sources 66

Power Failure 66

Battery Life 66

Battery replacement and handling 67

General Information 68

Liquid Damage 69

Precautions & Warranty 70

Index 71

Contents

WELCOME/FEATURES/TERMINOLOGY [2]

www.uniden.com

With the UIP165P voice-over-Internet Protocol (VoIP) telephone, Packet8 VoIP service

and your broadband connection, you can access the Internet and make phone calls

simultaneously. The UIP165P can connect directly to your broadband modem or can

connect to a router or switch in your home network. It generates and receives voice

data and forwards data traffic to your computer or network.

Note: Illustrations in this manual are used for explanation purposes.

Some illustrations in this manual may differ from the actual unit.

• 5.8GHz Digital Expandable

• Dual Keypad and LCD Screen at Base

• 10 Multi-Handset Expandability

• Hands-Free Duplex Speakerphone in the Handset and Base

• Caller ID/Call Waiting

• 100 (handset) and 50 (base) Programmable CID or Memory Locations

• Trilingual Display Options (English, French and Spanish)

• Intercom/Call Transfer Between Handsets and base

• 20 Distinctive Ring Options (10 ringer tones and 10 melody ringers)

• Mute and Hold Features

• Ringer off Feature

• DirectLink Mode

• Room/Baby Monitoring

• Battery Level Indicator

• Clock Display

•AnimationDisplays

Welcome

Features

[3] WELCOME/FEATURES/TERMINOLOGY

www.uniden.com

This series features AutoTalkand AutoStandby. AutoTalk allows you to answer a call by just removing

the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to

hang up by simply returning the handset to the cradle.

To protect you against mis-billed calls that might result from your phone being activated by other

equipment, this series has Random Codedigital security, which automatically selects one of more than

10,000,000 digital security codes for the handset and base.

Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The

result is a more secure conversation with the clarity of digital sound, extended range, and minimal

interference from other cordless phones.

IntegriSoundBuilt in sound quality which provides life-like conversations.

With DirectLinkmode, you can use two or more handsets as radio transceivers (walkie-talkies).

Be sure to visit our web site: www.uniden.com

Unidenis a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.

WELCOME/FEATURES/TERMINOLOGY [4]

www.uniden.com

Accessibility

If you have a disability and need customer service assistance or if you have any questions about how

Uniden's products can accommodate persons with disabilities, please call the accessibility voice/TTY

line:1-800-874-9314

A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave us a

message, and we will call you back. Information is also available on our website, www.uniden.com, under

the "Accessibility" link.

Terminology

•Standby Mode - No station is currently in use. No dial tone is present.

•Talk Mode - The handset is off the cradle and talk/flash or on the handset, or on the base has

been pressed, enabling a dial tone.

•VoIP - Voice over Internet Protocol, a method of sending voice signals over broadband Internet

connections.

•Station - The main base or any registered handset.

•Configuration utility - The internal user interface that allows you to change configurations settings in the

UIP165P. You can access the configuration utility with an Internet web browser.

[5] CONTROLS & FUNCTIONS

www.uniden.com

Controls & Functions

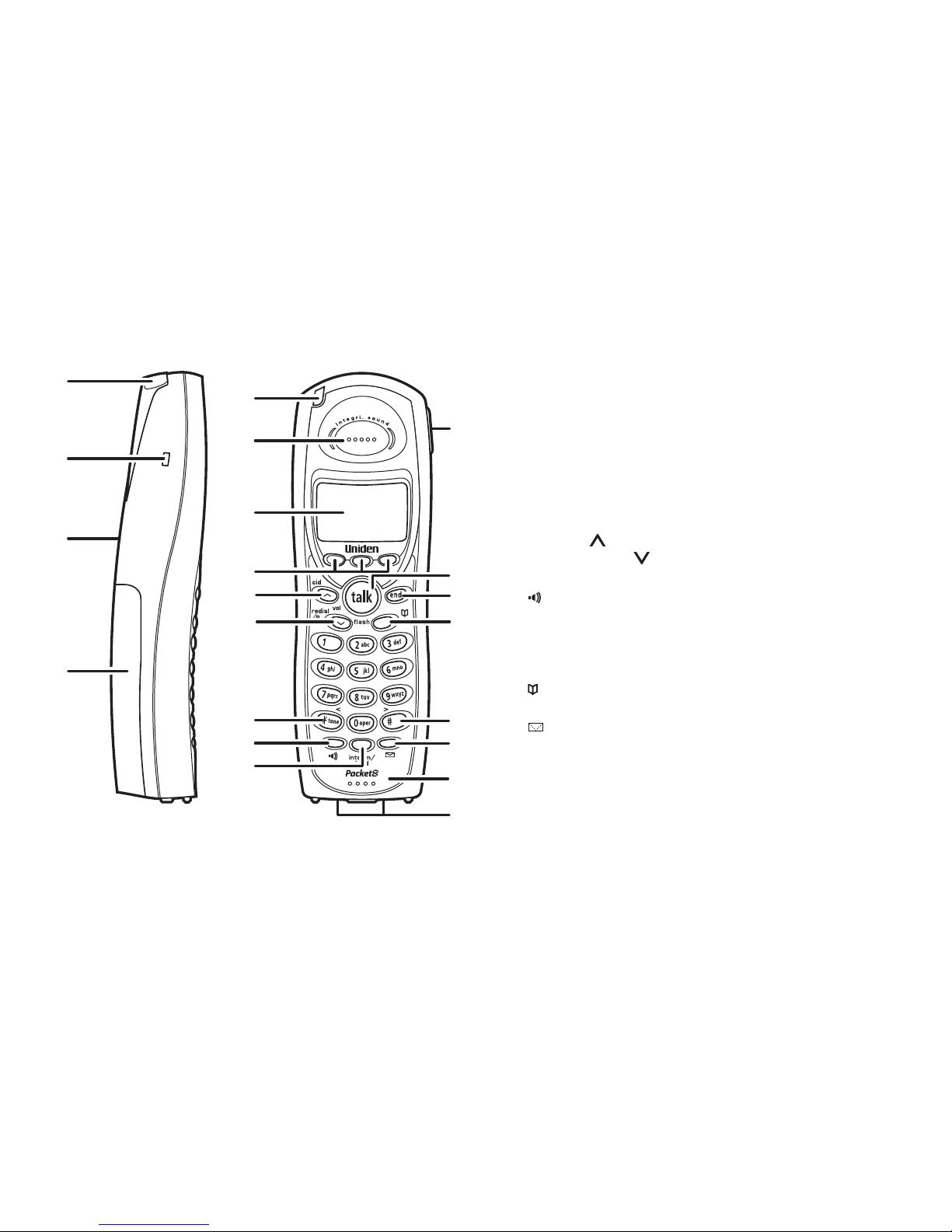

1. Handset Antenna

2. Beltclip Hole

3. Speakerphone Speaker and Ringer

4. Handset Battery Compartment

5. New Message LED

6. Handset Earpiece

7. LCD Display

8. soft Keys (P. 18)

9. cid/vol/ (volume up) (P. 51, 36 & 19)

10.redial/p/vol/ (volume down) (P. 35, 36 & 19)

11.

/tone/< (P. 20)

12. (speaker) (P. 32 & 33)

13.intcom/hold (P. 39 & 34)

14.Headset Jack Cover

15.talk/flash (P. 32, 33 & 34)

16.end (P. 19 & 32)

17. (phonebook) (P. 44)

18.#/> (P. 20)

19. (message) (P. 43)

20.Handset Microphone

21.Handset Charging Contacts

13 20

CONTROLS &

FUNCTIONS

CONTROLS & FUNCTIONS [6]

www.uniden.com

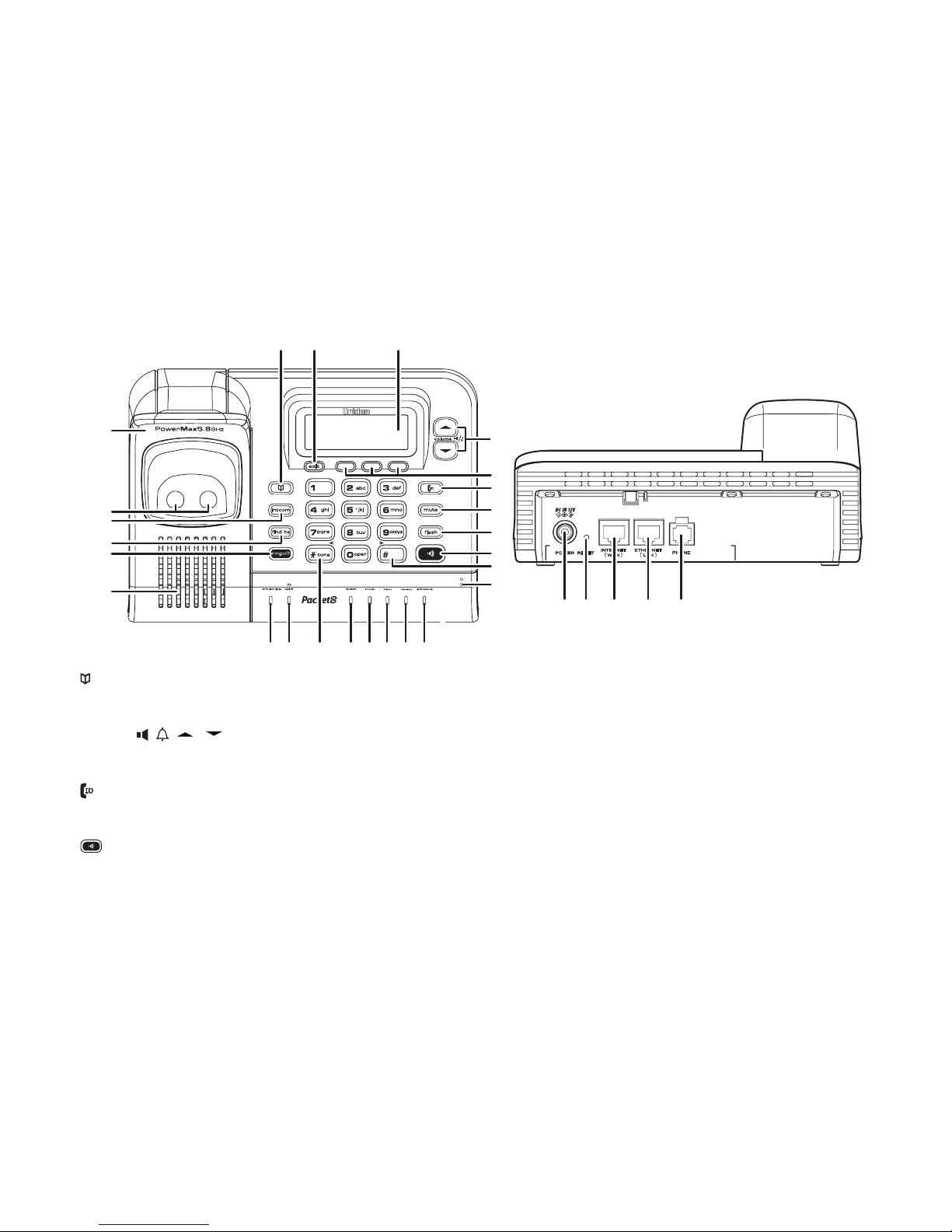

47 48 49 50 51

22 23 24

34353637383940

22.

(

one

. 44

)

23. exit

(

P. 19 & 52

)

24. LCD Display

25. volume /(up/down)

(P. 36 & 19)

26. Soft keys (P. 18)

27. (Caller Id) (P. 51)

28. mute (P. 37)

29. flash (P. 33)

30. (speaker) /speaker LED (P. 32)

31. #/> (P. 20)

32. Base Microphone

33. p

one

LED

34. wan LED

35. lan LED

36. link LED

37. pwr (power) LED

38.

/tone/< (P. 20)

39. in use LED

40. charge LED

41.

Base Speaker

42. ring off (ringer off) (P. 36)/Ringer

off LED

43. find hs (handset) (P. 37)

44.

ntcom

ntercom

)

. 40

)

45. Base Charging Contacts

46. Base Antenna

47. POWER port

48. RESET switch

49. INTERNET[WAN] port

50. ETHERNET[LAN] port

51. PHONE port

CONTROLS &

FUNCTIONS

[7] SETTING UP YOUR BROADBAND PHONE

www.uniden.com

SETTING UP YOUR

BROADBAND PHONE

Setting up your Broadband Phone

Safety Recommendations

To ensure general safety, follow these guidelines:

• Do not open or disassemble this product.

• Do not expose the product to moisture.

• Do not perform any action that creates a potential hazard to people or makes the

equipment unsafe.

• Ultimate disposal of this product should be handled according to all national laws and

regulations.

• Do not touch the wires on the cable ports or the wires of cables connected to a port as

hazardous voltage may be present on these wires when the equipment is powered on.

• The plug-socket combination must be accessible at all times because it serves as the power

disconnect.

• To avoid electric shock, do not connect the UIP165P to any RJ-11 telephone wall jacks.

Use caution when connecting cables. This could damage the UIP165P or the telephone

wiring in the building.

• Do not work on the system or connect or disconnect cables if lightning or thunder are

present in your area.

• Do not cover or block the air vents on the top or bottom surface of the UIP165P.

Overheating can cause permanent damage to the unit.

• Read the instructions completely before connecting the system to its power source.

GETTING STARTED

SETTING UP YOUR BROADBAND PHONE [8]

www.uniden.com

SETTING UP YOUR

BROADBAND PHONE

911 Service Notice

911 dialing is not automatic.

Packet8 offers Enhanced 911 calling as a standard feature of its Internet phone

service. However, there are certain circumstances, when you dial 911 from a phone

connected to the Packet8 service, where E911 service may not function, or the E911

service may be in some way limited by comparison to traditional 911 service. Please

review the Terms and Conditions at www.packet8.net for additional information.

Before You Start!

Visit the Packet8 activation website http://activate.packet8.net/ and enter the

MAC address ID found on the bottom of your UIP165P. After you activate the

UIP165P, you will receive an email containing a 10-digit activation code. You will

need this activation code in Step 3.

STEP 1: Check Your Equipment

Check your broadband setup and the other equipment you will need:

• A broadband modem and a broadband Internet connection

• A computer with an Ethernet port (or a local Ethernet switch or router)

• One CAT-5 Ethernet cables

• The Packet8 10-digit activation code that was emailed to you when you created your

account. (If you don't have this email, go to www.packet8.net and enter the email address

and password used to create the account in the account sign in at the top of the screen.)

• If you want to use an analog phone or fax machine with the UIP165P, you will need a

standard telephone cable (RJ-11).

If you ordered your

UIP165P directly from

Packet8, it will already

be activated for you.

Your 10-digit activation

code was in the

confirmation email you

received when your

UIP165P shipped. (If

you don’t have this

email, go to

www.packet8.net and

enter the email address

and password used to

create the account in

the account sign in

page.)

note

[9] SETTING UP YOUR BROADBAND PHONE

www.uniden.com

SETTING UP YOUR

BROADBAND PHONE

STEP 2: Install the rechargeable battery pack into the handset

The handset is powered by a rechargeable battery pack. The battery recharges

automatically when the handset is placed in the cradle.

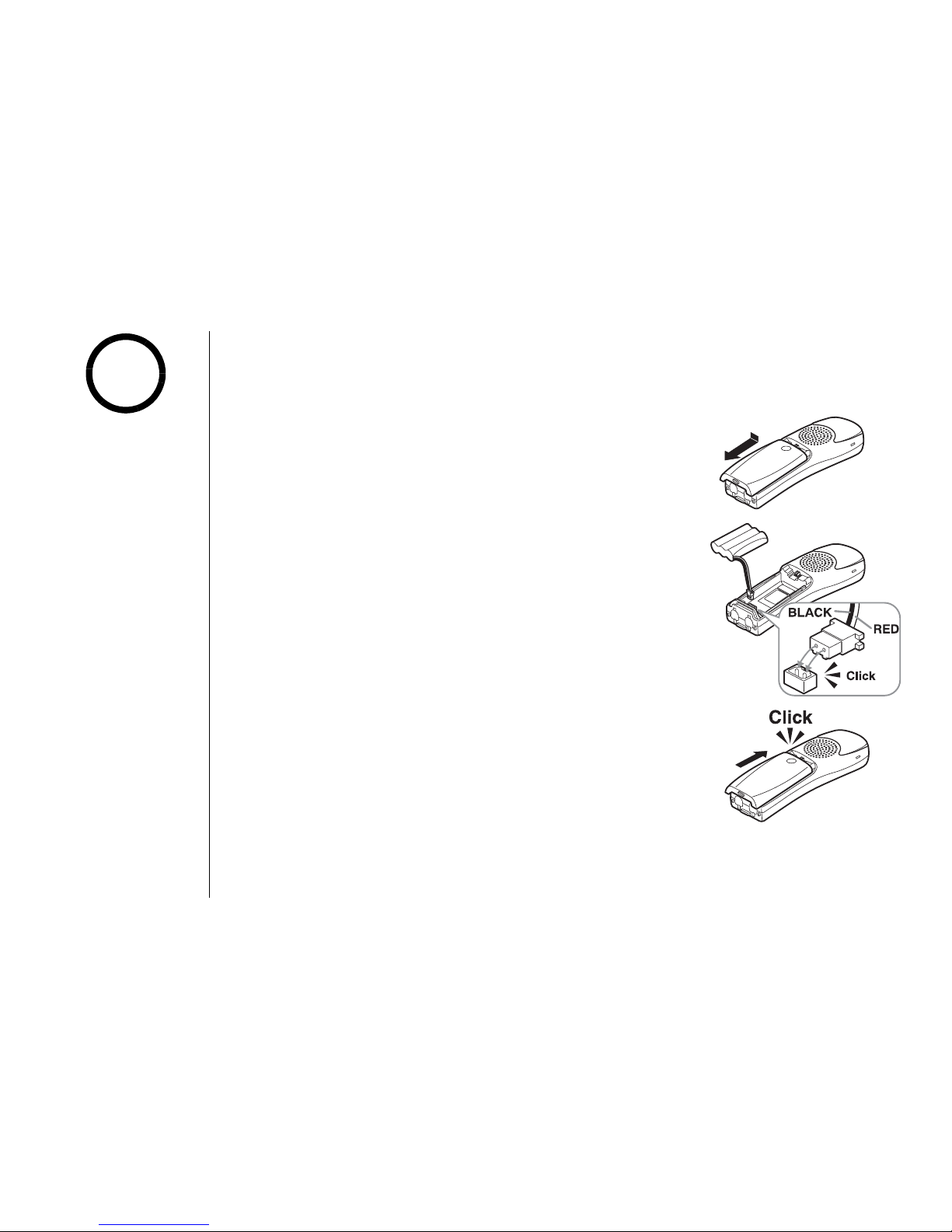

1) Press down on the handset battery case cover (use the

finger indention for a better grip) and slide the cover

downward to remove.

2) Plug the battery pack connector (red & black wires) into

the jack inside the battery compartment. (The connector

notches fit into the grooves of the jack only one way.)

Match the wire colors to the polarity label in the battery

compartment, connect the battery and listen for a click to

insure connection.

3) Make sure you have a good connection by slightly pulling

on the battery wires. If the connection is secure, the

battery jack will remain in place.

4) Place the battery case cover back on the handset and slide

it upwards until it clicks into place.

•Use only the Uniden

(BT-446) rechargeable

battery pack supplied

with your cordless

telephone.

•Replacement battery

packs are also

available through the

Uniden Parts

Department (see back

cover page).

note

Indice

Altri manuali Uniden Telefono senza fili

Uniden

Uniden EXI4560 - EXI 4560 Cordless Phone Manuale di servizio

Uniden

Uniden DECT4066A Manuale di servizio

Uniden

Uniden D1660 Manuale utente

Uniden

Uniden DSS7815 Series Manuale utente

Uniden

Uniden ELITE 8815 Series Manuale utente

Uniden

Uniden TWX977 Series Manuale utente

Uniden

Uniden EXAI 398 Series Manuale utente

Uniden

Uniden XDECT 8005WP Series Manuale utente

Uniden

Uniden CXA 15698 Manuale utente

Uniden

Uniden TRU9485 - TRU 9485 Cordless Phone Manuale di servizio

Uniden

Uniden EXI4246 - EXI 4246 Cordless Phone Manuale di servizio

Uniden

Uniden DECT2080 Series Manuale utente

Uniden

Uniden EXT 1865 Istruzioni per il montaggio

Uniden

Uniden CXAI5698 - Cordless Phone Base Station Manuale di servizio

Uniden

Uniden EXS 9800 Manuale utente

Uniden

Uniden EXS 9995 Manuale utente

Uniden

Uniden EXI 6960 Manuale utente

Uniden

Uniden DMX 778 Series Manuale utente

Uniden

Uniden 2165 Manuale utente

Uniden

Uniden DG900 DGMax Manuale utente

Uniden

Uniden TRU9565-2 - TRU Cordless Phone Manuale utente

Uniden

Uniden DECT4086-2 Manuale utente

Uniden

Uniden XDECT 8315 Series Manuale utente

Uniden

Uniden D1780-BT Series Manuale utente

Manuali Telefono senza fili popolari di altre marche

3Com

3Com NBX Manuale utente

Panasonic

Panasonic KX-TGK210HK Manuale utente

Panasonic

Panasonic KX-TCA181EX Manuale utente

BT FREESTYLE 3200 Manuale utente

AT&T

AT&T CL84102 Manuale utente

BREZZICNI

BREZZICNI CL-3622 Manuale utente

Panasonic

Panasonic KX-TG1831NZ Manuale utente

Panasonic

Panasonic KX-TG7301E Manuale utente

Furuno

Furuno FM-4721 Manuale utente

Sanyo

Sanyo CLT-J70 Manuale utente

Amplicomms

Amplicomms BigTel 201 Manuale utente

GE 26992 Manuale utente

AT&T

AT&T E1812B Manuale utente

Sanyo

Sanyo CLT-670 Manuale utente

GE 15432970 Manuale utente

Curtis

Curtis TC595 Manuale utente

Gigaset

Gigaset Gigaset 3000 Micro Manuale utente

Poly

Poly VVX D230 Guida all'installazione
