WELCOME /FEATURES 2

TERMINOLOGY 4

CONTROLS & FUNCTIONS 5

GETTING STARTED 7

Setting up your Broadband Phone 7

Expanding Your Phone 15

Installing the Beltclip 18

Optional Headset Installation 18

Installing Uniden's Cordless Telephone Customization Tool 19

Using the Interface 20

Main Menu Options 25

Global Setup 27

Setting Up the Handset 31

Setting Display Options 37

BASICS 40

Using Your Phone 40

Redialing a Call 43

Adjusting the Ringer and Speaker Volume 45

Privacy Mode 47

Muting the Ringer 47

Muting the Microphone 48

Find Handset 48

Handset Conferencing 49

Using One Touch Voice Mail Access 50

PHONEBOOK 51

Using the Handset Phonebook 51

Using the Base Phonebook 58

Using Speed Dial 63

CALLER ID 64

Using Caller ID 64

MULTI-HANDSET FEATURES 68

Multi-Handset Features 68

Using the Room/Baby Monitor 69

Using the Intercom 70

Transferring a Call 71

TROUBLESHOOTING 73

Troubleshooting 73

ADDITIONAL INFORMATION 81

Note on Power Sources 81

General Information 83

PRECAUTIONS & WARRANTY 84

I.C. NOTICE 85

INDEX 86

Contents

WELCOME/FEATURES [2]

www.uniden.com

With the UIP1869V broadband Internet telephone, Vonage's Internet phone service and

your broadband connection, you can access the Internet and make phone calls

simultaneously. The UIP1869V connects directly to your broadband modem. It separates

voice signals from data signals and sends voice traffic to its cordless handsets and data

traffic to your computer.

If you a have a local switch or router supporting a LAN, the UIP1869V will pass all Data

traffic through to your LAN.

Note: Illustrations in this manual are used for explanation purposes.

Some illustrations in this manual may differ from the actual unit.

• 5.8GHz Digital Expandable

• Corded/Cordless Telephone System

• Caller ID/Call Waiting

• 100 Programmable Memory Locations in the Base and Each Cordless Handset

• Downloadable Images

• Recordable Ringer Tone

WELCOME/FEATURES

Welcome

Features

[3] WELCOME/FEATURES

www.uniden.com

This series features AutoTalk™and AutoStandby™. AutoTalk allows you to answer a call by just removing

the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to

hang up by simply returning the handset to the cradle.

To protect you against mis-billed calls that might result from your phone being activated by other

equipment, this series has Random Code™digital security, which automatically selects one of more than

10,000,000 digital security codes for the handset and base.

Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The

result is a more secure conversation with the clarity of digital sound, extended range, and minimal

interference from other cordless phones.

IntegriSound™Built in sound quality which provides life-like conversations.

With DirectLink™mode, you can use two or more handsets as radio transceivers (walkie-talkies).

Be sure to visit our web site: www.uniden.com

Uniden®is a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

Vonage®, The Broadband Phone Company®, and Vonage Digital Voice®are registered service marks owned

and used under license from Vonage Marketing, Inc., a wholly-owned subsidiary of Vonage Holdings Corp.

WELCOME/FEATURES

TERMINOLOGY [4]

www.uniden.com

Accessibility

If you have a disability and need customer service assistance or if you have any questions about how

Uniden's products can accommodate persons with disabilities, please call the accessibility voice/TTY

line:1-800-874-9314

A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave us a

message, and we will call you back. Information is also available on our website, www.uniden.com, under

the "Accessibility" link.

Terminology

•Standby Mode - The handset maybe sitting or off the cradle, but is NOT in use. talk/flash or speaker has

not been pressed. The corded base handset is on the base and speaker on the base has not

been pressed. No dial tone is present.

•Talk Mode - The handset is off the cradle and talk/flash or speaker has been pressed, or pick up the

corded base handset and speaker on the base is pressed and enabling a dial tone.

•VoIP - Voice over Internet Protocol, a method of sending voice signals over broadband Internet

connections.

•Station - The main base or any registered handset.

•Configuration utility - The internal user interface that allows you to change configurations settings in the

UIP1869V. You can access the configuration utility with an Internet web browser.

TERMINOLOGY

[5] CONTROLS & FUNCTIONS

www.uniden.com

Controls & Functions

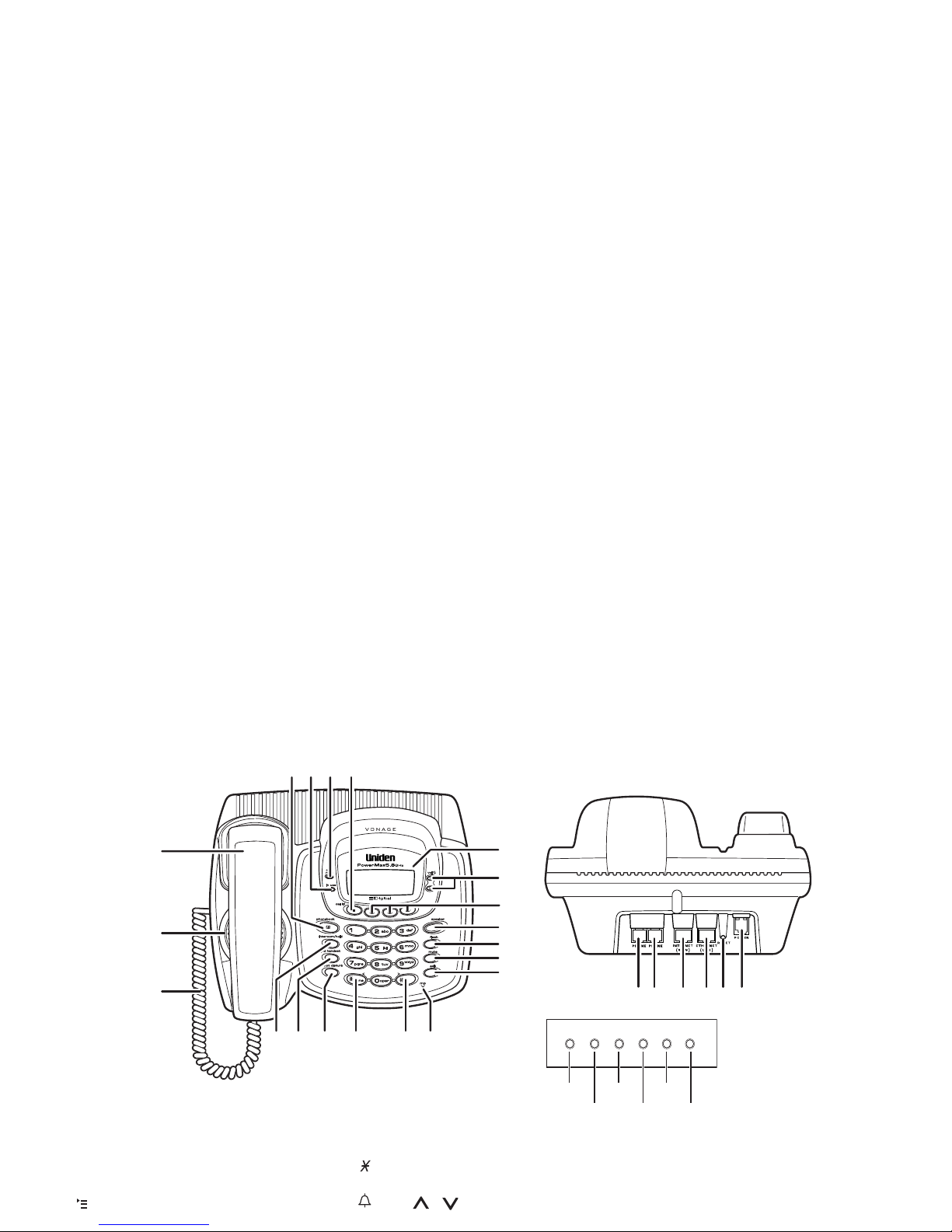

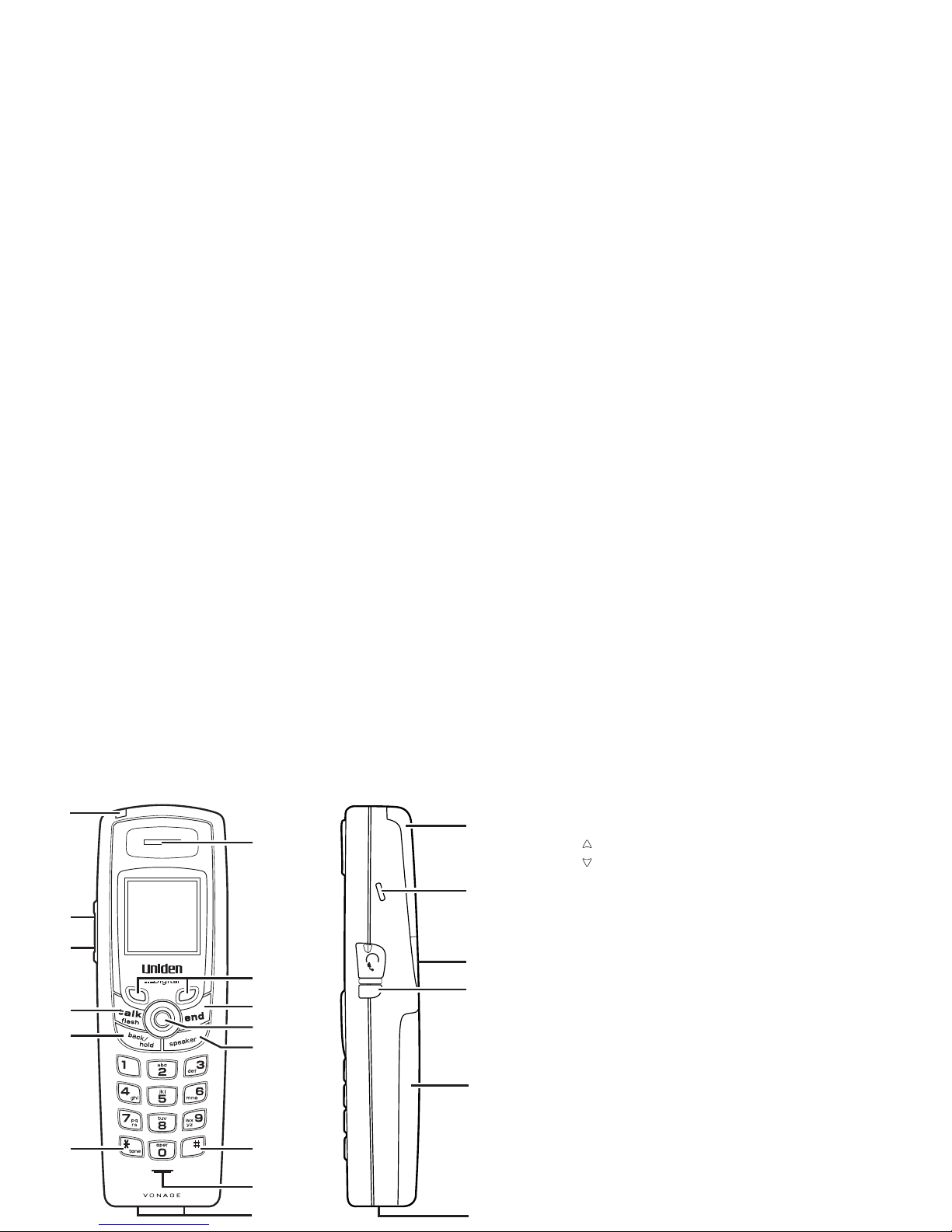

1. New Message LED

2. Volume (up) (P. 45)

3. Volume (down) (P. 45)

4. Talk/flash (P. 40 & 41)

5. Back/hold/intercom

(P. 23, 42 & 70)

/tone (P. 65)

7. Ear Speaker

8. Soft keys (P. 22)

9. end (P. 40)

10.Joystick (P. 23)

11.speaker (P. 40)

12.#(P. 65)

13.Handset Microphone

14.Handset Charging Contacts

15.Handset Antenna

16.Beltclip Hole

17.Speakerphone Speaker and Ringer

18.Headset Jack

19.Handset Battery Compartment

20.USB jack

6 12

CONTROLS &

FUNCTIONS

CONTROLS & FUNCTIONS [6]

www.uniden.com

31 3940302928

41 42 43 44 45 46

21 22

LEDs

Power

Status

LAN

Status

WAN

Status

Inactive

LED

Phone1

Status

Phone 2

Status

LAN WAN Phone1 Phone2

21. phonebook

(

P. 51

)

22. In use LED

23. New Message LED

24. call id (P. 64)

25. Corded Base Handset

26. Base Speaker

27. Curl Cord

28. intercom/hold (P. 70 & 42)

29. find handset (P. 48)

30. do not disturb /DND LED (P. 47)

31. /tone/<(P. 66)

32. LCD Display

33. /vol

/(volume up/down)

(P. 45 & P. 28)

34. soft Keys (P. 22)

35. speaker/speaker LED (P. 40)

36. flash (P. 41)

37. mute

(P. 48)

38. exit

(

P. 58

)

39. mic (microphone)

40. #/> (P. 66)

41. Phone 1 port

42. Phone 2 port

43. Internet (WAN) port

44. Ethernet (LAN) port

45. Reset switch

46. Power port

CONTROLS &

FUNCTIONS

[7] GETTING STARTED

www.uniden.com

Setting up your Broadband Phone

Safety Recommendations

To ensure general safety, follow these guidelines:

• Do not open or disassemble this product.

• Do not expose the product to moisture.

• Do not perform any action that creates a potential hazard to people or makes the

equipment unsafe.

• Ultimate disposal of this product should be handled according to all national laws and

regulations.

• Do not touch the wires on the cable ports or the wires of cables connected to a port as

hazardous voltage may be present on these wires when the equipment is powered on.

• The plug-socket combination must be accessible at all times because it serves as the power

disconnect.

• To avoid electric shock, do not connect the UIP1869V to any RJ-11 telephone wall jacks.

Use caution when connecting cables. This could damage the UIP1869V or the telephone

wiring in the building.

• Do not work on the system or connect or disconnect cables if lightning or thunder are

present in your area.

• Do not cover or block the air vents on the top or bottom surface of the UIP1869V.

Overheating can cause permanent damage to the unit.

• Read the instructions completely before connecting the system to its power source.

GETTING STARTED

GETTING STARTED [8]

www.uniden.com

911 Service Notice

911 dialing is not automatic.

Vonage services do not include traditional 911 emergency dialing. You must

successfully activate the 911 dialing feature (register and subscribe) by following the

instructions at www.vonage.com/911. Vonage's version of 911 is outlined in the

Vonage User Guide; your responsibilities as a Vonage subscriber are outlined in the

Vonage Terms of Service contract. It is important you read these documents (included

with your broadband phone) and understand this feature and its limitations.

Before You Start!

To activate your broadband Internet phone service visit www.vonage.com/activate.

You will need your MAC address, a twelve-character ID that identifies your

UIP1869V. The MAC address is located on the bottom of your UIP1869V broadband

phone. Be sure to enter all of the characters exactly as they appear on the sticker.

(All letters should be upper-case.)

Note: If you are an existing Vonage customer and are upgrading your device, please

call our customer care department at 1-VONAGE-HELP (1-866-243-4357). Customer

Care is available 24 hours a day, 7 days a week.

STEP 1: Check Your Equipment

Check your broadband setup and the other equipment you will need:

• A broadband modem and a broadband Internet connection

• A computer with an Ethernet port (or a local Ethernet switch or router)

• Two CAT-5 Ethernet cables

• If you subscribe to a second phone line or want to use a backup phone off of the

UIP1869V, you will need a standard telephone cable (RJ-11)

If you ordered your

UIP1869V directly from

Vonage, it will already

be activated for you.

note

GETTING STARTED

[9] GETTING STARTED

www.uniden.com

Check Your Broadband Configuration

The UIP1869V supports the two most common broadband connection protocols:

DHCP and PPPoE. If your broadband connection uses DHCP, you do not need to

change any settings on the UIP1869V. If your broadband connection uses PPPoE,

you will need to enter your user name and password in Step 3.

If your broadband provider has given you a static IP address, you will need a special

configuration for your UIP1869V. See the User Interface Guide at www.uniden.com/

voip for more information on configuring for static IP addresses.

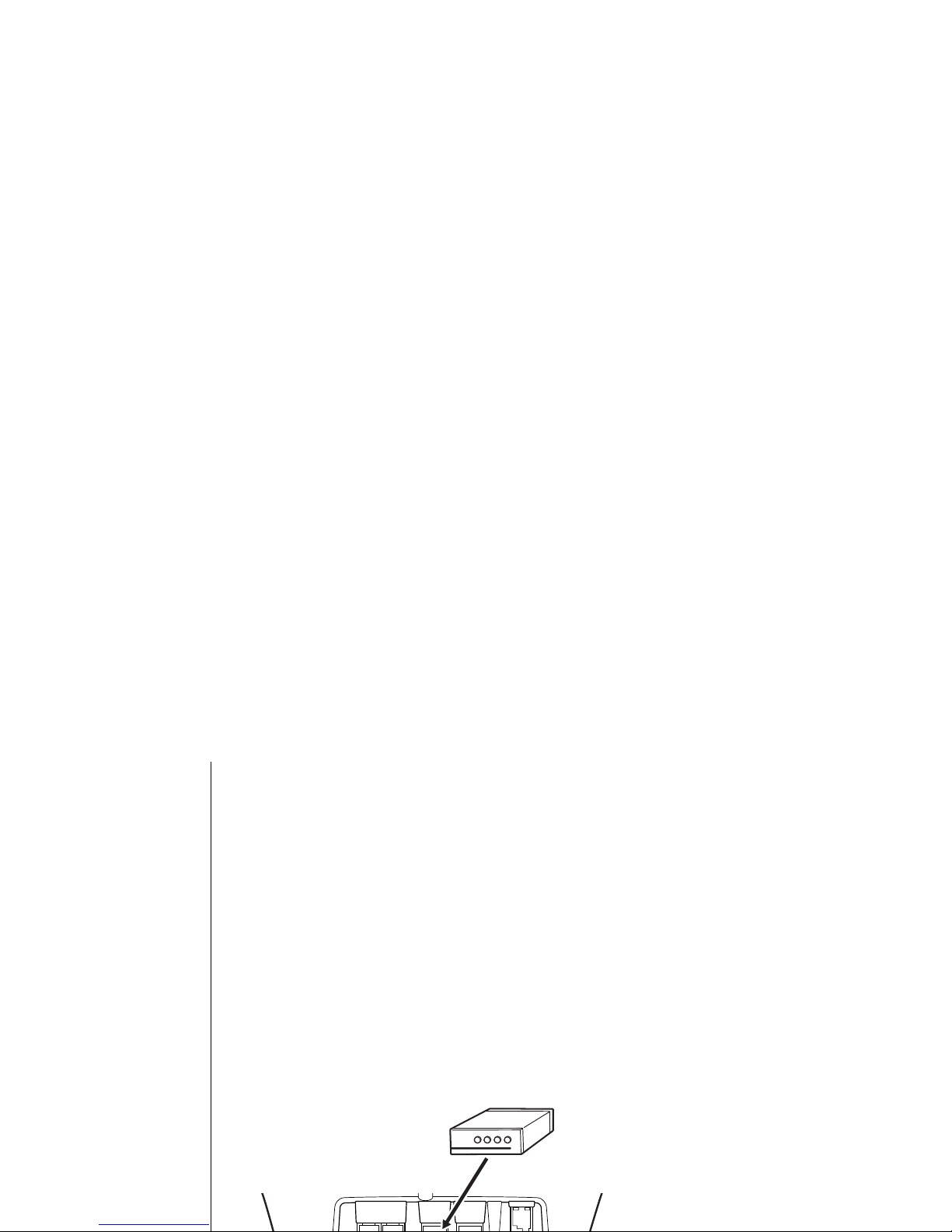

STEP 2: Connect Your UIP1869V

Once your account is set up, you can connect your UIP1869V.

1) Use the coil cord to connect the corded handset to the base.

2) Use the blue Ethernet cable to connect your broadband modem to the blue RJ-45 port

labeled Internet (WAN). If you have a home router then use the blue Ethernet cable to

connect one of the LAN ports on your router to the Internet (WAN) port on your UIP1869V

instead.

GETTING STARTED
