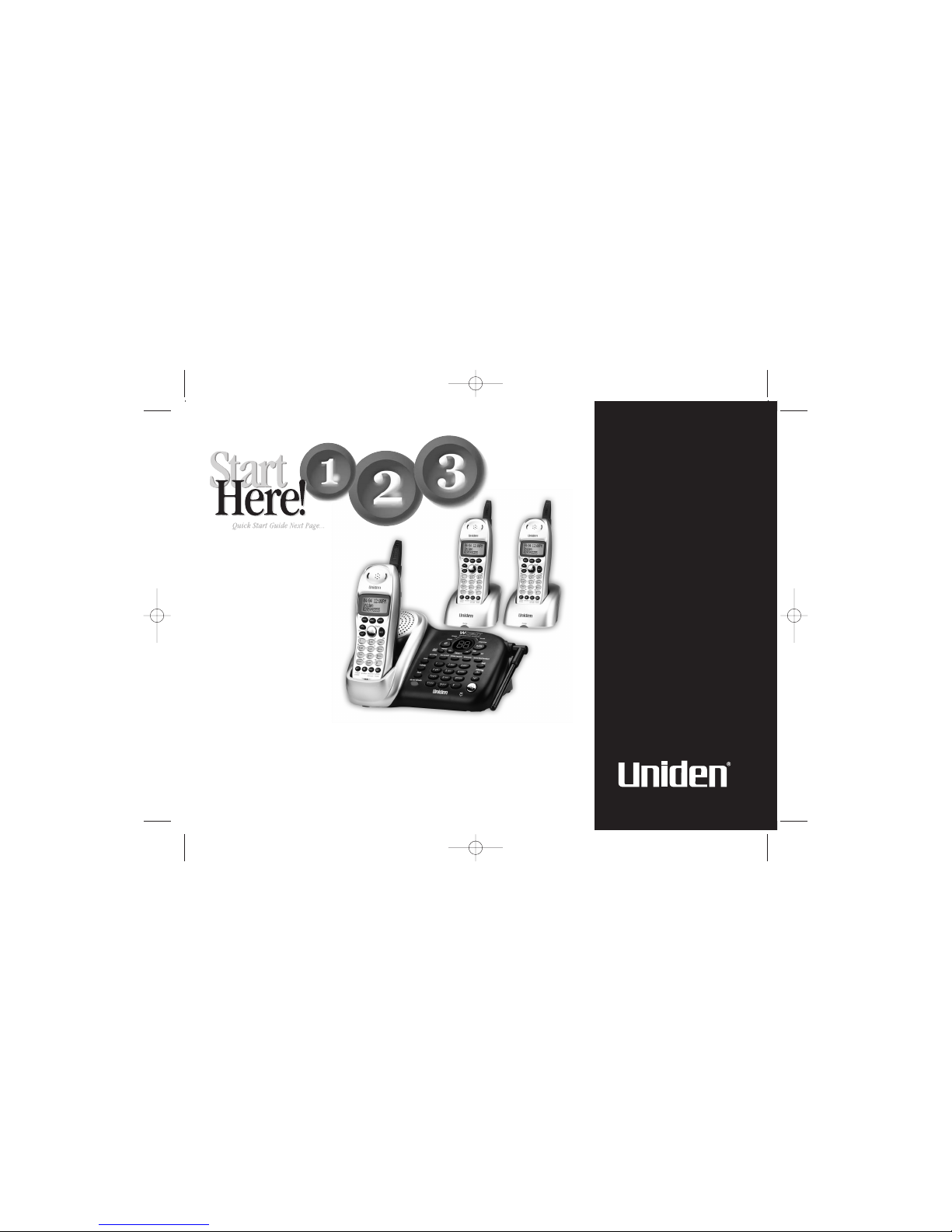

Uniden WDECT 2355+2 Manuale utente

WDECT

2355

Wide Band Digital

Technology provides

the clearest sound

and the best privacy.

Guide

Quick Start

UP354BH(WDECT2355+2) OM 5/14/04 12:04 PM Page a

[ i ]

INSTALLATION & SAFETY

• This symbol

indicates important

operating and

servicing instructions.

• The earcap of this

telephone may attract

and retain small

metallic objects.

AVOID -

connecting

more than

phones as ringing

may be impaired

AVOID -

multi power boards.

CHARGE -

the new phone

for 15 - 20 hrs.

AVOID -

Moisture

Don’t -

overload the

power outlet.

AVOID -

moisture

AVOID -

Television sets and

other electronic

appliances AVOID -

Microwave ovens

AVOID -

Computers

AVOID -

other cordless

telephones

CHOOSE -

a central location

Note: Ringing will not be impaired by

adding extra cordless handsets.

Choosing the best location for your phone.

When choosing a location for your phone there are a number of appliances the phone

should not be near, and areas you should avoid.

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page i

[ ii ]

QUICK START GUIDE

This page is a very condensed version of the Owner’s

Manual. It is designed to allow you to get your phone

installed and operating as quickly as possible -

however it does not attempt to explain any of the

advanced features of the WDECT2355 series.

1) Connect the AC adapter to the DC IN 9V jack

and to a standard AC wall outlet.

Make sure the AC

Adapter/s remains

switched ON at all

times. Use only the

Uniden AC Adapter/s

supplied with this unit.

Start

Here!

Installing the Base Unit

2) Connect the telephone line cord to the

TEL LINE jack and to a telephone socket

on the wall.

For wall mounting, see “Mounting the

Base Unit on a Wall” on page 6.

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page ii

[ iii ]

Installing the battery pack

1) Press down on the battery cover release and slide the

cover down until it comes off.

2) Connect the battery plug to the socket at the rear of the

battery compartment. The RED and BLACK battery wires

must match the RED and BLACK dots on the phone case for

the plug to fit properly. Press firmly until it clicks

into place.

3) Securely close the battery compartment cover by sliding it

up until it snaps into place.

Red

Wire

Black

Wire

3) Set the base on a desk or tabletop.

4) Raise the antenna to a vertical position.

Connecting the charger

1) Connect the AC adapter into the charging cradle

and to a AC wall outlet.

2) Set the charger on a desk or tabletop.

• Charge the handset

battery pack for at

least 15-20 hours

before using your

new cordless

telephone for the

first time.

• Use only the Uniden

rechargeable battery

pack (BT-446)

supplied with your

cordless telephone.

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page iii

[ iv ]

Charging the handset(s)

1) Place the handset(s) in the main base unit or charging

cradle with the keypad facing forward.

2) Make sure the charge LED illuminates. If the LED does not illuminate, check to see

that the AC adapter is plugged in and that the handset makes good contact with the

base charging contacts.

• After installing the batteries in the handset, charge your handset at least 15-20 hours.

During a power cut

or if the AC adapter

is switched off,

this telephone

will not operate.

Recharge your phone

on a regular basis by

returning the handset

to the base after

each phone call.

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page iv

[ v ]

CONTENTS

INSTALLATION & SAFETY i

QUICK START GUIDE ii

CONTENTS v

GETTING STARTED 1

Controls and Functions 1

Uniden Company Philosophy 3

Welcome 3

Features 4

Checking the Package Contents 5

Terminology 5

Mounting the Base Unit on a Wall 6

Battery Maintenance 7

Installing the Beltclip 8

Headset Installation (Optional) 9

Display and Icons 9

About the Menu Options 10

Setting up the Menu 14

BASICS 22

Making and Receiving Calls 22

Keypad Lock 23

Placing a Call on Hold 23

Redialing a Call 24

Adjusting the Handset Ringer,

Earpiece and Speaker Volume 25

Do Not Disturb (DND) 26

Mute Microphone 26

Tone Dialing Switch-Over (Australia Only) 27

Traveling Out-of-Range 27

Clarity Booster 27

Privacy Mode 28

3-way Conferencing 28

Find Handset 29

Flash and Call Waiting 29

New Message LED 29

PHONEBOOK 30

Phonebook 30

Storing Phone Numbers, Names,

Distinctive Rings, and Speed Dial 30

Steps for Entering Names and Special Characters 32

Viewing the Phonebook 34

Making Calls Using the Phonebook 35

Speed Dialing 35

Editing or Erasing a Stored Name,

Phone Number, Distinctive Ring, and Speed Dial 36

Chain Dialing 37

Memory Dialing (Base Only) 37

CALLER ID 38

Caller ID 38

Viewing the Caller ID List 39

Deleting a Caller ID Message 40

Using the Caller ID Message List 41

THE INTEGRATED ANSWERING DEVICE 42

The Integrated Answering Device 42

Turning the Answering System On/Off 43

Setting up your Answering System 44

Using your Answering System 50

Remote Operation 53

EXPANDING YOUR PHONE 56

Expanding your Phone 56

Using Two Way Communication between the

Handsets Anywhere without the Base (DirectLink) 58

Room Monitor 58

4-Way Conferencing 59

Intercom/Call Transfer Feature 59

Replacing the Base 60

ADDITIONAL INFORMATION 61

Changing the Digital Security Code 61

TROUBLESHOOTING 62

INDEX 65

WARRANTY 66

UP354BH(WDECT2355+2) OM 5/14/04 2:20 PM Page v

GETTING STARTED

[ 1 ]

CONTROLS AND FUNCTIONS

Repeat Key

Delete Key Stop Key

Play Key

Skip Key

Select/ Key

1. Handset Antenna

2. Headset Jack Cover

3. Beltclip Hole

4. Hands-Free Speaker

5. Handset Battery Compartment

6. New Message LED

7. Handset Earpiece

8. LCD Display

9. /del Key

10. /vol/ / Key

a. ringer volume control

b. scroll keys for display screen

11. Key

12. redial/pause Key

13. speaker Key

14. Key

15. Key

16. Key

17. Key

18. Key

19. phonebook Key

20. /transfer/int’com Key

21. Handset Microphone

22. Handset Charging Contacts

Handset Remote Operation (P. 54)

(Review ITAD messages from handset)

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page 1

[ 2 ]

46 47 48

49 50

23 24 25 26 27 28 29 30 3231

23. Base Speaker

24. Clock/MENU Key

25. repeat/SELECT Key

26. delete Key

27. Charge LED

28. Message Counter Display

29. In use LED

30. play/stop Key

31. skip/SELECT Key

32. SET Key

33. Memo record Key

34. Ans on/off Key

35. Greeting Key

36. Mem Key

37. Redial/p Key

38. Flash Key

39. Base Charging Contacts

40. Intercom Key

41. Mute/find handset Key

42. Hold Key

43. /volume / Key

44. Key/speaker LED

45. Base Antenna

46. Do not disturb Key/DND LED

47. Key

48. Microphone

49. DC IN 9V Jack

50. TEL LINE Jack

51. Charging Contacts

52. Charge LED

53. DC IN 9V Jack

Charger Base

Main Base

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page 2

Congratulations on your purchase of the Uniden Multi-Handset Cordless System telephone. This unit is

different from conventional cordless telephones. When the base unit is connected to AC power and a

telephone line, it can support up to 4 handsets. Using extra handsets, you can establish a 3-way conference

call (2 handsets and an outside line), while two other handsets are making an intercom call. You can now

place a fully featured cordless handset anywhere in your home or office where AC power is available to

connect the handset chargers.

Note: The illustrations in this manual are intended as a guide and may differ from actual unit.

WELCOME

[ 3 ]

To bring outstanding wireless communication products to people’s lives throughout the world.

UNIDEN COMPANY PHILOSOPHY

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page 3

[ 4 ]

Great features of this cordless phone include:

• Designed and Engineered in Japan

• Wide Band Digital Technology

• Multi (4) Handset Capable

• Digital Duplex Speakerphone on Handset

Advanced Alpha Display Caller ID Features:

• Alpha Memory Dialling

• POP ID - Caller Name Identification*

• 20 Individual Caller Allocations

• 100 Caller ID* Memories with Phonebook

• 3 Line Backlit Full Dot Matrix LCD Display with Clock

• Maxi-Sound - Extra Loud Handset Volume Control

• Intercom/Announce Call Transfer

• Handset Conferencing (2 Handsets + Outside Call)

• Two-Way Communication between Handsets Anywhere without the Base

• Dual Keypad at Base

• Integrated Answering Device

• DND Feature (Do Not Disturb)

• Remote Message Retrieval

• Personal or Factory Pre-recorded Greeting Message

• And More!

FEATURES

* Caller ID and POP ID features work only if you subscribe to the service provided by your local telephone company.

There is usually a fee for this service.

#Range may vary depending on environmental and/or topographical conditions.

UP354BH(WDECT2355+2) OM 5/14/04 10:48 AM Page 4
