WELCOME/FEATURES 2

TERMINOLOGY 4

CONTROLS & FUNCTIONS 5

GETTING STARTED 7

Setting up the Phone 7

Expanding Your Phone 14

Registering Expansion Handsets 15

Installing the Beltclip 17

Headset Installation 17

Display and Icons 18

Soft Key Function 19

Main Menu Options 20

Setting Menu Options 21

BASICS 30

Using Your Phone 30

Call Waiting 32

Placing a Call on Hold 32

Redialing a Call 33

Adjusting the Ringer, and Earpiece and Speaker Volume 34

Muting the Ringer 35

Muting the Microphone 36

Traveling Out of Range 36

Privacy Mode 37

Conferencing 37

Find Handset 38

Using One Touch Voice Mail Access 39

PHONEBOOK 40

Setting up the Phonebook 40

Viewing the Phonebook 44

Making Calls Using the Phonebook 45

Speed Dialing 45

Editing or Erasing a Stored Name, Phone Number, Distinctive

Ring and Speed Dial 46

Copying Phonebook Entries 47

CALLER ID 48

Caller ID and CIDCW 48

MULTI-HANDSET FEATURES 52

Multi-Handset Features 52

Using DirectLink Mode 52

Using the Room/Baby Monitor 54

Using the Intercom 55

TROUBLESHOOTING 58

Troubleshooting 58

ADDITIONAL INFORMATION 65

Note on Power Sources 65

General Information 67

Liquid Damage 68

PRECAUTIONS & WARRANTY 69

I.C. NOTICE 70

INDEX 71

Contents

WELCOME/FEATURES [2]

www.uniden.com

With the UIP1868P voice-over-Internet Protocol (VoIP) telephone, Packet8 VoIP service

and your broadband connection, you can access the Internet and make phone calls

simultaneously. The UIP1868P connects directly to your broadband modem. It separates

voice signals from data signals and sends voice traffic to its cordless handsets and data

traffic to your computer.

If you a have a local switch or router supporting a LAN, the UIP1868P will pass all

Ethernet traffic through to your LAN.

Note: Illustrations in this manual are used for explanation purposes.

Some illustrations in this manual may differ from the actual unit.

• 5.8GHz Digital Expandable

• Corded/Cordless Telephone System

• Dual Keypad and LCD Screen at Base

• Ten Multi-Handset Expandability

• Hands-Free Duplex Speakerphone in the Handset and Base

• Caller ID/Call Waiting Deluxe (Subscribe through Service provider)

• 100 Programmable Memory Locations in the Base and Each Cordless Handset

• Intercom/Call Transfer Between Handsets or Handset and Base

• 20 Distinctive Ring Options (Ten Ringer Tones and Ten Melody Ringers)

• Mute and Hold Features

• Do Not Disturb (DND) Feature

• DirectLink™Mode

• Room/Baby Monitoring

• Battery Level Indicator

• Clock Display

•AnimationDisplays

WELCOME/FEATURES

Welcome

Features

[3] WELCOME/FEATURES

www.uniden.com

This series features AutoTalk™and AutoStandby™. AutoTalk allows you to answer a call by just removing

the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to

hang up by simply returning the handset to the cradle.

To protect you against mis-billed calls that might result from your phone being activated by other

equipment, this series has Random Code™digital security, which automatically selects one of more than

10,000,000 digital security codes for the handset and base.

Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The

result is a more secure conversation with the clarity of digital sound, extended range, and minimal

interference from other cordless phones.

IntegriSound™Built in sound quality which provides life-like conversations.

With DirectLink™mode, you can use two or more handsets as radio tranceivers (walkie-talkies).

Be sure to visit our web site: www.uniden.com

Uniden®is a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.

Accessibility

If you have a disability and need customer service assistance or if you have any questions about how

Uniden's products can accommodate persons with disabilities, please call the accessibility voice/TTY

line:1-800-874-9314

A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave us a

message, and we will call you back. Information is also available on our website, www.uniden.com, under

the "Accessibility" link.

WELCOME/FEATURES

TERMINOLOGY [4]

www.uniden.com

Terminology

•Standby Mode - The handset maybe sitting or off the cradle, but is NOT in use. talk/flash or speaker has not been

pressed. The corded base handset is on the base and speaker on the base has not been pressed.

No dial tone is present.

•Talk Mode - The handset is off the cradle and talk/flash or speaker has been pressed, or pick up the corded

base handset and speaker on the base is pressed and enabling a dial tone.

•VoIP - Voice over Internet Protocol, a method of sending voice signals over broadband Internet

connections.

•Station - The main base or any registered handset.

TERMINOLOGY

[5] CONTROLS & FUNCTIONS

www.uniden.com

Controls & Functions

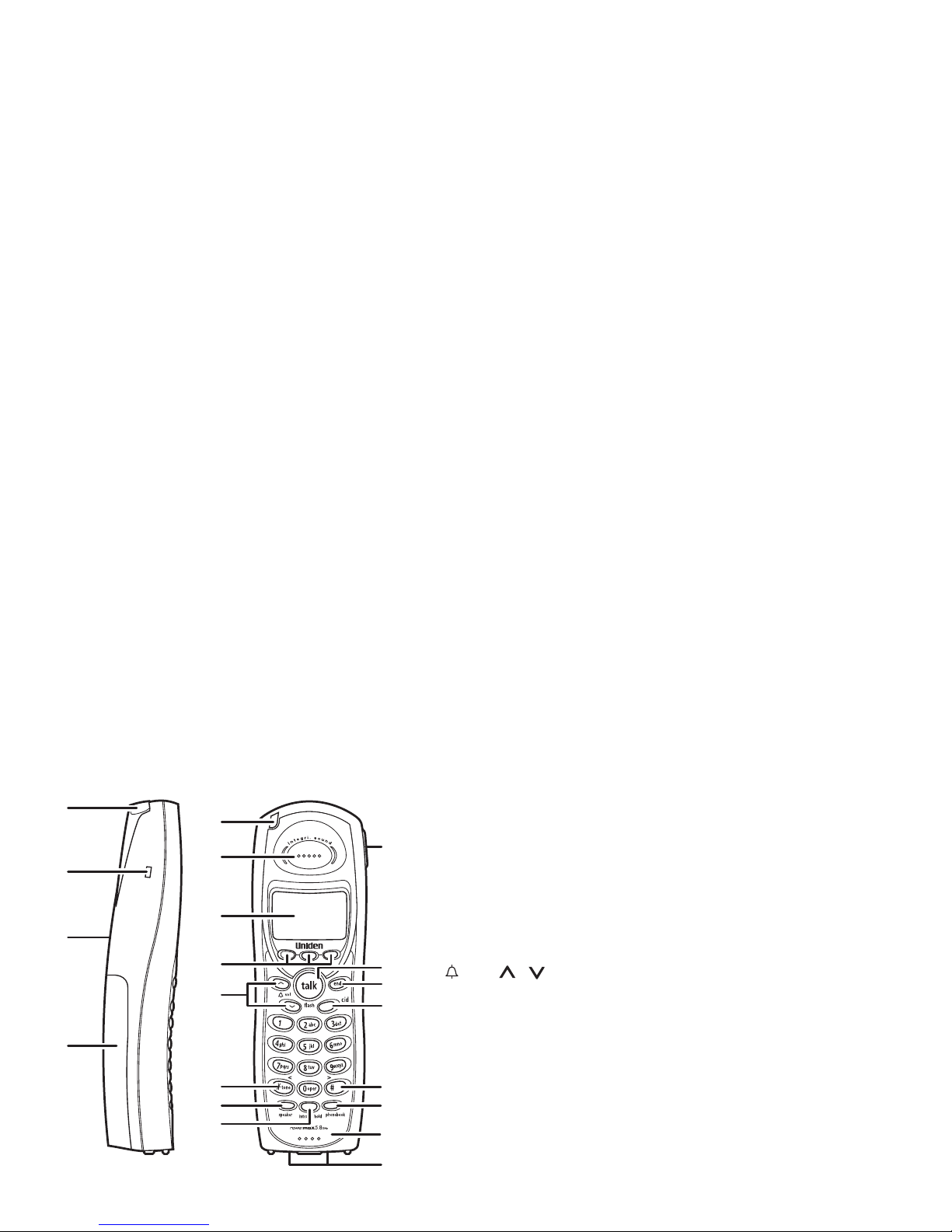

1. Handset Antenna

2. Beltclip Hole

3. Speakerphone Speaker and Ringer

4. Handset Battery Compartment

5. New Message LED

6. Handset Earpiece

7. LCD Display

8. soft Keys (P. 19)

9. /vol /(volume up/down) (P. 34 & 21)

10.

/tone/< (P. 51 & 41)

11.speaker (P. 30)

12.intcom/hold (P. 55 & 32)

13.Headset Jack Cover

14.talk/flash (P. 30 & 32)

15.end (P. 32)

16.cid (P. 49)

17.#/> (P. 51 & 41)

18.phonebook (P. 40)

19.Handset Microphone

20.Handset Charging Contacts

12 19

CONTROLS &

FUNCTIONS

CONTROLS & FUNCTIONS [6]

www.uniden.com

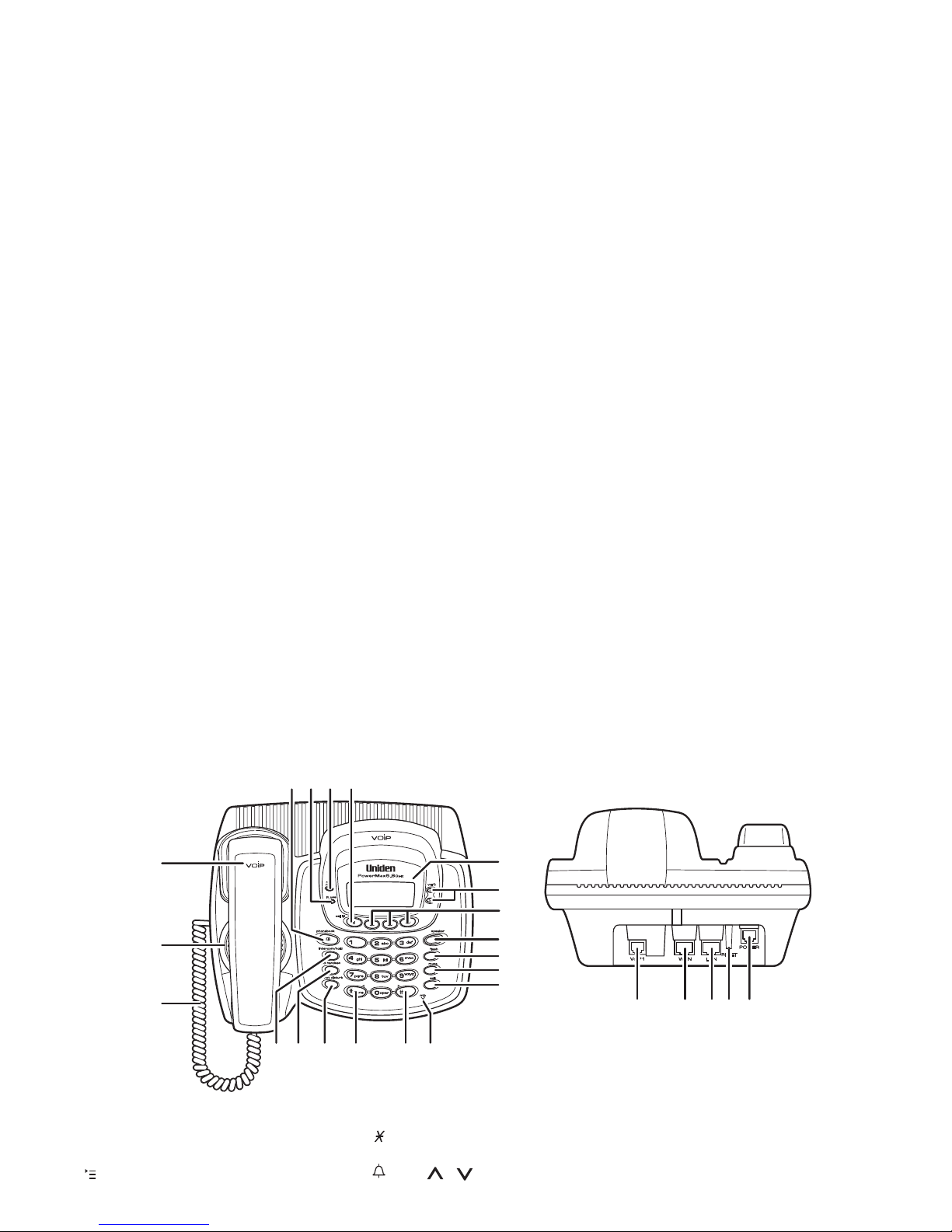

31 3940302928

41 42 43 44 45

21 22

21. phonebook

(

P. 40

)

22. In use LED

23. New Message LED

24. call id (P. 49)

25. Corded Base Handset

26. Base Speaker

27. Curl Cord

28. intercom/hold (P. 55 & 32)

29. find handset (P. 38)

30. do not disturb /DND LED (P. 35)

31. /tone/<(P. 51 & 41)

32. LCD Display

33. /vol

/(volume up/down)

(P. 34 & 21)

34. soft Keys (P. 19)

35. speaker/speaker LED (P. 31)

36. flash (P. 32)

37. mute

(P. 36)

38. exit

(P. 21)

39. mic (microphone)

40. #/> (P. 51 & 41)

41. VoIP1 port

42. WAN port

43. LAN port

44. Reset Switch

45. Power port

CONTROLS &

FUNCTIONS

[7] GETTING STARTED

www.uniden.com

Setting up the Phone

Safety Recommendations

To ensure general safety, follow these guidelines:

• Do not open or disassemble this product.

• Do not expose the product to moisture.

• Do not perform any action that creates a potential hazard to people or makes the

equipment unsafe.

• Ultimate disposal of this product should be handled according to all national laws and

regulations.

• Do not touch the wires on the cable ports or the wires of cables connected to a port as

hazardous voltage may be present on these wires when the equipment is powered on.

• The plug-socket combination must be accessible at all times because it serves as the power

disconnect.

• To avoid electric shock, do not connect the UIP1868P to any RJ-11 telephone wall jacks.

Use caution when connecting cables. This could damage the UIP1868P or the telephone

wiring in the building.

• Do not work on the system or connect or disconnect cables if lightning or thunder are

present in your area.

• Do not cover or block the air vents on the top or bottom surface of the UIP1868P.

Overheating can cause permanent damage to the unit.

• Read the instructions completely before connecting the system to its power source.

GETTING STARTED

GETTING STARTED [8]

www.uniden.com

911 Service Notice

Packet8 services do not include traditional 911 emergency dialing. Packet8 offers

Enhanced 911 service (an FCC standard developed for emergency calling from

wireless phones) at an additional monthly fee. A subscription to Packet8's Enhanced

911 service is required for emergency calling. Packet8's Enhanced 911 optional

service is not available in all areas.

Before You Start!

Visit the Packet8 activation website http://activate.packet8.net/ and enter the

MAC address ID found on the bottom of your UIP1868P. After you activate the

UIP1868P, you will receive an email containing a 10-digit activation code. You will

need this activation code in Step 3.

STEP 1: Check Your Equipment

Check your broadband setup and the other equipment you will need:

• A broadband modem and a broadband Internet connection

• A computer with an Ethernet port (or a local Ethernet switch or router)

• One CAT-5 Ethernet cable

• The Packet8 10-digit activation code that was emailed to you when you created your

account. (If you don't have this email, go to www.packet8.net and enter the email address

and password used to create the account in the account sign in at the top of the screen.)

• If you want to use a backup phone along with the UIP1868P, you will need a standard

telephone cable (RJ-11).

If you ordered your

UIP1868P directly from

Packet8, it will already

be activated for you.

Your 10-digit activation

code was in the

confirmation email you

received when your

UIP1868P shipped. (If

you don’t have this

email, go to

www.packet8.net and

enter the email address

and password used to

create the account in

the account sign in

page.)

note

GETTING STARTED

UP747BH CH08 GetStart.fm Page 8 Friday, June 17, 2005 9:49 AM

[9] GETTING STARTED

www.uniden.com

Check Your Broadband Configuration

The UIP1868P supports the two most common broadband connection protocols:

DHCP and PPPoE. If your broadband connection uses DHCP, you do not need to

change any settings on the UIP1868P. If your broadband connection uses PPPoE,

you will need to enter your user name and password in the UIP1868P. If your

broadband provider has given you a static IP address, you will need to enter that

information in the UIP1868P. For more information on configuring your UIP1868P

visit http://www.uniden.com/voip.

STEP 2: Connect Your UIP1868P

Once your account is set up, you can connect your UIP1868P.

1) Use the coil cord to connect the corded handset to the base.

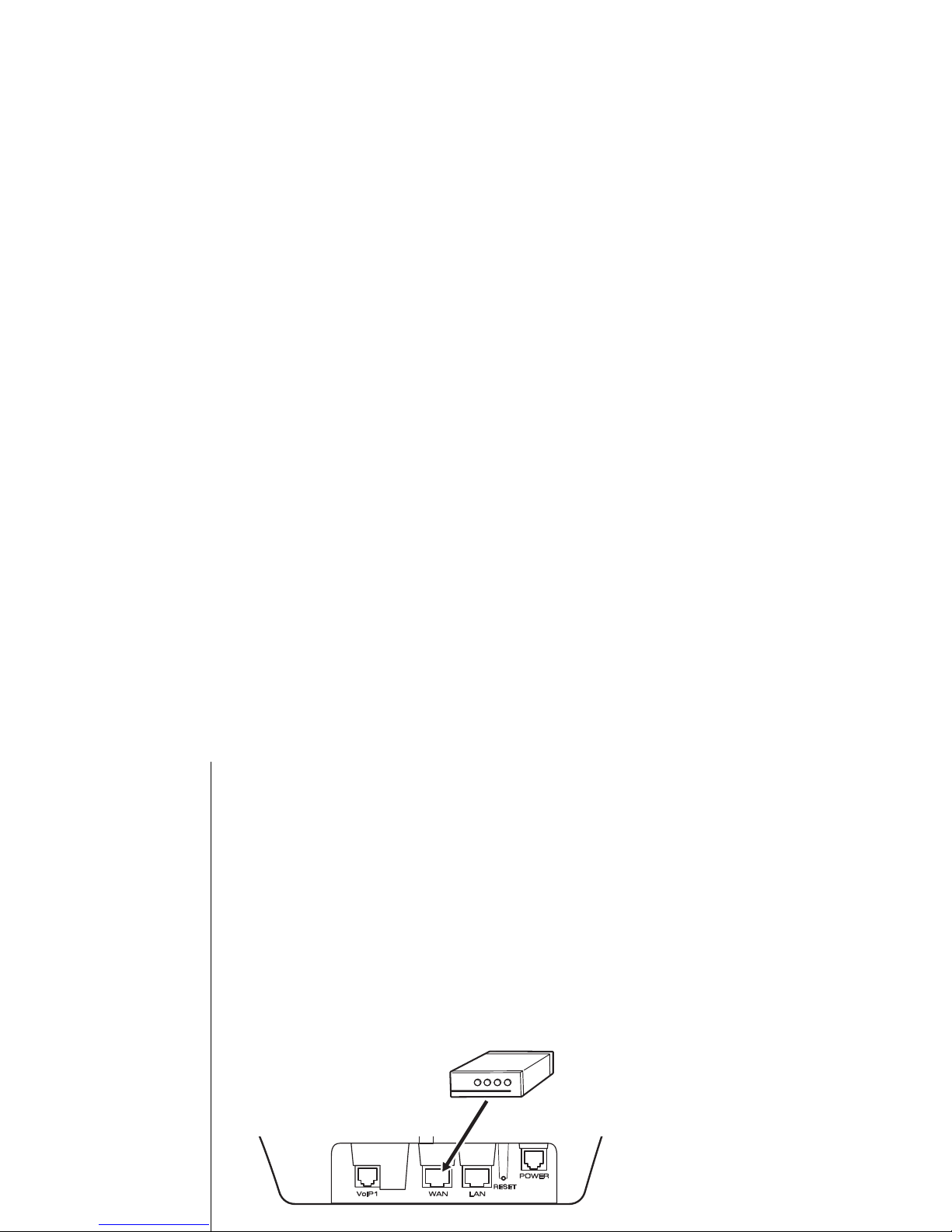

2) Use the included Ethernet cable to connect your broadband modem to the RJ-45 port

labeled WAN.

GETTING STARTED
