Uniden Guardian GC45 Manuale utente
GC45 AND GC45W ACCESSORY
CAMERA USER’S MANUAL
WHAT’S IN THE BOX
GC45 or GC45W video camera Camera stand
AC adapter Four Wall
Anchors and
screws
(Not Shown)
Camera
antenna
If any items are missing or damaged, contact our Customer Care Line
immediately. Never use damaged products!
Need Help? Get answers 24/7 at our website: www.uniden.com.
If You... Contact Uniden’s... Phone Number
have a question or problem Customer Care
Line*
817-858-2900 or
800-658-8068
need a replacement part or accessory Parts Department* 800-554-3988
need special help due to a disability Accessibility Help
Line
800-874-9314
(voice or TTY)
* During regular business hours, Central Standard Time. Visit our website for detailed
business hours.
Important Safety Instructions!
This manual contains important information about this product’s operation. If
you are installing this product for others, you must leave this manual or a copy
with the end user.
When using your equipment, always follow basic safety precautions to reduce the risk of
re, electric shock and injury to persons, including the following:
•This equipment is NOT waterproof.
•DO NOT immerse any part of the product in water. Do not use this product near water,
e.g., near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near
a swimming pool.
•To avoid any risk of electric shock from lightning, avoid handling any electronic
devices (except battery powered ones) during an electrical storm.
•Use only the power cord and/or batteries indicated in this manual. Never dispose of
any batteries in a re: they may explode. Check with local codes for possible special
disposal instructions.
•Never tug or pull on any power cord: be sure to leave some slack in the cord when
placing your equipment, and always use the plug to unplug cord from the wall outlet.
•Never leave power cords where they can become crushed, cut, or frayed; when
running power cords, avoid letting them rub against any sharp edges or lie across any
high trac areas where people might trip over them.
•Do not use the device if the adapter cords or plugs have been damaged, the unit has
been exposed to liquids, or the unit has been dropped or is damaged.
Warnings to Parents and Other Users
Failure to follow these warnings and the assembly instructions could result in serious
injury or death. This product is not designed or intended for use as a medical monitor,
nor should this product be used as a substitution for medial or parental supervision.
Always be sure that both the transmitter and receiver are working properly and are
within range of each other.
•STRANGULATION HAZARD. Keep the adapter cords out of the reach of children.
•WARNING: KEEP OUT OF THE REACH OF CHILDREN. This product is not a toy and is not
intended for use by any children under the age of 13. If you are between the ages of
13 and 18, review these terms, conditions and safety warnings with your parents or
guardian to make sure that you and your parent or guardian understand these terms,
conditions, and safety warnings.
•Allow for proper ventilation when units are in use. Do not cover the camera or receiver
with any object such as a blanket. Do not place it in a drawer or in any location which
would mue the sound or interfere with the normal ow of air.
SAVE THESE INSTRUCTIONS!
For best results:
To avoid damage to your equipment, follow these simple precautions:
•Do not drop, puncture or disassemble any part of the equipment. There are no user-
serviceable parts inside.
•Do not expose the equipment to high temperatures; avoid leaving the equipment in
direct sunlight for more than a few minutes. Heat can damage the case or electrical
parts.
•Do not place heavy items on top of the equipment or expose the equipment to heavy
pressure.
•Remove the power adapter during long periods between usages.
•Clean only with a dry cloth.
Failure to follow the instructions in this operating manual will void the warranty.
Uniden assumes no liability for damages to property or injury to persons caused
by improper handling or failure to comply with these safety instructions.
4
CONTENTS
Important Safety
Instructions! .......................2
Warnings to Parents and
Other Users ................... 2
For best results: .................... 3
Getting to know the camera .5
Camera components and
indicators ................................. 5
What the lights mean ............. 5
Mount the Camera Stand ......6
General Guidelines .................. 6
Placement Considerations ... 6
Attach the camera ................... 7
Pairing Cameras .....................9
Some things to know about
pairing cameras ..................... 9
Pair Camera ................................ 9
Troubleshooting camera
Pairing .....................................10
Product Specications ........11
Additional Information .......13
Recycling and Disposal
Information ......................13
FCC Compliance Information 13
Part 15 Compliance
Statement .....................13
RF Exposure Information 14
IC Compliance Information .14
Radio Equipment Notice 14
CE Compliance Information 14
One-year Limited Warranty 15
5
GETTING TO KNOW THE CAMERA
CAMERA COMPONENTS AND INDICATORS
Front view Back view
Power status
Link status
Light sensor
Antenna
connector
Power
pigtail
Power/Pair
button
Microphone
WHAT THE LIGHTS MEAN
Light State What it means
Power
status
On
(Red) The camera is on.
Off The camera is off.
Link
status
Flashing The camera is in pairing mode.
On
(Green) The camera is connected to the receiver.
Off The camera is in standby.
6
MOUNT THE CAMERA STAND
GENERAL GUIDELINES
The Uniden Guardian GC45 and GC45W cameras are weatherproof and have an
IP66 rating. Water can be sprayed on them and they will still work; however, the
cameras cannot be submerged underwater.
Although the cameras can be exposed directly to the rain, it is recommended
that, if they are used outdoors, they be mounted under some type of cover like
a patio overhang or eave. As rainwater drops start to dry on the camera glass, it
can create spots that will reflect the light from the infrared LEDs used for night
vision, thus causing lower quality video.
Also, as dust, grime, and cobwebs accumulate on the camera glass, they can
reflect light from the infrared LED and might lower video quality. Periodically
clean the lens glass with a soft cloth.
PLACEMENT CONSIDERATIONS
Consider the following when placing cameras:
•The clearest line-of-sight between the camera and monitor is best.
— Walls, especially brick and concrete, shorten the transmission distance.
— Placement next to windows allows better transmission.
•Optimized motion detection range is 6 - 18 feet for the GC45 camera. The
farther away an object is, the less accurate the motion detection.
•Avoid having a direct light source in the view of the camera, including street
lights, ceiling or floor lamps, spotlights in the driveway, etc.
7
•Rainfall, pool water ripples/reflections, tree/shrub leaves blowing in the wind
- and the shadows they create - can generate motion detection false alarms.
You can mount the camera with the stand on the bottom (on a wall or table-
top) or on the top (on the ceiling). When you are positioning the camera, you
might want to bring the receiver along; it’s much easier to get the camera into
the right position when you have the display handy.
1. Hold the base of the camera stand where you want to mount it and mark
the location of the screw holes.
2. Use the included screws and anchors to attach the base to the wall or
ceiling.
ATTACH THE CAMERA
Before attaching the camera, tug gently on the stand to make sure it is securely
in place.

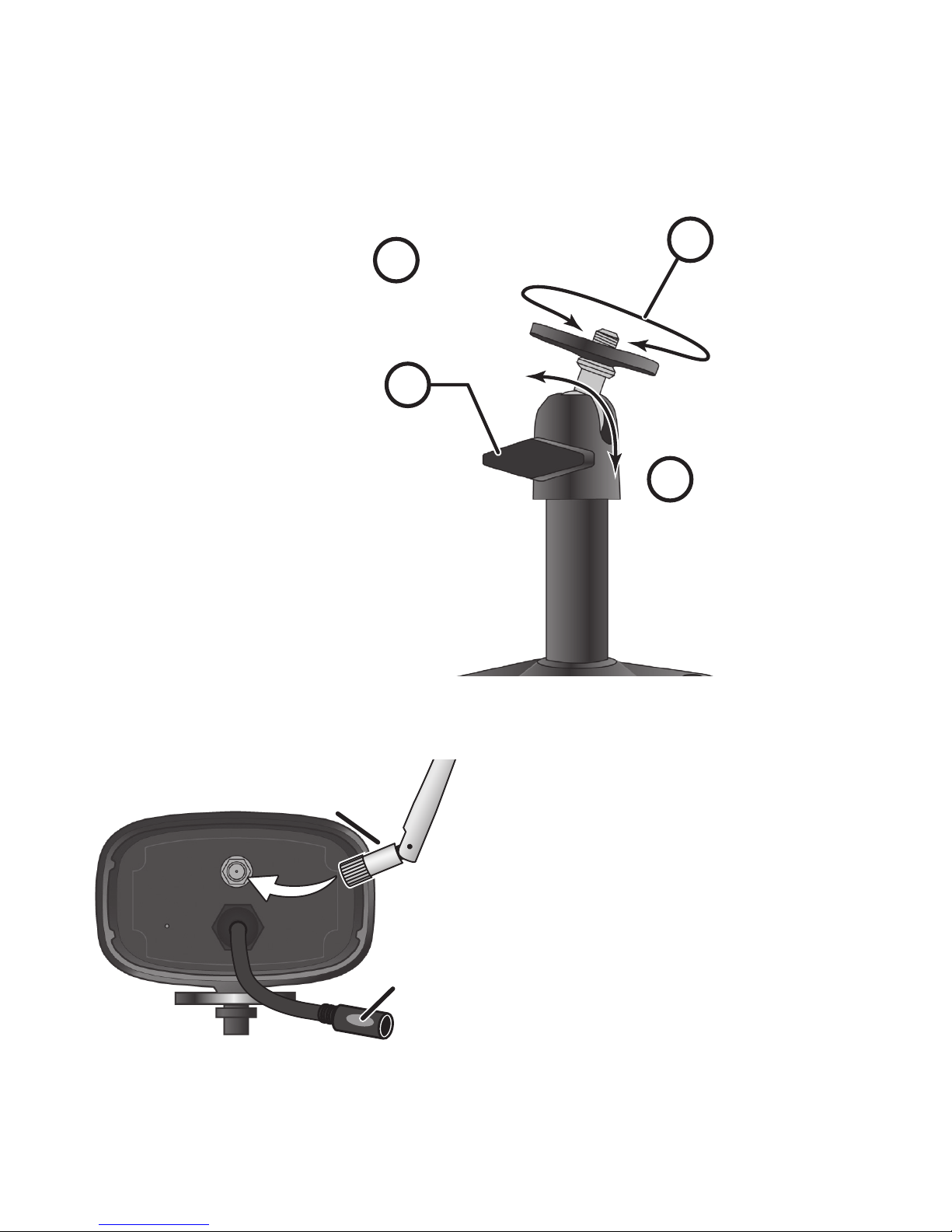

1. For each camera, attach the camera bracket to the mounting screw. You
can attach the stand to the top or the bottom of the camera as needed.
Tighten it a few turns, then turn the camera
to face the direction you want.
2. Tighten the camera brace up against the
camera to secure it into place.
3. Unlock the mounting post by turning the
wingnut to the left a few turns.
4. Set the mounting post to the correct angle,
then tighten the wingnut until the post is
locked into place.
5. Attach the antenna to the rear of the camera.
8
6. Connect one end of an AC adapter to the camera’s power pigtail and plug
the other end into a 120 volt AC (standard indoor) power outlet (if
necessary, connect
the extension cord to
the camera’s pigtail
and connect the AC
adapter to the
extension cord).
Be sure the power
plug and the
connector are tightly
twisted together to
avoid water leaking
in.
7. Make sure the
Power
status
light turns
on. If it doesn’t, try
reconnecting the AC
adapter, and make sure the power outlet isn’t controlled by a wall switch.
1
2
4
3
Loosen the
wingnut to
unlock the
mounting
post.
Attach the camera
to the mounting
screw and turn it
to the desired
direction.
Adjust the post to
the correct angle,
then tighten the
wingnut to lock the
post into place.
Tighten the brace against
the camera to
secure it
in place.
Antenna
Power/
Pair button
9
PAIRING CAMERAS
Your receiver supports a total of four active cameras at a time. When you add
a camera, you have to pair it to the receiver (that is, you have “introduce” the
camera and receiver so they can communicate).
SOME THINGS TO KNOW ABOUT PAIRING CAMERAS
•If a camera is already assigned to the selected channel, the receiver
overwrites that camera link with the new one.
•Only pair one camera at a time! The receiver links to the first camera it
detects. If two or more cameras are in pairing mode, you can’t control which
camera the receiver will detect first.
PAIR CAMERA
1. From the Pairing Camera screen (refer to the G455/G755 Owner’s Manual),
tap the camera image you want to pair. A processing icon displays for a 60
second countdown.
2. During the 60 second countdown, quickly press and release the Pairing
button on that camera’s power cord (refer to the G455/G755 Owner’s
Manual).
3. The system automatically adjusts the Camera On screen accordingly.
If you have any trouble, consult the table on page 10.
Use this Pairing Camera procedure to move a camera from one channel
to a different channel.
10
TROUBLESHOOTING CAMERA PAIRING
Consult the following table for camera pairing troubleshooting suggestions:
If... Try...
the camera’s signal
status icon shows no
bars
• making sure the camera is plugged in and the red
LED is on.
• making sure that the camera’s antenna is attached
and the receiver’s antenna is extended.
• making sure the camera is paired to the correct
channel
• re-pairing the camera and receiver
the camera’s signal
status icon shows
one or two bars or the
video quality is poor
Refer to the G455/G755 Owner’s Manual, “General
Guidelines” for tips on improving video quality.
the camera won’t pair
with the receiver
• making sure the camera is plugged in and the red
LED is on.
• pressing and releasing the pairing button quickly. Do
not press and hold the pairing button.
Altri manuali per Guardian GC45
2
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Uniden Telecamera di sicurezza
Uniden
Uniden UDW10055 Guida utente
Uniden
Uniden APPCAM23 Manuale di servizio
Uniden
Uniden APPCAM25HD Manuale utente
Uniden
Uniden G101 Manuale utente
Uniden
Uniden AppCam 50HD Manuale utente
Uniden
Uniden Pro710NPTZC Manuale utente
Uniden
Uniden App Cam Solo PT Manuale utente
Uniden
Uniden UDS655 Manuale utente
Uniden
Uniden AppCam Solo 2 Manuale utente
Uniden
Uniden UDR444 Manuale utente
Uniden
Uniden Guardian App Cam Solo Manuale utente
Uniden
Uniden AppCam 25HD Manuale utente
Uniden
Uniden App Cam Home+ Manuale utente
Uniden
Uniden App Cam Solo 4G PT Manuale utente
Uniden
Uniden ULC58 Manuale utente
Uniden
Uniden Guardian GC45 Manuale utente
Uniden
Uniden App Cam Pano Series Manuale utente
Uniden
Uniden AppCam 4OPT Manuale utente
Uniden
Uniden APPCAM PAN/TILT Manuale utente
Uniden
Uniden App Cam Spotlight Manuale utente
