DCT 748

SERIES

OWNER'S

MANUAL

[1]

www.uniden.com

WELCOME/FEATURES 2

TERMINOLOGY 3

CONTROLS & FUNCTIONS 4

DISPLAY AND ICONS 6

GETTING STARTED 7

Setting up the Phone 7

Expanding Your Phone 12

Changing the Digital Security Code 15

Installing the Beltclip 15

Optional Headset Installation 15

Main Menu Options 16

Setting Menu Options 17

BASICS 26

Using Your Phone 26

Call Waiting 28

Placing a Call on Hold 28

Redialing a Call 29

Adjusting the Ringer, Earpiece and Speaker Volume 30

Mute Microphone 31

Tone Dialing Switch-over 32

Traveling Out of Range 32

Clarity Booster 33

Privacy Mode 33

Conferencing 34

Find Handset 34

PHONEBOOK 35

Setting up the Phonebook 35

Viewing the Phonebook 39

Making Calls Using the Phonebook 40

Speed Dialing 40

Editing or Erasing a Stored Name, Phone Number, Distinctive

Ring and Speed Dial 41

Copying Phonebook Locations 42

CALLER ID 43

Caller ID and CIDCW (Caller ID on Call Waiting) 43

THE INTEGRATED TELEPHONE

ANSWERING DEVICE 48

The Integrated Telephone Answering Device 48

Turning the Answering System On/Off 52

Setting Your Outgoing Message (Greeting) 52

Using Your Answering System 54

Remote Operation 58

MULTI-HANDSET FEATURES 62

Multi-Handset Features 62

Using DirectLink Mode 62

Intercom 64

Room/Baby Monitor 66

ADDITIONAL INFORMATION 67

Note on Power Sources 67

General Information 69

TROUBLESHOOTING 70

Troubleshooting 70

Liquid Damage 72

PRECAUTIONS & WARRANTY 73

I.C. NOTICE 75

INDEX 76

MEMORY LIST 77

REMOTE OPERATION CARD 80

Contents

UP720.book Page 1 Tuesday, July 6, 2004 10:55 AM

WELCOME/FEATURES/TERMINOLOGY [2]

www.uniden.com

Congratulations on your purchase of the Uniden Multi-Handset Cordless Telephone

System! This unit is different from conventional cordless telephones. When the base

unit is connected to AC power and a telephone line, it can support up to four handsets.

You can now place a fully-featured cordless handset anywhere in your home or office

where AC power is available to connect the handset chargers. Extra handsets also allow

you to establish a three-way conference call among two handsets and an outside line.

Note: Illustrations in this manual are used for explanation purposes. Some

illustrations in this manual may differ from the actual unit.

As an Energy StarPartner, Uniden has determined that this product or product models

meets the Energy Starguidelines for energy efficiency.

Energy Staris a U.S. registered mark.

• Backward / Forward Compabibility

• 2.4GHz Frequency Hopping Spread Spectrum

• Integrated Answering Device

• 4 Multi-Handset Expandability (DCX700 handset sold separately)

• Handsfree Speakerphone

• Caller ID/Call Waiting Deluxe (subscribe through local telephone company)

• 100 Dynamic Memory Locations (Phonebook & Caller ID)

• Trilingual Display Options and Voice Prompts (English, French and Spanish)

• Intercom/Call Transfer Between Handsets

• Distinctive Ring Options

• 20 ring types - (10 ring tones and 10 melody rings)

• Hold or Mute Call

•Audio/ClarityBoost

• True Banner

• DirectLinkMode

• Room/Baby Monitoring

• Battery Level Indicator

• Clock Display

WELCOME/

FEATURES/

Welcome

Features

UP720.book Page 2 Tuesday, July 6, 2004 10:55 AM

[3] WELCOME/FEATURES/TERMINOLOGY

www.uniden.com

This series features AutoTalkand AutoStandby. AutoTalk allows you to answer a call by just removing

the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to

hang up by simply returning the handset to the cradle.

To protect you against mis-billed calls that might result from your phone being activated by other

equipment, this series has Random Codedigital security, which automatically selects one of about

130,000 digital security codes for the handset and base.

Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The

result is a more secure conversation with the clarity of digital sound, extended range, and minimal

interference from other cordless phones.

IntegriSoundBuilt in sound quality which provides life-like conversations.

With DirectLinkmode, you can use two or more handsets as radio transceivers (walkie-talkies).

Be sure to visit our web site: www.uniden.com

Unidenis a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.

Your phone may be compatible with other Uniden 2.4GHz Digital Expandable System.

Look for the technology icon on our boxes!

Terminology

•Standby Mode - The handset maybe sitting or off the cradle, but is NOT in use. talk/flash or has not been

pressed. No dial tone is present.

•Talk Mode - The handset is not in the cradle, and talk/flash or has been pressed and enabling a dial tone.

WELCOME/

FEATURES/

UP720.book Page 3 Tuesday, July 6, 2004 10:55 AM

CONTROLS & FUNCTIONS [4]

www.uniden.com

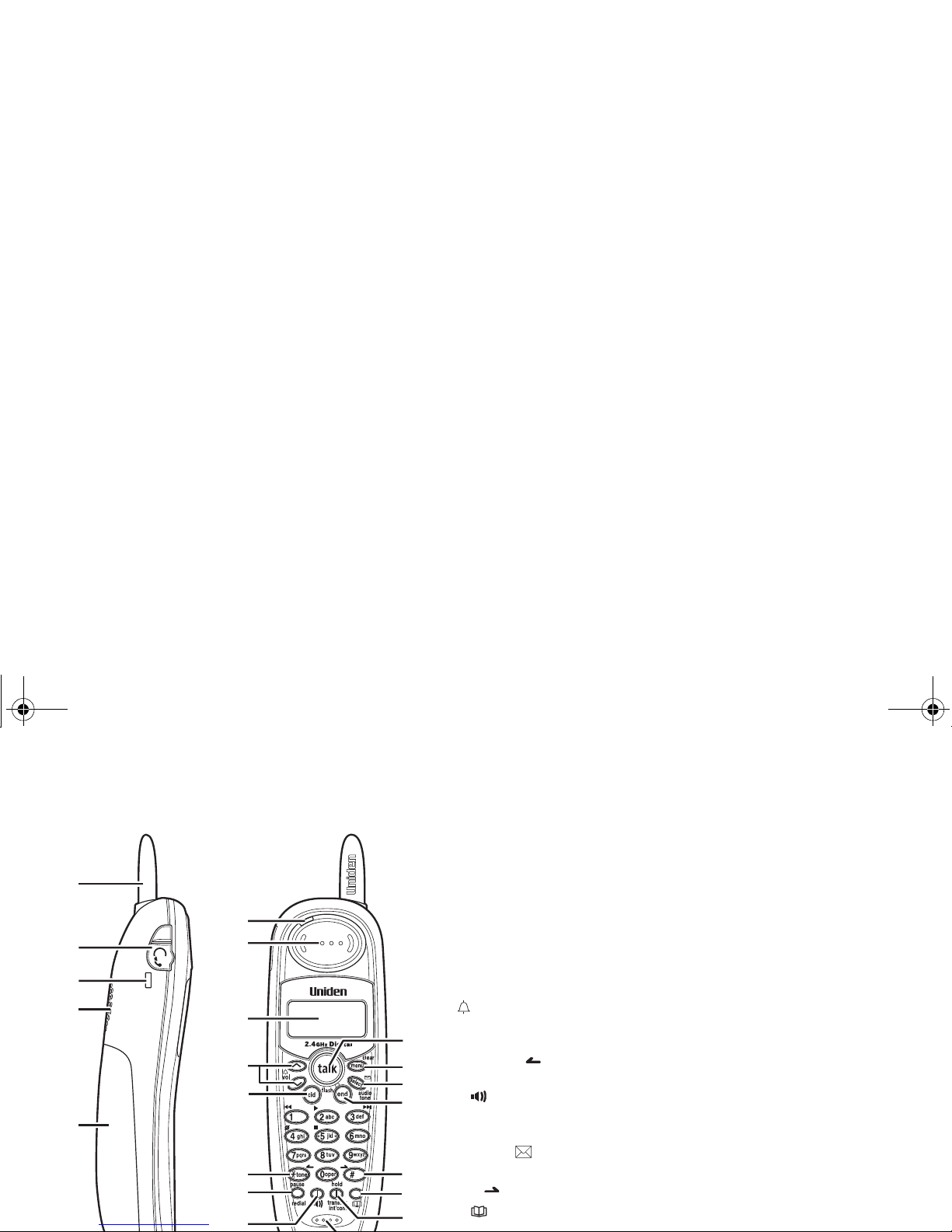

Controls & Functions

1.Handset Antenna

2.Headset Jack Cover

3.Beltclip Hole

4.Speakerphone Speaker and Ringer

5.Handset Battery Compartment

6.New Message LED

7.Handset Earpiece

8.LCD Display

9. (ring)/vol (volume) and ∧/∨(P. 30 & 17 )

a.ringer and volume control b. scroll keys for display screen

10.cid (caller ID) (P. 45)

11.

/tone/ (P. 32 & 36)

12.pause/redial Key (P. 26 & 29)

13. (speaker) (P. 27)

14.talk/flash (P. 26 & 28)

15.menu/clear (P. 17 & 36)

16.select/(Handset Remote)/audio tone (P. 17, 58 & 31)

17.end (P. 27)

18.#/ (P. 36)

19. (phonebook)(P. 35)

20.hold/transfer/int’com (intercom) (P. 28 & 64)

21.Handset Microphone

22.Handset Charging Contacts

Play

Skip

Stop

Delete

Repeat

CONTROLS &

FUNCTIONS

UP720.book Page 4 Tuesday, July 6, 2004 10:55 AM

[5] CONTROLS & FUNCTIONS

www.uniden.com

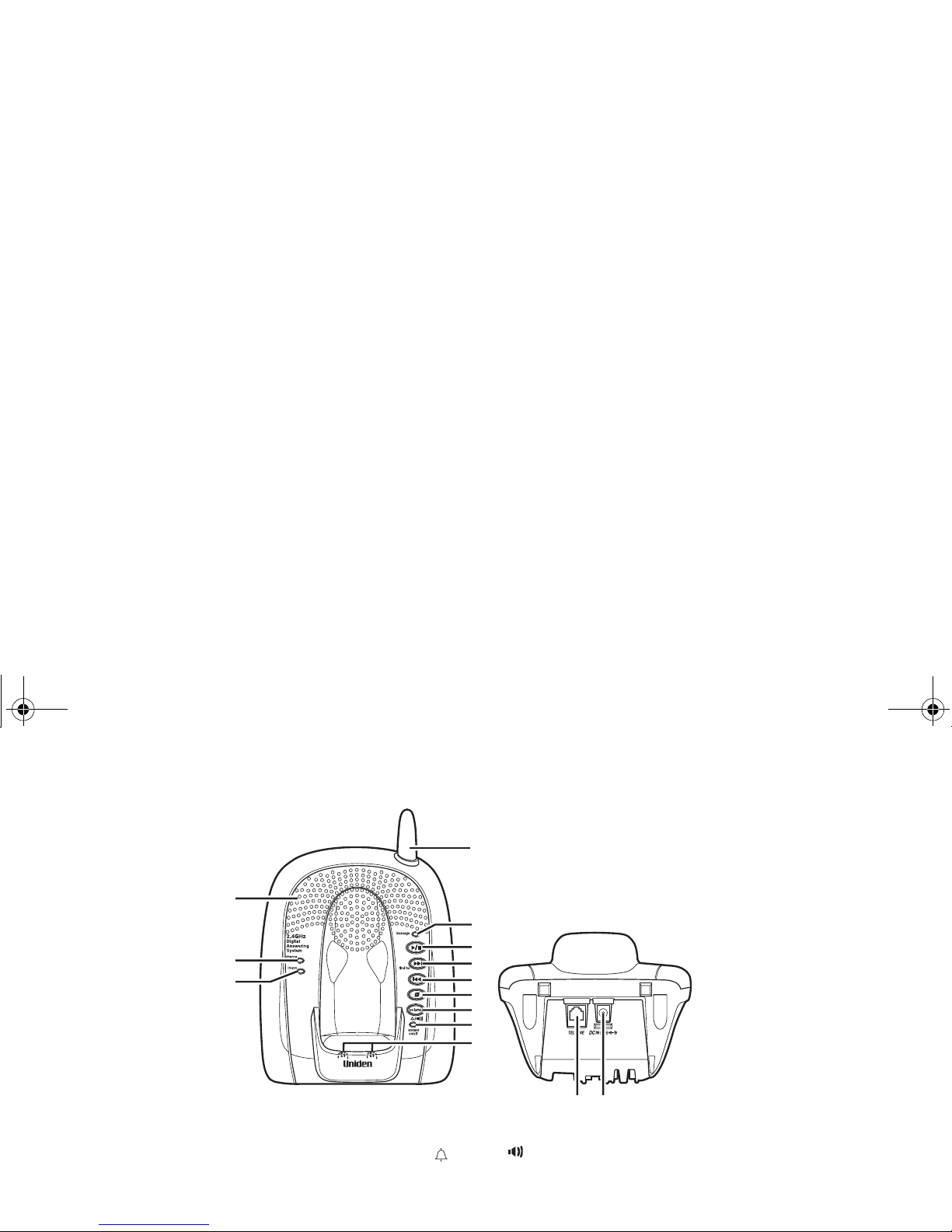

23. Base Speaker

24. charge LED

25. in use LED

26. Base antenna

27. New Message LED

28. (play/stop) (p.54)

29. find hs / (skip) (p.34 & 55)

30. (repeat)(p.55)

31. ∅(delete)(p.56)

32. volume/ (ring)/ (speaker)

(p.30)

33. answer/on off LED (p.58)

34. Base Charging Contacts

35. TEL LINE Jack

36. DC IN 9V Jack

CONTROLS &

FUNCTIONS

UP720.book Page 5 Tuesday, July 6, 2004 10:55 AM

DISPLAY AND ICONS [6]

www.uniden.com

Display and Icons

Example of the standby mode display

ICON STATUS DESCRIPTION

Standby/Talk Battery icons indicate the handset battery status. This icon cycles depending on

the battery status (full, medium, low, and empty).

Standby Ringer off icon indicates that ringer is turned off.

Talk Mute icon appears when you mute the handset.

Talk Speaker icon appears when the handset speaker phone is used.

Talk Booster icon appears when the Clarity Booster feature is in use.

Talk Privacy icon appears when the Privacy Mode is turned on.

Talk Record icon appears while recording a conversation.

570#

*CPFUGV

0GY%+&

Ringer off icon (when the ringer is off) / Day of the week and time / battery icon

Handset ID and Banner

Number of new Caller ID calls received

ࠕ1((

ࠕࠗ࠙

㨮

DISPLAY AND ICONS

UP720.book Page 6 Tuesday, July 6, 2004 10:55 AM

[7] GETTING STARTED

www.uniden.com

Setting up the Phone

Do the following steps:

A. Choose the best location

B. Install the rechargeable battery pack into the handset

C. Connect the base unit and charge the handset

D. Mount the base unit on a wall

A. Choose the best location

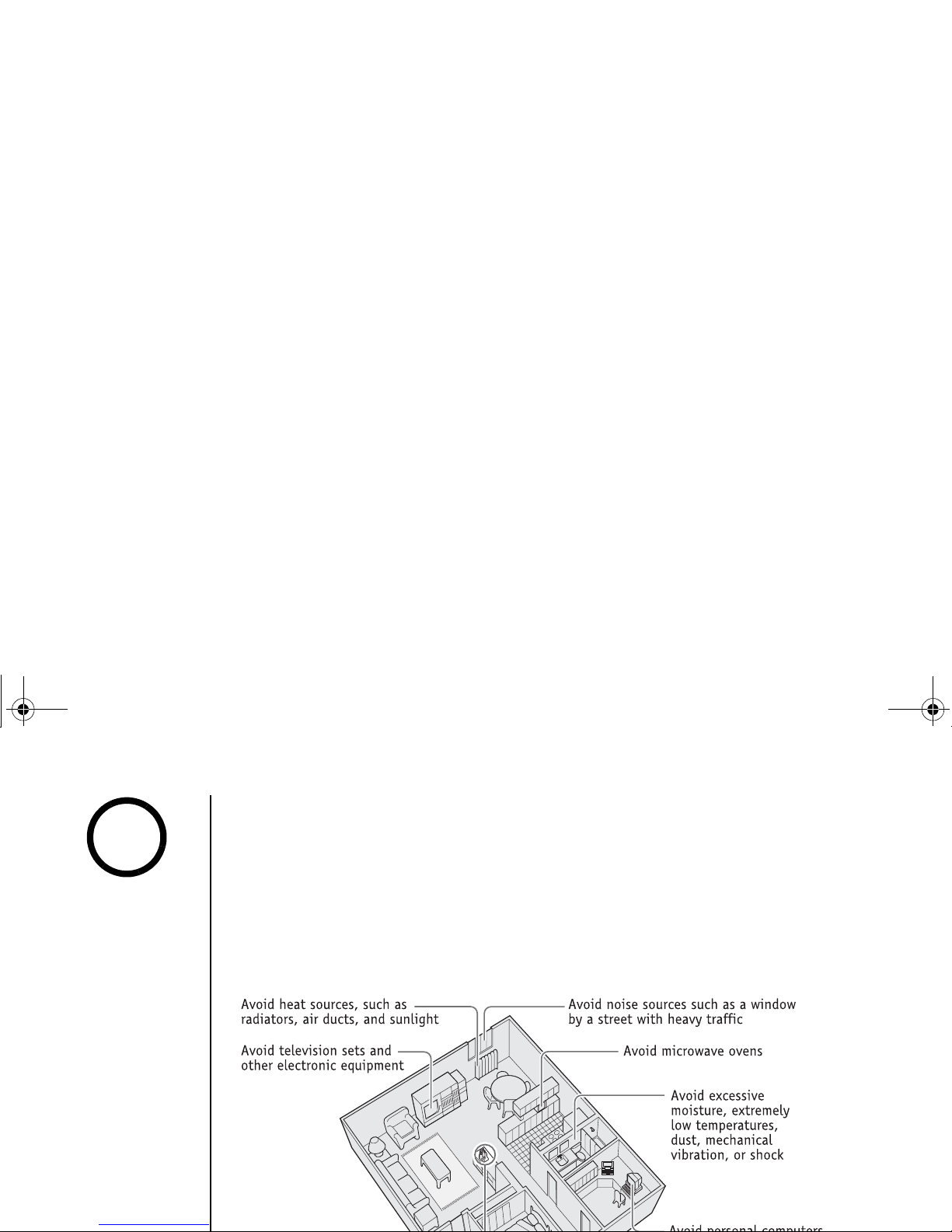

Before choosing a location for your new phone, read "Installation Considerations"

on page 74. Here are some important guidelines you should consider:

If your home has

specially wired alarm

equipment connected to

phone line, be sure that

installing the system

does not disable your

alarm equipment.

If you have questions

about what will disable

alarm equipment,

contact your telephone

company or a qualified

installer.

note

GETTING STARTED

UP720.book Page 7 Tuesday, July 6, 2004 10:55 AM

GETTING STARTED [8]

www.uniden.com

B. Install the rechargeable battery pack into the handset

The handset is powered by a rechargeable battery pack. The battery recharges

automatically when the handset is placed in the base unit.

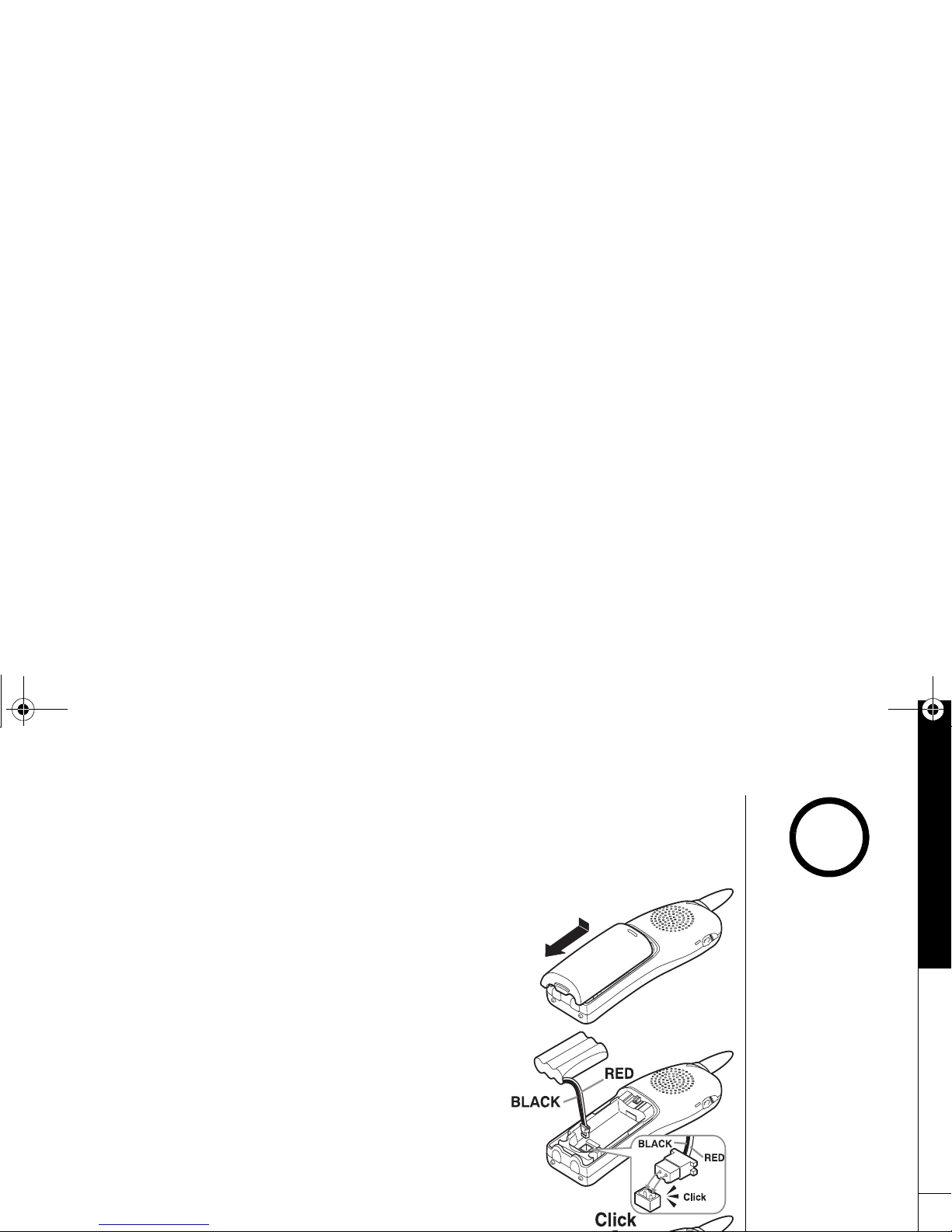

1) Press down on the handset battery case cover (use the

finger indention for a better grip) and slide the cover

downward to remove.

2) Plug the battery connector (red & black wires) into the

jack inside the battery compartment. (The connector

notches fit into the grooves of the jack only one way).

Match the wire colors to the polarity label in the

battery compartment, connect the battery and listen for

a click to insure connection.

3) Make sure you have a good connection by gently pulling

on the battery wires. If the connection is secure, the

battery jack will remain in place.

4) Place the battery case cover back on the handset and

slide it upwards until it clicks into place.

•

Use only the Uniden

(BT-446) rechargeable

battery pack supplied

with your cordless

telephone.

•

Replacement battery

packs are also available

through the Uniden

Parts Department at

(800) 554-3988,

Monday thru Friday from

8:00 a.m. to 5:00 p.m.

or online at

www.uniden.com

note

GETTING STARTED

UP720.book Page 8 Tuesday, July 6, 2004 10:55 AM

[9] GETTING STARTED

www.uniden.com

C. Connect the base unit and charge the handset

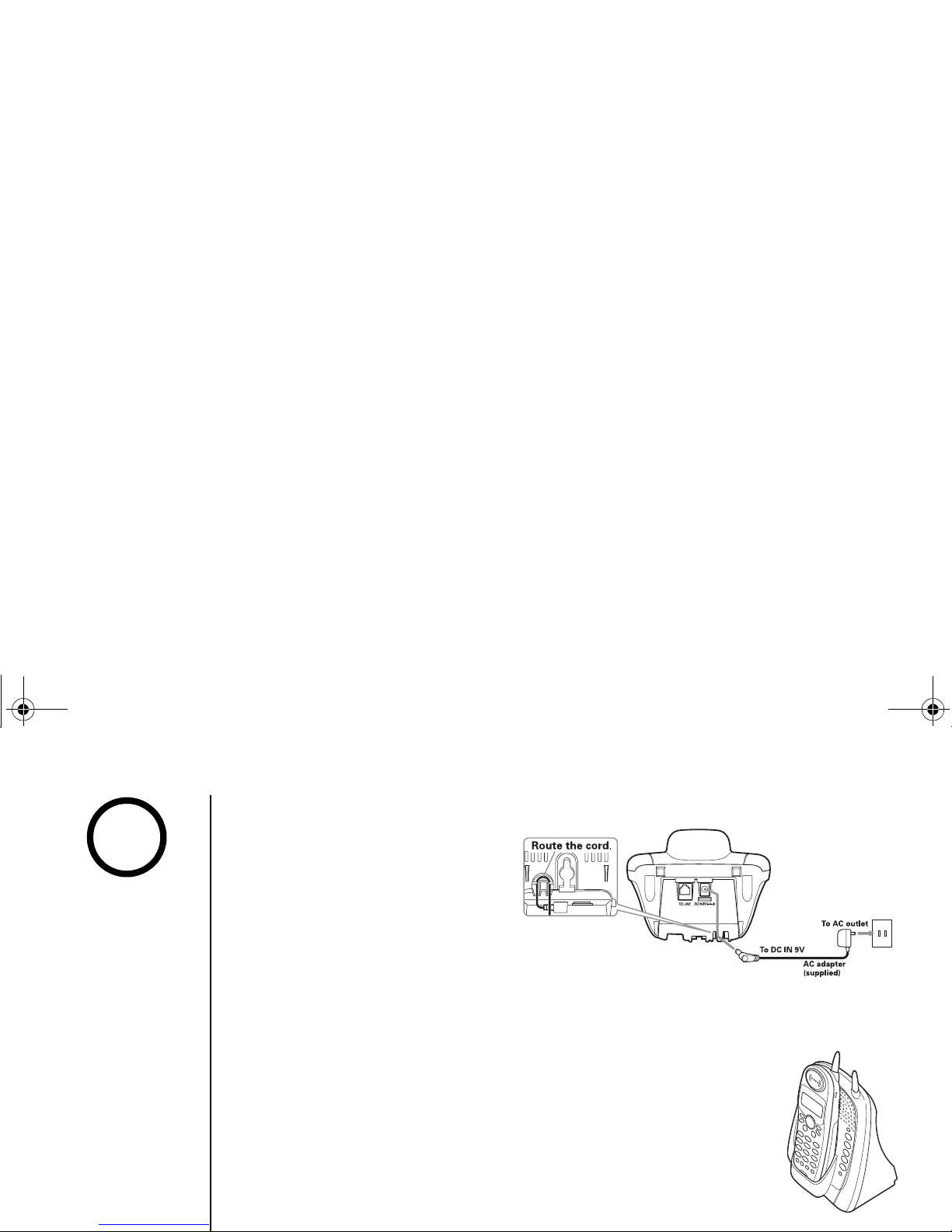

1) Connect the AC adapter to the DC

IN 9V jack and to a standard

120V AC wall outlet.

Note:

• Connect the AC adapter to a

continuous power supply (i.e., an

outlet that is not controlled by a

switch).

• Place the base unit close to the

AC outlet to avoid long extension cords.

2) Place the handset in the base unit with the keypad facing forward.

3) Make sure that the charge LED illuminates.

If the LED does not illuminate, check to see that the

AC adapter is plugged in and the handset makes

good contact with the base charging contacts.

4) Charge your handset at least 15-20 hours before

plugging into the phone line.

5) Once the handset battery pack is fully charged,

connect the telephone line cords to the TEL LINE

jack and to a telephone outlets.

If your telephone outlet isn't modular,

contact your telephone company for

assistance.

•Use only the supplied

AD-800 AC adapter.

Do not use any other

AC adapter.

•Do not place the power

cord where it creates a

trip hazard or where it

could become chafed

and create a fire or

electrical hazard.

note

GETTING STARTED

UP720.book Page 9 Tuesday, July 6, 2004 10:55 AM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Uniden Telefono

Uniden

Uniden EXP7241 Series Manuale utente

Uniden

Uniden Extend-A-Phone EX945 Manuale utente

Uniden

Uniden EXAI4248 Series Manuale di servizio

Uniden

Uniden DECT2188-2 Manuale utente

Uniden

Uniden D3280 Manuale di servizio

Uniden

Uniden DXAI4588-2 Manuale utente

Uniden

Uniden FP100 Manuale utente

Uniden

Uniden XDECT 6145BT Series Manuale utente

Uniden

Uniden D1680 Manuale utente

Uniden

Uniden CXAI5198 Manuale di servizio

Uniden

Uniden EXAI4248 Series Guida utente

Uniden

Uniden DSS7955+1 Series Manuale utente

Uniden

Uniden AS1101 Series Manuale utente

Uniden

Uniden DXI5586-3 Series Manuale utente

Uniden

Uniden D3588 Manuale utente

Uniden

Uniden CEZ200 Manuale utente

Uniden

Uniden FP104 Manuale utente

Uniden

Uniden FP203 Manuale utente

Uniden

Uniden Trimline Phone Manuale utente

Uniden

Uniden FP1100 Manuale utente

Uniden

Uniden DECT2035 Manuale utente

Uniden

Uniden Slimline 1260 Manuale di servizio

Uniden

Uniden WDSS 5315 Manuale utente

Uniden

Uniden DECT1363 Series Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente
