Uniden SS E15 Series Manuale utente

Series Owner's Manual

OWNER'S MANUAL

SS E15

Welcome/Features 2 Visual Message Waiting Indicator 19

Controls and Functions 3 Emergency Dial

Terms Used in this Manual 4 Emergency Dial 20

Getting Started Storing the Emergency Dial 20

Installing the Phone 5 Using the Speed Dial Memory

A. Choose the Best Location 5 Using the Speed Dial Memory 21

B. Install the Rechargeable Battery Pack Storing Names and Numbers in

into the Handset 6 Speed Dial Memory 21

C. Connect the Base Unit and Charge the Storing Caller ID Messages

Handset 7 in Speed Memory Locations 24

D. Set the Visual Ringer Brightness 8 Making Calls from Speed Dial Memory 25

E. Mount the Base Unit on a Wall 9 Easy Dial 25

Installing the Belt Clip 10 Caller ID Features

Headset Installation 10 Caller ID and CIDCW (Caller ID on Call Waiting) 26

Basic Setup 11 When the Telephone Rings 26

Auto Talk 11 Viewing the Caller ID Message List 27

Activating Caller ID on Call Waiting 11 Deleting Information from the Caller ID List 28

Name Tag (POP ID) 12 Making a Call from the Caller ID List 30

Insert 0 13 Additional Information

Selecting the Ringer Tone and Volume 14 Changing the Digital Security Code 31

Basics Note on Power Sources 32

Using Your Phone 15 Installing a Replacement Battery 33

Making and Receiving Calls 15 Maintenance 34

Adjusting the Handset Earpiece Volume 16 Troubleshooting 35

Traveling Out-of-Range 17 Liquid Damage 37

Selecting a Different Channel 18 General Information 38

Find Handset 18 Index 39

Using Call Waiting 19 Warranty 40

Contents

[1]

Congratulations on your purchase of the Uniden cordless telephone. This

cordless phone is designed and engineered to exacting standards for reliability,

long life, and outstanding performance.

Note: Some illustrations in this manual may differ from the actual unit for

explanation purposes.

* The Caller ID and Caller ID on Call Waiting features require subscription to the

services provided by your network supplier. There is usually a fee for these

services. The Caller ID on Call Waiting service is currently unavailable in New

Zealand.

Be sure to visit our Website: www.uniden.com.au or www.uniden.co.nz

Welcome

Features

• 2.4GHz Extended Range • 3 Line Backlit Easy to Read Display

Technology • Audio Boost

• Visual Ringer LED • Last Number Redial

• Large Backlit Keys • Find Handset Key

• Caller ID* • Earpiece/Ringer Volume Controls

• Caller ID on Call Waiting* • Hearing Aid Compatible

(CIDCW) • 20 Channel Auto Scan

• Name Tag* (POP ID) • Desk or Wall Mountable

• 10 Speed Dial Memory

• One-Touch Emergency Dial

[2]

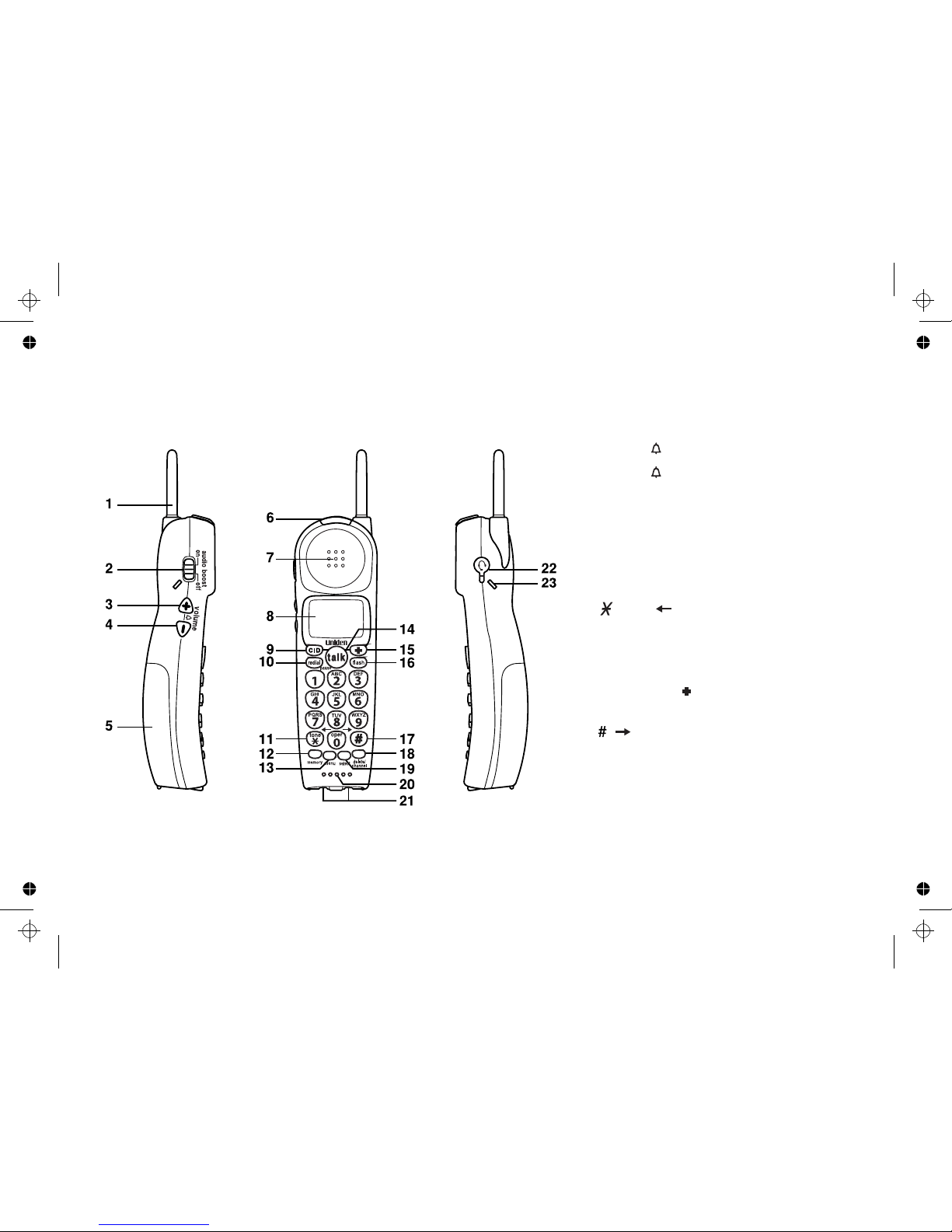

Controls and Functions

1. Handset antenna

2. Audio boost switch

3. Volume/ (ring)/+ key (p. 16/ 14)

4. Volume/ (ring)/-key (p. 16/ 14)

5. Handset battery compartment

6. Handset visual ringer LED

7. Handset earpiece

8. LCD display

9. CID key (p. 27)

10. Redial/pause key (p. 16/ 23)

11. /tone/ key (p. 22)

12. Memory key (p. 21)

13. Menu key (p. 11)

14. Talk key (p. 15)

15. Emergency ( ) key (p. 20)

16. Flash key (p. 19)

17. / key (p. 22)

18. Delete/channel key (p. 22/ 18)

19. Select key (p. 11)

20. Handset microphone and ringer speaker

21. Handset charging contacts

22. Headset jack

23. Beltclip hole

[3]

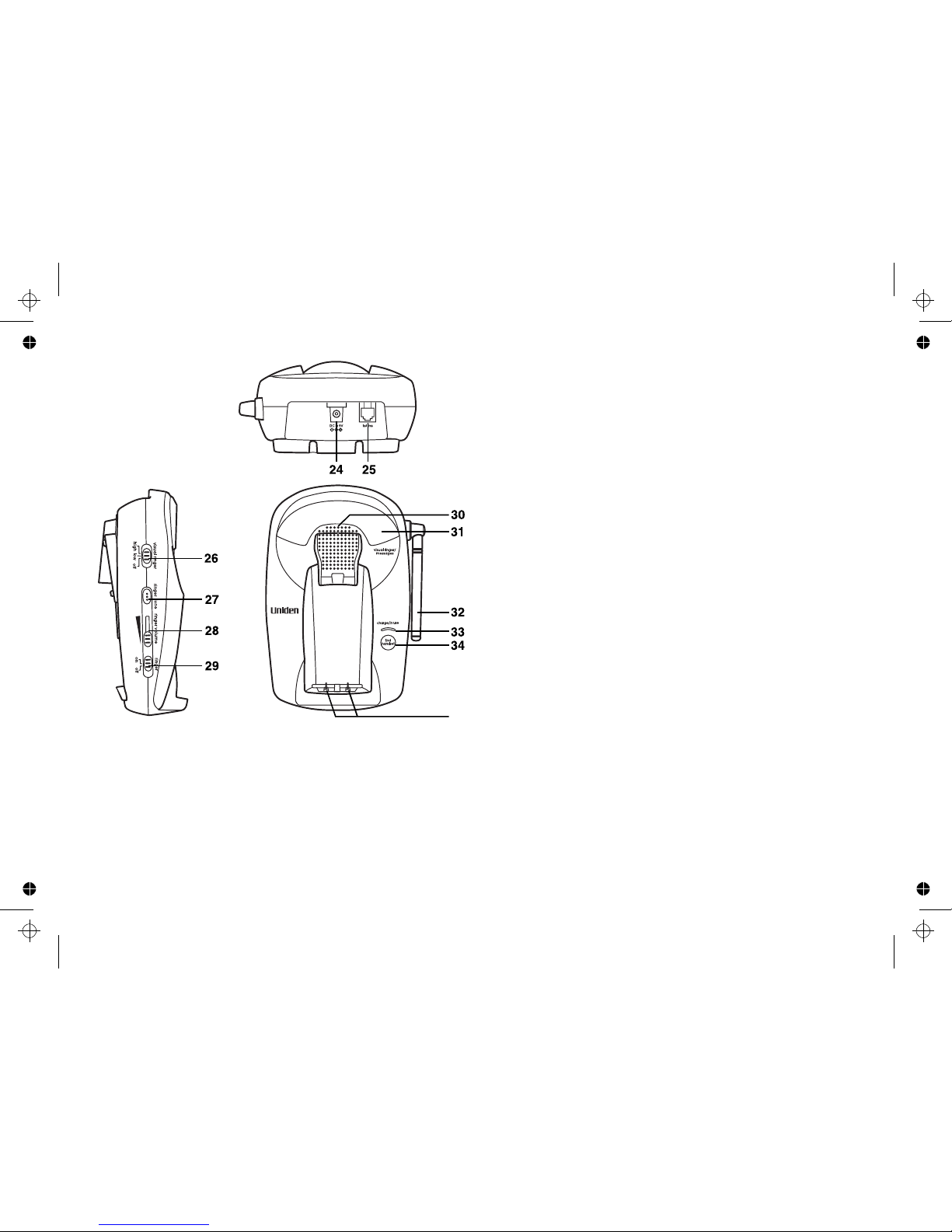

24. DC in 9V jack

25. Telephone line jack

26. Visual ringer switch (p. 8)

27. Ringer tone button (p. 14)

28. Ringer volume adjuster (p. 14)

29. Ringer on/off switch (p. 14)

30. Base speaker

31. Base visual ringer LED

32. Base antenna

33. Charge/in use LED (p. 7)

34. Find handset key (p. 18)

35. Base charging contacts

Terms Used in this Manual

• Standby Mode - The handset may be sitting in or off the base, but is NOT in use. The talk key has

not been pressed and there is no dial tone.

• Talk Mode - The handset is off the base and the talk key has been pressed, enabling a dial tone.

• CID - Caller ID

• CIDCW - Caller ID on Call Waiting

• Emergency Dial - One touch speed dial key

[4]

Installing the Phone

Do the following steps:

A. Choose the best location

B. Install the Rechargeable Battery Pack into the Handset

C. Connect the base unit and charge the handset

D. Set the visual ringer brightness (optional)

E. Mount the base unit on a wall (optional)

A. Choose the best location

When choosing a location for your new phone, here are some important guidelines you should

consider:

• The location should be close to both a phone jack and a continuous power outlet (one which

is not connected to a switch).

• The base and handset should be kept away from sources of electrical noise such as motors

and fluorescent lighting.

• The base can be placed on a desk, tabletop, or mounted on a standard wall plate. For better

reception, place the base as high as possible.

• The base should be placed in an open area for optimum range and reception.

Avoid noise sources such as a window

by a street with heavy traffic

Avoid heat sources, such as radiators,

air ducts, and sunlight

Choose a central location

Avoid other cordless telephones

Avoid personal computers

Avoid excessive moisture, extremely

low temperatures, dust, mechanical

vibration, or shock

Avoid microwave ovens

Avoid television sets and

other electronic equipment

!If your home

has specially

wired alarm

equipment

connected to

the telephone

line, be sure

that installing

the system

does not

disable your

alarm

equipment.

!If you have

questions

about what will

disable your

alarm

equipment,

contact your

telephone

company or a

qualified

installer.

GETTING STARTED

[5]

[6]

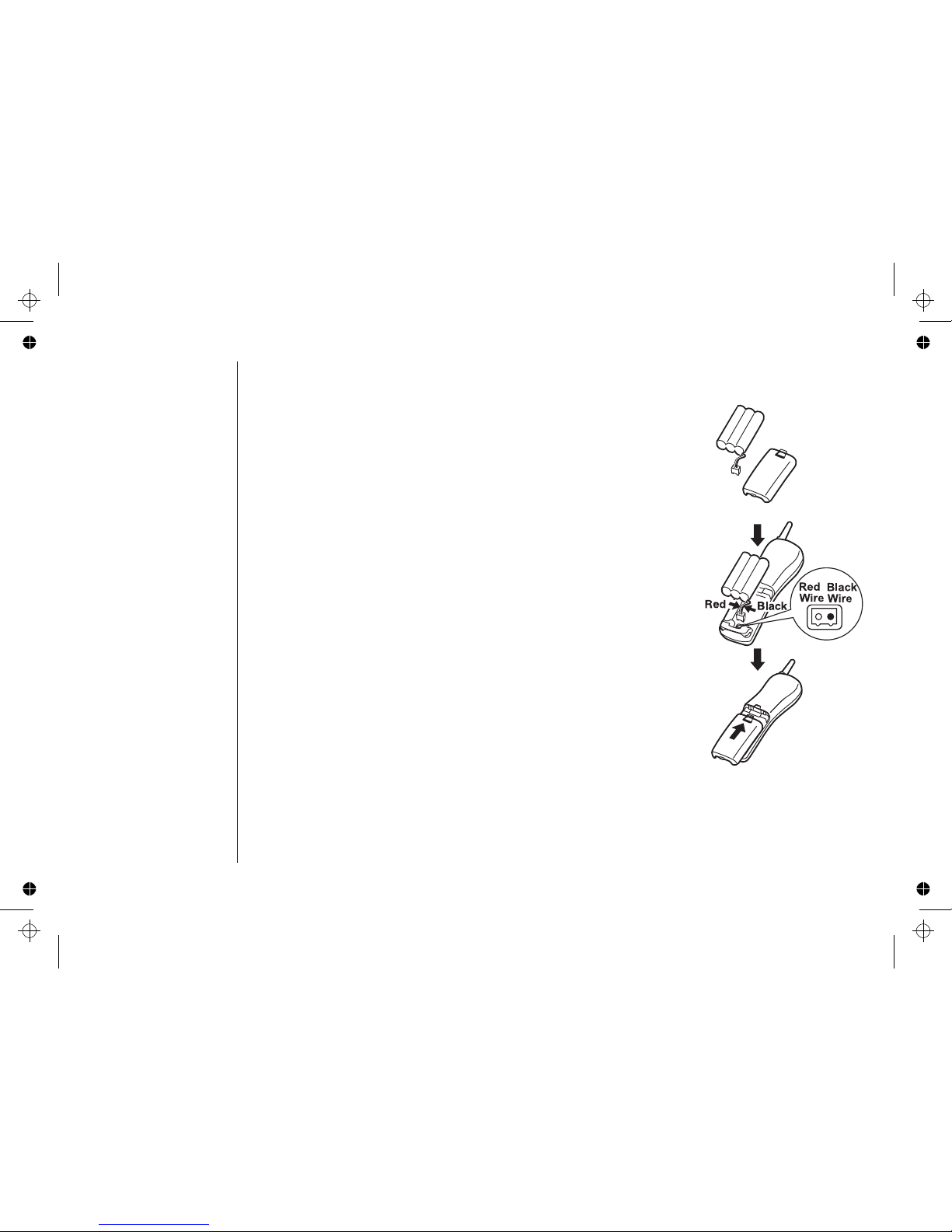

B. Install the Rechargeable Battery Pack into the Handset

The handset is powered by a rechargeable battery pack.

The battery recharges automatically when the handset is

placed in the main base or charging cradle.

1) Locate the separate battery and battery cover.

2) Plug the battery pack connector (red & black wires) into

the jack inside the battery compartment. (The connector

notches fit into the grooves of the jack only one way.)

Match the wire colors to the polarity label in the battery

compartment, connect the battery, and listen for a click

to insure connection.

3) Make sure you have a good connection by slightly

pulling on the battery wires. If the connection is secure,

the battery jack will remain in place.

4) Place the battery case cover back on the handset by

sliding it upwards until it clicks into place.

!Use only the

supplied

AAD--041S

AC adapter.

Do not use

any other AC

adapter.

!Do not place

the power cord

where it

creates a trip

hazard or

where it could

become

chafed and

create a fire or

electrical

hazard.

GETTING STARTED

[7]

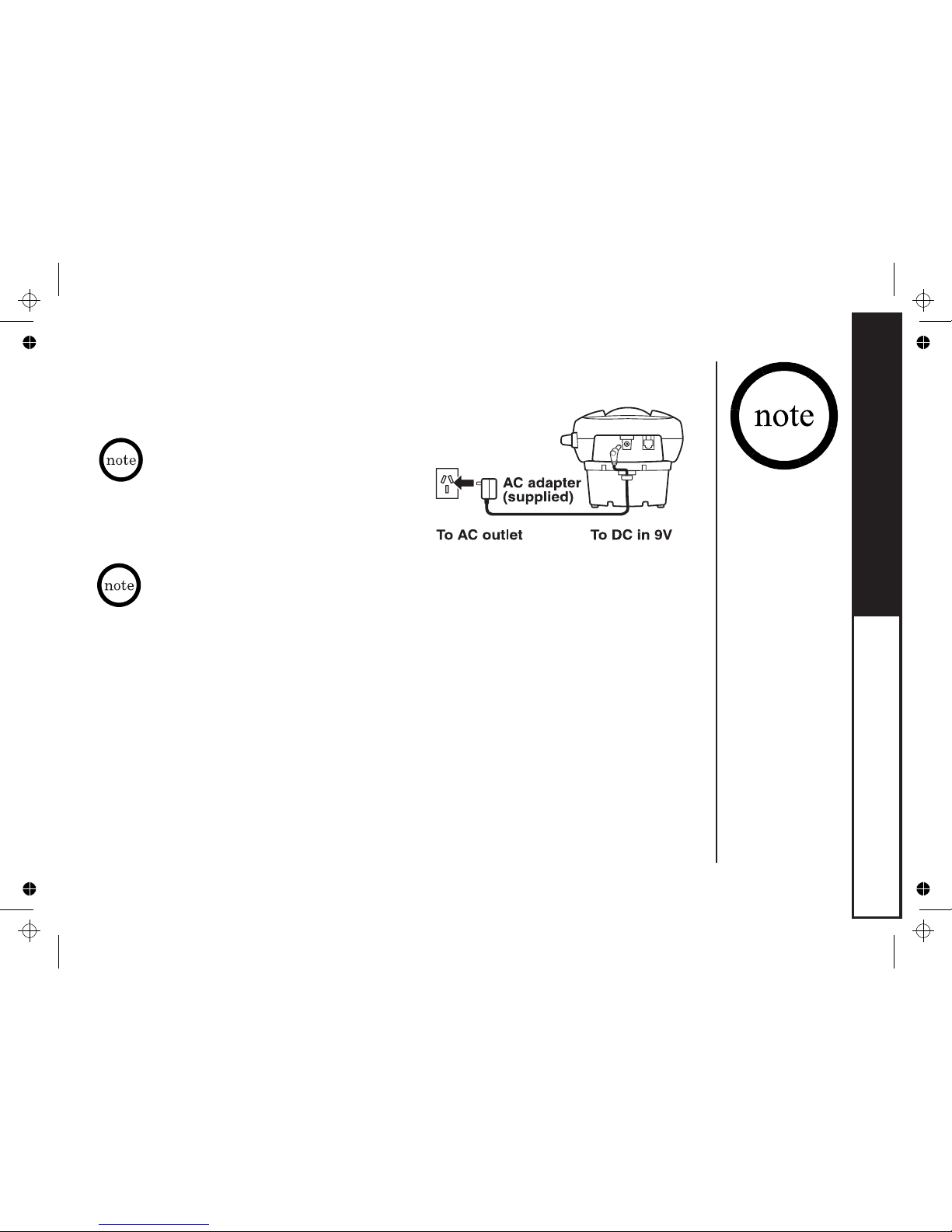

C. Connect the Base Unit and Charge the Handset

1) Connect the AC adapter to the DC in 9V

jack and to a standard 240V AC wall outlet.

• Connect the AC adapter to a continuous

power supply.

• Place the base unit close to the AC

outlet so that you can unplug the AC

adapter easily.

The rechargeable battery is already installed in your phone.

2) Place the handset in the base unit.

3) Make sure that the charge/in use LED illuminates.

If the LED does not illuminate, check to see that the AC adapter is plugged in

and the handset makes good contact with the base charging contacts.

4) Charge the handset battery pack for at least 15-20 hours before using

your new cordless telephone for the first time! To maximize the charge

capacity of your battery pack, DO NOT plug the telephone cord into the base

unit and wall jack until the battery is fully charged.

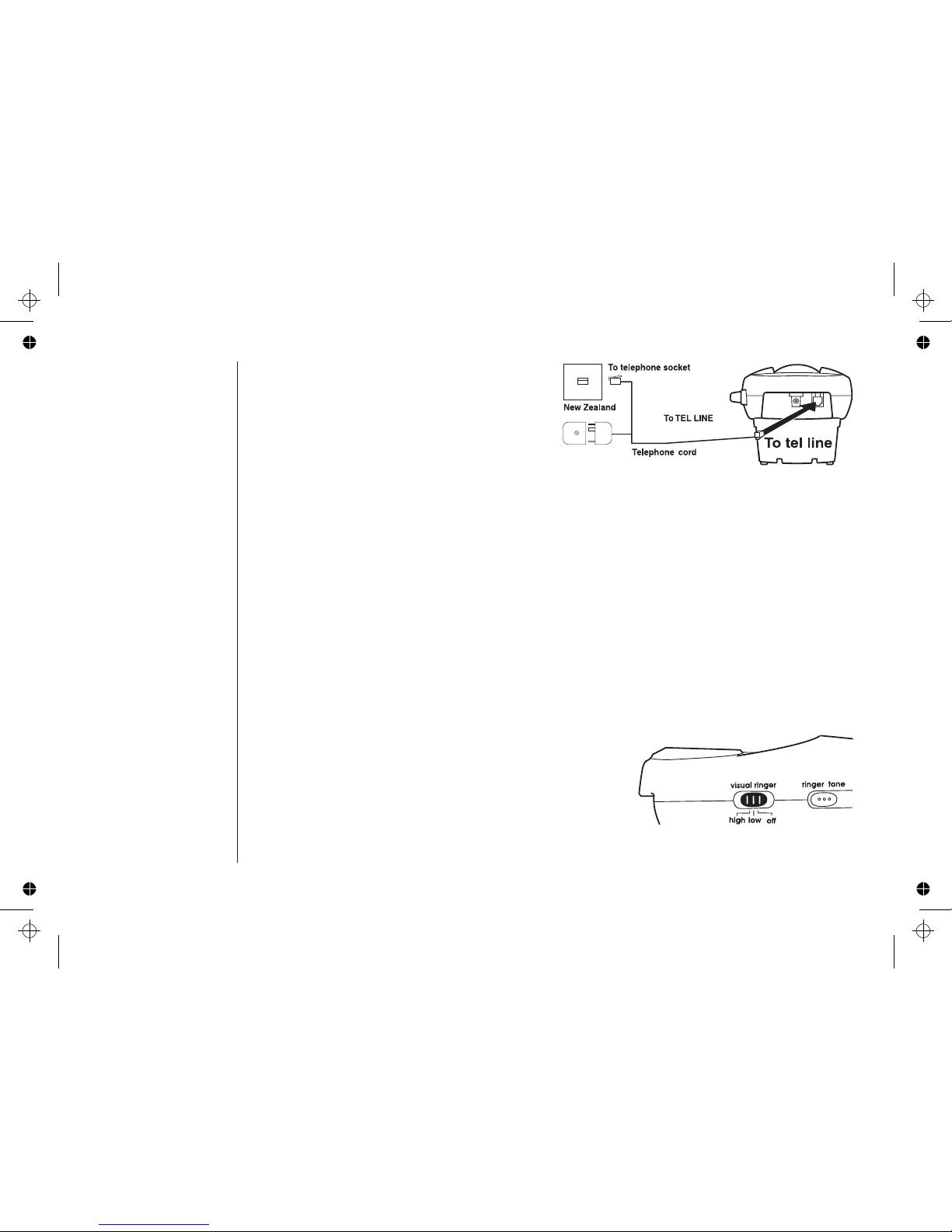

D. Set the Visual Ringer Brightness

The visual ringer switch allows you to set the

brightness of the visual ringer/messages

LED on the base. There are three options to

choose from: high, low and off. If you set the

switch to off, visual ringer/messages LED

never flashes.

[8]

5) Once the handset battery pack is

fully charged, connect the

telephone cord to the tel line

jack and to a telephone outlet. If

your telephone outlet isn't

modular, contact your telephone

company for assistance.

6) After the phone is connected, pick up the handset from the base and press

talk. If you do not get a dial tone, check the following:

• Be sure the telephone cord is securely connected to both the base and an

active telephone jack.

• Be sure the charge/in use LED is on. If not, check the AC adapter.

• Be sure the handset is fully charged.

• Be sure the battery is installed correctly.

Australia

Tel Line adaptor

(supplied)
