Uniden MHS050 Manuale utente

MHS050

Handheld VHF Marine Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

NOTE

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

Floating/Waterproof: JIS8

Uniden’s MHS050 radio is designed to meet the water proong

standard of JIS8 and will oat in water.

This Means: Protected against the effects of continuous immersion in water.

The MHS050 can withstand immersion in water up to 1.5m depth for 1hr.

Note this is not suitable for scuba diving.

NOTE

The MHS050 will only meet this rating if fully assembled

and all rubber seals are well maintained and correctly tted.

This means that the carabiner clip is not connected and the

battery cover securely fastened.

After your radio is submerged in water, you might notice that the sound

is distorted. This is because there is still water remaining in and around

the speaker and microphone. Just shake the radio to clear excess water,

and the sound should return to normal.

NOTE

If your radio is exposed to salt water, clean your radio

thoroughly with fresh water, and dry it before turning it on.

Ni-MH Battery Pack Warning

• This equipment contains a Ni-MH Battery Pack.

• The Ni-MH Battery Pack contained in this equipment may

explode if disposed of in a re.

• Do not short-circuit the Battery Pack.

• Do not charge the Ni-MH Battery Pack used in this equipment with any

Adaptor other than the one designed to charge this Battery Pack. Using

another Adaptor may damage the Battery Pack or cause the Battery

Pack to explode.

• Ni-MH batteries must be disposed of properly.

Warning

UNIDEN MHS050 Handheld VHF Marine Transceiver

Introduction

Features 4

Included in your Package 5

Optional Accessories 5

Controls and Indicators 6

Getting Started

Install the Battery Pack 8

Attaching the Beltclip 9

Using the Carabiner Clip 9

Charging the Battery Pack 9

Battery Level Display 10

Operation

Power On/Off 12

Volume 12

Selecting a Channel 13

Squelch 14

To Transmit and Receive 16

One-touch Channel 16/09 18

Triple Watch 18

Scanning 19

Programming Scan Channels 20

Drop-Out Delay 20

Power Save 21

Back Lighting 21

Monitor 21

Keypad Lock 22

Marine Channels - International 23

Warranty 26

Contents

UNIDEN MHS050 Handheld VHF Marine Transceiver

Introduction

UNIDEN MHS050 Handheld VHF Marine Transceiver

The MHS050 is a oating, waterproof, portable two-way VHF transceiver. It

is compact, lightweight, rugged and ts easily in your hand. This handheld

VHF marine radio will give you consistent, outstanding performance in

virtually all conditions and situations.

To ensure that you get the most from the MHS050’s features, please read

this operating guide carefully before using the unit.

Features

• International Marine Channels

• Built-in precision matched Antenna

• Floating / Waterproof to JIS8*

• Carabiner Clip

• Emergency 16CH / 09CH mode

• Battery Level Display

• Memory Scan

• Triple Watch

• TX Power Select

• Channel Select

• Volume Select

• Audio Monitor (Fixed Squelch)

• Key Lock On/Off

• Battery Save

*Protected against the effects of continuous immersion in water. The

MHS050 can withstand immersion in water up to 1.5m depth for 1hr.

Note this is not suitable for scuba diving.

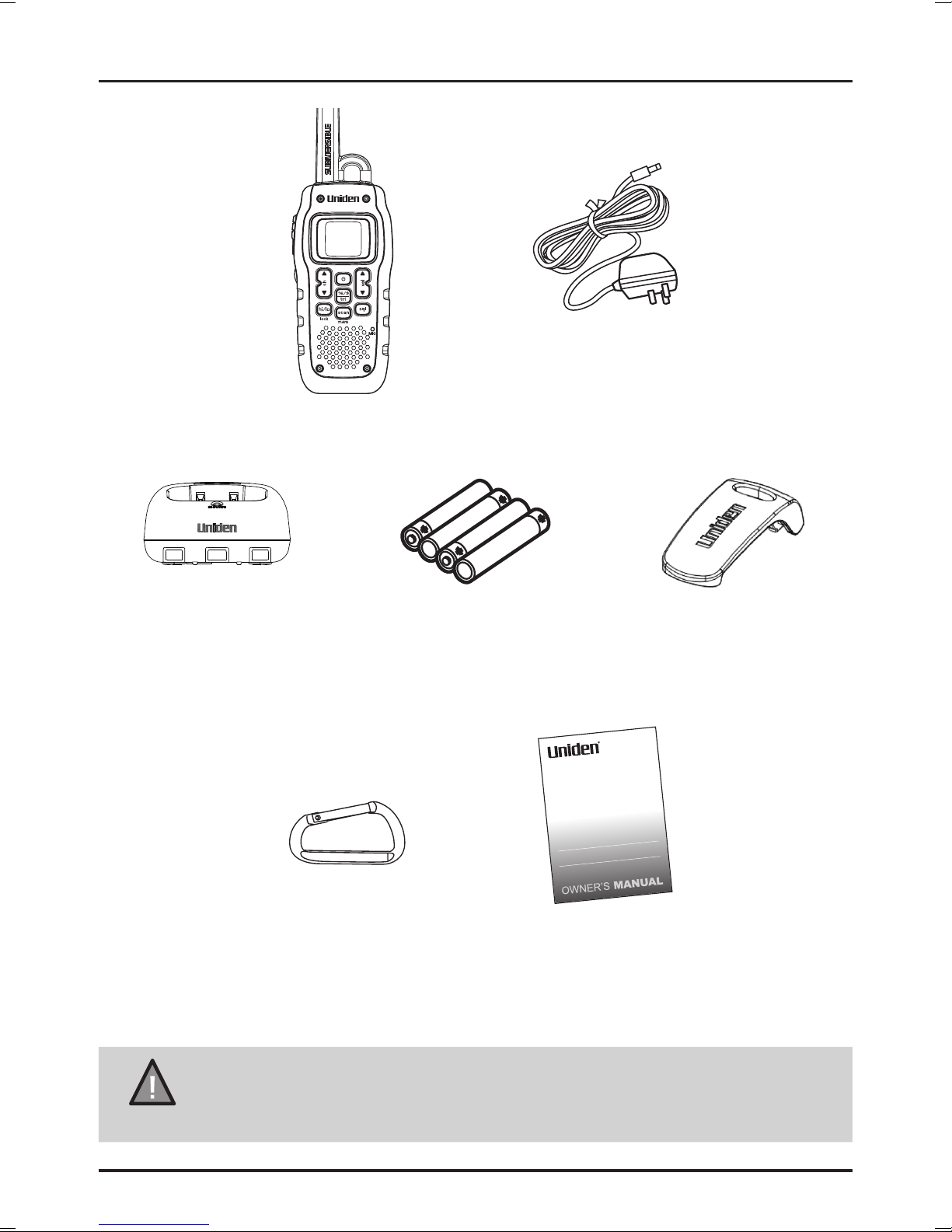

Included in your Package

UNIDEN MHS050 Handheld VHF Marine Transceiver

* MHS050 (x1), MHS050-2 (x2)

** MHS050: DTMHS1, MH050-2: DTMHS2

NOTE

If any of these items are missing from the box, contact your

place of purchase, immediately.

MHS050*

AC Adapter

(AAD-050S(M))*

MHS050

CHARGING CRADLE

LIQUID CRYSTAL DISPLAY

SCAN

TRI

MEM LOCK

Drop-in Charger

(Single charger shown)

(DTMHS1)**

NiMH Battery Pack

(BP38)*

Beltclip*

Carabiner Clip* Owner’s Manual

MHS050

Handheld VHF Marine Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

Controls and Indicators

UNIDEN MHS050 Handheld VHF Marine Transceiver

1 Antenna

2 PTT (Push-To-Talk) Button

3 Power Boost Button

4 Monitor Button

5 Channel Up/Down Key

6 Hi/Lo (Transmit Power) /

Keylock Key

7 Scan / Memory Key

8 Power key

9 Volume Up/Down key

10 16/9 / TRI (Triple Watch) Key

11 Sql (Squelch) Key

(single charger shown)

12 Microphone

13 Speaker

14 Channel Indicator

15 Scan Indicator

16 TX Indicator

17 TX Power Indicator

18 Triple Watch Indicator

19 Memory Indicator

20 Keylock Indicator

21 Battery Level Indicator

22 Charging Contacts

MHS050

CHARGING CRADLE

18 21

LIQUID CRYSTAL DISPLAY

SCAN

TRI

MEM LOCK

MHS050

CHARGING CRADLE

18 21

LIQUID CRYSTAL DISPLAY

SCAN

TRI

MEM LOCK

MHS050

CHARGING CRADLE

18 21

LIQUID CRYSTAL DISPLAY

SCAN

TRI

MEM LOCK

MHS050

CHARGING CRADLE

18 21

LIQUID CRYSTAL DISPLAY

SCAN

TRI

MEM LOCK

MHS050

CHARGING CRADLE

18 21

LIQUID CRYSTAL DISPLAY

SCAN

TRI

MEM LOCK

Getting Started

UNIDEN MHS050 Handheld VHF Marine Transceiver

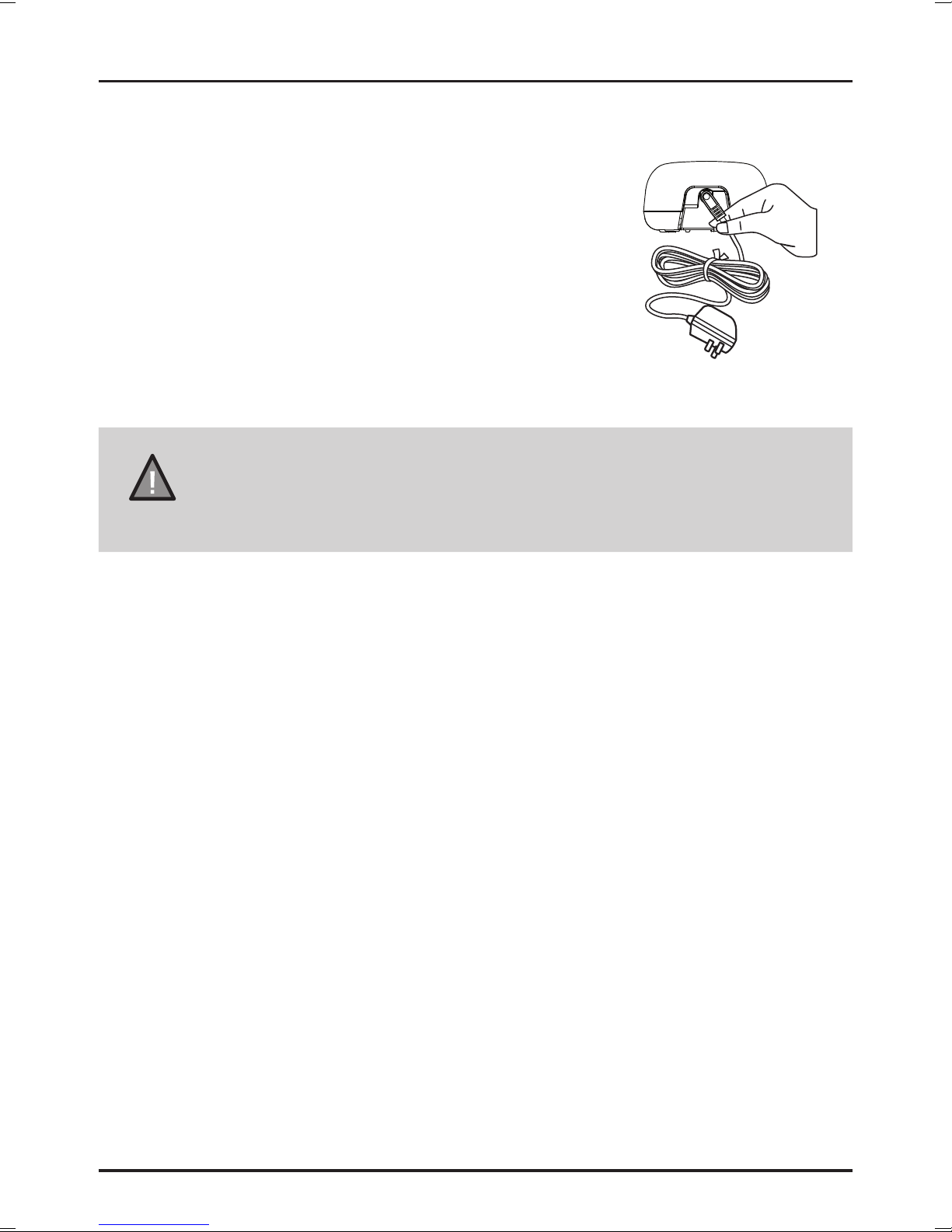

Connect Drop-In Charger with AC adaptor

Plug one end of the AC adaptor into the wall

outlet and the other end into the drop-in charger.

NOTE

• The drop-in charger is not water proof. Ensure the radio is

dry before connecting to the charger.

• Don’t use the charger when the ambient temperature is

below 0º C (32º F) or above 45º C (113º F)

(single charger shown)

Getting Started

UNIDEN MHS050 Handheld VHF Marine Transceiver

Install the Battery Pack

Your radio uses the supplied NiMH battery pack.

To install the NiMH battery pack:

1. Make sure the radio is off.

2. Turn the screw holding the battery compartment counterclockwise with

a screwdriver, and hold up the battery cover.

3. Put the NiMH battery pack in the battery compartment applying the

battery contacts to the lower charge contacts. Be sure to follow the

instructions written on the battery pack’s label. Installing the battery

pack incorrectly will prevent the unit from operating.

4. Before placing the battery cover back on the radio, check the rubber

seal around the battery compartment and the ribbon of the battery

pack: make sure that the seal is in good condition and that there is

no foreign matter under the seal.

5. Replace the battery compartment door. Tighten the screws securely.

NOTE

If the rubber seal appears warn, nicked, or dried out,

replacement seals are available. Visit the website on the

cover of this manual.

CAUTION

Use only the supplied NiMH battery pack. Do not charge

alkaline or non rechargeable batteries.

Getting Started

UNIDEN MHS050 Handheld VHF Marine Transceiver

Attaching the Beltclip

To attach the belt clip:

Slide the belt clip until it snaps into place.

To remove the belt clip:

To remove the belt clip, press and hold belt clip locker, slide the belt clip

at the same time until released.

Using the Carabiner Clip

Use the carabiner clip to conveniently secure the MHS050 to a belt or strap.

NOTE

The MHS050 will oat when the carabiner clip is not

connected and the battery cover securely fastened.

Charging the Battery Pack

Your radio includes charging cradle and rechargeable battery pack.

Follow these instructions to recharge the radio in the charging cradle.

NOTE

For the initial battery charge, make sure the

radio is off for optimum charging.

1. Connect the adapter’s plug to DC IN 12V jack

of the charging cradle and plug the other end into

an AC outlet.

2. Set the charging cradle on the desk or tabletop, and

place the radio in the charging cradle with the keypad

facing forward.

3. Make sure that the LED illuminates. Charge the battery

pack for 13 hours and remove the radio from the

charging cradle after charging. (single charger shown)

UNIDEN MHS050 Handheld VHF Marine Transceiver

Getting Started

NOTE

• Charge time may vary depending on the battery life remaining.

• For fastest charging, turn off the radio before charging.

WARNING

• The charging cradle is not waterproof. If the charging

cradle falls into water, unplug it before attempting to

remove it from the water. Allow the cradle to dry completely

before reconnecting the power.

• Wipe off dirt or shake water from your radio before placing

in the charging cradle if your radio is soiled or wet.
