Uniden UH7700NB Manuale utente
UH7700NB
Mini Compact
UHF CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au
New Zealand: www.uniden.co.nz
Introduction 3
Controls & Connectors 4
Indicators 6
Included with your UH7700NB Transceiver 7
Connecting the Microphone 8
Mounting the MIC Hanger 9
Operation 10
Turning on the Power 10
Setting the Squelch Level 10
Monitor 12
Selecting a Channel 12
Programming the Instant Priority Channel 12
Recalling the Instant Channel 13
Transmitting 13
Call Function 13
Using Repeater Channels 13
Operating the UHF CB Radio in Duplex Mode 15
Scanning 15
Open Scan (OS) Mode 16
Group Scan (GS) Mode & Priority Watch 16
Add/Remove Channels from SCAN Memory 17
CTCSS & DCS 17
Busy Channel Lockout 18
Selecting the Call tone 18
Roger Beep 19
Beep On/Off 19
Backlight Colours 19
Backlight Brightness 20
LCD Flip 20
CTCSS Codes Table 21
DCS Codes Table 22
UHF CB Channel Guidelines 23
UHF CB Channels & Frequencies 24
Warranty 26
2
Contents
UNIDEN UH7700NB UHF CB Transceiver
The Uniden UH7700NB is designed to provide you with years of trouble
free service. Its rugged components and materials are capable of
withstanding harsh environments. Please read this Operating Manual
carefully to ensure you gain the optimum performance of the unit.
NOTE
The citizen band radio service is licenced in Australia by
ACMA Radio-communications (Citizen Band Radio Stations)
Class Licence and in New Zealand by MED General User
Licence for Citizen Band Radio and operation is subject to
conditions contained in those licenses.
Features
• NarrowBand(NB)80Channel
Radio*
• 12VDCPowerInput
• Built-inAVSCircuitry†
• Transmissionpower5W
• LCDdisplay
• SignalstrengthandRFpower
(S/RF) meter
• Instantchannelprogramming
• OnetouchInstantchannel
recalling
• Selectablescanningtypefrom
group scan (GS) and open scan
(OS).
• ScanchannelmemoryOn/Off
function separately divided into
OS and GS
• MonitorOn/Offfunction
• Duplexcapability*
• KeyBeepOn/Offfunction
• RotaryChannelselectknob
• BusyChannellock-outfunction
• RogerbeepfunctionOn/Off
• 5differentCALLTones
• 38builtinCTCSS(Continuous
Tone Coded Squelch System)
codesand104DCS(Digital
Coded Squelch) are selectable
• Autosquelchdetection
thresholdcontrol(“oF”,“1”~“9”)
• Volumecontrol(“oF”,“1”~“40”)
• PowerOn/OffcontrolSW
• OptionalExternalSpeaker
• FlipLCDfunction
• 7LCD/KeyBacklightColour
Options
• 4LCD/KeyBacklightBrightness
Levels
• Underandovervoltagealert
function
* Refertop.23-p.25for
channel information
† AVS-AutomaticVolumeStabilizer
detects and manages incoming
audio to comparable levels.
3
Introduction
UNIDEN UH7700NB UHF CB Transceiver
4
Controls & Connectors
6
8
9
10
7
2
5 4 3
1
13
15
16
14
11 12
UNIDEN UH7700NB UHF CB Transceiver
CALL INST
UH7700 NB Series Standard Microphone
1Menu Button
/ Monitor function
(press & hold)
2PUSH control - Squelch
Select (press)
/Power On/Off (press & hold)
ROTARY control - CHANNEL
Selector
3/ -VolumeUp/Down
control
4Channel Scan button
/ Scan Memory
(press & hold)
5Liquid Crystal Display (LCD)
6MIC - Front Microphone Jack
7Speaker
8Power Input Connection
(13.8VDC)
9EXT SP - External Speaker
Jack
10 UHF Antenna Connection
11 CALL - Call Tone Button
12 INST - Instant Channel
Button
13 PTT - Push To Talk Button
14 MICROPHONE
15 RJ45typeplug
16 Front MIC Jack Cover
5
Controls & Connectors
UNIDEN UH7700NB UHF CB Transceiver
1- Receive Signal Level (Channel Busy Indicator)
- Transmit Signal Power Level
2- Channel Number / Menu Item Setting
3- CTCSS/DCS Code number / Menu Item
4- Scan mode
5- Channel in Memory
6- Instant Channel
6
Indicators
2
3
4
1
65
UNIDEN UH7700NB UHF CB Transceiver
Optional Accessories:
• BTMICkit
• UHFAntenna
• ExternalSpeaker
VisittheUH7700NBpageonthewebsiteformoreinformationonthe
availability of optional accessories;
www.uniden.com.au for Australia
www.uniden.co.nz for New Zealand
Standard Microphone Owner’s Manual Microphone Hanger
with screws, washers
Mounting Bracket with
mounting screws
DC Power Cord
with fuse
7
Included with your UH7700NB Transceiver
UNIDEN UH7700NB UHF CB Transceiver
UH7700NB
Ultra Compact
UHF Mobile Radio
For more exciting new products please visit our website:
Australia: www.uniden.com.au
New Zealand: www.uniden.co.nz
MIC Jack
Push the MIC plug at the end of the microphone into the MIC jack until
the connection locks into place. Gently tug the MIC cord to test that the
connection is locked. Use the rubber cover which is on the MIC cord to
seal the MIC jack entry from dust.
Disconnecting the MIC from the MIC Jack
Pull back the rubber cover and move it down along the cord. Using the
atbladeofascrewdriverorsimilarobjectcarefullypushthelocktabof
the MIC plug towards the MIC cord and at the same time tug on the MIC
cord to draw back the MIC plug.
8
Connecting the Microphone
UNIDEN UH7700NB UHF CB Transceiver
The Microphone Hanger comes in two parts. How and where you mount
the MIC hanger will determine which parts to use.
Conventional Mounting with Screws
Use the front part of the MIC Hanger only.
Locateasuitablemountingpositionandmarkanddrilltwo3mmholes.
Fix the MIC Hanger into place with screws.
Conventional Mounting with Double Sided Tape
(not supplied)
High quality Double-Sided tape can be found at good retail stores.
Secure the front and back pieces of the MIC Hanger using the supplied
binding screws.
Locate a suitable mounting position.
Apply high quality Double-Sided tape
ontotheatareaoftheMIC
Hanger back piece and then
pressrmlytothemounting
position.
9
Mounting the MIC Hanger
UNIDEN UH7700NB UHF CB Transceiver
10
UNIDEN UH7700NB UHF CB Transceiver

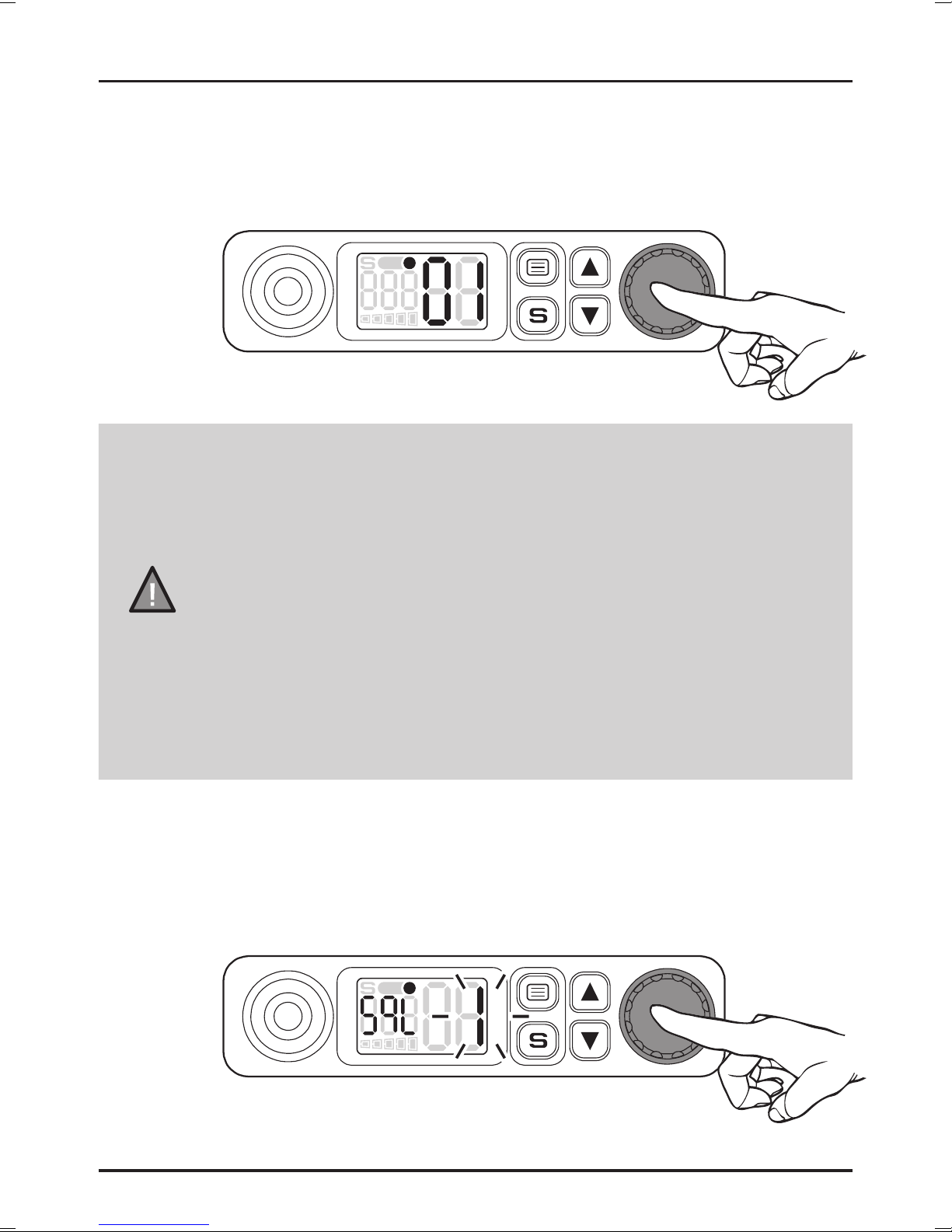

Turning on the Power
Press and hold the Power/Channel Selector.
Operation
NOTE
Low-Voltage/High-Voltage Alert
Ifthepowersupplyvoltageexceeds18VDC,analerttone
sounds and dc HIashesfor5seconds.Thepowersource
mustnotexceed25VDCotherwisepermanentdamage
may occur to your radio, which may not be covered by the
manufacturer’s warranty.
Iftheinputvoltagefallsbelow10VDC,dc Loashesfor5
seconds. The power turns off automatically if voltage falls
below8.5VDC.
Switch your UH7700NB OFF and disconnect it from the power
source, before locating the cause of the power supply problem.
Setting the Squelch Level
Press the Power/Channel Selector momentarily. SqL shows and the
currentsquelchlevelwillash.
Turn the Channel Selector to select the desired squelch level.
