UNIHOMS S8E Manuale operativo
User Manual
Product
6 inch
Control Panel
6”Smart Multi-functional Control Panel(in-wall)
Chapter 1 Product presentations........................................................3
1.1 Appearance.................................................................................3
Chapter 2 Product Specifications....................................................... 4
PX30 Quad core Cortex-A35........................................................4
Chapter 3 Ports and Specifications....................................................5
3.1 Interface and ports.............................................................. 5-6
3.2 Specifications............................................................................. 7
Chapter 4 Installation instructions.....................................................8
4.1 Installation drawings............................................................... 9
4.2 Wires connection drawing.................................................. 11
Chapter 5 Operation guideline.........................................................12
5.1 Safety Notes*****....................................................................11
5.2 Operation guideline.............................................................. 12
TABLE OF
CONTENTS
Chapter 1 Product presentation
1.1 Appearance
1.2 Main Features
● Fit Asian 86mm*86mm wall boxes, simple inwall installation.
● 6-inchHDLCD,IPS,multitouchscreen,quadruple
microphone with noise reduction, Auto light sensor, built in
1W speaker.
● ZigBee gateway function, APP remote control.
● Control the lights, curtains, air conditioners, and all other
Smart Home devices. Configure smart home scenes in the
APP, turn on the scene mode with one touch on the screen.
Chapter 2 Product Specifications
Chapter 3 Ports and Specifications
3.1 Interface and ports
3.2 Specifications
Chapter 4 Installation instructions
● Turn off the main power in the electricity box and confirm
the fire wire is not alive with a test pencil.
● Remove the base of the smart panel and install it in the wall
box (as shown in the pictures following).
● Check the wires and make sure the wires are in good
contact with the terminals and no exposed cooper wires.
● Fasten the base to the wall box with mounting screws and
fix the smart panel back to the base.
● Note that the screws should not be fixed too tight during
installation in case any deformation or damage to the screen
and hardware.
● If your smart panel is not flat after installation, do not press
the screen violently, please check the wall box and the base
installation at first.

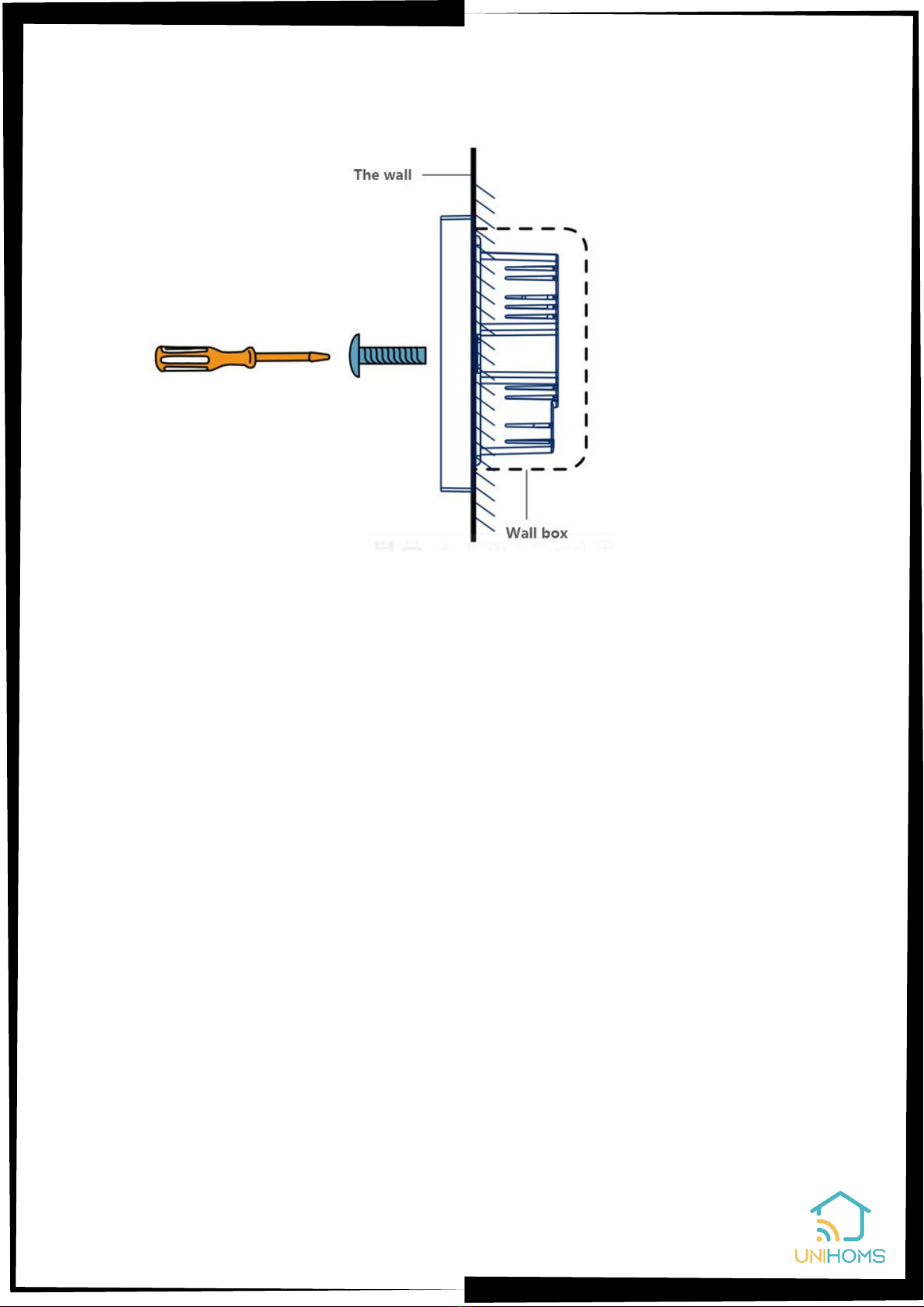

4.1 Installation drawings
Depth of the wall box should be more than 50mm.
Note: Make sure the circuit power were cut off before wire
connections!
Circuit breaker used as disconnected device shall be
incorporated in the electrical installation of the building.
4.2 Wires connection drawing
