The UN-WPAMOUT is a unique two-way wireless outdoor double quad motion detector with active

Anti-Mask feature. The advanced Double PIR Elements provide two detection areas for superior

stability.

The UN-WPAMOUT is designed for outdoor usage in most severe and extreme climate conditions

that may also accommodate pets.

High reliability is achieved by combining both Dual Quad Sensors with highly sophisticated

software as well as an adaptive coverage area, reducing false alarms alerts to zero while

maintaining high security standards for the detection of human intruders into protected area.

The detection sensitivity and range are controlled by optical rotary switch allowing 25 calibration

levels, so that the effective pattern will be set for every installation environment and protection

site.

The UN-WPAMOUT is designed to protect large areas and can easily be installed on walls to provide

a solid protection of the area while rejects interferences from birds and small animals due to “PET

MASK” optics.

The UN-WPAMOUT has a unique ID code - compatible with the UNii Wireless Interface Elite.

Double PIR

Elements

Pet Immunity Anti-Masking 2 Way Wireless Remotely

Configurable

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

•UN 2-way wireless security

•Detection Range 3 - 12m

•PIR sensitivity adjustment

•Temperature compensation

•Pet Immunity up to 35kg

•Anti-Masking feature enabled by Dip Switches

•Protection from: direct sunlight, wind up to 30m/sec, snow and rain, small animals…

•Unique waterproof and seal plastic design

•Powered by 4 Lithium batteries Type AA (Battery life: up to 3 years)

•Operating Frequencies: 868.35MHz / 916MHz

•Height installation calibrations free: from 0.8m to 1.5m

•Tamper Open/Close transmission

•Supervision transmission

•Battery status transmission

•LED indications

•Range up to 500m in open space

•Front and Back tamper protection

•Sound indication for walk test and intruder detection

•Unique ID number.

This UN-WPAMOUT wireless outdoor detector transmits the following events:

•SUPERVISION– A periodical transmission every 7 min. indicates detector’s presence.

•ALARM – Alarm transmission triggered by the device indicating Motion detection. The Red

LED will blink once.

•LOW BATTERY – Whenever the battery reaches the low level (2.5V), a Battery Low signal will

be sent. When Battery level drops below Cut Off level (2.3V) the device will stop functioning

and the Red LED will blink for 10 seconds and then turned Off.

•TAMPER – Whenever the cover is removed from Bracket or the device is tear off from the wall,

a Tamper signal will be transmitted to the UNii control panel. When cover will be returned,

cancel the tamper signal on the UNii keypad.

•ANTI-MASKING – If an attempt is made to mask the lens with a sticker or to put a masking

object close to the lens, a trouble alert will result up to 180 seconds after masking (future

development).

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

The UN-WPAMOUT wireless outdoor detector is a robust detector which includes indication LED

prism that can be easily observed from long distance.

Having a back-metal bracket, the UN-WPAMOUT can be easily mounted to walls and poles using

mounting screws or metal bands (both supplied)

1 Front Cover

3 Detector Main Unit

2 LED Indicator

4 Back Metal Bracket

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

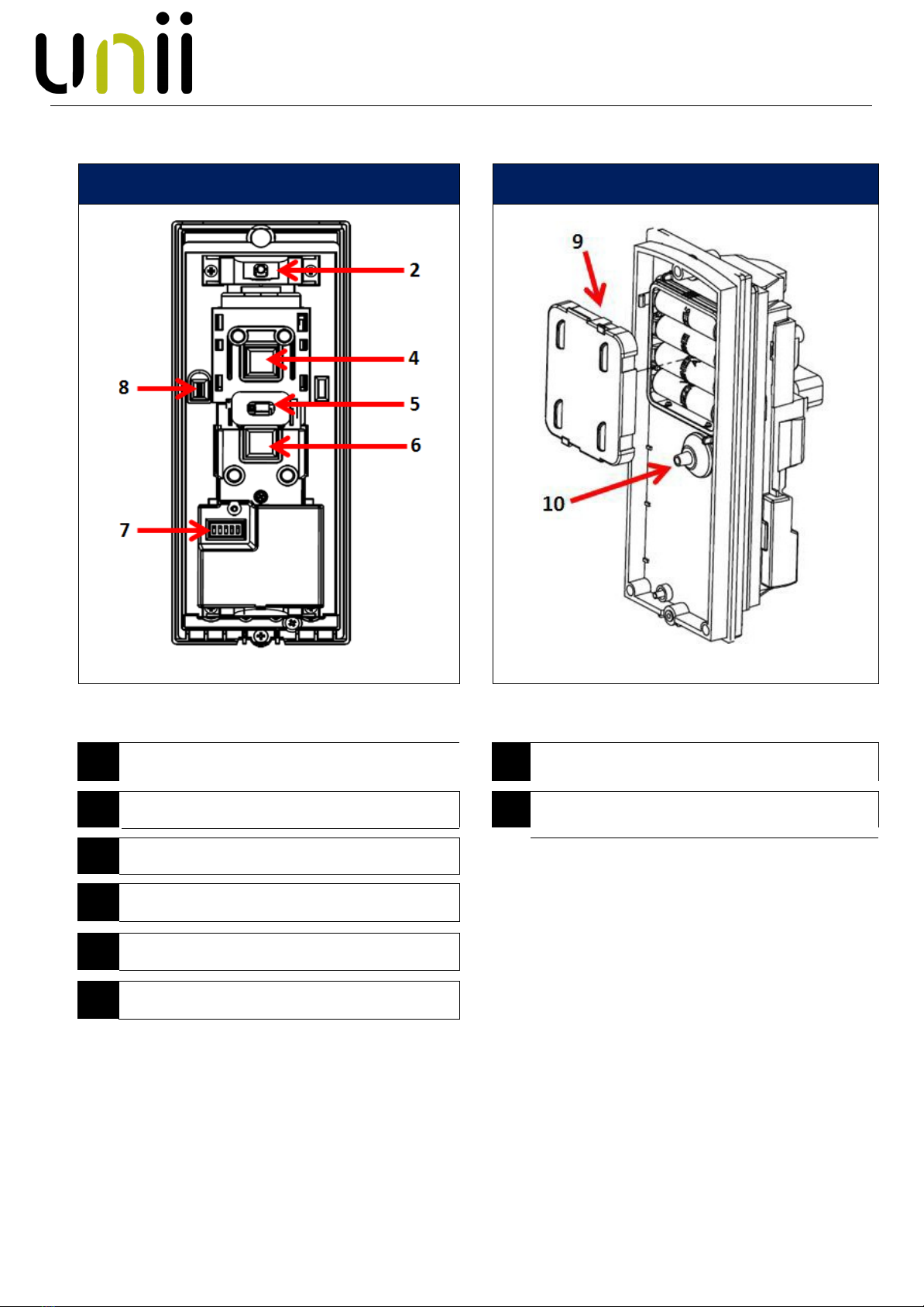

Front view

Back view with battery

2 LED Detector

9 Batteries Cover

Upper PIR Element

Back Tamper Switch (Removal)

Anti-Mask Sensor

6 Lower PIR Element

7 Dip Switches

8 Front Tamper Switch (Opening)

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

5.1

Range Adjustment

The UN-WPAMOUT wireless outdoor detector has a 90° top view Double PIR detection pattern with

over 12m detection distance (when installed at 1.5m above the ground surface).

The UN-WPAMOUT has an internal rotating housing (which includes the 2 PIR elements) that can be

adjusted vertically, so its 90° coverage may vary between 0° and 180°.

The Upper PIR element can be horizontally adjusted to 5 different levels.

Adjustable

Detection

Range

Upper PIR element detection pattern

Adjustable between 3m to 12m

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

5.2

Pet Immunity

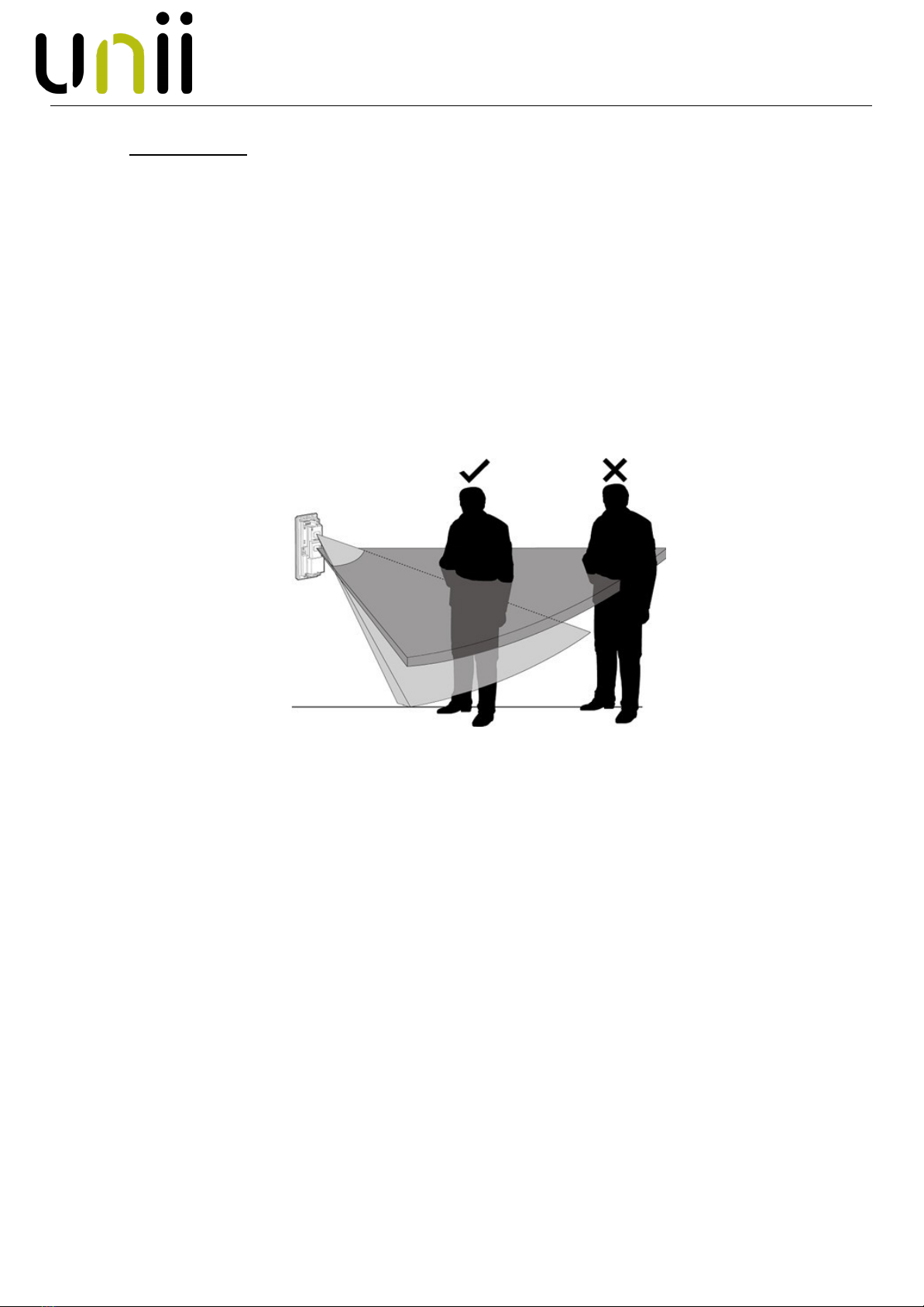

The UN-WPAMOUT wireless outdoor detector can differentiate between pets and human bodies and

alert accordingly by having PIR detection beams movement detection:

A. Lower PIR element which is fixed to 12m range and 60 cm above ground level which helps

avoiding pets’ detection over the entire area.

B. Upper PIR element which has adaptive range between 3m and 12m.

By having both PIR detection beams detection the crossing object will be defined as intrusion,

causing an alarm.

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

6.1

Select Mounting Location

The installation of the UN-WPAMOUT wireless outdoor detector requires straight and solid base for

the detector and setting of front panels against the center of protected area.

The protected area must be free from obstacles like walls, fences, trees, ditches, and other

microwave detectors, as well as systems of anti-intrusion surveillance.

The back-metal bracket provides UN-WPAMOUT installation on a wall or pole. The wall or pole

should be leveled.

Choose a location most likely to intercept an intruder according to detection pattern on page 6.

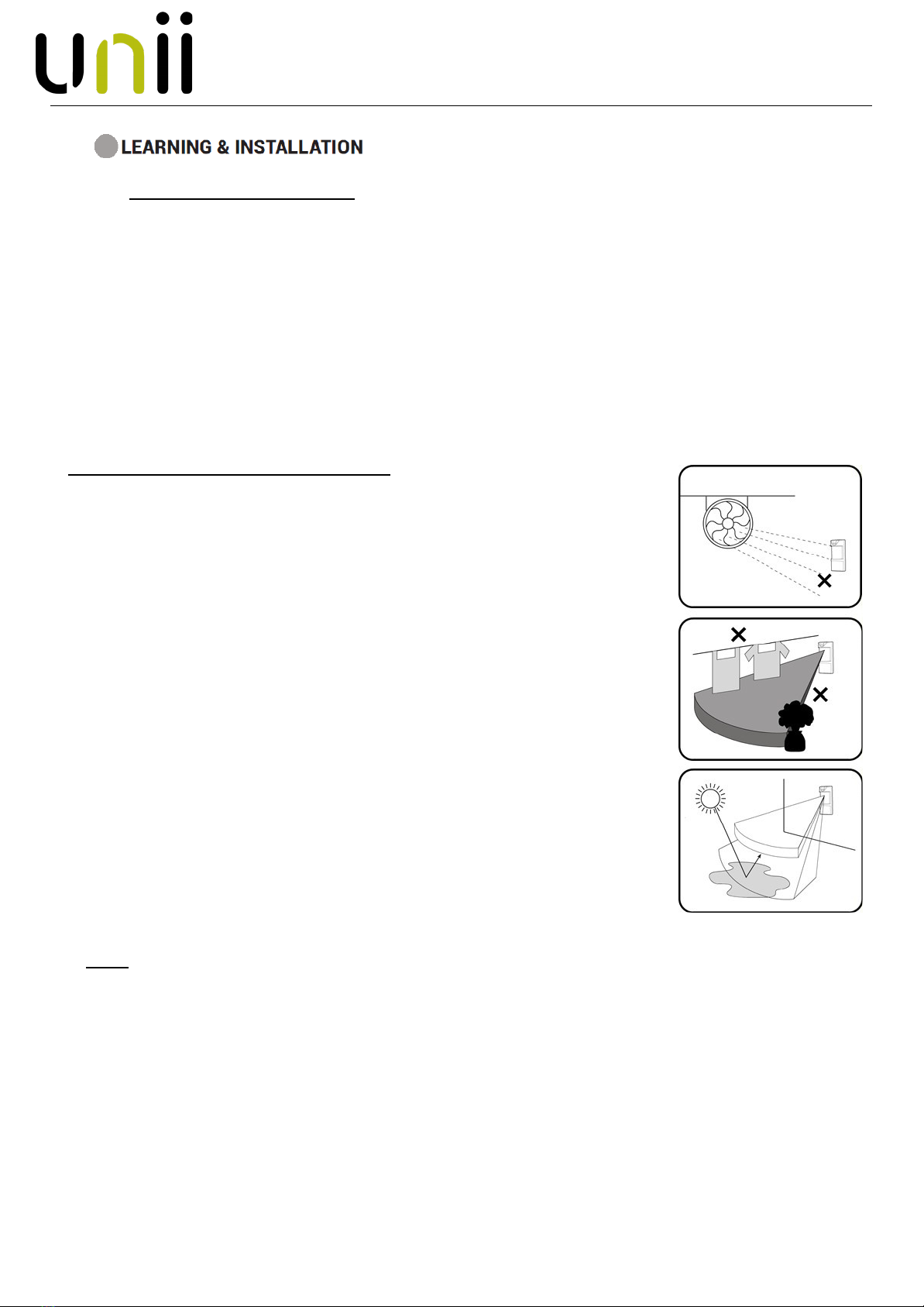

Avoid the following Installation Locations:

•Facing direct sunlight.

•Facing areas subject to rapid temperature changes.

•Wall angle of more than 10º from perpendicular line.

•Mounting at more than 10º Deviation from horizontal line.

•Facing metal doors.

•Do not install near direct source of heat or air gust.

•Clear all physical obstacles from the detection area (e.g.,

Plants, laundries, etc.)

•Clear all light reflecting surfaces from the detection area, as

well as water puddles.

•Avoid installation on the following types of ground:

Thick vegetation

Grass (un-mown)

Water

Sand

Metal.

NOTE:

Recommended installation height is 1.2m.

If there is a risk of tall pets (over 60cm) the detector is to be installed at 1.5m.

The Double Quad high quality sensor detects motion crossing the beam; it is less sensitive

detecting motion towards the detector.

The UN-WPAMOUT performs best when provided with a constant and stable environment.

To ensure suitable operation of the UN-WPAMOUT, type of ground should be one of the following:

Asphalt concrete, Cement, Soil, Clay, Gravel, or Grass (mown).

UN-WPAMOUT

UNii Wireless outdoor PIR AM

INSTALLATION INSTUCTIONS

6.2

Learning Procedure

LED of the detector will start blinking alternately Red/Green

during the warmup and learning process (30 secs)

30 Sec during Warm Up and Learning

Open the detector unscrewing the bottom screw.

Unscrew the detector unit from the back-metal bracket

and remove it by tilting it.

Remove the batteries cover

The learning process should be completed within 30 seconds.

UNii Control panel will indicate completion at the end of the process.

Close the battery cover

Refer to the Installer manual UNii Wireless Interface module for

learning wireless components.

Make sure that the UNii control panel is on learning mode

according to installation instruction.

Insert batteries in the detector respecting the polarity (+/-)
