PA968II Rugged Mobile Computer
- PA968II -
Quick Reference Guide
400817G Version 1.0
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

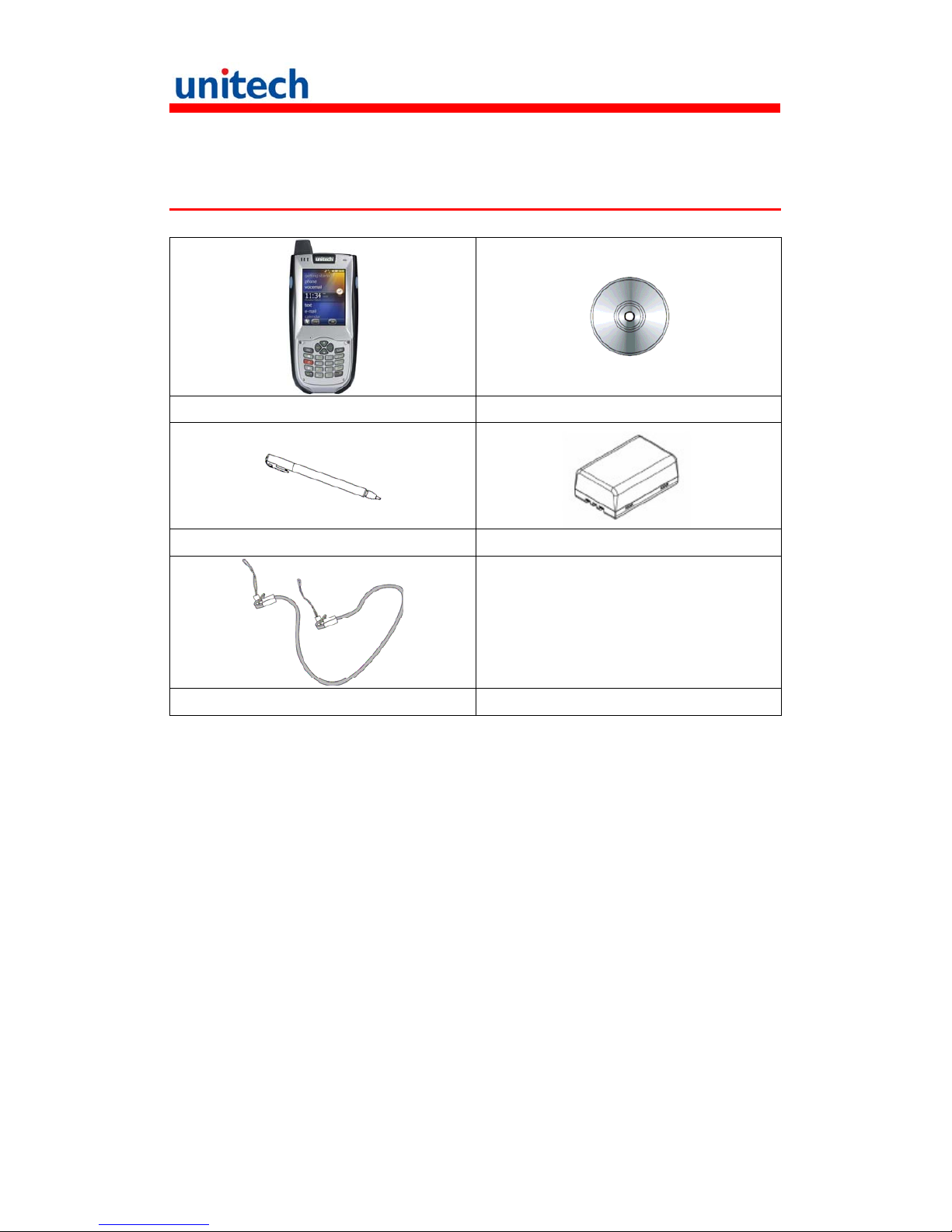

PA968II Product Introduction & Accessory Kit
PA968II Terminal Manual CD
Stylus Battery
Elastic Stylus String
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
PA968II Front View
1
2
3
4
5
6
7
8
1 Status indicator 5 Receiver
2 LCD Touch screen 6 Scanner trigger button
3 Microphone 7 Keypad
4 Power button 8 Universal connector
Turning ON the PA968II for the First Time
After you have initially charged your device for about 16 hours, the device is
ready to be used. You can now start up your device where you’ll calibrate the
display, learn some basic stylus usage, and set up the system time zone, date
and time.
Powering-On Button
Turn ON your device by pressing the power button on the front panel.
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
PA968II Rear View
1 Earphone jack 6 Antenna
2 Reset button 7 Digital still camera
3 Speaker 8 LED Flash light
4 Battery compartment 9 Memory card slot
5 Barcode scanner window 10 Battery compartment tab
Installing the Battery
1. Open the battery compartment
cover by sliding the tabs on both
sides in the direction of the arrows
shown and lift the cover up.
2. Turn ON the Backup Battery
Switch.
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
3. Position the battery pack, making
sure the battery contacts are
aligned with the contacts in the
compartment and the battery is
placed on top of the plastic tab.
4. Slide the battery pack while
simultaneously pulling the plastic
tab until the battery clicks into
place.
5. Replace the battery compartment
cover, push down the tabs and
slide them back into place as
shown.
NOTE: Make sure the battery compartment cover is securely closed, or you
may be unable to turn ON the terminal.
Charging the Battery
CAUTION: Turn the backup battery switch on before charging the battery.
Data you entered may not be properly stored until the built-in
backup battery has been adequately charged.
1. Press and hold the release button on both sides of the USB charging
cable and connect it to PA968II (1).
2. Plug the AC adapter cable into the power jack of the USB charging cable
(2).
3. Plug the AC adapter cord into an electrical outlet (3).
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Using the SD/MMC memory card
1. Remove the two screws on the SD
compartment cover and remove
the cover.
2. Insert the SD card with the
notched corner as shown.
Using the SIM card
The PA968II has a slot for GPRS SIM card inside the battery compartment.
CAUTION: Before installing the SIM card, please backup your data to prevent
data loss because of a low backup battery.
1. Remove the battery compartment cover and the main battery.
2. Slide the cover of the SIM card
slot to the left to release the latch.
3. Lift the cover and insert the SIM
card into the cover with notched
corner up, contacts down as
shown.
4. Put down the cover on the slot,
and then slide the cover to the
right to lock the SIM card.
5. Put the battery back into the battery compartment and replace the battery
compartment cover.
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Keypads and Function Buttons
Key Description Key Description
Power button Escape key
Enter key Backspace key
Tab key Function key
Alpha key, toggle
between numeric and
alphabetic entrymodes Four way cursor keys
~ Alphanumeric keys Punctuation key
Answer key Hang-off key
Windows key
When PA968II boots, the default condition is Numeric Mode on. When you
toggle to Alpha Mode, the default condition is CAPS mode off. Please use the
alpha Key to toggle to CAPS.
Using Function keys
Key Description Key Description
+ Calibration + Screen backlight
toggling
+ Keypad backlight
toggling +Softkey L
Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Key Description Key Description
+ Softkey R +TALK
+ END +Task manager
+ Scanner setting +Power management
+ Device information
Using Alpha keys Alpha On
Key Alpha Off CAPS Off CAPS On
0 Space, @, $, “, 0 Space, @, $, “, 0
1 +, -, \, %, 1 +, -, \, %, 1
2 a, b, c, 2 A, B, C, 2
3 d, e, f, 3 D, E, F, 3
4 g, h, i, 4 G, H, I, 4
5 j, k, l, 5 J, K, L, 5
6 m, n, o, 6 M, N, O, 6
7 p, q, r, 7 P, Q, R, 7
8 t, u, v, 8 T, U, V, 8
9 w, x, y, z, 9 W, X, Y, Z, 9
* , ; ! . / , ; ! . /
