Chapter 1

Getting Started

Introducing the PA600

The PA600 Phone Edition (PE) is designed for users who need a

compact and durable PDA for data collection in real time transac-

tions.

The PA600 is a rugged, compact and lightweight handheld com-

puter with a Windows Mobile 6.1 operating system, an integrated

laser bar code scanner, cell phone functionality, color LCD touch-

screen, keypad and wireless communication capability. It provides

a standard Windows based environment for customization and

operation.

To reduce total cost of ownership, the PA600 is sealed to meet IP64

standards and has undergone multiple drop tests to prevent down-

time.

Thanks for choosing the PA600 PE.

Chapter 1 Getting Started

Features

Powerful System

• Microsoft Windows MobileTM 6.1

Operating System.

• 624Mhz Intel PXA270 Processor.

System Memory

• 128 MB SDRAM.

• 320 MB Flash ROM.

Display

• 3.5” QVGA TFT-LCD with Touch-

screen and Backlight.

• 240 x 320 Pixel Resolution.

Bar Code Scanner

• Built-in Laser Scan Engine.

• Built-in Vibration for Scanning Indi-

cation.

• Symbol SE950 Support.

• Unitech Hamster Bar Code

Decoder.

Communication

• USB Host & Client.

• Bluetooth 2.0 + EDR

(supports Bluetooth Printer,

Bluetooth Modem, Bluetooth

ActiveSync).

• eGPRS Siemens MC75 Radio

Module, quad-band GSM 850/900/

1800/1900 Mhz.

– EDGE Multislot Class 10.

– GPRS Multislot Class 12.

– GSM Release 99.

Audio

•MIC.

• Speaker.

• Headset Connector.

• Receiver.

Wireless Connectivity

• 802.11b/g with Diversity Antenna.

• Bluetooth Wireless Technology.

Expansion Slot

• Secure Digital (SD) Card Slot

(Supports SDHC up to 4G).

Battery Life

• Operation Time: Typical 5 Hours

(With Wi-Fi), Average 9 Hours

(Without Wi-Fi).

• Charging Time: Less than 5 Hours.

• Embedded Backup Battery Cell.

User-friendly Interface

• Quick Launch Hot Keys for

Enabling Backlight, Calibration,

Phone Calls, Software Keyboard

and other Device Management

Tasks.

• Trigger Keys for Bar Code scan-

ning.

Chapter 1 Getting Started

Package Contents

Ensure the following items are in the PA600 PE box:

Please contact a local Unitech representative if anything appears damaged or miss-

ing.

A Tour of the PA600

The main components and features of the PA600 are described through the following:

PA600 PE Terminal AC Adapter with Universal Plugs

Battery Pack Stylus

USB Charging Cables CD-ROM Quick Reference

Guide

Chapter 1 Getting Started

Front View

No. Component Description

1. Status Indicator. Indicates battery charging and bar code scanning status.

Green - Battery is fully charged, or bar code

scanning is successful.

Red - Battery is charging, bar code scanner is

operating.

Yellow - GPRS is on.

Blue - Bluetooth is on.

2. Left Scanner

Trigger Button.

Press to activate the Laser Bar Code Scanner.

3. Power Button. Press to start the PA600. Also, press this button down

for at least three seconds to turn the PA600 off.

4. Microphone. Records audio.

5. Universal

Connector.

Connects the PA600 to a USB Charging/

Communication Cable. This USB cable connects to

the computer’s USB Port and accepts the 5V AC

Adapter to provide power to the PA600.

This unit can simultaneously recharge and perform a

Microsoft ActiveSync operation. In addition use it to

connect peripheral hardware, such as a docking

station. This port can also support USB and RS232

hosting for devices such as a USB or RS232 scanner,

keyboard or USB memory key.

6. Keypad. Keypad interface for controlling the PA600. See Keypads

and Function Buttons on page 15 for more information.

7. LCD Touch-

screen.

Displays applications and data on the PA600. It is touch-

sensitive and responds to the Stylus or finger.

8. Speaker. Enables audio from the PA600.

Chapter 1 Getting Started

Back View

No. Component Description

9. Battery Compartment. Houses the removable and rechargeable 3.7V

2200 mAH Battery Pack.

10. Battery Compartment

Release Latch.

Opens the Battery Compartment.

11. Reset Button. Press the Stylus into the PA600’s Reset Button

to Clean Boot the device.

12. Handstrap. Enables users to securely hold the PA600.

13. Speaker. Enables audio from the PA600.

14. Stylus. Enables users to interact with the operating

system. To use the Stylus, remove it from its holder

and hold it like a pen or pencil.

15. Strap Holder. Secures the handstrap.

16. Memory Card Slot. Accommodates Secure Digital (SD) memory

cards and can serve as an SDIO Port.

17. Bar Code Scanner

Window.

Scans bar codes.

Chapter 1 Getting Started

Getting Started

Install and charge the battery, check the battery status, turn on the PA600, and cali-

brate the PA600’s screen through the following:

Installing the Battery

WARNING! If the Battery Pack is handled improperly there is risk of fire and/or

burns. Do not disassemble, crush, puncture, short external contacts,

or dispose the battery pack in fire or water. Do not attempt to open or

service the battery pack. Dispose of used batteries according to local

recycling guidelines.

A Backup Battery cell is embedded in the PA600 to prevent data loss when the remov-

able Battery Pack disconnects from the PA600. The Backup Battery will maintain data

and system settings for up to 6 hours.

NOTE: Initially charge the Main Battery for at least 16 hours to provide the bat-

tery with enough power.

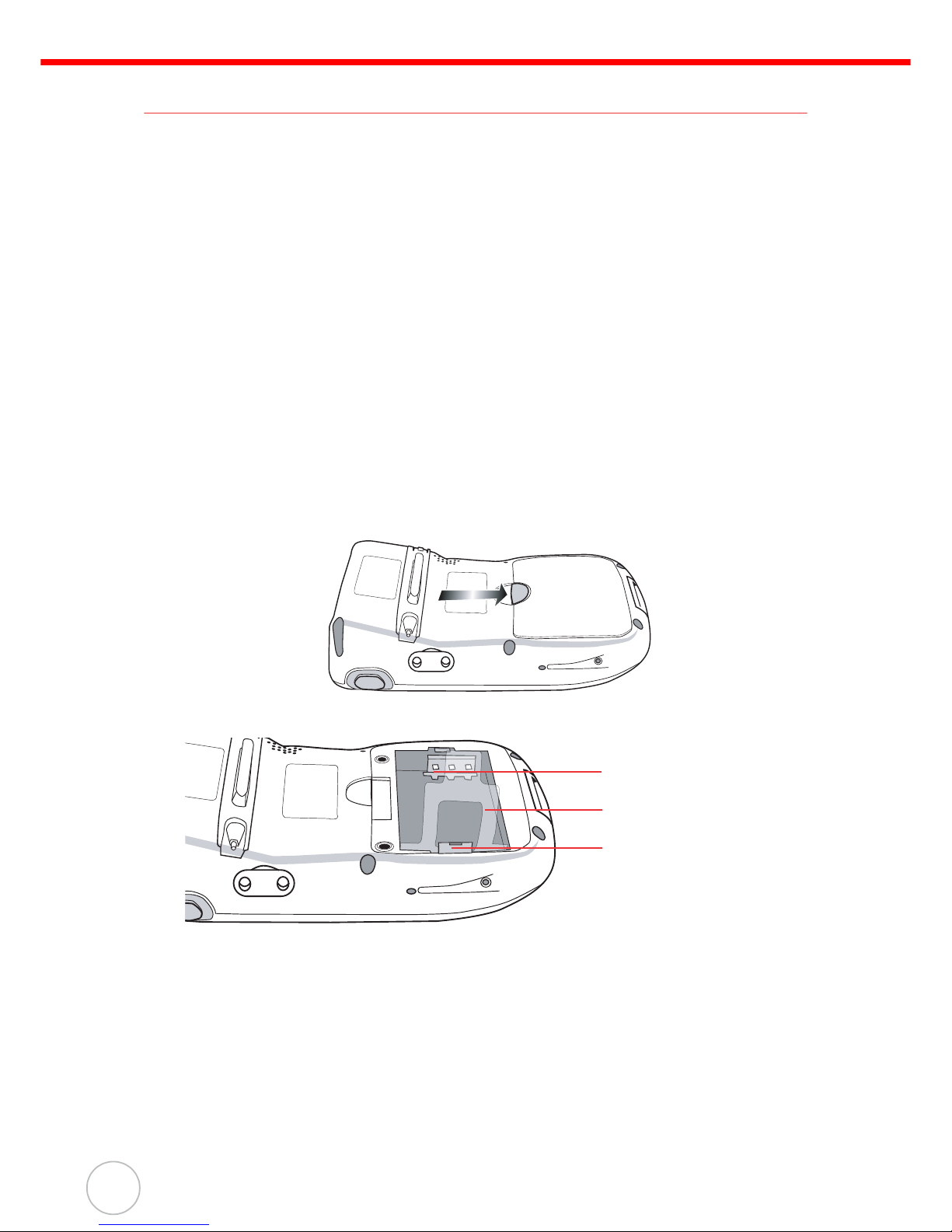

1. Access the Battery Compartment by pushing the Battery Compartment cover

Latch in the direction as shown below:

Components of the Battery Compartment are highlighted below:

NOTE: Do not remove the Plastic Battery Tab, it is useful for removing the Bat-

tery.

Compartment Contacts

Plastic Battery Tab

Battery Hook

Chapter 1 Getting Started

2. Locate the Backup Battery Switch in the Battery Compartment, and use a Sty-

lus to move it to the left in the ON position.

3. Position the Battery so the Battery Contacts align with the Battery Compartment

Contacts. Place the Battery on top of the Plastic Tab as shown below:

4. Simultaneously slide the Battery Pack into the Battery Compartment while pull-

ing the Battery Hook until the battery snaps into place as shown below:

5. Replace the Battery Compartment Cover.

Backup Battery

Switch

Contacts

Plastic Tab

Battery Hook

Chapter 1 Getting Started

Charging the Battery

Charge the PA600 for at least 16 hours prior to initial use. After the initial charge, the

PA600 will recharge to full capacity in about 4 hours. Only use the PA600 USB Charg-

ing Cable or the PA600 Cradle for charging the device.

CAUTION! Operating the PA600 for the first time without the AC Adapter, and

without fully charging the Backup Battery may result in RAM memory

data loss. When the Main Battery is removed, the Backup Battery

retains RAM data for 2 hours. Charge the battery within this time

period to avoid data loss.

NOTE: Turn the Backup Battery switch to the ON position before charging the

Battery. Data loss may occur if the Backup Battery is not properly

charged.

Charging the Battery using the USB Cable

1. Press and hold the USB Charging Cable’s Release Buttons while connecting to

the PA600 (1).

2. Plug the AC Adapter Cable into the USB Charging Cable’s power jack (2).

3. Plug the other end of the AC Adapter Cable into an electrical outlet (3).

Chapter 1 Getting Started

Charging the Battery with the Docking Station

1. Plug the AC Adapter Cable into the Docking Station’s power jack, and connect

the other end of the AC Adapter into an electrical outlet.

2. Slide the PA600 down into the Docking Station until it

snaps into place.

3. The connection is secure when the PA600’s bottom

edge aligns with the Cradle. (The PA600’s LED indica-

tor lights up red.)

Checking the Battery Status

If the battery level becomes low during the course of normal use, a status icon

appears on the PA600’s screen indicating low or very low battery status. In both

cases, perform a Microsoft ActiveSync operation to backup data, and recharge the

PA600 as soon as possible. If the battery level reaches low status, the device will

enter a sleep mode and cannot power up until the battery is charged, or until the

PA600 connects to an external power source. Windows Mobile 6.1 will retain installed

applications and data when the main battery is drained for extended time periods.

LED Status

LED Description

PA600 Solid Red Charging.

Solid Green Charging Complete.

Docking

Station

Power LED Power is On.

Charging LED Charging (For Spare Battery Only).

Sync LED Synchronization is occurring.

Chapter 1 Getting Started

Connecting the PA600 to a PC

Connect the PA600 to a PC with the USB Cable through the following:

1. Press and hold the USB Charging Cable’s Release Buttons while connecting to

the PA600 (1).

2. Connect the USB Charging Cable to the PC/Notebook’s USB Port and plug the

AC Adapter Cable into the USB Charging Cable’s power jack (2).

3. Plug the other end of the AC Adapter into an electrical outlet (3).
