Up-shine Lighting UP-DB15-1.2-45W Guida utente
Technical Application
Guide for UP-SHINE
LED Double-emitting
Batten
UP-DB15-1.2-45W

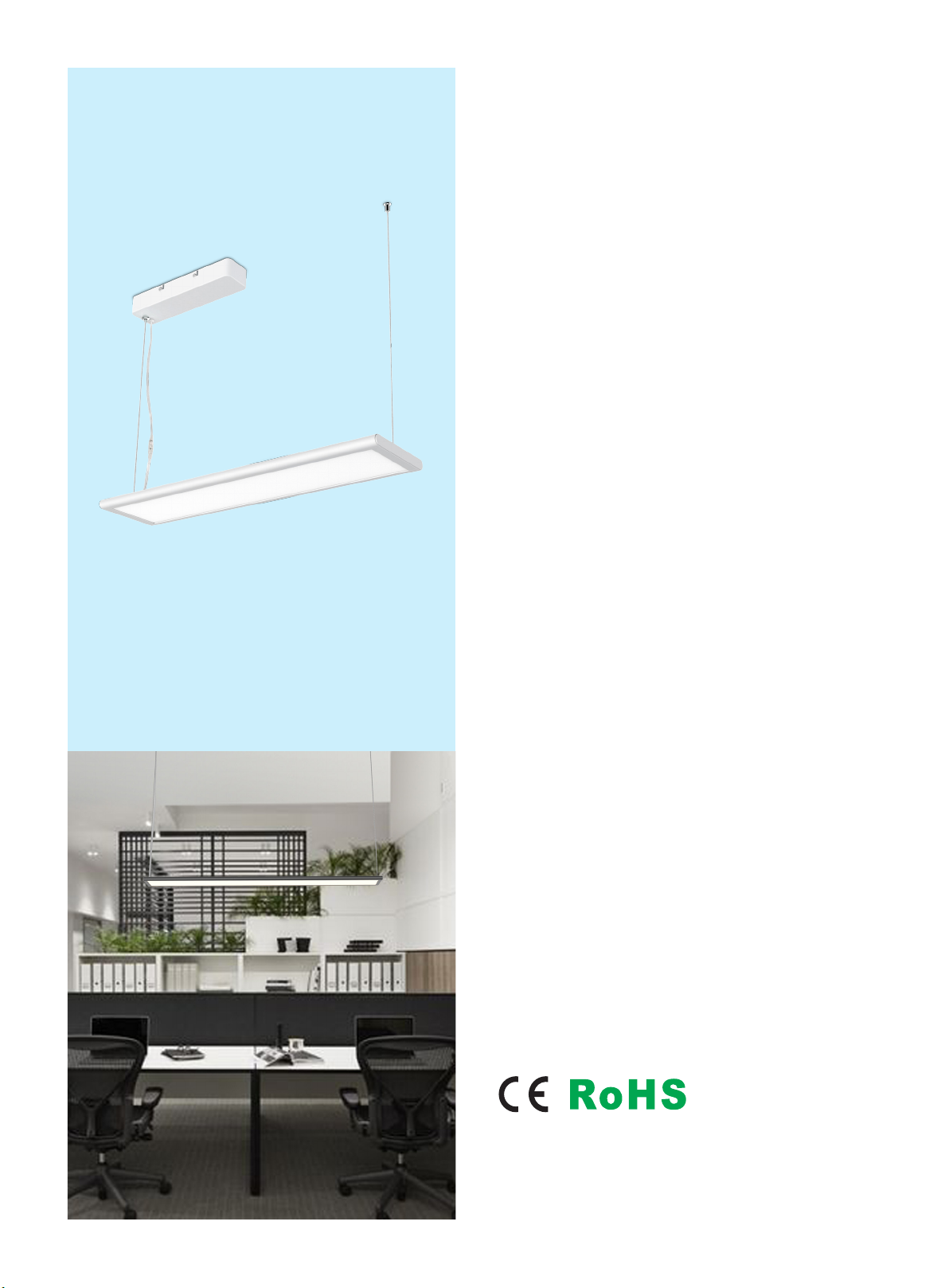

Introduction
www.upshine.com [email protected]
DB15 suspending led batten light is a double-
emitting luminaire designed with 270°
wide beam angle. Distribute 60% lumens
downwards to satisfying the basic requirement
for activities and 40% lumens upwards to
creating a brilliant lighting atmosphere. The
double-emitting batten is equipped with high
brightness SMD LED in high color rendering
and top quality LGP to provide extremely
uniform lighting. Appearance design looks
fashionable and elegant with unique round
curved profile, this makes our DB15 ideal for
decorative and illumination.
• Up to 80% energy saving compared to
standard CFL
• Long lifetime of 40,000 hours
• Triac dim
• 270° wide beam angle
• CCT: 3000K 4000K 5000K 5700K
• No UV/IR light
• Environment friendly, without Mercury or
any other hazardous substances
Application notes
•IP40 for indoor use only
•The lamp must be installed by professional
electrician
•Ensure the power supply is switched off
before fitting this product
•Do not touch the lamp when in use
•Keep away from hot steam and corrosive gas
Application Areas
Widely used in office, meeting room, hotel,
school etc.
Certificate
Fixture Compatibility
Rated
Wattage
Electrical
Classification
Ingress
Protection
Operating
Temp
Operating
Humidity
Storage
Temp
45W ⅠIP40 -20oC~45oC 0~90% -20oC~65oC
Driver data DIM Main Power
Input rated Voltage AC230V AC230V
Frequency 50Hz 50Hz
Input Voltage AC200-240V AC200-240V
Efficiency 84% ≥87%
Total load Wattage 45W±5% 45W±5%
Power Factor ≥0.85 ≥0.9
Rated input current ≤0.27A ≤0.27A
Full load output Voltage DC28-40V DC24-40V
Rated output current 1050mA 1050mA
Output current range 1050mA±5% 1050mA±5%
Power tolerance ±5% ±5%
Current output tolerance ±5% ±5%
Dimming range 8%-100% −
Dimmer Triac dimmers −
Short circuit protection PASS PASS
Over voltage protection PASS PASS
Over temperature protection PASS PASS
THD <20% <20%
Withstand voltage AC1500V AC1500V
Technical Specifications
Model Voltage Power Power
Factor
Lumen
(±5%)
Beam
angle CCT Lifespan CRI Dimmable Dimension
UP-DB15-1.2-45W AC230V 45W ≥0.9 2970 270o3000K 40000h ≥80 No L1200*W150*H19mm
UP-DB15-1.2-45W AC230V 45W ≥0.9 3460 270o4000K 40000h ≥80 No L1200*W150*H19mm
UP-DB15-1.2-45W AC230V 45W ≥0.9 3190 270o5000K 40000h ≥80 No L1200*W150*H19mm
UP-DB15-1.2-45W AC230V 45W ≥0.9 3100 270o5700K 40000h ≥80 No L1200*W150*H19mm
UP-DB15-1.2-45W-D AC230V 45W ≥0.9 2830 270o3000K 40000h ≥80 Yes L1200*W150*H19mm
UP-DB15-1.2-45W-D AC230V 45W ≥0.9 3370 270o4000K 40000h ≥80 Yes L1200*W150*H19mm
UP-DB15-1.2-45W-D AC230V 45W ≥0.9 3100 270o5000K 40000h ≥80 Yes L1200*W150*H19mm
UP-DB15-1.2-45W-D AC230V 45W ≥0.9 3060 270o5700K 40000h ≥80 Yes L1200*W150*H19mm

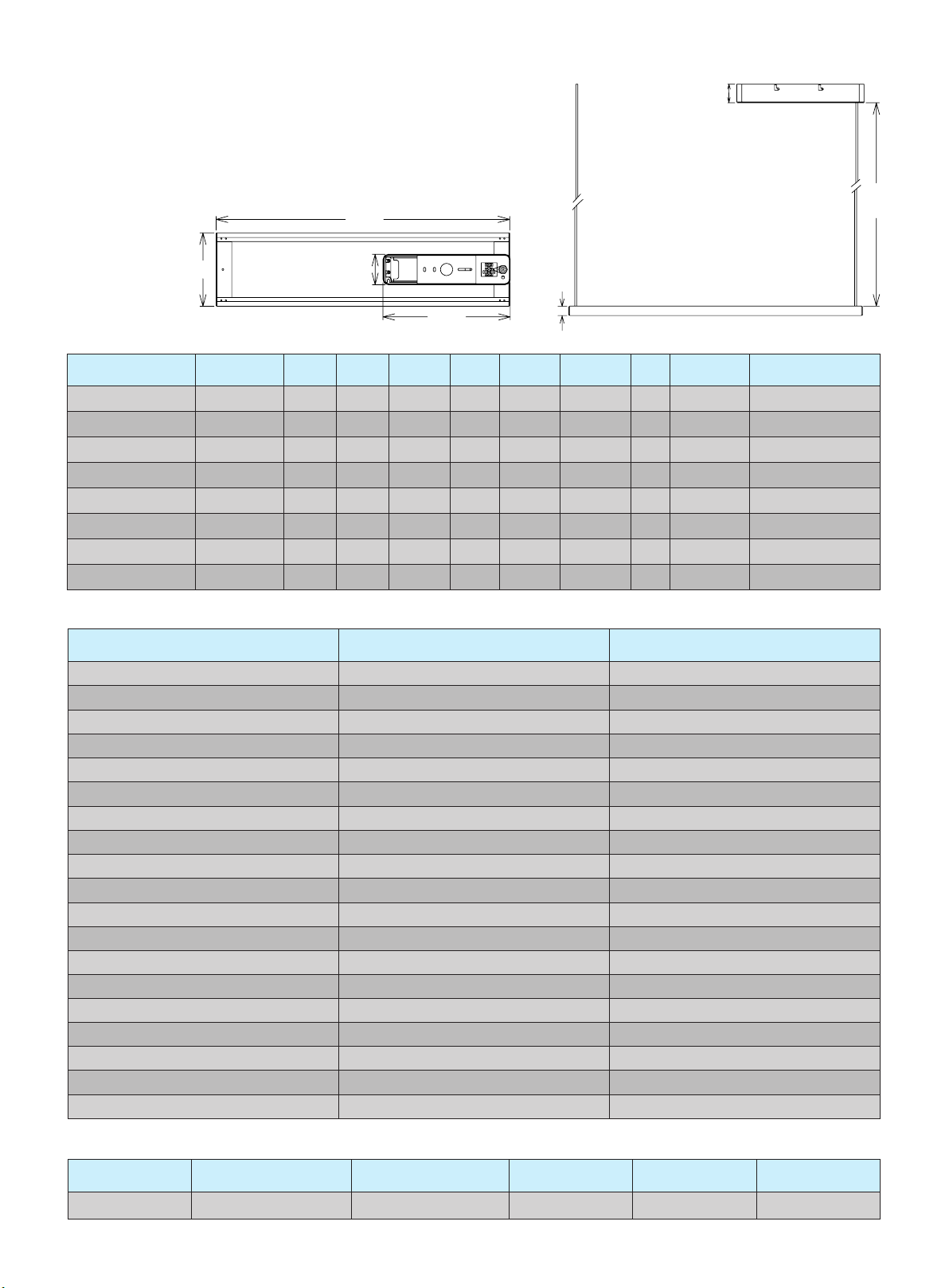

Driver data Sheet
Product Information
www.upshine.com [email protected]
150
1200
62
260
38
1000
19
Photometric Diagram
Spectral Distribution
Polar intensity diagram
Polar intensity diagram Polar intensity diagram
Polar intensity diagramBeam diagram
Beam diagram Beam diagram
Beam diagramCartesian intensity diagram
Cartesian intensity diagram Cartesian intensity diagram
Cartesian intensity diagram
UNIT: cd
AVERAGE BEAM ANGLE(50%): 291.2 DEG
-/+180
-120
-90
-30
120
90
30
0
140
280
420
560
700
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 236.0 DEG
-/+180
-120
-90
-30
120
90
30
0
140
280
420
560
700
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 251.1 DEG
-/+180
-120
-90
-30
120
90
30
0
140
280
420
560
700
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 291.0 DEG
-/+180
-120
-90
-30
120
90
30
0
150
300
450
600
750
0
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
2.50
2.25
2.00
1.75
1.50
1.25
1.00
0.75
0.50
0.25
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
2.50
2.25
2.00
1.75
1.50
1.25
1.00
0.75
0.50
0.25
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Height Eavg, Emax Angle: 90.00deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 257.3 lm
Height Eavg, Emax Angle: 90.00deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 267.5 lm
Height Eavg, Emax Angle: 90.00deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 258.1 lm
Height Eavg, Emax Angle: 90.00deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 286.3 lm
380 500 600 700 800 380 500 600 700 800
380 500 600 700 800380 500 600 700 800
Wavelength(nm) Wavelength(nm)
Wavelength(nm)Wavelength(nm)
Max=9514 [1.0=20000] Max=9877 [1.0=20000]
Max=6934 [1.0=20000]Max=6144 [1.0=20000] 3.00 SDCM F5000K
x=0.3502 y=0.3677
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
5700K
4000K3000K
5000K 5700K
3000K 4000K
5000K
www.upshine.com [email protected]
3.90 SDCM F5700K
x=0.3324 y=0.3515
3.72 SDCM F3000K
x=0.4474 y=0.4088
2.13 SDCM F4000K
x=0.3842 y=0.3851
Polar Diagram Comparison
AVERAGE BEAM ANGLE (50%): 251.1DEG
UNIT: cd
C0/180, 270.8 deg
C30/210, 269.2 deg
C60/240, 264.9 deg
C90/270, 199.4 deg
140
280
420
560
700
0O
180O
150O
-150O
120O
-120O
90O
-90O
60O
-60O
30O
-30O
0
Temperature (oC)
The driver lifespan is based on capacitor working temperature.
IC
Capacitor
MOS
PCB
LED
Fitting
Environmental temperature
90
80
70
60
50
40
30
20
10
0
11:13:13
11:31:10
11:49:10
12:07:10
12:25:10
12:43:10
13:01:10
13:19:10
13:37:10
13:55:10
14:13:10
14:31:10
14:49:10
15:07:10
15:43:10
16:01:10
16:19:10
16:37:10
Time
Driver lifetime & LED light decay rate
90000
80000
70000
60000
50000
40000
30000
20000
10000
0
65oC 75oC85oC 95oC 105oC
Lifetime (hours)
Capacitor Tc (oC)
Driver Lifetime LED Light Decay Rate
% Luminous Flux
FLUX
△U'V'
110%
105%
100%
95%
90%
85%
80%
75%
70%
0.0040
0.0035
0.0030
0.0025
0.0020
0.0015
0.0010
0.0005
0.0000
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
LifeTime (hours)
Temperature
●The testing is operated at 25°C
●The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
●The highest withstand temperature of IC, MOS could be 120°C
●The highest withstand temperature of LED junction temperature is 150°C
www.upshine.com [email protected]

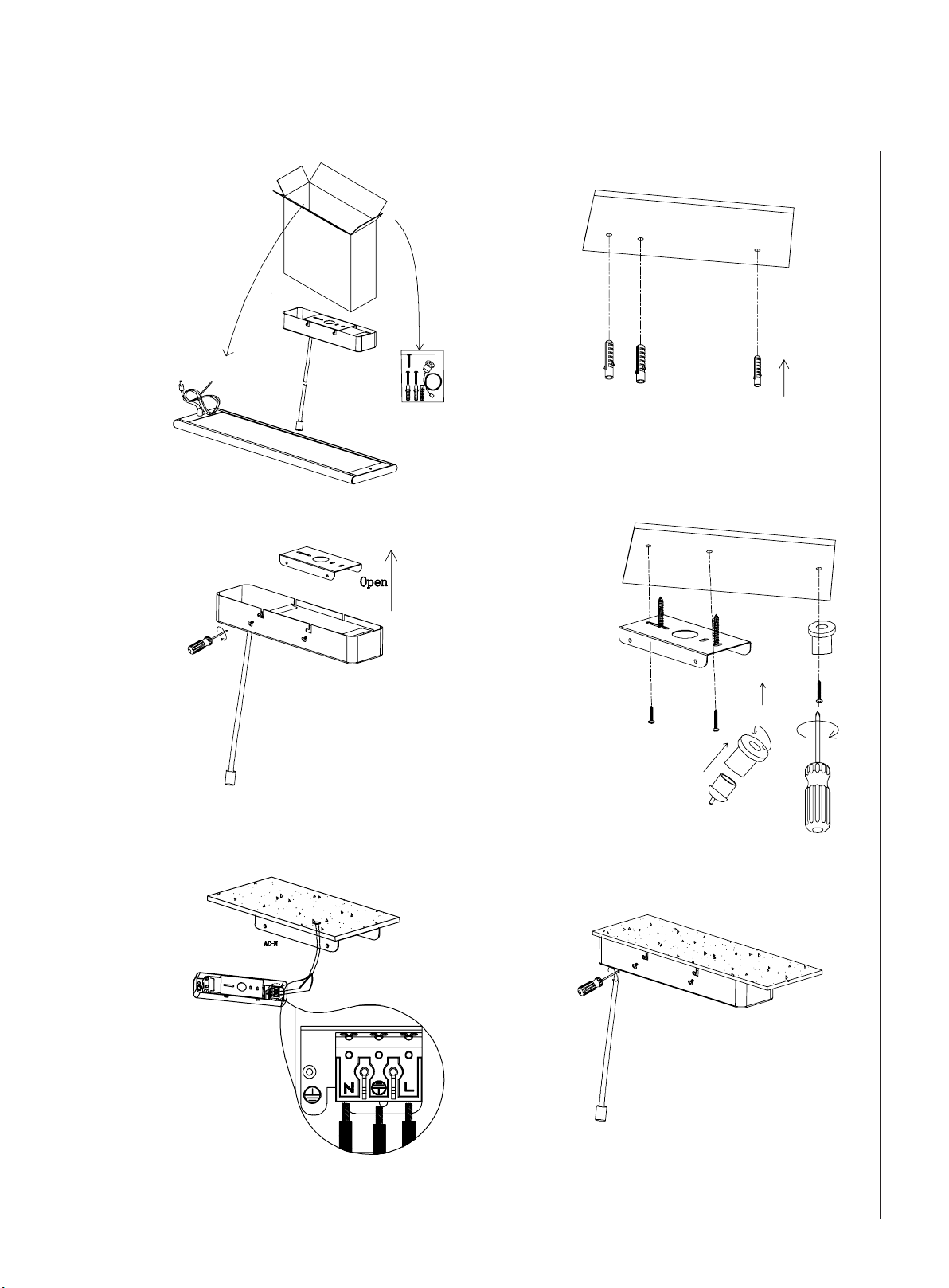

Installation 1
STEP 1
STEP 3
STEP 5
STEP 2
STEP 4
STEP 6
www.upshine.com [email protected]
Take out the fittings and accessories. Knock the plastic anchor into ceiling.
Take the bracket out from driver box. Fix the bracket and base of the steel
wire on the ceiling by screws.
Power off. Connect the L/N/G wires to the
connection terminals in the driver box.
Attach the driver box to the bracket and fix it by screws.
Packaging Information
SIZE(CM) N.W/pc
(KGS) G.W.(KGS) Q'TY(PCS)
Carton 155*43.5*23 3.3 21.9 6
CTNS Q'TY(PCS) VOLUME(CBM)
20'' standard
container 179 1074 28
40'' standard
container 358 2148 56

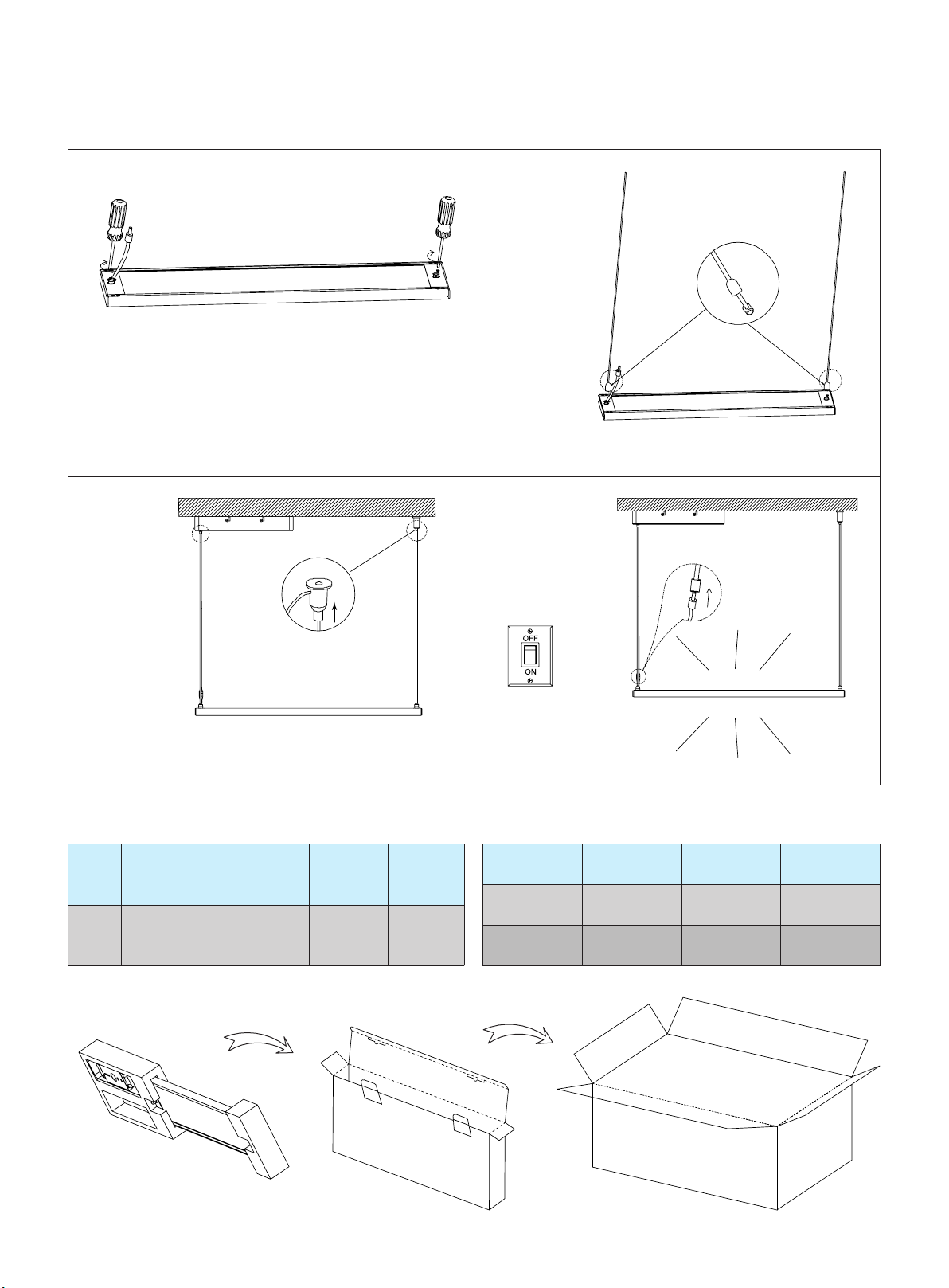

STEP 7
STEP 9
STEP 8
STEP 10
Connect the DC plug, adjust
the length of hanging wire
to proper height. Restore
the power and switch on.
www.upshine.com [email protected] Phone: +86 755 2919 7389
Add: 2nd building Dingfeng High-Tech Zone, Fuyuan 1st road, Fu Yong Sub-district, Bao'an, Shenzhen China
Fasten the steel wire base onto the latten with screws. Connect the steel wires to the base until it’s tightened.
Connect the other end of steel wire to the base on the ceiling.
