urmet domus 1722 Manuale utente
DS 1722-117 LBT 20700
Mod.
1722
ONE- AND TWO-FAMILY PANEL FOR KIT 1722/95 - 1722/96
Sch./Ref. 1722/115 - 1722/116
IP55
IK07
7
DS1722-117
ENGLISH
INDEX
1 DESCRIPTION............................................................................................................................................ 7
2 CONTROL PANEL INSTALLATION ............................................................................................................ 8
2.1 DESCRIPTION OF COMPONENTS .................................................................................................... 8
2.2 INSTALLATION METHOD................................................................................................................... 9
2.3 DESCRIPTION OF THE TERMINALS................................................................................................ 10
2.4 PEDESTRIAN GATE ELECTRIC LOCK ACTIVATION TIME SETTING ............................................. 10
2.5 CAMERA LED ON / OFF ADJUSTMENT .......................................................................................... 10
2.6 SPEAKER SOUND LEVEL ADJUSTMENT........................................................................................ 11
3 TECHNICAL SPECIFICATIONS ............................................................................................................... 11
4 KEY TO SYMBOLS .................................................................................................................................. 11
1 DESCRIPTION
The one- and two-family panels ref. 1722/115 and ref. 1722/116 have the following main features:
•Vandal-proof panel with weatherproof zama front (IP55).
•Wide-angle colour camera on panel with lighting of the subject by means of LED.
•Backlit white name holder tag.
• CallforwardconrmationwithauditorysignallingandbyswitchingnametagbacklightingLEDso.
For the description of all system functions and congurations, see the installation booklet
providedwiththekitref.1722/95andref.1723/96.
8DS1722-117
2 CONTROL PANEL INSTALLATION
2.1 DESCRIPTION OF COMPONENTS
FRONT VIEW
1
2
3
4
5
6
7
1
2
3
4
5
6
7
INSIDE
15 8
9
10
12
11
14
13
1. Speaker
2. Camera lighting LED
3. Camera
4. Name tag(s)
5. Calling button(s)
6. Microphone
7. Front closing screw
8. Dip-switch
9. Terminal boards
10. Hole for running wires
11. Speaker volume trimmer
12. Do not turn this trimmer
13. Jumper for turn ON the Led camera.
14. Do not turn this Jumper
15. Anti-reectionseal
Panel with 1 calling button
Ref. 1722/115
(present only in
one-household kit Ref. 1722/95)
Panel with 2 calling buttons
Ref. 1722/116
(present only in
two-household kit Ref. 1722/96)
9
DS1722-117

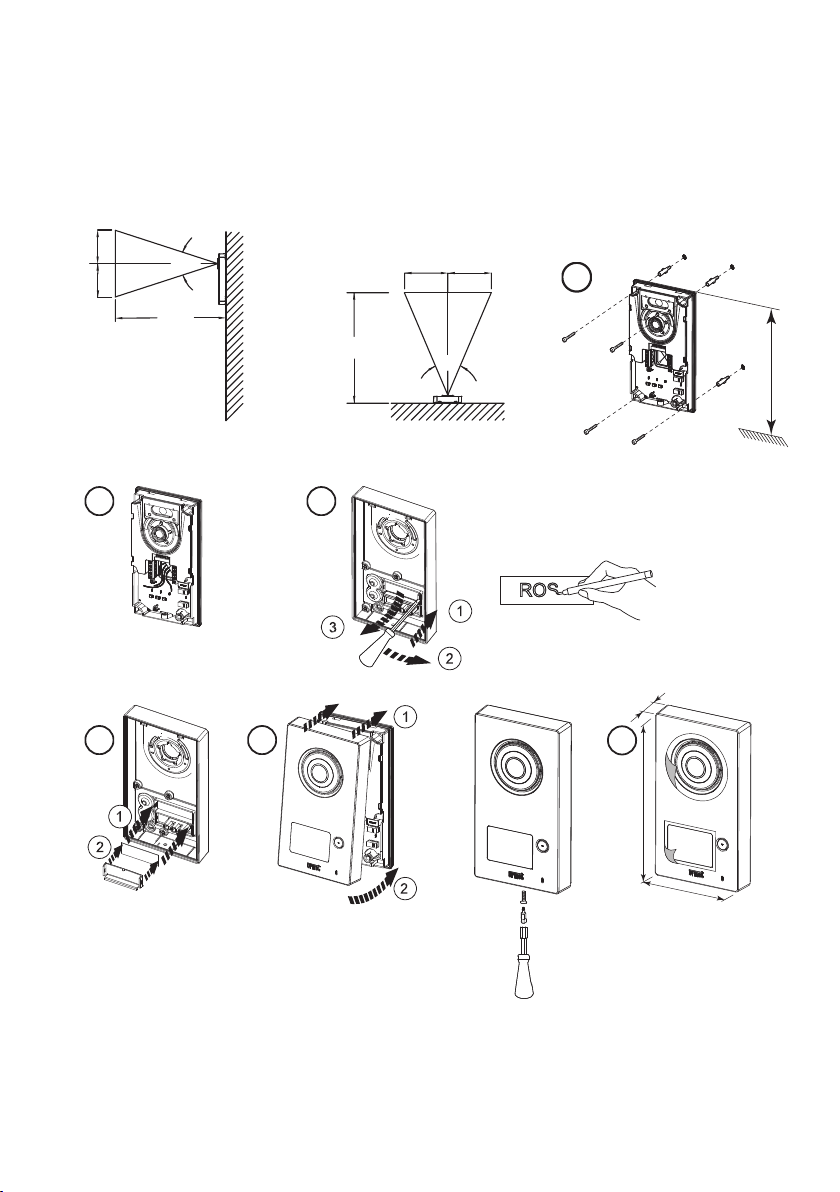

2.2 INSTALLATION METHOD
•Install the panel at the indicated heights checking that the caller is framed by the camera.
•Connect the wires to the terminal boards.
•Fit the name tags on the front.
•Program the device.
• Ifnecessary,adjustthespeakervolume.
•Close the metal lid of the panel.
• Removetheprotectivelms.
Vertical camera range Horizontal camera range
155÷160 cm
1
0,41m
0,41m
1,0m
0,58m 0,58m
1,0m
45°
60°
2
4 5
3
6
100 mm
180 mm
28 mm
10 DS1722-117
2.3 DESCRIPTION OF THE TERMINALS
]
AP1 Hall button terminals for pedestrian electric lock
]
AP2 Hall button terminals for garage gate lock
C
}
Garage gate opener operation dry contact - maximum switch 1 A @ 30 V
NO
L
}
BUS line
L
SE2
}
Pedestrian electric lock operation - maximum switch 12 V~ 15 VA
SE1
2.4 PEDESTRIAN GATE ELECTRIC LOCK ACTIVATION TIME
SETTING
The pedestrian gate electric lock activation time can be adjusted using the dip switches present in the
calling station:
2.5 CAMERA LED ON / OFF ADJUSTMENT
The position of the jumper on the inside of the device can be used to select the turning ON or OFF the
camera LED. Duringinstallationphases,theledsoftheTVcameracanbedisabled.Thisoperationmust
becarriedoutonlyifthecallstationisinstalledinanareawheresucientlightingisguaranteedduringthe
day and night.
Tode-activatetheledsoftheTVcamera,operateonthejumperindicatedinthegure.
ON (default)OFF
JP2
11
DS1722-117
2.6 SPEAKER SOUND LEVEL ADJUSTMENT
Volumesarecalibratedbydefaultsonottorequireadjustmentsinmostcases.
Useascrewdrivertoadjustthespeakervolume,ifrequired.
Do not change the position
of this trimmer
3 TECHNICAL SPECIFICATIONS
Maximum consumption: ......................................................................................................................300 mA
Stand-by(basicconguration): ..............................................................................................................50 mA
Working power: ............................................................................................................................max 10.4 W
Dimensions (LxDxH):.........................................................................................................100 x 180 x 28 mm
Name tag dimensions: ..................................................................................................................48 x 15 mm
Tag and button light: ................................................................................................................... White LEDs
Degree of protection of casings:...............................................................................................................IP55
Degree of protection from mechanical shocks: ........................................................................................IK07
Working temperature range: ....................................................................................................... -10 ÷ +50° C
Max. humidity: ................................................................................................................................... 90% UR
Max C-NO contact capacity: ..........................................................................................................1 A @ 30 V
Max SE1-SE2 contact capacity: .........................................................................................12 V~ Max 15 VA
Wireswithcross-sectionareaof0.5mm2orlargermustcomplywithIEC60332-1-2;wireswith
crosssectionareasmallerthan0.5mm2mustcomplywithIEC60332-2-2.
4 KEY TO SYMBOLS
Symbol Description
~Alternating input voltage
See the installation manual of the device
