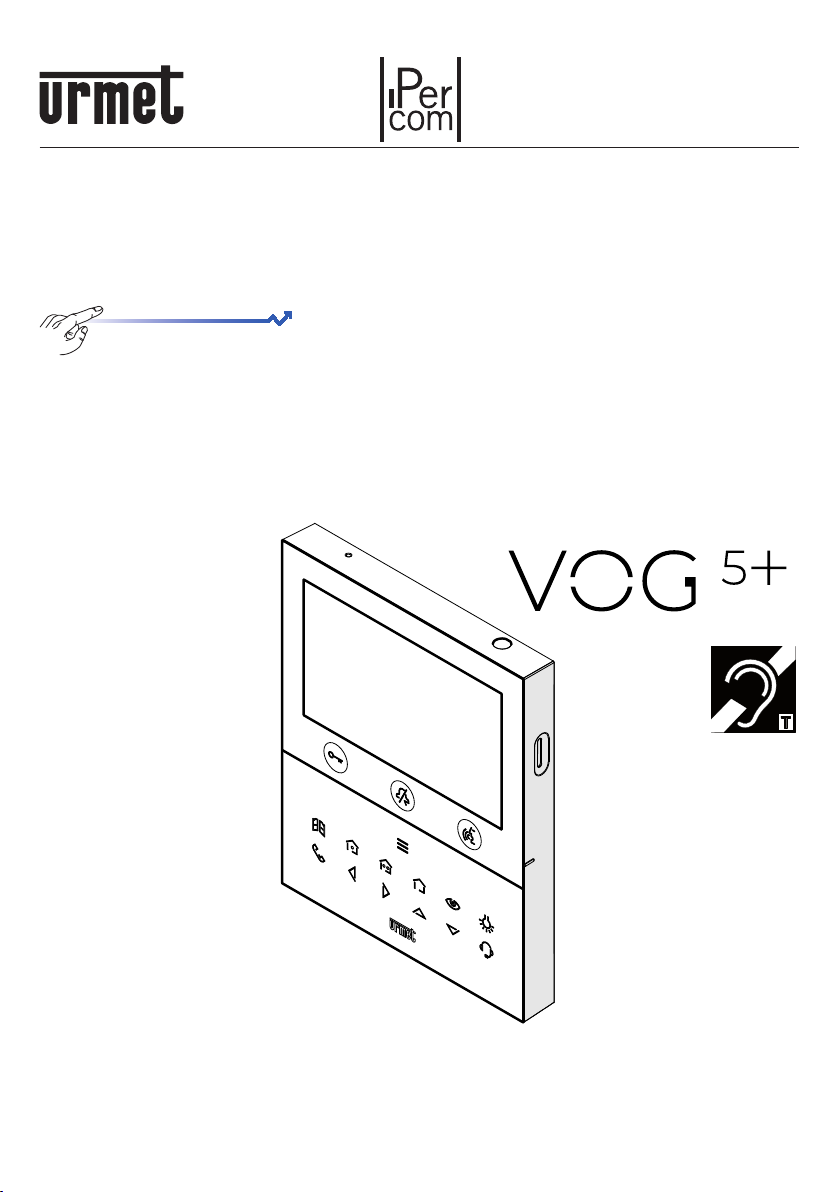

IP 5” VIDEO DOOR PHONE US

MONITEUR IP 5” US

VIDEOINTERFONO IP 5” US

Sch./Ref. 1761/18

(white / blanc / blanco)

Sch./Ref. 1761/19

(black / noire / negro)

PARAMETER CONFIGURATION BOOKLET

NOTICE DE CONFIGURATION DES PARAMÈTRES

MANUAL DE CONFIGURACIÓN PARÁMETROS

Interactive Links

2DS1761-047

ENGLISH

INDEX

1. GENERAL DESCRIPTION......................................................................................................................... 3

2. CONFIGURATION MENU......................................................................................................................... 3

2.1 Audio ............................................................................................................................................... 3

2.2 Video ............................................................................................................................................... 5

2.3 Language selection ........................................................................................................................ 5

2.4 Date and time ................................................................................................................................. 6

2.5 Activating the call forwarding function (master only) ...................................................................... 6

2.6 Call diversion function (master only) ............................................................................................... 9

2.7 Call button assignment ................................................................................................................. 11

2.8 Activation button assignment ....................................................................................................... 12

2.9 Automatic door open (master video door phone only) ................................................................. 14

2.10 Mute function .............................................................................................................................. 16

2.11 Touchless commands .................................................................................................................. 18

2.12 Exporting video messages (master only)....................................................................................... 19

2.13 System information ...................................................................................................................... 21

2.14 Restore factory setting ................................................................................................................. 22

FRANÇAIS.............................................................................................................................................. 23

ESPAÑOL................................................................................................................................................ 44

The document contains INTERACTIVE LINKS for faster and more ecient consultation.

Interactive Links

DS1761-047

1. GENERAL DESCRIPTION

This booklet describes the conguration of parameters and functions in the conguration menu of the video

door phone.

2. CONFIGURATION MENU

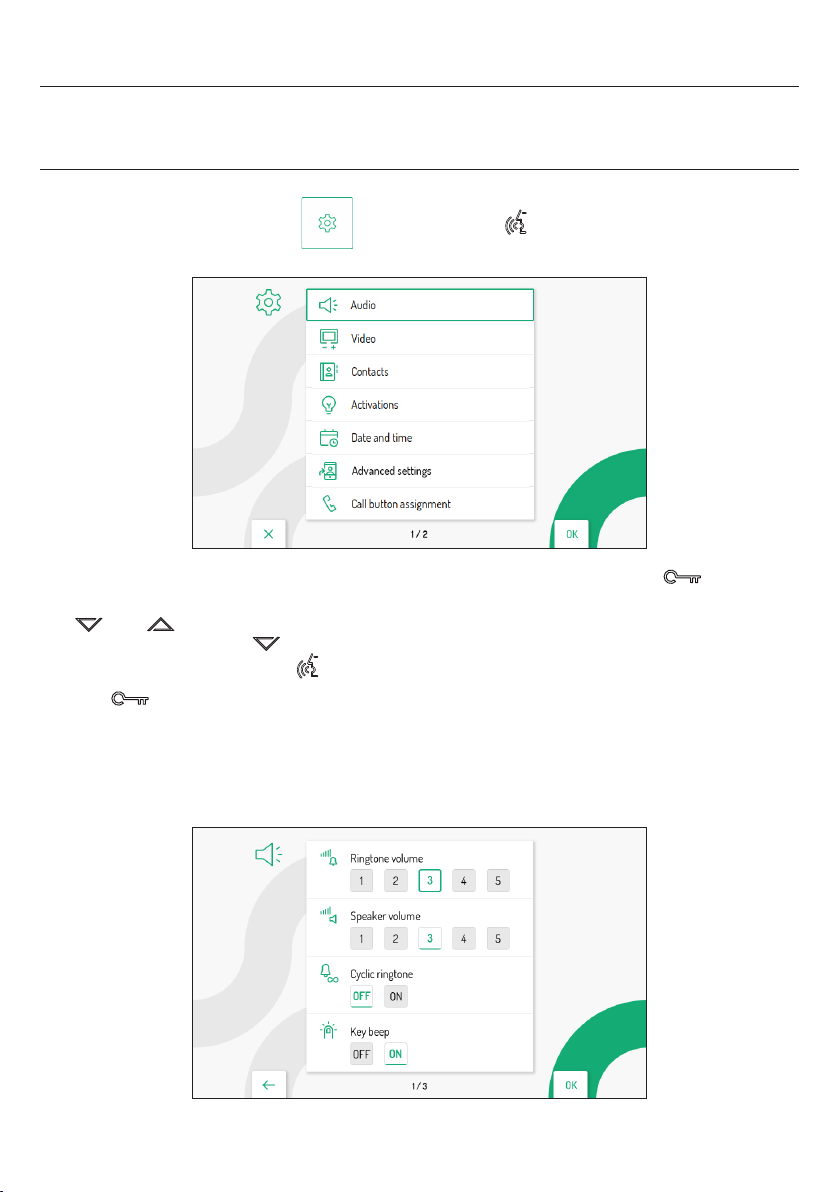

The conguration menu allows conguring the video door phone’s parameters and functions. On the

homepage, select the following icon , then press the key to display the conguration menu.

The display shows the following screen:

To exit the conguration menu and go back to the Homepage, simply press the key. In any

case, the video door phone exits the menu after 60 seconds of inactivity.

The and keys allow selecting parameters or functions within the menu. After selecting the last

displayed item, pressing the key again allows you to switch to the next conguration screen. When

selection has been made press the key to carry out the conguration.

Press the key to return to the conguration menu after selecting a parameter or function.

The congurable parameters and functions within the menu are described below.

2.1 AUDIO

In the conguration menu, select the “Audio” item to adjust the audio volume of the video door phone and

select the ring tone according to the type of call.

4DS1761-047

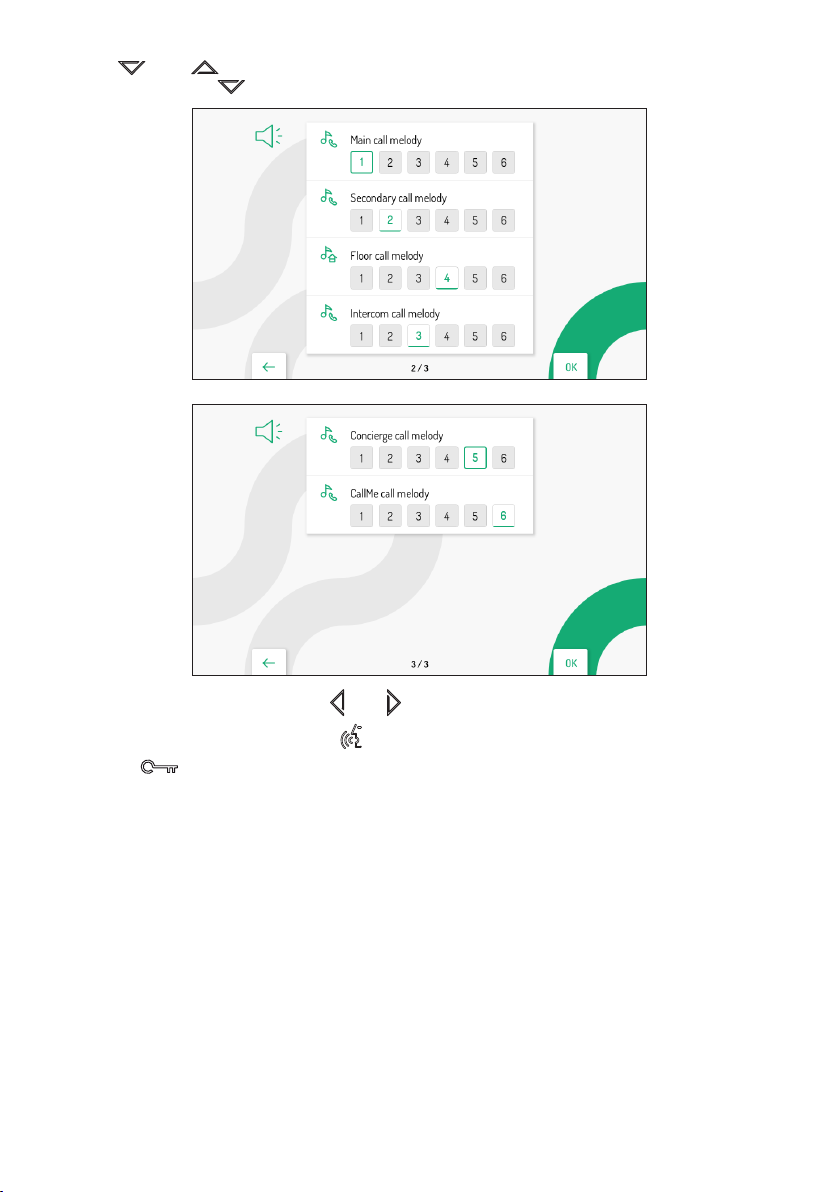

Press the and keys to select the parameter to be adjusted. After selecting the last displayed

parameter, pressing the key again allows you to switch to the next screen.

After selecting the parameter, press the and keys to adjust the value of the selected parameter.

After conguration is complete, press the key to conrm settings and return to the conguration menu.

Press the key to cancel and go back to the conguration menu.

DS1761-047

2.2 VIDEO

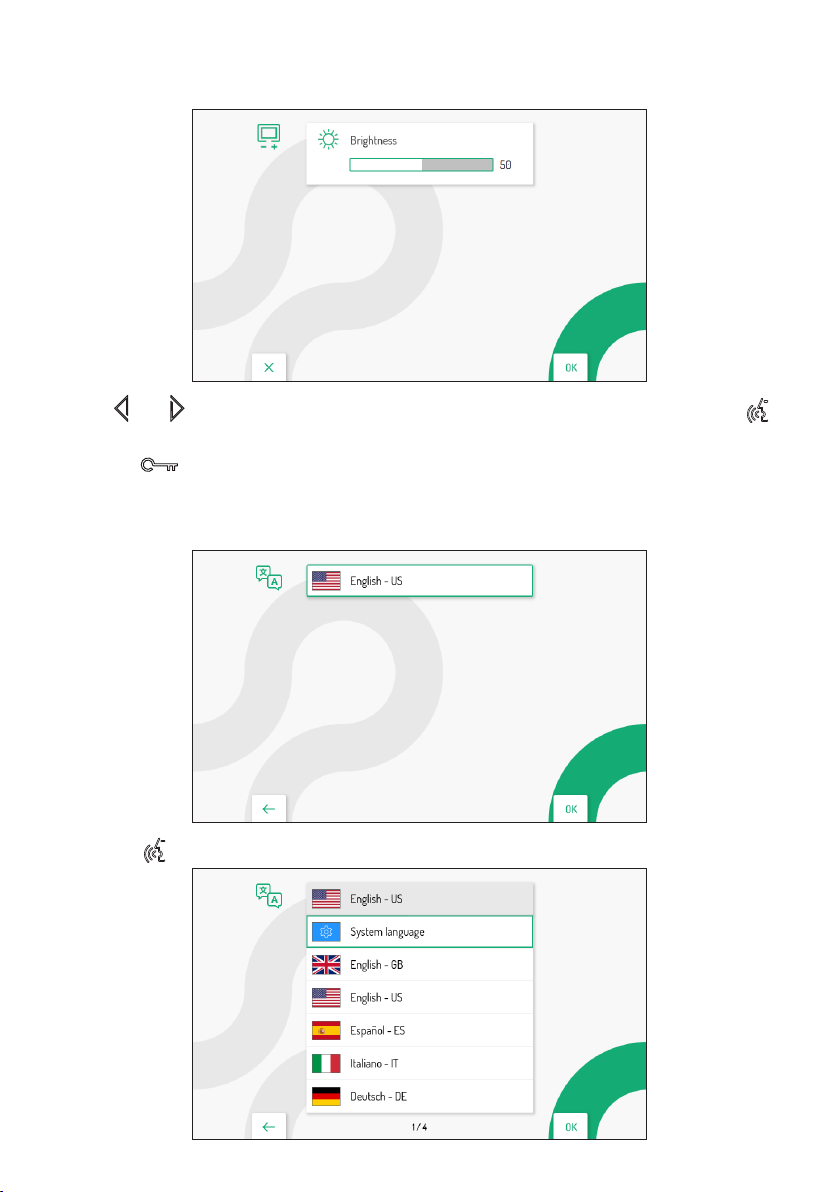

In the conguration menu, select the “Video” item to adjust the display brightness.

Press the and keys to adjust the brightness value. After conguration is complete, press the key

to conrm settings and return to the conguration menu.

Press the key to cancel and go back to the conguration menu.

2.3 LANGUAGE SELECTION

In the conguration menu, select the “Language” item to change the language of the video door phone.

Press the key to open the drop-down menu with the selection of available languages.

6DS1761-047

Press the keys and to select the language you wish to set, then press the key to conrm

your selection.

Press the key to go back to the conguration menu.

The “System language” item allows the language to be congured automatically when

conguring the Ipercom system.

2.4 DATE AND TIME

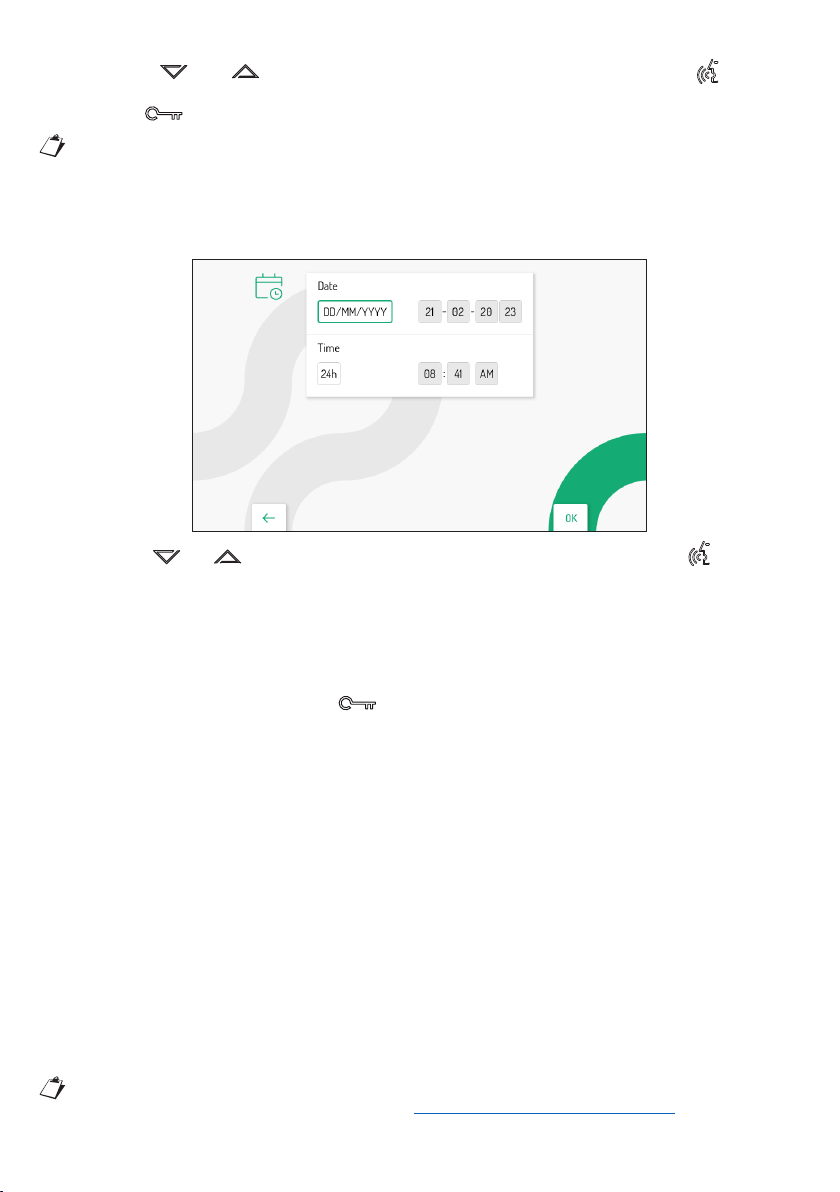

In the conguration menu, select the “Date and Time” item to set/change the date and time visible on the

video door phone.

Press the keys and to select the parameter to be congured, then press the key to carry out

the conguration.

• Date: the box on the left allows changing the format of the displayed date: DD/MM/YYYY or MM/DD/

YYYY. The boxes on the right show the date detected by the Ipercom system.

• Time: The box on the left allows changing the format of the displayed time: 24H or 12H. The boxes on

the right allow the time detected by the Ipercom system to be displayed. If the time detected is before

noon, AM is displayed in the last box, whereas PM is displayed, if it is after noon.

After conguration is complete, press the key to return to the conguration menu.

2.5 ACTIVATING THE CALL FORWARDING FUNCTION (MASTER

ONLY)

ATTENTION! To enable the function, a router providing Internet access to the video door phone must be

present.

The “Call forwarding” function allows forwarding an audio/video or audio only call to a Smartphone with

Android or iOS operating system.

In order to receive the call, the Urmet CallMe App must be installed on the Smartphone, connected to the

Internet via its own data connection or WiFi.

Depending on the Ipercom system conguration (“CallMe Manager Support” parameter enabled or

disabled) it is necessary to follow the correct procedure for conguring and activating the call forwarding

function:

CallMe Manager support enabled on the Ipercom system

1. Download the Urmet CallMe App from the Apple Store (IOS) or the Play Store (Android)

2. Create an account on the Urmet Cloud through the CallMe App.

3. Enable the account using the PDF document sent by the administrator and the CallMe App.

For the procedure required to create an account through the CallMe App, refer to the

“Conguring the CallMe App” appendix in the Ipercom system technical manual available at

the website www.urmet.com

DS1761-047

4. In the conguration menu of the video door phone, select “Call forwarding” to congure the function.

The display shows the following screen:

5. Press key on the video door phone to verify and activate the call forwarding function

Press key to cancel the activation of the function and return to the conguration menu.

6. If successful, a screen page conrming the activation of the function will be displayed.

Press the key to close the screen and return to the function menu.

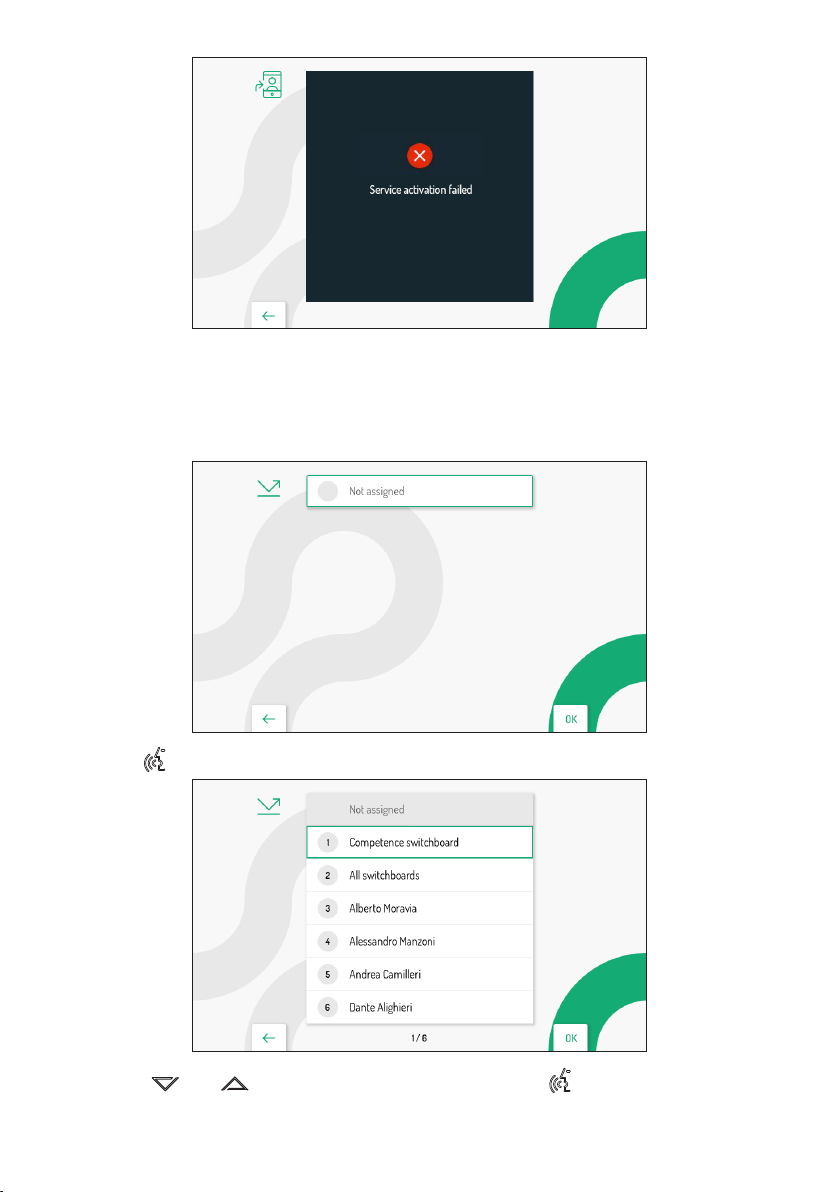

If the operation failed, a screen page indicating that the activation of the function was not successful

will be displayed.

In this case, perform the procedure again, making sure that you perform the described steps correctly.

8DS1761-047

CallMe Manager support disabled on the Ipercom system

1. Download the Urmet CallMe App from the Apple Store (IOS) or the Play Store (Android)

2. Create an account on the Urmet Cloud through the CallMe App

For the procedure required to create an account through the CallMe App, refer to the

“Conguring the CallMe App” appendix in the Ipercom system technical manual available at

the website www.urmet.com

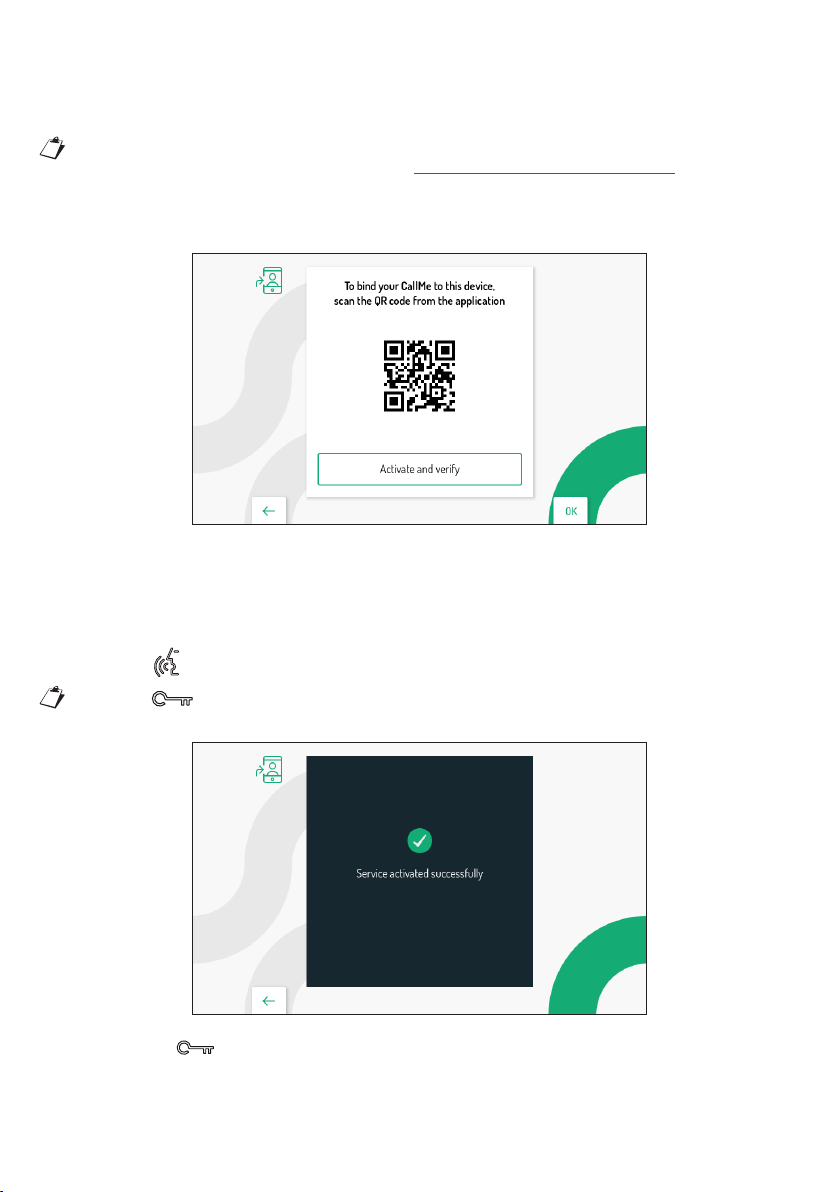

3. In the conguration menu of the video door phone, select “Call forwarding” to congure the function.

The display shows the following screen:

4. Launch the application on the smartphone where the CallMe App is installed.

5. Press button: “Settings” → “Service Manager” → “My Devices” → “Add”.

6. The QR Code Reader application on your smartphone is launched. Scan the QR Code shown on the

video door phone display with your smartphone.

7. Press key on the video door phone to verify and activate the forwarding call function.

Press key to cancel the activation of the function and return to the conguration menu.

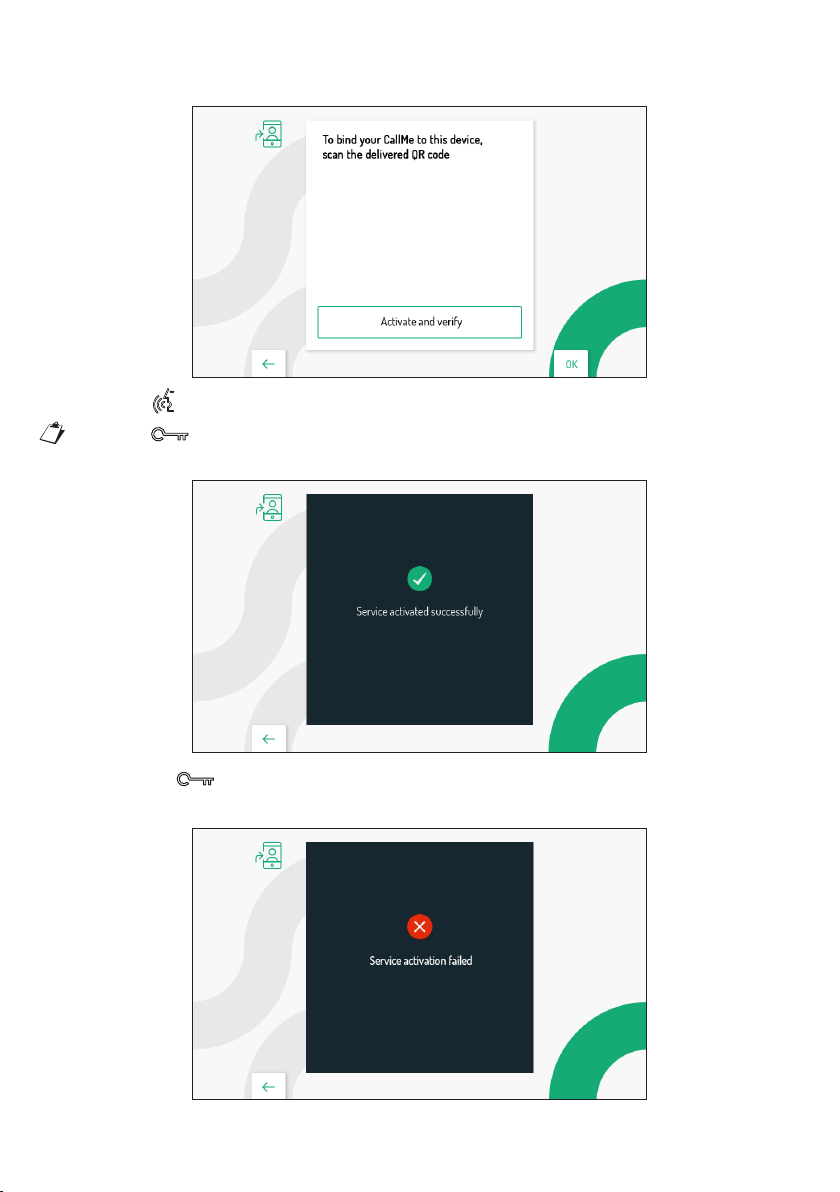

8. If successful, a screen page conrming the activation of the function will be displayed.

Press the key to close the screen and return to the function menu.

If the operation failed, a screen page indicating that the activation of the function was not successful

will be displayed.

DS1761-047

In this case, perform the procedure again, making sure that you perform the described steps correctly.

2.6 CALL DIVERSION FUNCTION (MASTER ONLY)

The call diversion function allows a call from a call station to be diverted to a contact in the address book.

In the conguration menu select “Call diversion” to activate the function.

Press the key to open a drop-down menu containing the contacts in the address book.

Press the keys and to select the contact, then press the key to conrm the contact to which

the call is diverted.

10 DS1761-047

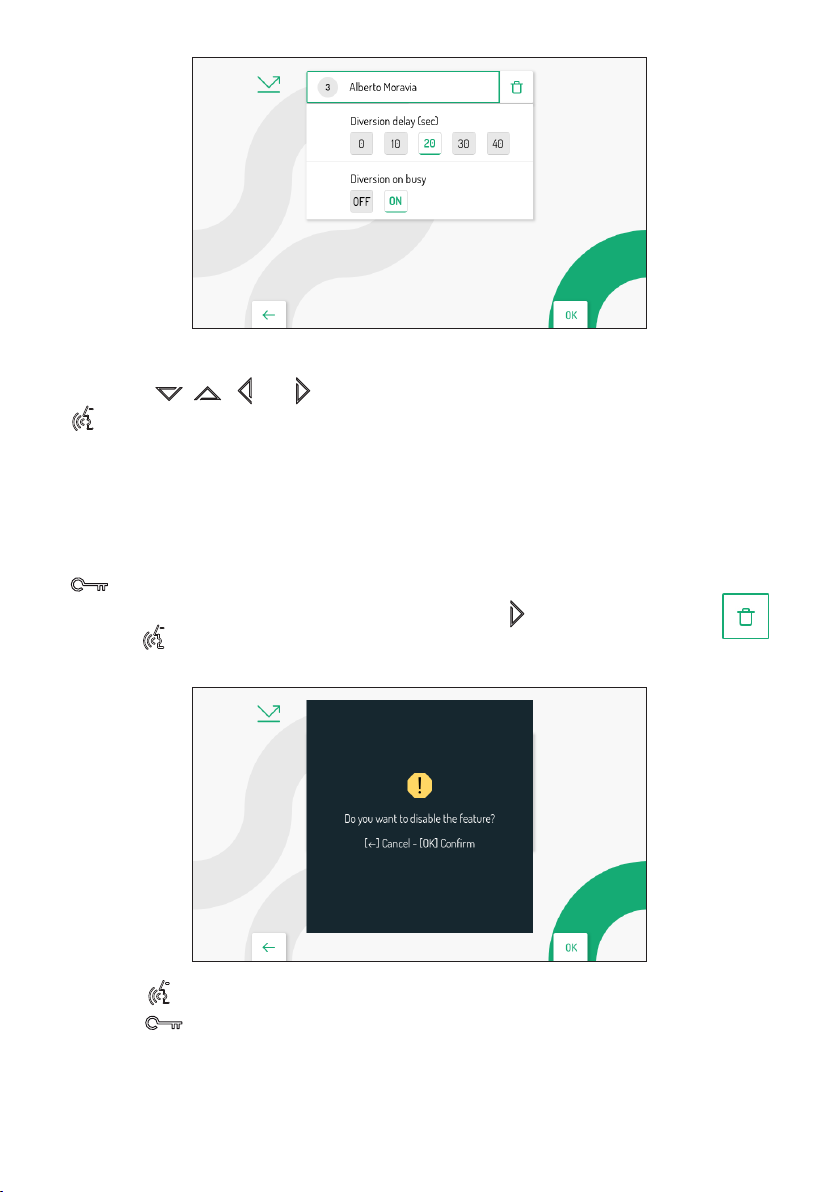

After selecting the contact, the following parameters can be congured:

Press the keys , , and to select the parameter and value to be congured, then press the

key to conrm.

• Diversion delay (sec): this parameter allows setting the waiting time within which the call will be

diverted (from 0 to 40 seconds).

• Diversion on busy: if set to ON, this parameter allows diverting the call if the video door phones in

the apartment are busy with another call.

It is possible to change the contact associated with the function by repeating the procedure described

above.

The key allows exiting the page and returning to the conguration menu.

If you wish to disable the diversion function, simply press the key to select the following icon and

press the key .

The display shows the following screen:

Press the key to conrm disabling of the function.

Press the key to cancel and return to the contact selection screen.
