US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuale utente

56K USB Modem

Quick Installation Guide

Guide d'installation rapide

Guía breve de instalación

#R24.0729.00

rev 1.0 11/07

Contents

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction .............................................................. 1

Installation Instructions .............................................2

Troubleshooting ........................................................7

Additional Information ............................................. 14

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Introduction ............................................................ 15

Instructions d'installation ........................................ 16

Dépannage .............................................................. 21

Informations complémentaires .................................. 28

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Introducción ........................................................... 29

Instrucciones de instalación ...................................... 30

Solución de problemas ............................................. 35

Información adicional ............................................... 42

Support / Assistance / Asistencia técnica .............................. 43

English

Introduction

Package Contents

Physical Features

!56K USB Modem !Telephone cable

!USRobotics Installation CD-ROM !Quick Installation Guide

LED State Condition

PWR

Solid Receiving power and driver is properly installed.

Off Not receiving power.

DATA

Flashing Modem is active.

Solid Receiving a valid data signal from a remote

modem; data transmission is possible.

Carrier Detect override is ON (

&C0

Off Modem is not active.

USRobotics

PWR DATA

Connects the modem to

your computer.

Connects the modem to your

telephone line.

English

System Requirements

Operating System

!Windows Vista™, Windows®XP, or Windows®2000

!Linux kernel 2.4.20 or higher

!Mac OS X 10.4.3 or later

Other

!Intel Pentium III 600 MHz processor or equivalent

!CD-ROM drive

!Available USB port

!56K Compatible analogue telephone line

!Country telephone adapter

Installation Instructions

Step One: Prepare for Installation

1. Uninstall all other modems that are installed on your computer. For

instructions, refer to the documentation for your previous modem.

2. Unplug all telephone and power cords connected to any previous

modem(s).

English

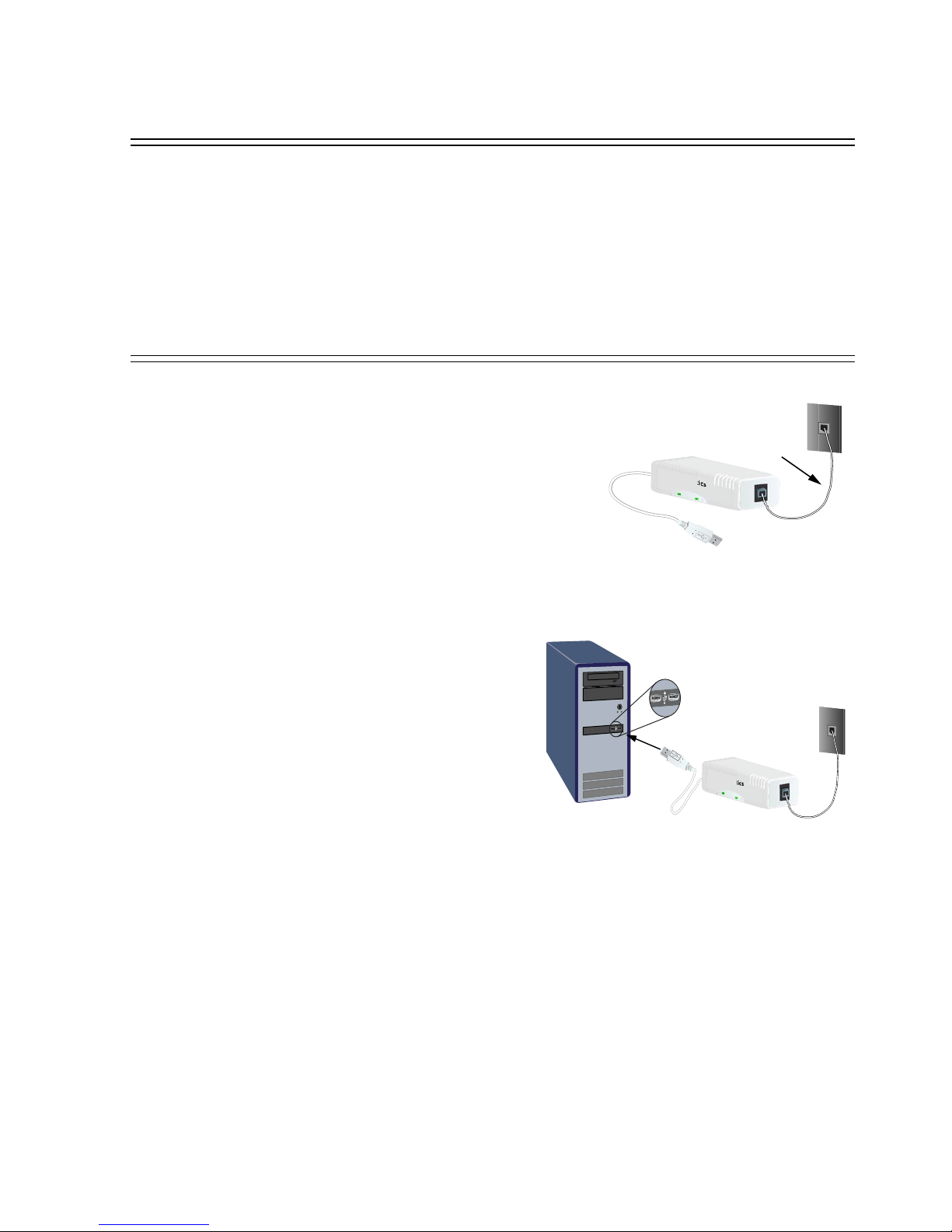

Step Two: Install the Hardware

1. Use the provided telephone cord to con-

nect the phone jack on the modem to an

analogue telephone wall jack.

To connect a telephone to the same line

as the 56K USB Modem for V.92 features

such as “Modem on Hold”, you will need

to use a telephone line splitter to connect

your modem and telephone to the same wall jack.

2. Insert the 56K USB Modem in to

an available USB port on your

computer.

Step Three: Install the

Modem Driver

Windows Vista

You must be logged in as an administrator in order to install this modem.

1. When the Found New Hardware Wizard appears, select Locate and

install driver software (recommended).

2. If prompted for permission, click Continue.

3. If prompted, select Don’t search online.

Caution: Use an analogue phone line only. The modem will be dam-

aged if you connect it to a digital phone line.

Most office phones are wired through digital lines. If you

do not know whether you phone line is analogue or digital,

consult your telephone service provider or building facili-

ties department.

USRobotics

PWRDATA

USRobotics

PWRDATA

English

4. When prompted, insert the USRobotics Installation

CD-ROM into your CD-ROM drive.

Windows searches for the modem driver automatically.

If prompted, click Next to instruct Windows to search for the driver.

5. If prompted by Windows Security, click Install.*

Windows installs the modem driver.

6. When installation is complete, click Close.

7. The PWR LED on the modem will light.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K USB Modem at

www.usr.com/pro-

ductreg/

Windows XP:

You must be logged in as an administrator in order to install this modem.

1. When the Found New Hardware Wizard appears, select No, not this

time and click Next.

2. Select Install the software automatically (Recommended), but do

not click Next.

If you accidentally clicked Next, click Back.

3. Insert the USRobotics Installation CD-ROM into your

CD-ROM drive.

Windows searches for the modem driver automatically.

If prompted, click Next to instruct Windows to search for the driver.

4. If Windows displays a message regarding logo testing, click Continue

Anyway.†

5. Click Finish to complete the installation.

* USRobotics has thoroughly tested this driver in conjunction with the supported hardware

and has verified compatibility with Windows Vista, XP, and 2000.

English

6. The PWR LED on the modem will light.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K USB Modem at

www.usr.com/pro-

ductreg/

Windows 2000:

You must be logged in as an administrator in order to install this modem.

1. When the Found New Hardware Wizard appears, click Next.

2. Insert the USRobotics Installation CD-ROM into your

CD-ROM drive.

3. Select Search for a suitable driver for my device

(recommended) and click Next.

4. Select only CD-ROM drives and click Next.

5. When Windows locates the driver for the modem, click Next.

6. If a Digital Signature Not Found window appears, click Yes.†

7. Click Finish to complete the installation.

8. The PWR LED on the modem will light.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K USB Modem at

www.usr.com/pro-

ductreg/

Linux Kernel 2.4.20 or Higher

You need a USB modem driver (CDC ACM) compiled into a Linux ker-

nel 2.4.20 or higher or as a loadable module for your kernel. Installation

of the modem under these kernels is fully automatic provided your kernel

† USRobotics has thoroughly tested this driver in conjunction with the supported hardware

and has verified compatibility with Windows Vista, XP, and 2000.

English

has the Plug and Play module enabled (default). You do not need to install

any drivers off the USRobotics installation CD-ROM.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K USB Modem at

www.usr.com/pro-

ductreg/

Mac OS X 10.4.3 or Later

1. Insert the USRobotics Installation CD-ROM into your

CD-ROM drive.

2. Go to Finder and double-click the CD icon.

3. Double click USRobotics 56K USB Modem.pkg to

launch the installer, and follow the on-screen instructions.

4. Go to Apple > System Preferences > Network. If prompted, click

OK.

5. Select USB Modem from the Show menu.

6. Select the Modem tab.

7. Scroll through the Modem list, select USRobotics 56K USB

Modem and click Apply Now.

The PWR LED on the modem may not light until you initiate a con-

nection to your Internet service provider (ISP).

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K USB Modem at

www.usr.com/pro-

ductreg/

Additional Software

You can now install any of the additional software on the USRobotics

Installation CD-ROM, including optional software that complements

your modem and provides full V.92 features.

For your convenience, the USRobotics Installation CD-ROM provides

additional optional software tools for Windows users that complements

your modem, including the following:
