US Robotics Courier V.Everything 3CP3453 Manuale utente

CourierTM 56K Corporate Modem

Quick Installation Guide for

Windows 95, 98, NT, 2000, Me, XP Operating

Systems

Model 3453

Part Number R24.0331.00

F12 Book English.book Page 0 Wednesday, December 11, 2002 10:55 AM

F12 Book English.book Page 1 Wednesday, December 11, 2002 10:55 AM

U.S. Robotics Corporation

935 National Parkway

Schaumburg, Illinois

60173-5157

USA

No part of this documentation may be reproduced in any form or by any means or used to make any

derivative work (such as a translation, transformation, or adaptation) without written permission from

U.S. Robotics Corporation. U.S. Robotics Corporation reserves the right to revise this documentation

and to make changes in the products and/or content of this document from time to time without obli-

gation to provide notification of such revision or change. U.S. Robotics Corporation provides this docu-

mentation without warranty of any kind, either implied or expressed, including, but not limited to,

implied warranties of merchantability and fitness for a particular purpose. If there is any software on

removable media described in this documentation, it is furnished under a license agreement included

with the product as a separate document, in the hard copy documentation, or on the removable media

in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please con-

tact U.S. Robotics and a copy will be provided to you.

UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this docu-

mentation and the software described herein are provided to you subject to the following:

All technical data and computer software are commercial in nature and developed solely at private

expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-

7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with

only such rights as are provided in U.S. Robotics standard commercial license for the Software. Techni-

cal data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR

52.227-14 (June 1987) whichever is applicable. You agree not to remove or deface any portion of any

legend provided on any licensed program or documentation contained in, or delivered to you in con-

junction with, this Quick Installation Guide.

logo are registered trademarks of U.S. Robotics Corporation. Other product names are for identifica-

tion purposes only and may be trademarks of their respective companies. Product specifications sub-

ject to change without notice.

English

F12 Book English.book Page 1 Wednesday, December 11, 2002 10:55 AM

F12 Book English.book Page 2 Wednesday, December 11, 2002 10:55 AM

Related Documentation

You will find more detailed technical information on the Installation CD-ROM that

came with your modem.

Product Features

V. Everything Technology

The modem supports all key ITU analog communications protocols and many

proprietary ones to provide you with ultimate compatibility. The modem also

supports V.25bis synchronous mode using bisync and HDLC protocols and 2-

wire leased line operations for compatibility with many legacy systems.

V. Everywhere Technology

The V.Everywhere technology in this modem allows this modem hardware and

firmware to be used anywhere in the world. A simple setup to configure the

modem for the country of operation is all that is required.

Remote Flash

You can easily upgrade your modems in the field from the convenience of your

local office by enabling the remote “flash” capability of the modem. See the

“Upgrading” chapter of the Command Reference included on the Installation CD-

ROM.

Dial and Dialback Security

The modem provides you with a robust mechanism for providing dial and

dialback security for your network. See the “Dial Security” chapter of the

Command Reference included in the Installation CD-ROM.

Remote Manageability

The modem can be remotely configured and monitored for the convenience of

your local office. See the Accessing and Configuring Remotely chapter of the

Command Reference included in the Installation CD-ROM.

Additional Features

For additional features supported by this modem, refer to the Command

Reference included in the Installation CD-ROM.

Before You Begin: Prepare for installation.

NOTE: Before you begin, we recommend you uninstall any other

modems you have in your system and unplug all telephone cords

connected to these modems. Refer to your previous modem's

documentation for instructions.

Write down your new U.S. Robotics modem's serial number, which is located on

F12 Book English.book Page 3 Wednesday, December 11, 2002 10:55 AM

the white bar code sticker on the modem and on the modem's box, in the space

below. If you ever need to call our Technical Support department, you will need

this number plus your model number, which is 3453, to receive assistance. If you

need to get assistance or download drivers from the Web site, you will need your

product ID number. Your Product ID Number is below; the “xx” indicates your

country code. You can find your complete Product ID Number on your modem’s

box.

Product ID Number Serial Number

What you need

You need the following to install your Courier 56K Corporate Modem:

• Computer or terminal with a serial port (16650 UART recommended)

• analog telephone line

• Power outlet

CAUTION: The Courier 56K Corporate Modem requires a standard

analog telephone line. Do not connect your Courier 56K Corporate

Modem to a digital telephone line. Digital lines are commonly used in

office buildings and hotels. If you are unsure whether your line is analog or

digital, ask your network administrator or your local telephone company.

Package contents

Your Courier 56K Corporate Modem package contains the following items:

• U.S. Robotics Courier 56K Corporate Modem

•RJ-11phonecord

• Universal power adapter

• RS-232 serial cable

• Ferrite clamp

• This Quick Installation Guide

• Quick Reference Card

• The Installation CD-ROM, which contains valuable software for use

with your new modem

Installing the Courier 56K Corporate Modem

To install your Courier 56K Corporate Modem, do the following three simple

steps:

USRxx3453

F12 Book English.book Page 4 Wednesday, December 11, 2002 10:55 AM

1. Configure your Courier 56K Corporate Modem with DIP (dual in-line pack-

age) switches

2. Connect the cables

3. Install the drivers

Step One: Configuring with DIP Switches

Depending on how you plan to use your modem, you may need to change your

DIP switch settings. See the “Configuring your Modem with DIP Switches”

section of this guide for more information. The DIP switches 3, 5, and 8 are in the

on (down) position. (The DIP switches are located next to the phone jacks on the

bottom of the modem.)

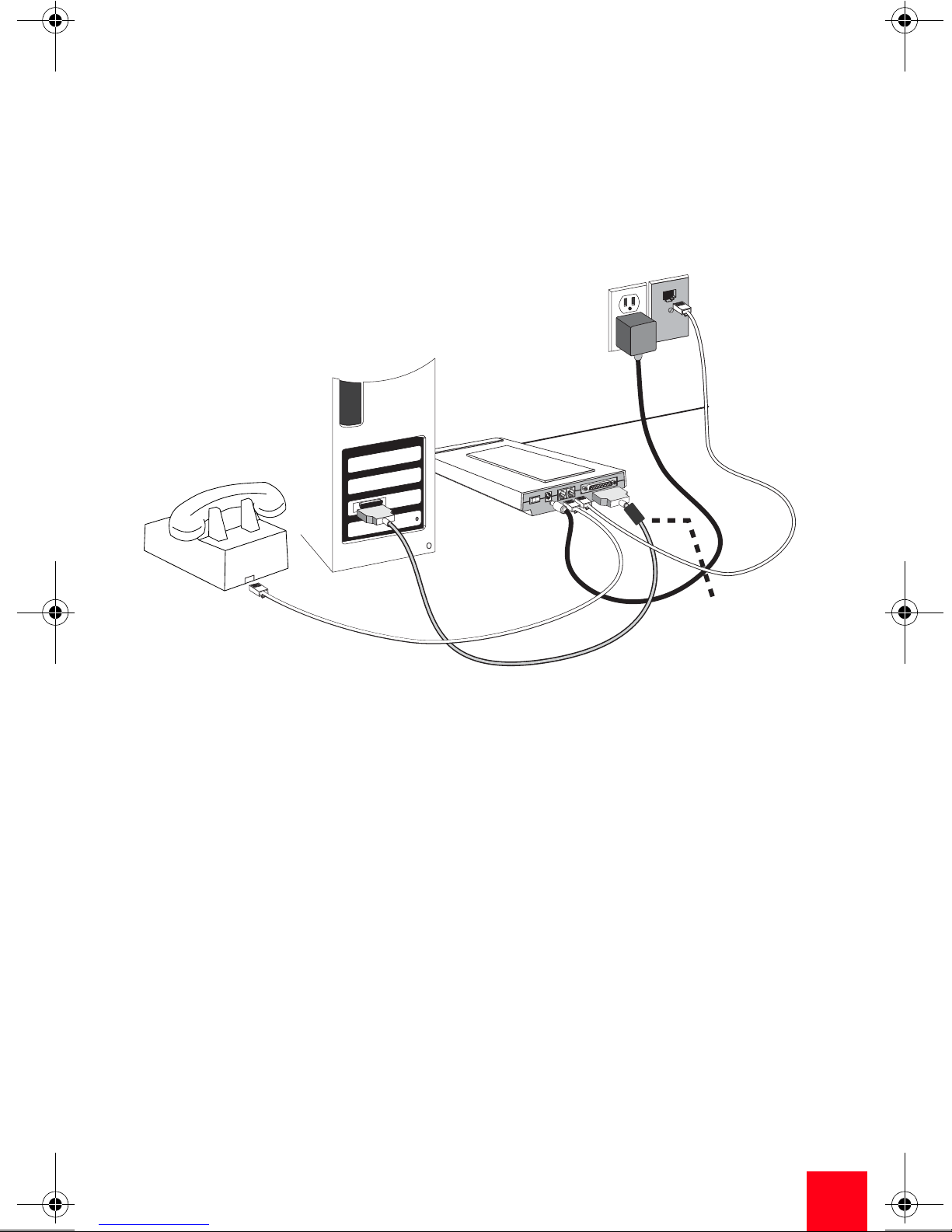

Step Two: Connecting the Cables

NOTE: If you plan to connect your Courier 56K Corporate Modem to a

mainframe computer or use your modem to dial in to a mainframe

computer, you will find more technical information on the Installation

CD-ROM that comes with your new modem.

1. Make sure that your computer is turned off before you begin installing your

new modem. Connect the RS-232 modem cable to the back of the modem

and to your computer’s serial port. Clip the ferrite clamp around the end of

the RS-232 cable that is connected to the modem.

To find the serial port on the back of your computer, look for COM, MODEM, RS-

232, IOIOI, or SERIAL. Do not use the AUX, GAME, LPT, or PARALLEL ports.

2. Plug one end of the included phone cord into the jack on the back of

the modem and plug the other end into an analog telephone wall jack. If

there is another phone jack on your modem, you can use a telephone by

plugging the telephone’s cord into the modem’s jack. Plug the power

adapter into the modem’s jack and into a surge protector or electrical

outlet. Make sure to use the power adapter that came with your modem,

as others may be of different voltages and could damage your modem.

Turn on the modem by pressing the button on the back of the modem. The

CTS and MR lights should illuminate.

3. If the CTS and MR lights do not illuminate or other lights illuminate, make

sure that only DIP switches 3, 5, and 8 are in the on (down) position. (The

F12 Book English.book Page 5 Wednesday, December 11, 2002 10:55 AM

DIP switches are located on the bottom of the modem.)

Step Three: Installing the Drivers

Windows 95

Turn on your computer. When the Update Driver Wizard appears, insert your

Installation CD-ROM into your CD-ROM drive and click Next. When the driver is

found, click Finish to complete your installation.

Windows 98

Turn on your computer. When the Add New Hardware Wizard appears, insert

your Installation CD-ROM into your CD-ROM drive and click Next. Select Search

for the best driver for your device (Recommended) and click Next. Select CD-

ROM drive and click Next. When the driver is located, click Next. Click Finish to

complete your installation.

Windows 2000

NOTE: Windows 2000 users must be in administrator mode to properly

add any new hardware.

Turn on your computer and log in. Windows will detect your new modem and

automatically install it, then you must update the driver. Insert the Installation

CD-ROM into your CD-ROM drive. Click Cancel to close the Setup Language

screen. Click Windows Start and Control Panel. Double-click System, click the

Hardware tab, and click the Device Manager button. Click to expand Modems,

and double-click Standard Modem. Click the Driver tab and click the Update

Driver button. When the Upgrade Device Driver window appears, click Next.

Select Search for a suitable driver for my device (recommended) and click Next.

Select Specify a location and click Next. Insert your Installation CD-ROM into

your CD-ROM drive. Click Cancel to close the Setup Language screen. Type the

letter of your CD-ROM drive and click OK. Click Next. A Digital Signature Not

Found warning may appear. If it does, click Yes*. Click Finish to complete the

installation.

Windows NT

NOTE: Windows NT users must be in administrator mode to properly

add any new hardware.

Turn on your computer and log in. Click Windows Start, point to Settings, and

then click Control Panel. Double-click Modems. When the Install New Modem

screen appears, click Next to have Windows detect a standard modem. Click

Change. Click Have Disk. Insert the Installation CD-ROM into your CD-ROM drive

F12 Book English.book Page 6 Wednesday, December 11, 2002 10:55 AM

and click Cancel to close the Setup Language screen. Type D:\ and click OK. If

your CD-ROM drive uses a different letter, type that letter in place of “D”. Select

U.S. Robotics Courier V.Everything EXT and click OK. Click Next. Click Finish to

complete the installation. When you see the Modems Properties tab, you will see

the COM port that is assigned to your modem. Click Close. If the System Settings

Change window appears, click Yes to restart your computer. When the

installation is complete, you may close any open windows.

Windows Me

Turn on your computer and log in. Windows will detect your new modem and

automatically install it, then you must update the driver. Insert the Installation

CD-ROM into your CD-ROM drive. Click Cancel to close the Setup Language

screen. Click Windows Start, point to Settings, and click Control Panel. Double-

click System. Click the Device Manager tab. Click Modem, highlight U.S.

Robotics Courier V.Everything EXT PnP. Click the Properties button. Click the

Driver tab and click the Update Driver button. Select Specify the location of the

driver (Advanced) and click Next. Select Search for a better driver than the one

your device is using now (Recommended). Select Specify a location and type

the letter of your CD-ROM drive. Insert the Installation CD-ROM into your CD-

ROM drive and click Next. When Windows finds the driver, click Next. Click Finish

to complete the installation.

Windows XP

Turn on your computer. Windows will detect your new modem and automatically

install it, then you must update the driver. Insert the Installation CD-ROM into

your CD-ROM drive. Click Cancel to close the Setup Language screen. Click

Windows Start and Control Panel. Make sure you are in Classic View, and

double-click Phone and Modem Options. Click the Modems tab and click the

clip the ferrite

clamp around the

end of the RS-232

cable closest to

the modem

F12 Book English.book Page 7 Wednesday, December 11, 2002 10:55 AM

Properties button. Click the Driver tab and click the Update Driver button. When

the Hardware Update Wizard appears, select Install from a list or specific

location (Advanced) and click Next. Select Don’t search. I will choose the driver

to install. Click Next. Click Have Disk. Insert the Installation CD-ROM into your

CD-ROM drive, type the letter of your CD-ROM drive, and click OK. Click to select

U.S. Robotics Courier V.Everything EXT PnP. Click Next. A Hardware Installation

warning may appear. Click Continue Anyway if it does*. Click Finish to complete

the installation.

All Other Operating Systems

Beyond full support of the Windows Operating Systems described in this

manual, the Courier 56K Corporate Modem will function in any operating system

that supports an RS-232 COM port, such as DOS, Linux, or UNIX. Standard COM

port settings are: bits per second: 115,200; data bits: 8; parity: none; stop bits:

1; flow control: hardware. Assign your terminal application to utilize the COM

port to which you connect the modem's serial cable. Additional setup

information can be found in the 3453 FAQ section at http://www.usr.com/

support

*U.S. Robotics has thoroughly tested this driver in conjunction with the supported hardware and has

verified compatibility with Windows XP and 2000.

• At the Installation CD-ROM interface, click the Support link.

• Follow the on-screen instructions to register your modem and to view

the warranty information. Click Windows Start and then click Run. In

the “Run” dialogue box, type D:\setup.exe. If your CD-ROM drive uses

a different letter, type that letter in place of “D”.

Configuring V.Everything

NOTE: The modem needs to be installed and communicating with the

computer before the country setting can be changed.

Start a terminal program (e.g., Hyperterminal). Follow these three steps:

1. Type the AT command AT~C? and then press ENTER. A screen displaying

the list of countries supported by the modem appears as shown in the fol-

lowing list.

2. Select the country in which you plan to operate the modem and enter the

AT command ATC10=XX. For example, to set the country of operation to

F12 Book English.book Page 8 Wednesday, December 11, 2002 10:55 AM

Altri manuali per Courier V.Everything 3CP3453

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali US Robotics Modem

US Robotics

US Robotics 3CP5699A Manuale utente

US Robotics

US Robotics 5686 Manuale utente

US Robotics

US Robotics USR3056 Manuale utente

US Robotics

US Robotics USR265633B Manuale utente

US Robotics

US Robotics 5630b Manuale utente

US Robotics

US Robotics USR5610B Manuale utente

US Robotics

US Robotics USR9001 Manuale utente

US Robotics

US Robotics Courier USR3500 Manuale utente

US Robotics

US Robotics 002805-00 Manuale utente

US Robotics

US Robotics 5630G - Manuale utente

US Robotics

US Robotics COURIER Manuale utente

US Robotics

US Robotics 3453C Manuale utente

US Robotics

US Robotics 56K INTERNAL VOICE FAXMODEM - QUICK FOR WINDOWS REV... Manuale utente

US Robotics

US Robotics Courier USR3453B Guida di riferimento

US Robotics

US Robotics Courier V.Everything 3CP3453 Manuale utente

US Robotics

US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuale utente

US Robotics

US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuale utente

US Robotics

US Robotics Courier V.Everything x2 Addendum Manuale utente

US Robotics

US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuale utente

US Robotics

US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuale utente

US Robotics

US Robotics 56K FAXMODEM USB - FOR WINDOWS REV 1.1 Manuale utente

US Robotics

US Robotics 56 K SOFTMODEM - COMMAND REFERENCE REV 1 Manuale di installazione

US Robotics

US Robotics USR5610B Manuale utente

US Robotics

US Robotics USR5699C Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente

Zoom

Zoom 1070 Series Manuale utente
