US Robotics USR5660C Manuale utente

56K PCI Faxmodem

Quick Installation Guide

#R24.0654.00

rev 1.0 08/06

#R24.0661.00

rev 1.2 09/06

Contents

Installation ........................................................... 1

Operations ...........................................................7

Troubleshooting ....................................................8

Additional Information ..........................................11

Support .............................................................. 12

Installation

Package Contents

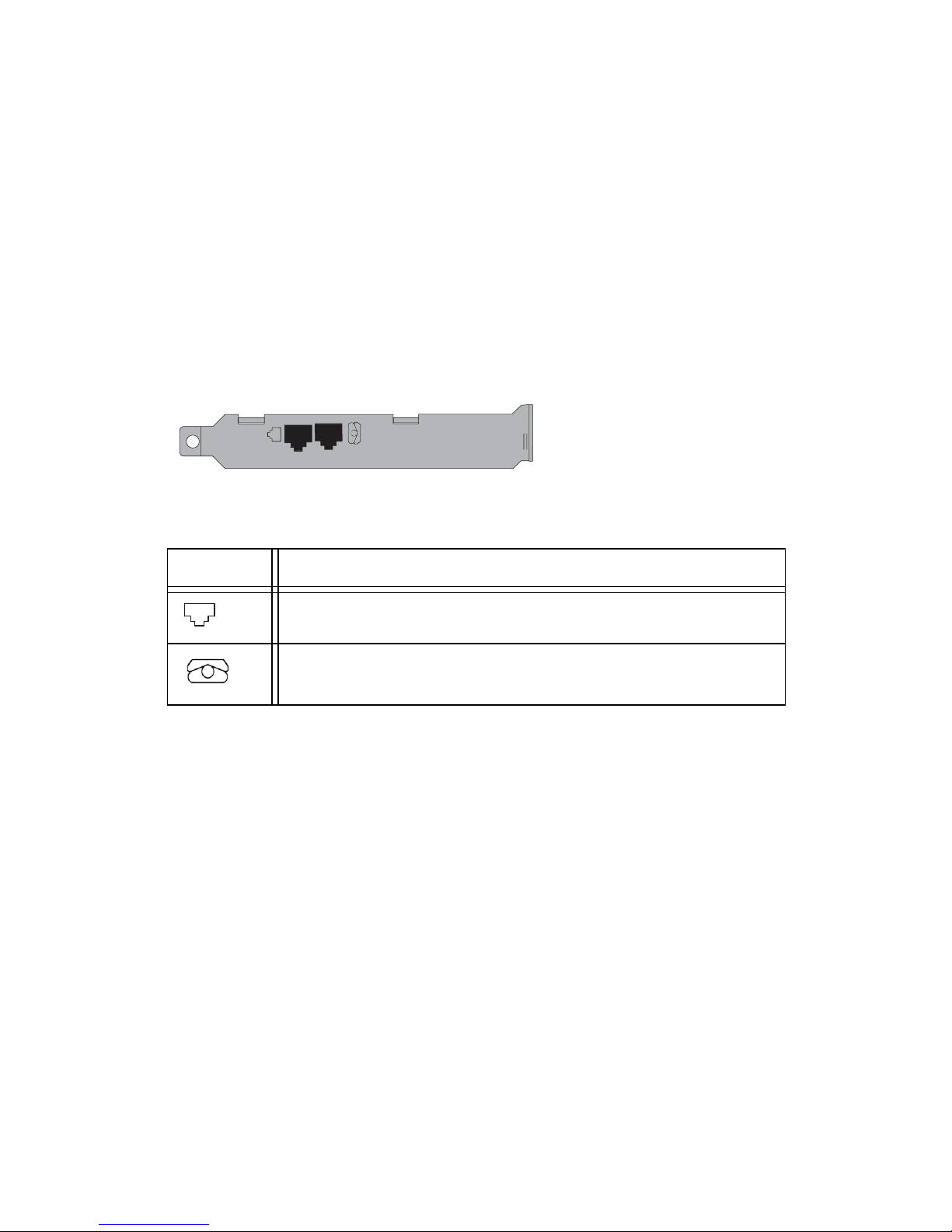

Physical Features

Port

System Requirements

!USRobotics 56K PCI

Faxmodem

!USRobotics Installation CD-ROM

!Telephone cable !Quick Installation Guide

Item Function

Connects the modem to your telephone line.

Connects the modem to your telephone.

!Windows®XP, 2000, Me, 98 and 95

OSR2

!CD-ROM drive

!500 MHz Processor or higher !128 MB RAM

Installation Instructions

USRobotics recommends uninstalling any other modems that are installed in

your system and unplugging all telephone cords connected to these modems.

Refer to your previous modem's documentation for instructions.

Step One: Physically Install the Modem in the Computer

1. Turn off your computer and all peripheral devices.

2. Unplug the power cord from your computer and remove the computer’s

case.

3. Remove the screw and metal filler bracket for an available PCI slot in your

computer.

4. Hold the modem by its edges. Do not touch the contacts on the connec-

tor.

5. Insert the modem into the available PCI slot and press it firmly to seat it in

the connector.

6. Secure the modem with the screw from the metal filler bracket.

7. Replace your computer case.

Step Two: Connect the Modem to an Analog Telephone Line

Note:You may need to be logged in as an administrator on your compu-

ter to install your modem.

Warning:

The 56K PCI Faxmodem must be plugged in to an analogue

phone line only. Plugging your 56K PCI Faxmodem in to a digital

phone line may damage the modem.

Most office phones are wired through digital lines. Be sure you

know what type of line you have.

1. Plug one end of the telephone cord into the port on the modem.

2. Plug the other end into an

analogue phone wall jack.

3. To connect a telephone

through the modem, plug

the telephone’s cord into

the modem’s jack.

4. Plug your computer in,

and turn it on.

5. While the computer is

booting up, insert the

USRobotics Installation

CD-ROM.

Step Three: Install the Modem Drivers

Windows XP

1. In the Found New Hardware Wizard on your computer, select No, not

this time and click Next.

2. Select Install the software automatically (Recommended) and click

Next. Follow the on-screen instructions to install the U.S. Robotics

V.92 PCI Faxmodem.

If a “Hardware Installation” warning appears, click Continue Anyway. 1

Congratulations. If prompted, reboot your computer.You have suc-

cessfully completed the installation procedure. Please register your 56K PCI

Faxmodem at

www.usr.com/productreg/

Note:If at any time during the installation you are prompted to select the

location of your installation drivers, assuming D: is your CD-ROM

drive, type D:\2000_XP.

1 USRobotics has tested this product and verifies it is compatible with Windows XP.

Windows 2000

1. In the Found New Hardware Wizard on your computer, click Next.

2. Select Search for a suitable driver for my device (recommended) and

click Next.

3. Verify that the CD-ROM drive is selected, and click Next. Follow the

on-screen instructions to install the U.S. Robotics V.92 PCI Faxmo-

dem.

If a “Digital Signature Not Found” warning appears, click Yes. 2

4. If prompted, reboot your computer.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K PCI Faxmodem at

www.usr.com/produc-

treg/

Windows Me

1. In the Add New Hardware Wizard on your computer, select Automatic

search for a better driver (Recommended) and click Next. Follow the

on-screen instructions to install the U.S. Robotics V.92 PCI Faxmodem

Enumerator.

2. The wizard will then detect and report a search for drivers for U.S.

Robotics V.92 Faxmodem. Select Automatic search for a better driver

(Recommended) and click Next. Follow the on-screen instructions to

install the U.S. Robotics V.92 PCI Faxmodem.

3. If prompted, reboot your computer.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K PCI Faxmodem at

www.usr.com/produc-

treg/

Note: If at any time during the installation you are prompted to select

the location of your installation drivers, assuming D: is your CD-

ROM drive, type D:\2000_XP.

2 USRobotics has tested this product and verifies it is compatible with Windows 2000.

Note: If at any time during the installation you are prompted to select

the location of your installation drivers, assuming D: is your CD-

ROM drive, type D:\.

Windows 98

1. In the Add New Hardware Wizard on your computer, click Next.

2. Select Search for the best driver for your device (Recommended) and

click Next.

3. Verify that the CD-ROM drive is selected, and click Next. Follow the

on-screen instructions to install the U.S. Robotics V.92 PCI Faxmo-

dem Enumerator.

4. The wizard will then detect and report a search for drivers for U.S.

Robotics V.92 PCI Faxmodem. Click Next.

5. Select Search for the best driver for your device (Recommended) and

click Next.

6. Verify that the CD-ROM drive is selected, and click Next. Follow the

on-screen instructions to install the U.S. Robotics V.92 PCI Faxmo-

dem.

7. If prompted, reboot your computer.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K PCI Faxmodem at

www.usr.com/produc-

treg/

Windows 95

1. In the New Hardware Found or Update Device Driver Wizard, follow

the on-screen instructions to install the U.S. Robotics V.92 PCI Fax-

modem Enumerator and the U.S. Robotics V.92 PCI Faxmodem.

2. If prompted, reboot your computer.

Congratulations. You have successfully completed the installation pro-

cedure. Please register your 56K PCI Faxmodem at

www.usr.com/produc-

treg/

Note: If at any time during the installation you are prompted to select

the location of your installation drivers, assuming D: is your CD-

ROM drive, type D:\.

Note: If at any time during the installation you are prompted to select

the location of your installation drivers, assuming D: is your CD-

ROM drive, type D:\.

Additional Software

Instant Update

The Instant Update software automatically notifies you of any available

updates for your modem's firmware. To install the Instant Update software:

1. On the USRobotics Installation CD-ROM, select Software.

2. Select Instant Update.

3. Click Install and follow the on-screen instructions to install the Instant

Update software.

Internet Call Notification

Internet Call Notification enables the V.92 feature “Modem On Hold” which

allows your Internet connection to be suspended when there is an inbound tel-

ephone call.3

1. On the home screen of the USRobotics Installation CD-ROM, select Soft-

ware.

2. Select USRobotics Internet Call Notification.

3. Click Install.

4. Select your language and click OK, then follow the on-screen instructions

to install the Internet Call Notification software.

PhoneTools

The PhoneTools program allows you to send and receive faxes and is included

as an optional piece of software for your convenience. To install PhoneTools:

1. On the home screen of the USRobotics Installation CD-ROM, select Soft-

ware.

2. Select PhoneTools.

3. Click Install, then follow the on-screen instructions to install the Phone-

Tools program.

3 You must subscribe to Call Waiting service with your phone company in order to use

the “Modem On Hold”/ICN enhancement.
