USA BORESCOPES X1000 PLUS Manuale utente
X1000 PLUS
VIDEOSCOPE SYSTEM
Product Outlook
360 Articulation Tube
Keypad Button
Live Video
4
TABLE OF CONTENTS
6
10
11
PRM100 Pipe Inspection Camera
9
Video Playback Function
Album
Album Functional
26
27
28
38
SAFETY GUIDE
22
23
19
13
15
16
17
18
Grid
Clarity
Rotate
Light Boost
Mirror
Dual View (designated mirror is needed)
Compare
Particle Free
Anti-Glare
21
20
Negative
Auto White Balance
24
25
Photo Note Functional
34
31
Photo Inspection Function
33
32
Introduction to Operation
CE NOTICE
37
MAINTENANCE
35
36
CONTACT INFORMATION
FCC NOTICE
RoHS NOTICE
CHEMICAL COMPATIBILITY
LEGAL AND OTHER NOTICES
14
Light Off
Recording
Video Playback Function
39
42
43
41
UPGRADING FIRMWARE
ACCESSORIES - INSERT TUBE ACCESSORIES
360 ARTICULATION TUBE
PRM 100 PIPE INSPECTION CAMERA
SYSTEM CHARGING
Photo Inspection Function
4
Product Outlook
SNAP
RECORD
LEFT
UP
HOME
DOWN
POWER
ALBUM
RIGHT
SETUP
POWER INDICATION
SUN VISOR
STAND
5
SD CARD SLOT
AV OUT
USB
DC IN
RESET
INSERT TUBE CONNECTOR
THREADED HOLE FOR
TRIPOD MOUNT
6
360 ARTICULATION TUBE
Side viewFront view
JOYSTICK
INCREASE
BRIGHTNESS
DECREASE
BRIGHTNESS
SNAP/FREEZE
7
Side view
Frequent operations
Generally, use your thumb to control the joystick, and use other ngers to grip the handle.
8
Capture images
• Press to capture desired image.
• Hold to keep freezing the frame.
Adjust brightness
• Press increase brightness.
• Press decrease brightness.
The joystick operations
9
Front view
PRM100 PIPE INSPECTION CAMERA
15M CABLE
METER (POWER, m/ft SWITCH,
LED BACKLIGHT)
10mm INSPECTION CAMERA
/ SIDE VIEW MIRROR
10

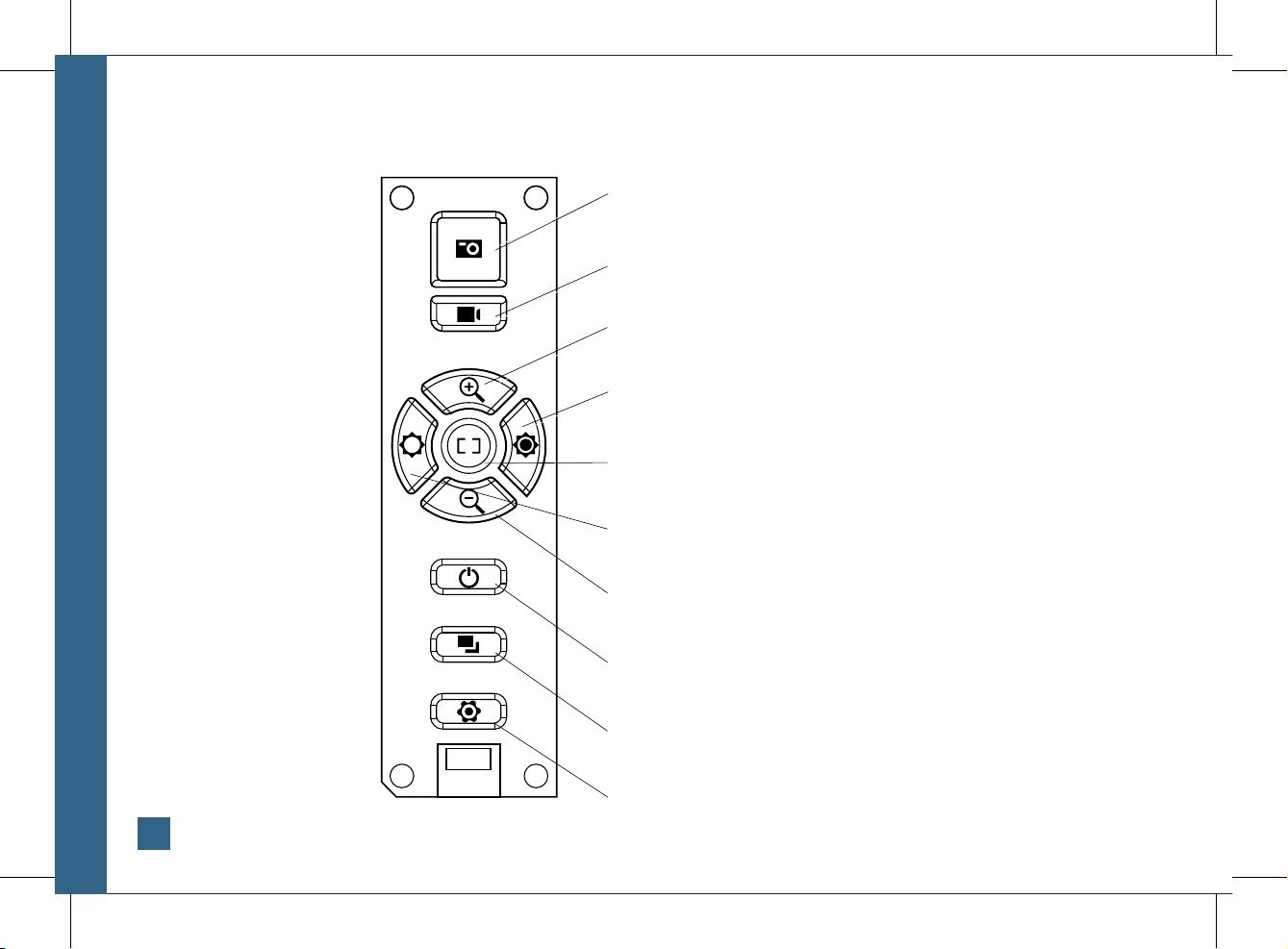

Keypad Button
SNAP
RECORD
UP
RIGHT
HOME
LEFT
DOWN
POWER
ALBUM
SETUP
Take pictures
Video record
Zoom in
Increase brightness
Switch to full screen / back to live view
Decrease brightness
Zoom out
Turn on / off the system
Quick enter album mode
Change language, date, and other system settings
