Your Hotblast Furnace is designed to
be a supplemental or central heating source
for your home. This Solid Fuel Furnace may
be installed in conjunction with a properly
operating central furnace that is listed or cer-
tified in accordance with nationally recog-
nizedsafetystandardsandequippedwiththe
required controls and other safety features
and which has been installed in accordance
with appropriate standards of the National
Fire Protection Association with installation
clearances specified in the furnace name-
plate marking. The installation must be ac-
complishedbyaqualifiedagency (onewhois
engaged in, and is responsible for, or is thor-
oughly familiar with the installation and op-
eration of the gas, oil, and solid fuel burning
heating appliances, who is experienced in
suchwork,familiarwithalltherequirementsof
the authority having jurisdiction.) The instal-
lation shall be in strict accordance with the
manufacturer's installation instructions fur-
nished with the solid fuel furnace.
TT
TT

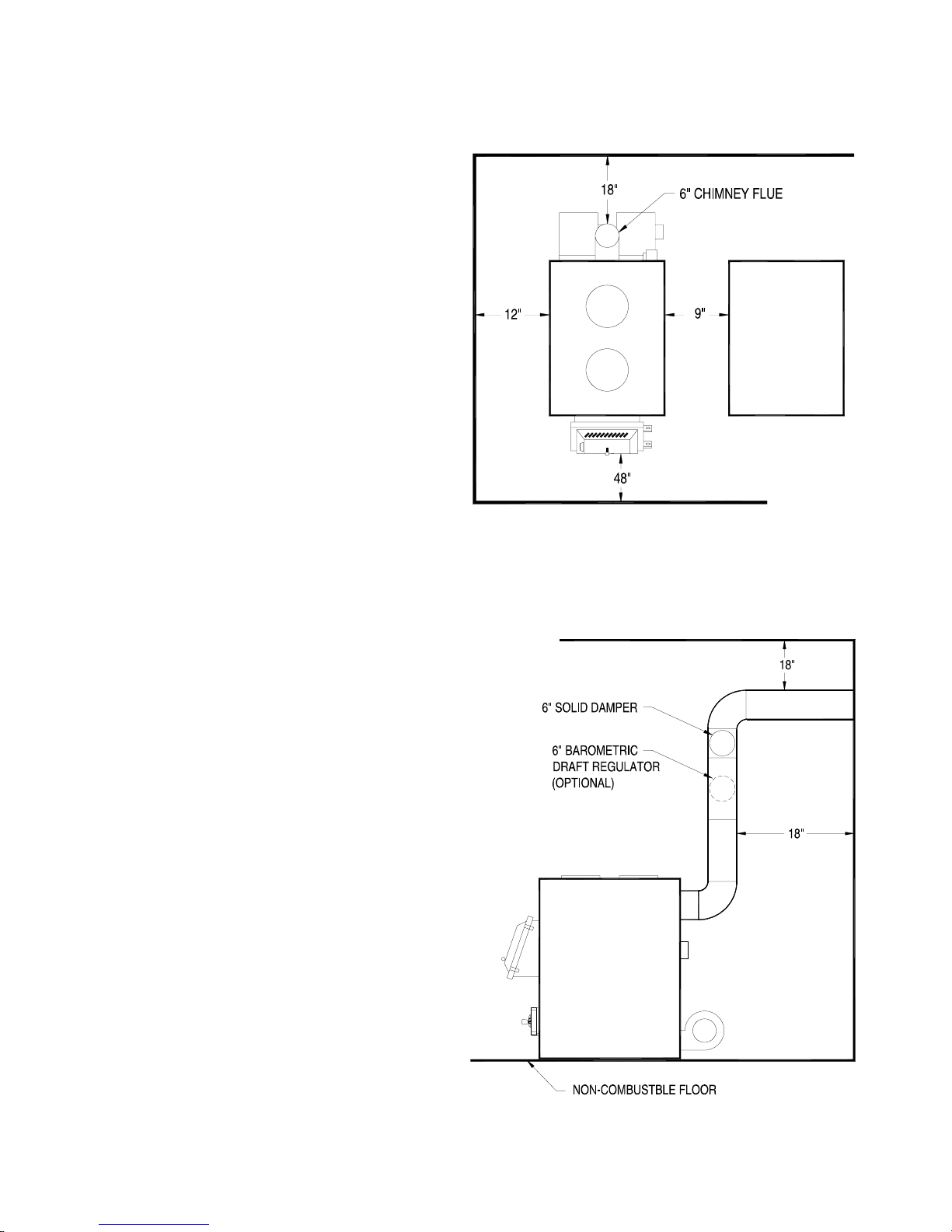

Thechimneyconnectorofthe furnace is
to be installed to provide clearances to com-
bustiblematerialnotlessthanspecifiedinthe
individual classifications and marked on the
furnace. The chimney connector must be
connected to a chimney suitable for use with
residentialtypeorbuildingheatingappliances
which burn solid fuel.
TT
TT
The Furnace is designed to operate in
either parallel or series air flow arrangement
with the central furnace or as a central fur-
nace.
CENTRAL FURNACE INSTALLATION:CENTRAL FURNACE INSTALLATION:
CENTRAL FURNACE INSTALLATION:CENTRAL FURNACE INSTALLATION:
CENTRAL FURNACE INSTALLATION: As
a central furnace, the unit functions indepen-
dently of any other system. The blower will
come on when the plenum temperature
reaches the setting on the blower control.
PARALLEL INSTALLATIONPARALLEL INSTALLATION
PARALLEL INSTALLATIONPARALLEL INSTALLATION
PARALLEL INSTALLATION: (U.S. ONLY)
(See Optional Wiring Diagram, Page 13, Fig.
14) The design is such that when the blower
comes on, the blower on the central system
also comes on. The blower will only come on
when the temperature in the plenum has
reached the setting on the blower control.
Thisistoinsurethatthereissufficientwarmair
inthe system tomake it efficientfor the unitto
operate. Whenthecentralsystemthermostat
calls for heat, the central system will operate
by the burner igniting and the blower coming
on. Itispossiblethatbothsystemswilloperate
simultaneously. Itisrecommendedthatforthe
most efficient use of your Hotblast Furnace,
that it be fired as much as possible in order to
reduce the demand on your existing central
heating system. This unit has an optional
forced draft kit that operates from a wall ther-
mostat. Whenthetemperaturefallsbelowthe
settingonthewallthermostat,theforceddraft
will come on (U.S. Stove Option 11/DKU)
TT
TT
The warm air supply outlet of the Hotblast
Furnaceshall notbe connectedto thecold air
returnofthecentralfurnace,becausethepos-
sibility exists of components of the central
furnace overheating and causing the central
furnace to operate other than is intended.
HOW THE FURNACE FUNCTIONSHOW THE FURNACE FUNCTIONS
HOW THE FURNACE FUNCTIONSHOW THE FURNACE FUNCTIONS
HOW THE FURNACE FUNCTIONS
