USX-MOUNT XML025-03 Manuale utente
XML025-03
INSTRUCTION MANUAL(P1-P17)
Bedienungsanleitung(P18-P33)
For 37-90" TV
If you have any questions along the way, just message
to us. We’re ready to help!
DE-C0
R
2
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.75"
(MIN:100mm/3.94")
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
150 lbs. (68.2 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE)
CAUTION
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs?
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete
Stud
Finder
7/32 in.
(5.5 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
Tape
Measure Pencil Screw
driver
Electric
Drill
1/2 in.
(13 mm)
Socket
Wrench
?Unsure?
Message to us via Amazon.
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
MAX
150 LBS
(68.2 kg)
Per fect !Per fect !
Wood Stud Install
Concrete Install
!
CAUTION:
DO NOT
install into
drywall alone
!
!
TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED SIDE VIEW - EXTENDED
3
+5°
-15°
SIDE VIEW - EXTENDED
+45°
422mm
[16.61in]
64mm
[2.52in]
420mm
[16.54in]
679mm
[26.73in]
638mm
[25.12in]
277mm
[10.91in]
164mm
[6.46in]
200mm
[7.87in]
600mm
[23.62in]
400mm
[15.75in]
15mm
[0.59in]
245mm
[9.65in]
9mm
[0.35in]
203.2mm
[8.00in]
406.4mm
[16.00in]
609.6mm
[24.00in]
Dimensions
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
4
Parts and Hardware

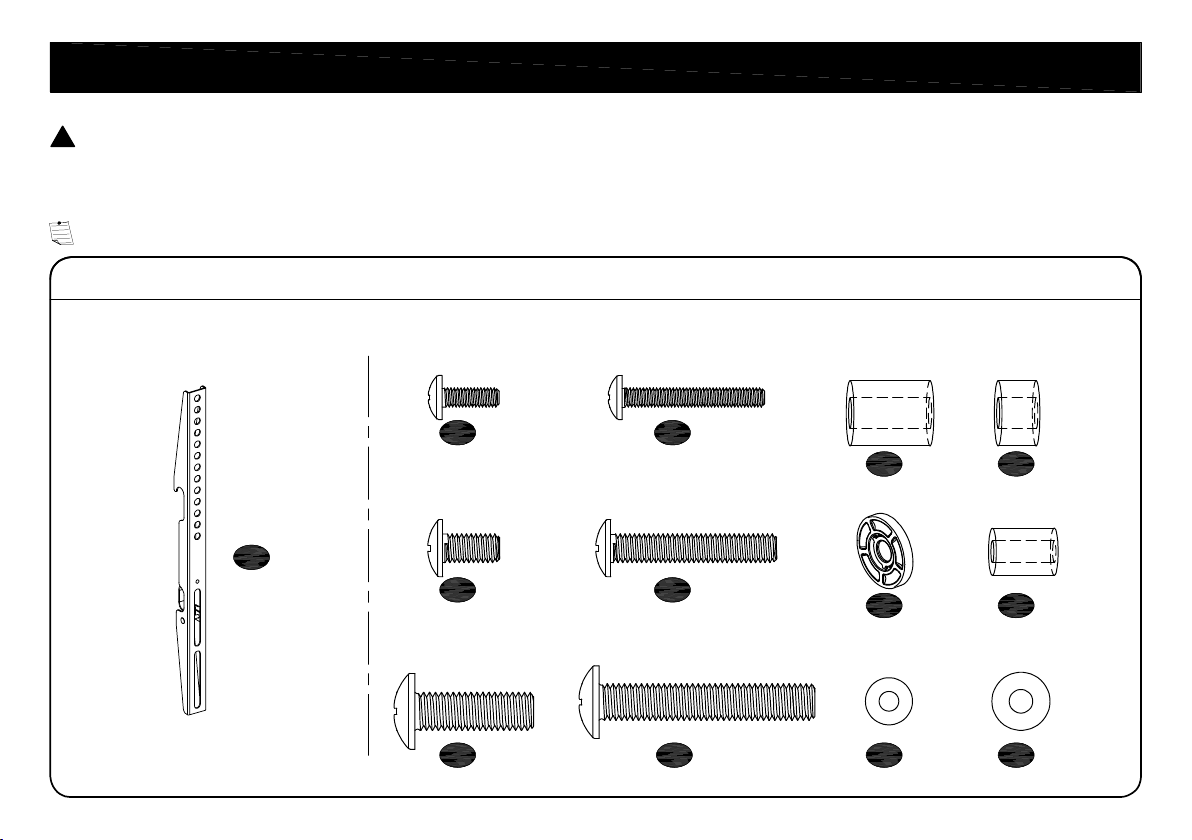

Parts and Hardware for STEP 1
!
M4x12mm
M6x12mm
M4x30mm
M6x35mm
Spacers
TV Screws
x4 x4
x4 x4
M8x45mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4
x4 x4
x8 x4
x4
a
b
f
e
d
gh
ij
k l
05 x2
M8x25mm
x4
c
TV Brackets
5

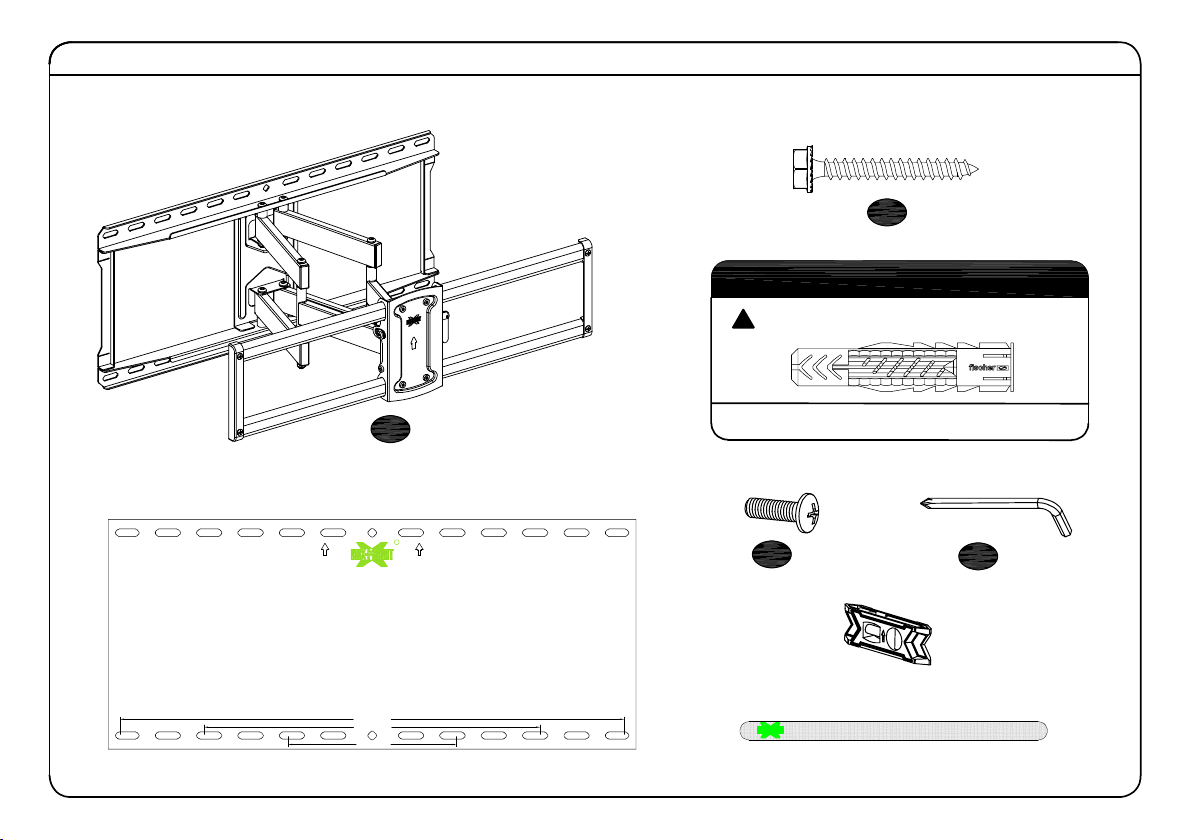

Parts and Hardware for STEP 2
Lag Bolt
x4
Wall Plate Unit
x1
Allen Key
x1
M6x16mm Bolt
x2
Velcro x3
Mounting template
203.2mm(8")
406.4mm(16")
609.6mm(24")
R
01
02 03
04 Concrete Wall Anchor 4pcs
CAUTION:Do not use in drywall or wood
For concrete wall installations ONLY
!
Level x1
6
M8
M6
M4
1-1 Select TV Screws

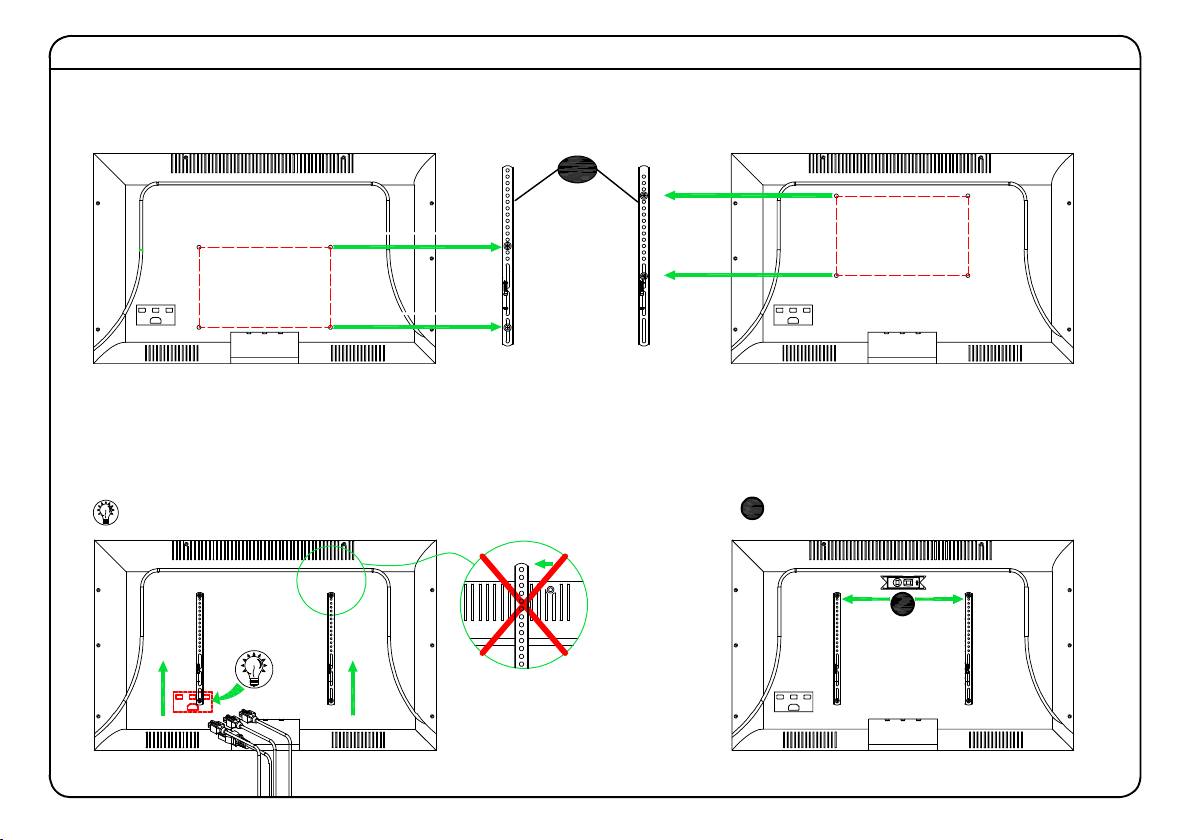

STEP 1 Attach Brackets to TV
1-2 Figure out the suitable position of brackets
7
INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
!
!
05
Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
8
b
ac
k l
e
df
kl
ih j
g
Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"/24"
Mounting template
9
STEP 2A Attach Wall Plate to Wall Wood Stud Option
!
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.9 in. (74 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using four lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 13.
7/32"
(5.5mm)
10
2.9"(74mm)
No!
UP
04
04
01
01
!
!
