INSTRUCTION MANUAL

LED SOLAR WALL LIGHT

INTRODUCTION & WARRANTY

TECHNICAL DATA

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions

carefully before starting the installation and keep this manual handy for future reference. If you have any another

query, please contact our dealer or local vendor from whom you have purchased the product. They are trained

and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty

does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no

warranty against damage to any surface due to incorrect removal and installation of the product. The products

are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This

product is warranted for manufacturing defects only.

MODEL VT-768

SKU 7523, 7528

LUMENS 500 Lm

POWER 4 W

SOLAR PANEL 2.4W, DC 5.5V, Mono with Tem-

pered glass

BATTERY Li-ion, 2000mAh, 7.4 Wh (Re-

peatable)

CHARGING TIME 12-15 Hours

WORKING TIME Maximum 24 Hours

WORKING MODE 2 Optional working modes

LED TYPE SMD 2835x56Pcs (Front 54

Pcs+Back 2 Pcs)

DETECTION ANGLE 120°

SENSOR RANGE 2-6 M

COLOR TEMPERATURE 4000K

LAMP DIMENSION 211.1x140x114.8 mm

BODY TYPE ABS+PC, Anti UV

INSTALLATION HEIGHT 2-4 M

MULTI-LANGUAGE

MANUAL QR CODE

Please scan the QR code

to access the manual in

multiple languages.

This marking indicates that this

product should not be disposed of

with other household wastes.

WARNING

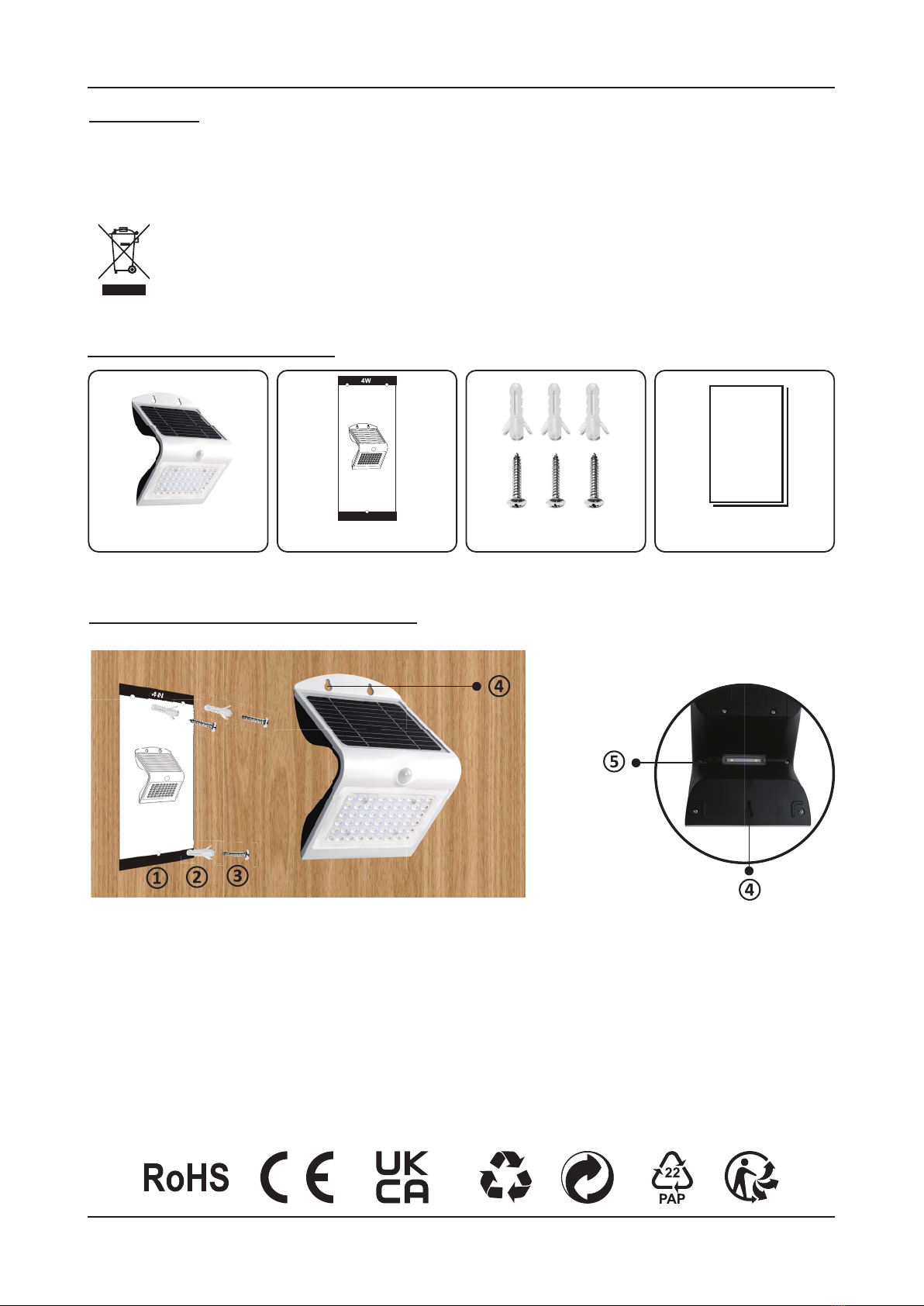

INSTALLATION INSTRUCTIONS

PACKAGING CONTENT

1. Please make sure to turn o the power before starting the installation.

2. Installation should be done by certiﬁed electrician.

. 3 The light source of this luminaire is not replaceable; when the light source reaches its

end of life the whole luminaire shall be replaced.

The recommended installation height is 2-4 meters.

1. Please use measure card to mark holing positions and drill 3 holes of 6mm.

2. Install 3 expansion plugs into the holes.

3. Install 3 screws in the expansion plugs, allow the screws to protrude slightly.

4. Align the lower notch on the back of the light with the lower screw and align the

holes at the top of the light with the upper screws to ﬁx the light well.

5. Press the button on the back of the light to turn on the light and select desired

working mode.

1. Hole

2. Expansion Plug

3. Screw

4. Mounting Hole

5. Button

1x Solar Light 1x Measure Card 1x Accessory Bag 1x User Manual

MANUAL

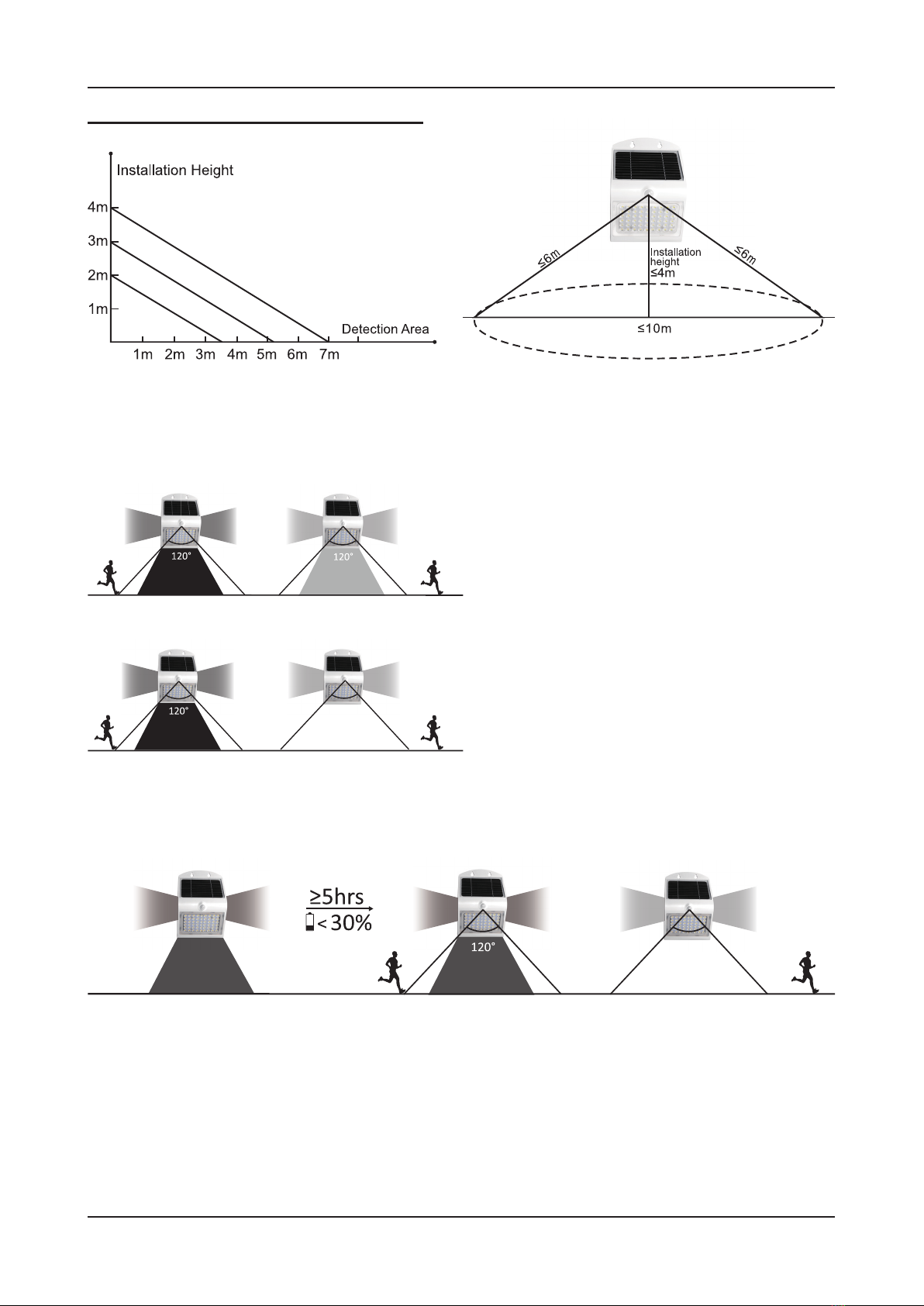

2 OPTIONAL WORKING MODES

Mode A: Sensor Mode

Press the button 1st time, the back light ﬂashes once, it’s Sensor Mode:

Mode B: Keep Lighting Mode

Press the button 2nd time, the back light ﬂashes twice, it’s Keep Lighting Mode:

Mode C: O

Press the button 3rd time, lamp turns o.

When battery power is greater than 30%:

Lamp automatically lights up at night and

turns to full brightness when motion is de-

tected within the range of ≤6mtrs, then dims

to lower brightness(front light and back light

both on) aer 20 seconds of no motion.

When battery power is less than 30%:

Lamp automatically lights up at night and

turns to full brightness when motion is detect-

ed within the range of ≤6mtrs, then dims to

lower brightness(front light o, only back light

on) aer 20 seconds of no motion.

Lamp automatically lights up at dusk and remains 50% brightness.

Aer 5 hours or when the battery power is less than 30%, it turns to energy saving mode,

which is lamp automatically turns to 50% brightness when motion is detected within the

range of ≤6mtrs, then dims to lower brightness(front light o, only back light on) aer 20

seconds of no motion.

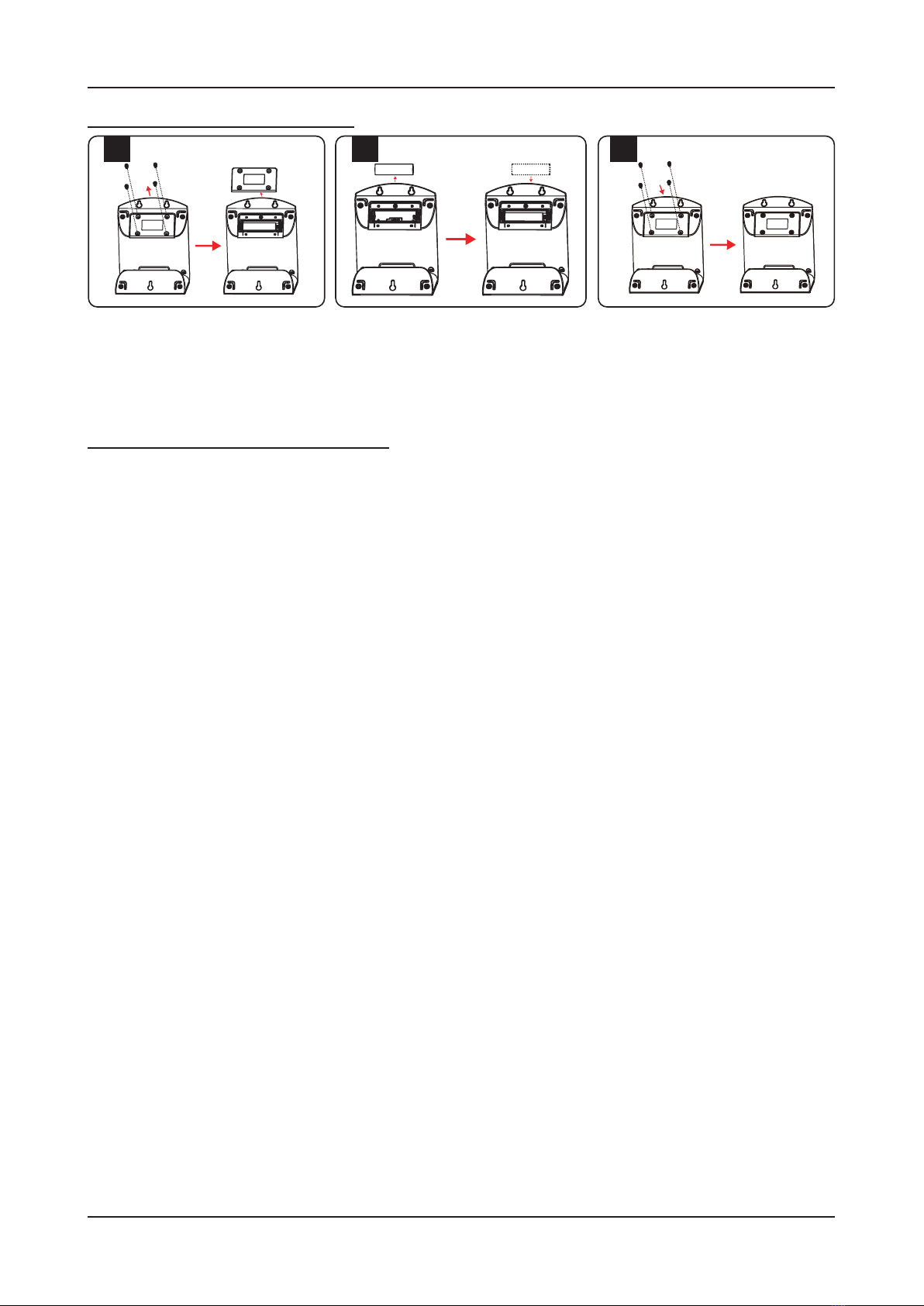

BATTERY REPLACEMENT

1. Loosen the screws, open battery cover.

2. Remove old battery, change new battery and connect positive and negative electrode correctly.

(18650, 3.7V, 2000mAh, 7.4Wh)

3. Then install back the cover, lock the screws.

1 2 3

MAINTENANCE & WARNING

• Do not use solvents, petrol, etc. Otherwise the light will be damaged.

• Clean the light with a dry, lint-free cloth.

• Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee

ﬂawless function of the product.

• Especially during the winter, keep the product free from snow and ice.

• Conﬁrm installation direction is correct (solar panel should be at top)

• Conﬁrm no objects blocking the solar panel to receive sunlight

• Keep away from the ﬁre.

• Don’t immerse in the water
