Video Intercom System

AT27TD7 User Manual

Please read this manaul before using the product ,and keep it well for futrue use.

CONTENTS:

Parts and Functions ..............................................................1

Monitor Mounting.................................................................1

About Main Menu..................................................................2

Functions Setup.....................................................................2

Answering a door call .................................................................2

Entrance Monitoring...................................................................2

Intercom Function ......................................................................3

Direct Call Guard Unit .................................................................3

Settings ...................................................................................3

User Setup...............................................................................3

Date and time set .......................................................................3

Monitor time set .........................................................................4

Ring tone set ..............................................................................4

Screen and talk volume set .........................................................4

Ring volume set..........................................................................5

Restore to default set..................................................................5

Specication:..........................................................................5

Parts and Functions

Monitor Mounting

1. Installation height for indoor monitor usually is 145~160cm(refer to sketch

map)

2. Connect cables with the monitor correctly,then hang the monitor on the

mounting bracket rmly.

LCD screen

LED Indicator

Unlock key

Talk/Mon key

Menu key

Microphone

Speaker

Connection port

Mounting hook

145~160 cm

-1-

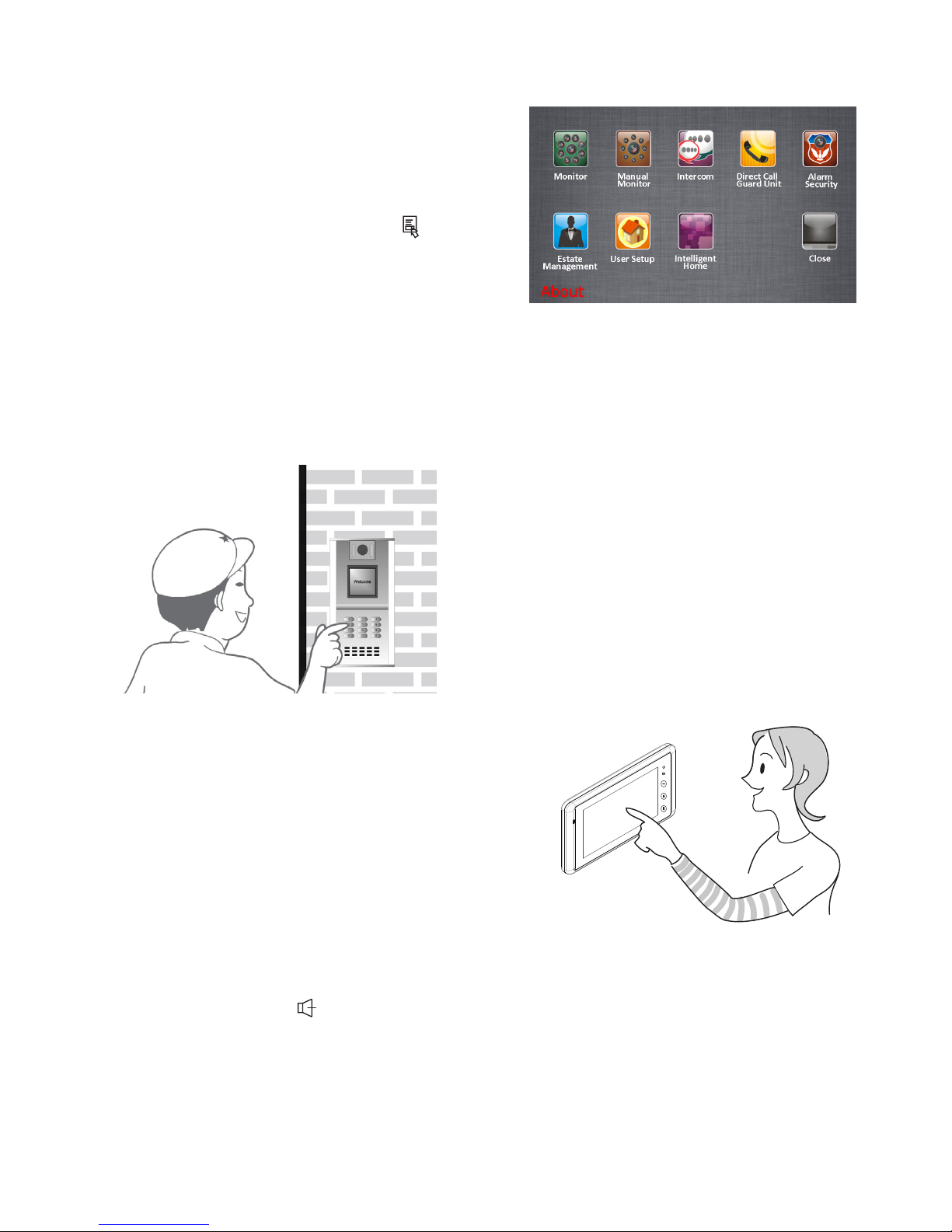

About Main Menu

Functions Setup

Answering a door call

Entrance Monitoring

In standby mode, press“ Talk/Mon”key on monitor panel or select Monitor item on main

menu page,the monitor can be displayed the view from outdoor.If multi door stations are

connected in the system,press"Monitor"icon can switch to monitor next door camera.or

select Manual Monitor item on main menu page to enter selective monitor page,8 door

stations and 8 cameras can be available to be monitored.If the system is busy,monitoring will

be refused.

The main menu is your starting point for using

all the applications on your monitor. You

can customize your main menu to display

applications, logos, and languages.

To open the main menu page, tap Menu

key twice on the monitor or press the LCD

screen anywhere twice.

-2-

1. Input room numbers on door station of

the building or main entrance, the Monitor

rings, at the same time, the screen

displays the visitor's image.

2. Press Mon/TALK button on monitor or

touch Talk icon on screen, you can talk

with the visitor for 90 seconds. During

communication, press Mon/TALK button

again to end the conversation. If nobody

answers the phone, the screen will be

turned off automatically after 30 seconds.

3. During calling or talking state, Press

UNLOCK button or touch Unlock icon to

open the door for the visitor.

Intercom Function

Direct Call Guard Unit:

The other users can be called in the same network with you. Just input the building code

and room number by touching the digital keypad. After nish,touch key to activate the

calling, a call message will be sent out, if the system is free, you can hear the call back

rings, you can talk with someone who answers the call.

Selective monitor

On main menu page,touching Direct Call Guard Unit icon will dail the guard center

immediately. If the guard person answers the call,intercom talking is available .

Date and time set

User Setup

Settings

To open the date and time setting

page,please select Main menu->User

setup->Clock.Input correct time by

touching the digital keypad,use key

to cancel the input,after nish input,press

key to save the settings.

To view the current date and time,please

enter the calendar page or main menu

page of status bar.

1 1 5 5

2 2 6 6

3 3 7 7

4 4 8 8

2011-11-09 17：41

CELL ROOM

[001] [1004]

-3-

Ring tone set

Screen and talk volume set

Monitor time set

Total 12 pieces ring tones can be selected.

Different ring tones can be set to identify

different calls from Door Station call,Intercom

call or Door Bell call.

To open ring tone setting page,please select

Main menu ->User Setup->Door Station

call tone/Intercom call tone/Door Bell call

tone. Choose a ring tone you like , then save

the setting, the ring tone will be performed

immediately.

During monitoring or talking state,press

“Adjust” icon,Brightness/Color/Scene/Talk

volume can be adjusted on monitor.

1. Scene mode selection: Total 4 screen

modes can be selected in sequence:

Normal, User, Soft

and

Bright.

Note that

only at

User mode

that you can modify

The monitor time is the duration time that the

monitor can view outside,90 seconds is the

default monitor time.But it can be changed at

any time.To change the monitor time,please

select Main menu->User setup->Monitor

time,Input the value by touching the digital

keypad,use key to cancel the input,after

nish input,press key to save the settings.

-4-

Monitor time set：

min：[01] sec：[30]

Brightness

colour.

whenever you modify

Brightness

colour

item

the

Scene mode

item

will be set to

User

mode automatically.

2. The

Brightness

and

Colour

item is for the image quality setting, adjust the value to get the

best image you like.

3. The

Talk Volume

item is talking volume adjustment.

Note that all the modifications will be done immediately after the operation.

Restore to default set

The restore to default function allows the

user to recover the settings to factory setting.

Note that this operation is irreversible and will

not change the date and time setting.Please

select Main menu->User setup->Restore

to default,press Restore to default icon,a

message of "Restore to default?"will be asked

at status bar,press the Restore to default

icon,restore setting will be activated.

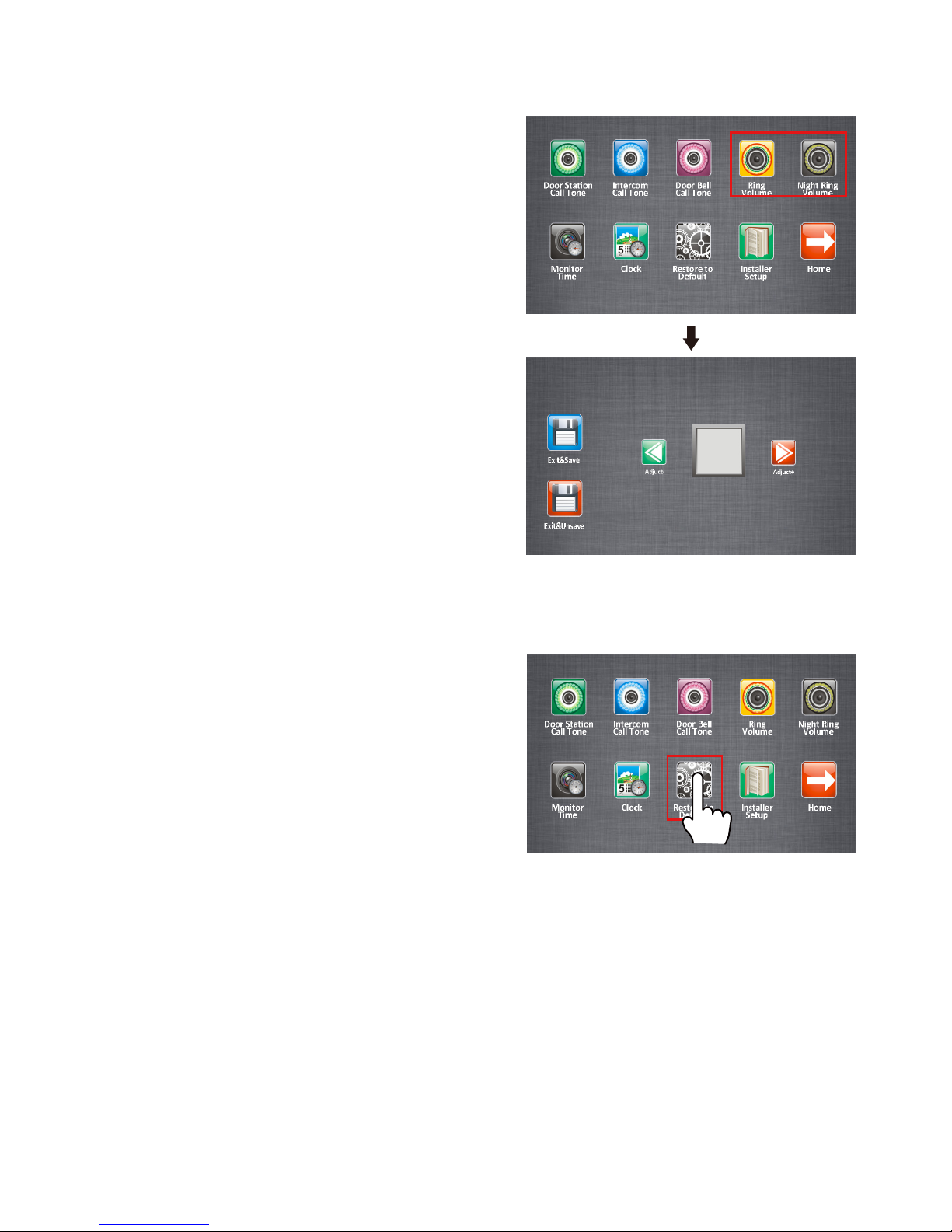

Ring volume set

The monitor offers two ring volume settings:day

ring volume and night ring volume,It's

convenient for user to control day and night ring

volume,User can adjust the best ring volume

by oneself at any time.

Ring volume:6:00~18:00 is the day time by

default.Select Main menu->User setup->Ring

volume,and press Adjust icon to decrease/

increase volume,the adjustable range is from

0~9.After finish setting,please tap save&exit

icon to quit and save the settings.

Night ring volume:18:00~6:00 is the night time

by default.Select Main menu->User setup-

>Night ring volume.and press Adjust icon

to decrease/increase volume,the adjustable

range is from 0~9.After nish setting,please tap

save&exit icon to quit and save the settings.

-5-

Restore to default？

Specification:

▪Power supply DC18~24V

▪Screen 7" digital TFT(16:9)

▪Resolution 800X480 pixels

▪Dimension 125(H)×225(W)×23(D)mm

We reserve the right to modify the specification in this manual at any time without notice.

2011.11
