V-tech Zoo Jamz Guitar Manuale utente

Toy Adaptation Program Zoo Jamz Guitar Instruction Sheet

1. Carefully remove the toy from its box. We want the toy to look brand new when we’re all finished, so the

packaging should be kept in nice condition. The guitar is attached to a piece of cardboard that comes out of

the outer box. Three tabs on the back hold the toy in place and can be removed by turning the tabs 90 degrees.

2. Turn the toy on and play with it! See what each

of the buttons do and how their different

functions might be beneficial for a child’s

learning and play. There are eight colorful

buttons on the neck of the giraffe. Choose one

of these buttons to adapt.

3. Remove the back cover of the toy.

There are 15 screws holding the

back in place, circled on the image

to the left. Remove these screws

and set them aside, making sure

not to lose any of them during the

adapting process.

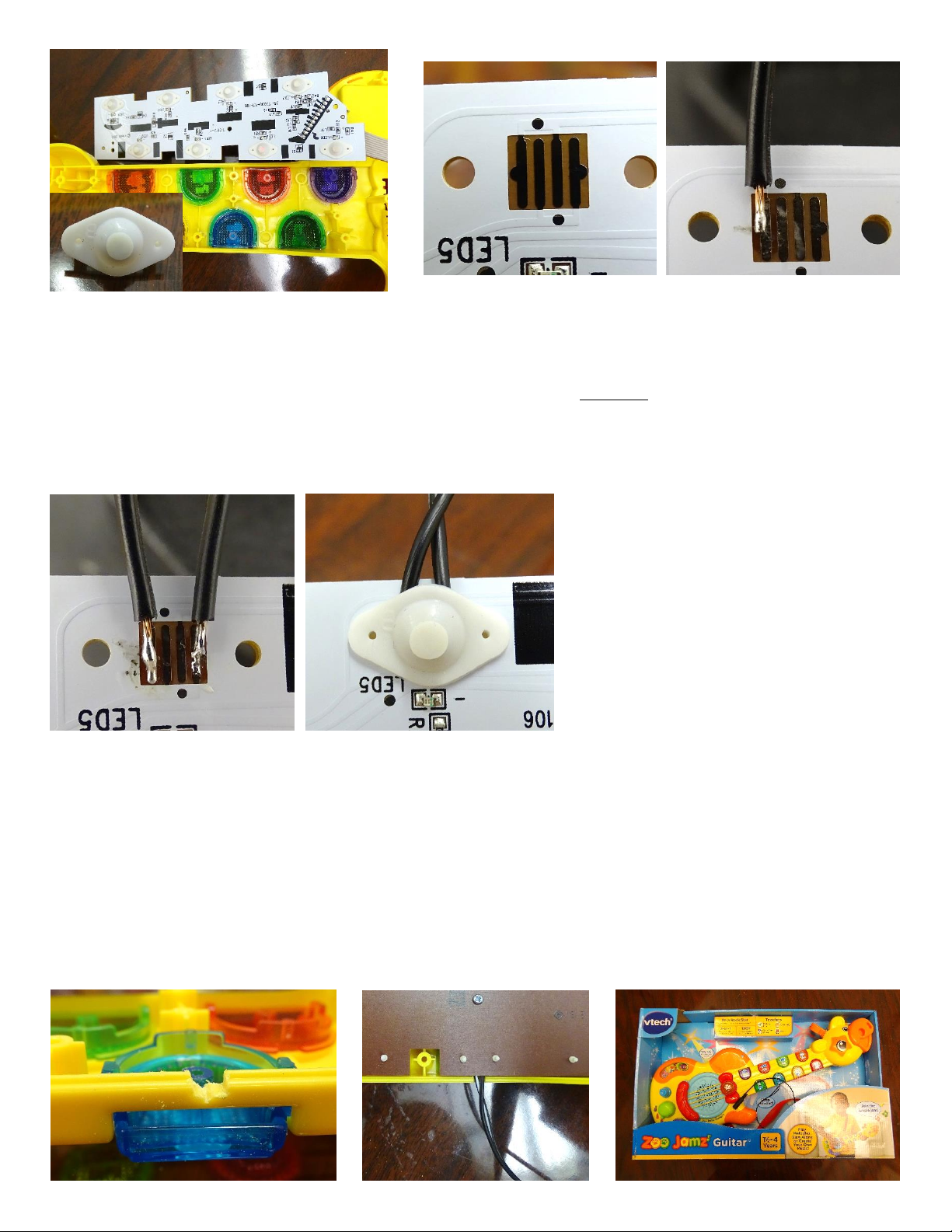

4. Once the toy is opened, you can see the

circuit board in the neck is bolted in place.

Remove the 3 screws shown in the photo

to the right and set them aside in a safe

location.

6. Take a wire with a jack attached and separate the two wires

on the free end. Strip a quarter inch off one of the loose wires

and solder it to one half of the mesh circuit board. Make sure

the solder or wire does not make contact with any of the

other metal strips in the mesh. Use the helping hands to hold

the wire and circuit board in place.

5. The eight buttons on the front of the

giraffe correspond to the eight silicon

buttons on the circuit board. Note which

silicon button matches the button chosen

in Step 2 and gently pull the silicon cover

to remove it, revealing the mesh circuit

underneath.

10. Test the toy a final time. The

working toy can be carefully

repackaged. Use the tabs

from Step 1 to secure the

guitar onto the cardboard

and replace it in its box. Tape

the edges and return the

finished toy to a TAP team

member.

9. Screw the circuit board

back into place with the

silicon buttons facing

down. Test the guitar

again with the switch

and original button. If

they’re still working,

screw the back cover

back into place.

7. Once the first connection is cool, check

to ensure it is secure and cannot be

pulled out of place. Repeat the process

with the other end of the wire and the

other half of the circuit. Test the

connection with a switch and if it is

working, replace the silicon button by

gently pulling the pegs through the

two small holes. If your switch does

not work, check with a TAP team

member.

8. Test the connection again with

the switch and the original

button. If both are working, the

toy can be put back together.

First, file a notch next to the

button that was adapted so the

wire sits flush with the edge of

the plastic. This allows the toy to

be completely closed.
