Washing machine

Adora S

Operating instructions

V-ZUG Ltd

Thank you for choosing to buy one of our products. Your appliance is made

to high standards and is easy to use. Nevertheless, please take the time to

read these operating instructions in order to familiarize yourself with the

appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appli-

ance at the time these operating instructions went to press. The right to make

technical modifications for the purpose of the further development of the

appliance is reserved.

Symbols used

AIndicates step-by-step instructions.

– Describes how the appliance reacts to the steps taken.

䡲Indicates a list.

Validity

The model number corresponds to the first 3 digits on the identification plate.

These operating instructions apply to the model:

Variations depending on the model are noted in the text.

Denotes important safety precautions. Failure to observe said pre-

cautions can result in injury or damage to the appliance or fittings!

Denotes useful tips for the user.

Model Type Model no.

Adora S WA-ASZ 266

Contents

Safety precautions 5

Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5

Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Your appliance 9

Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operating and display elements . . . . . . . . . . . . . . . . . . . . . 11

Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Programme overview 14

Main programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Additional programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

User settings 20

Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Soaking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Hygiene recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Automatic door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Restoring factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Washing 28

Adding washing detergent . . . . . . . . . . . . . . . . . . . . . . . . . 30

Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Changing selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Programme selection with childproof lock activated . . . . . . 39

End of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

End of the wash day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

… Contents

Care and maintenance 42

Cleaning the detergent dispenser drawer . . . . . . . . . . . . . . 42

Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . 42

Emergency draining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the foreign body trap . . . . . . . . . . . . . . . . . . . . . . 44

Trouble-shooting 45

What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Opening the appliance door in the event of a power

failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Washing tips 56

Unsatisfactory wash results . . . . . . . . . . . . . . . . . . . . . . . . . 58

Spare parts 62

Technical data 63

Note for testing institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

VAS Vibration Absorbing System . . . . . . . . . . . . . . . . . . . . 64

Water and energy economy . . . . . . . . . . . . . . . . . . . . . . . . 64

Automatic energy-saving stand-by . . . . . . . . . . . . . . . . . . . . 64

Disposal 65

Notes 66

Index 68

Repair service 71

Quick instructions 72

Safety precautions

In accordance with the requirements of IEC 60335-1:

䡲This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless supervised or unless they have been given instruction

concerning the use of the appliance by a person responsible for their

safety.

Before using for the first time

䡲The appliance must be installed and connected to the electricity supply in

accordance with the separate installation instructions. The necessary work

should be carried out by a qualified fitter or electrician.

䡲Dispose of the packaging material in accordance with local regulations.

䡲Ensure access to the place of disconnection (e.g. socket outlet, wall switch,

mains fuse) and the water tap.

䡲The transport lock must be removed. Failure to remove the transport lock

can result in damage to the appliance or apartment or laundry room

fittings.

䡲Before using the newly installed appliance for the first time, please follow

the precautions given in the 'Using for the first time' section.

The appliance corresponds to recognised technology standards

and the relevant safety regulations. Proper use of the appliance is

however essential to avoid damage and accidents. Please there-

fore follow the precautions given in these operating instructions.

… Safety precautions

Correct use

䡲The appliance is suitable for washing home textiles with water and regular

washing machine detergent. The appliance is designed for use in the home

and for the above-mentioned purpose only. No liability is assumed for any

damage caused by improper or incorrect use.

䡲Any repairs, modifications or manipulations to the appliance, especially

any electrically live parts, should only be carried out by the manufacturer,

its Customer Services or similarly qualified persons. Repairs if carried out

incorrectly may cause serious injury, damage to the appliance and fittings,

as well as affect the functioning of the appliance. If the appliance is not

working properly or in case of a repair order, follow the instructions given

in the 'Repair service' section. If necessary, please contact Customer

Services.

䡲Use original spare parts only.

䡲Retain these operating instructions for future reference. If you sell or pass

the appliance on to a third party, please ensure these operating

instructions accompany the appliance, together with the instructions on

installation. In this way, the new owner can inform themselves about how

to use the appliance correctly and read the pertinent safety precautions.

Do not use the appliance to wash the following:

䡲Textiles that have been cleaned, treated or soaked with flammable

chemicals, detergents or solvents such as benzene, alcohol, stain remover,

oil, paint, wax, etc. Fire or explosion hazard! Wash materials containing

such substances first by hand with water or allow the solvent to evaporate

completely.

䡲Textiles with metal reinforcements (risk of damage).

䡲Trainers, diving suits, rucksacks, carpets, etc.

… Safety precautions

Children in the home

䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for

children. Danger of suffocation! Keep packaging material away from

children.

䡲The appliance is designed for use by adults who are familiar with these

operating instructions. Children are often unable to recognise the danger

of electrical appliances. Ensure proper supervision and do not allow

children to play with the appliance – there is a danger that children could

get locked inside.

䡲Washing detergent can irritate the eyes, mouth and throat and even cause

choking! Keep washing detergent out of the reach of children.

䡲Use the childproof locking facility.

Note on use

䡲If the drain hose leads into a sink (wash trough), check that it is fastened

securely. Make sure that the water can drain off fast enough. Flooding

hazard!

䡲From time to time, check the drain hose for tears, kinks, twists, bends, etc.

䡲Do not use the appliance if visibly damaged or if the inlet pipes are

damaged. Contact Customer Services.

䡲If the appliance is not operating properly, disconnect it from the electricity

supply immediately.

䡲If the mains cable of the appliance is damaged, it must be replaced by

Customer Services in order to avoid hazard.

䡲Keep pets away from the appliance.

䡲To protect your washing, follow the fabric care symbols and the hints and

advice in the 'Washing tips' section.

䡲Do not use solvents (e.g. turpentine, benzene) instead of, or in addition to,

water, washing detergent or additives in your appliance. Fire or explosion

hazard!

Do not use the pivoting operating panel to lift or move the

appliance.

… Safety precautions

䡲Only use water softener, dye / bleach or other additives expressly

recommended by the manufacturer for use in the appliance. Follow the

manufacturer’s instructions carefully.

䡲Store washing detergents, washing additives and other additives in a cool,

dry place. Lumpy washing detergent can cause problems. Keep all

washing detergents and additives out of the reach of children.

䡲Before closing the appliance door and starting a programme, ensure that

there are no foreign objects or pets in the washing drum, detergent

dispenser drawer or around the foreign body trap. Foreign objects such as

coins, nails, paper clips, etc. can damage parts of the appliance, as well

as the washing.

䡲During longer periods of absence, turn off the water tap before switching

off the power by pulling out the mains plug. Never pull the mains plug out

by the cable. Please note: the built-in overflow protection is rendered

inactive when the power is switched off.

Maintenance

䡲Disconnect the appliance from the mains before carrying out maintenance

work.

䡲Do not spray the outside of the appliance with water. Do not use a steam

cleaner.

䡲Do not sit, lean or rest on the appliance door.

䡲Do not climb on to the appliance. Danger of tipping!

䡲Opening the water inlet and outlet while the appliance is in operation could

pose a scalding hazard.

䡲Use original spare parts only.

Ensure the washing drum has stopped moving before reaching

inside. Do not touch the drum while it is still in motion – risk of

serious injury!

Your appliance

Appliance description

䡲Capacity: 8 kg dry washing

䡲6 main programmes

䡲Additional programmes

–Easycare

–Pre-wash

–Sport

– Steam anti-crease

– Night-time economy programme

–Anti-mite

–Intensiveprogramme

–Soaking

–Soapwash

–Biowash

– Skin protection

䡲Additional functions

–Temperatureselection

– Spin speed selection

– Delayed start

– Stop after rinsing

– Deselect parts of programmes

䡲Sensors for optimizing the wash cycle

䡲Automatic energy-saving stand-by

䡲Digital display for hints and trouble-shooting

䡲Automatic door opener

䡲Childproof lock

䡲Aqua-Stop with anti-leak protection

… Your appliance

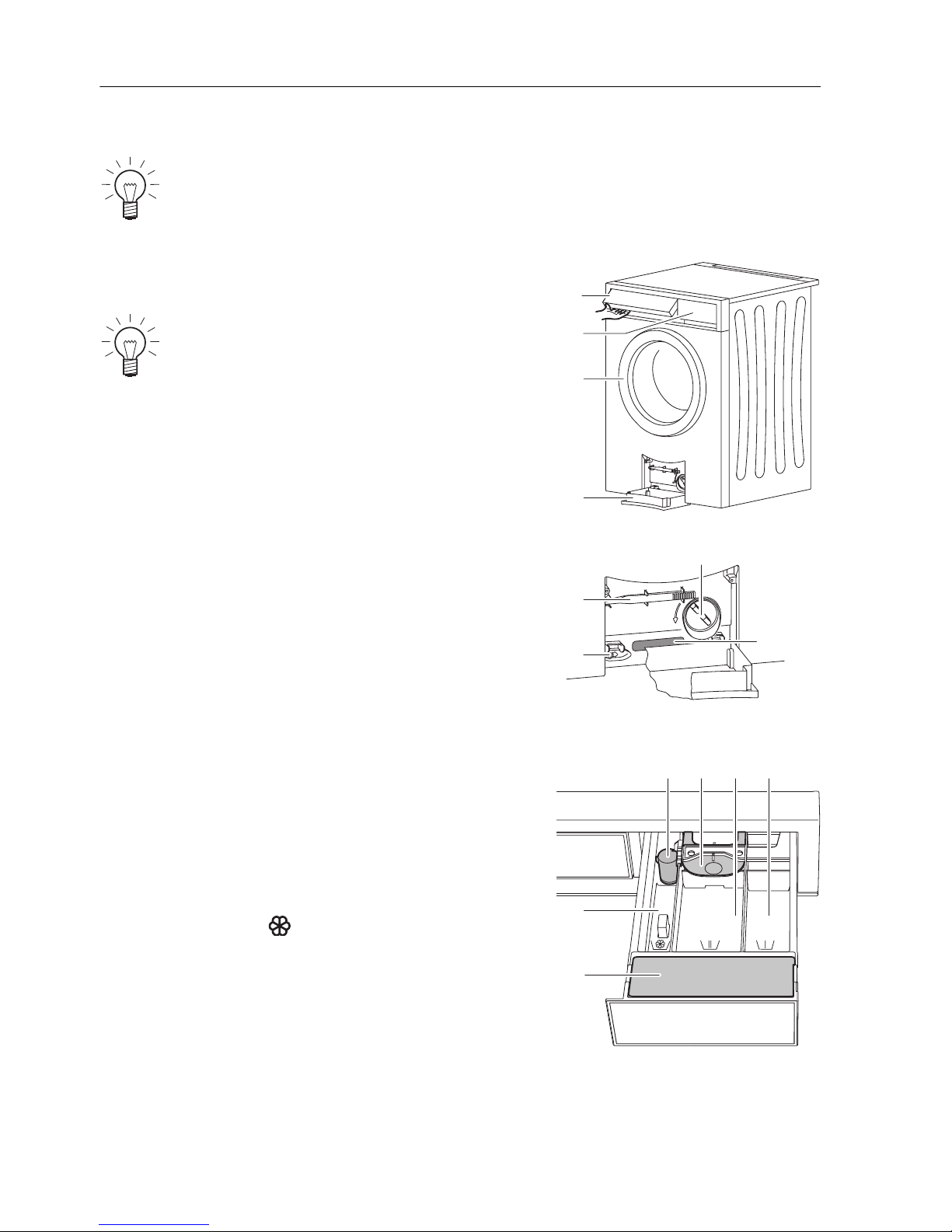

Construction

1Operating and display elements

(pivoting operating panel)

2Detergent dispenser drawer

3Appliance door

4Drain tray

5Foreign body trap

6Emergency door release tool

7Emergency door release

8Identification plate / Serial number (FN)

Detergent dispenser drawer

9Pre-wash detergent, compartment I

10 Main wash detergent, compartment II

11 Liquid detergent flap

12 Siphon for fabric conditioner (softener)

13 Fabric conditioner (softener),

compartment

14 Quick operating instructions

The appliance door can be set to open to the left or to the right. Our

Customer Services can make the necessary adjustments to the

appliance.

The operating panel can be set in one

of three positions.

Front:

Back:

German / French

English / Italian

12 11 10 9

Indice

Altri manuali V-ZUG Rondella

V-ZUG

V-ZUG Adora SLQ 267 Manuale utente

V-ZUG

V-ZUG Unimatic T Manuale utente

V-ZUG

V-ZUG Adora SLQ 267 Manuale utente

V-ZUG

V-ZUG Unimatic S Manuale utente

V-ZUG

V-ZUG 11023 Manuale utente

V-ZUG

V-ZUG UnimaticWash V2000 Manuale utente

V-ZUG

V-ZUG AdorinaWash V200 Manuale utente

V-ZUG

V-ZUG UnimaticWash V4000 Manuale utente

V-ZUG

V-ZUG AdorinaWash V200 Manuale utente

V-ZUG

V-ZUG Unimatic S Manuale utente

V-ZUG

V-ZUG Adorina L Manuale utente

V-ZUG

V-ZUG Adorina S Manuale utente

V-ZUG

V-ZUG Adora L Manuale utente

V-ZUG

V-ZUG 11001 Manuale utente

V-ZUG

V-ZUG Adora SL Manuale utente

V-ZUG

V-ZUG Adora SLQ Manuale utente

V-ZUG

V-ZUG AW V6000 Manuale utente

V-ZUG

V-ZUG Adora L Manuale utente

V-ZUG

V-ZUG Unimatic SL Manuale utente

V-ZUG

V-ZUG AdorinaLavage V400 Manuale utente

V-ZUG

V-ZUG AdoraWash V2000 Manuale utente

V-ZUG

V-ZUG Adora SLQ WP Manuale utente

V-ZUG

V-ZUG Adora SL Manuale utente

V-ZUG

V-ZUG AdorinaDry V400 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
