LEAK DETECTOR INSTALLATION DIAGRAMS
Leak detector installation in single-phase or three-phase Trydan e-Chargers
PE NRTS
P2
1
J1
P3 P4
PE NRTS
2
3
1
4
Power
plate
Coil
To carry out the installation, the connector of the leak detector must be placed in the J1 port located on the power board.
Subsequently, the cables coming out of the power board must be routed to the charging hose inside the coil, depending
on the type of installation (single-phase or three-phase). See next page:
P3 P4
Leak
detector
connector

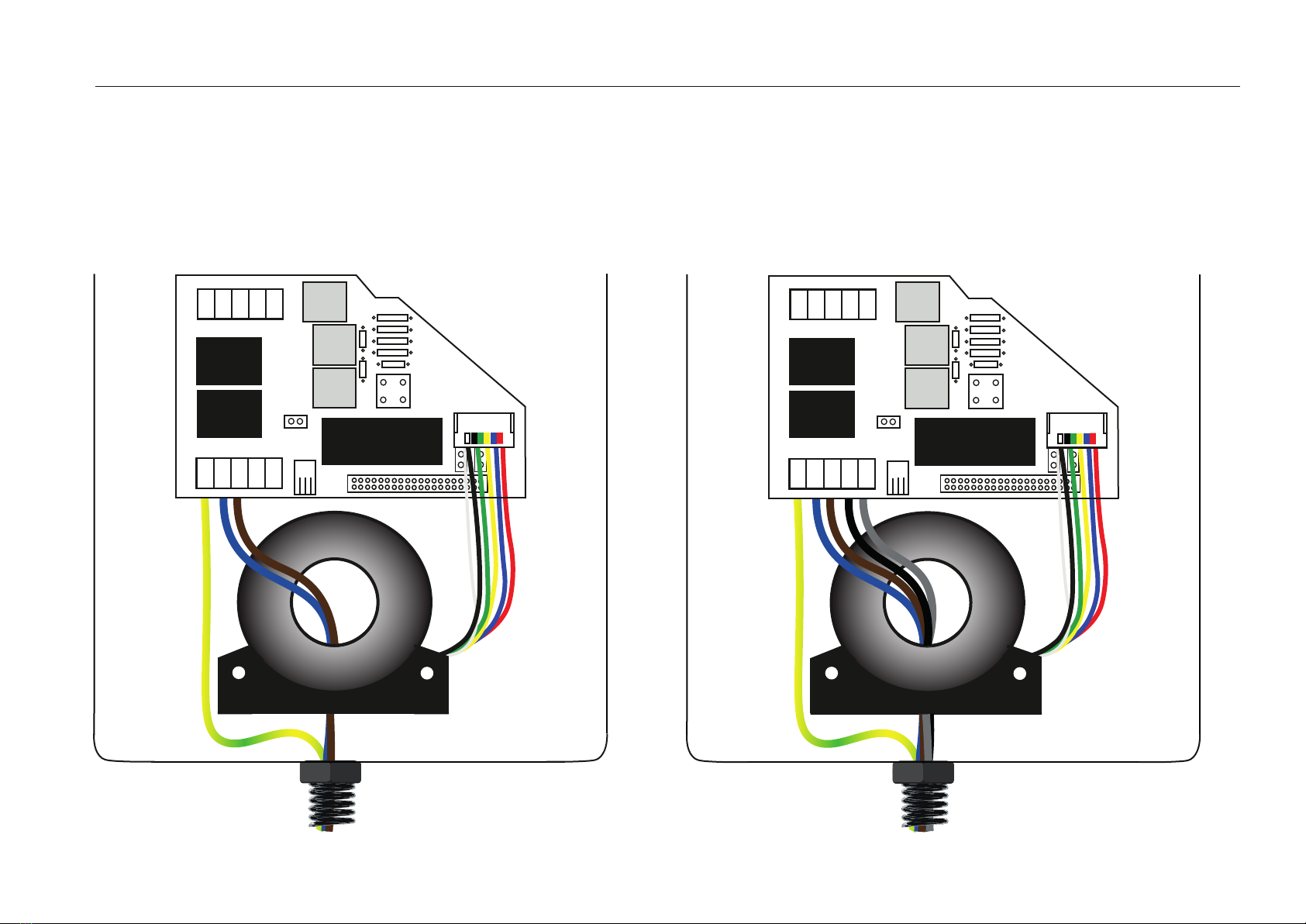

LEAK DETECTOR INSTALLATION DIAGRAMS
Single-phase installation
Run the following wires from the power board to the
hose: Neutral (blue) and Phase 1 (brown) inside the coil.
Always leave the earth wire (yellow and green) outside.
Three-phase installation
Run the following wires from the power board to the hose:
Neutral (blue), Phase 1 (brown), Phase 2 (black) and Phase 3
(grey) inside the coil. Leaving always the earth wire (yellow
and green) outside.
PE NRTS
P2
1
J1
P3 P4
PE NRTS
2
3
1
4
Power
board
Coil
Three-phase
installation
Leak
detector
connector
Charging
hose
Trydan
Housing
PE NRTS
P2
1
J1
P3 P4
PE NRTS
2
3
1
4
Power
board
Coil
Single-phase
installation
Leak
detector
connector
Charging
hose
Trydan
Housing
